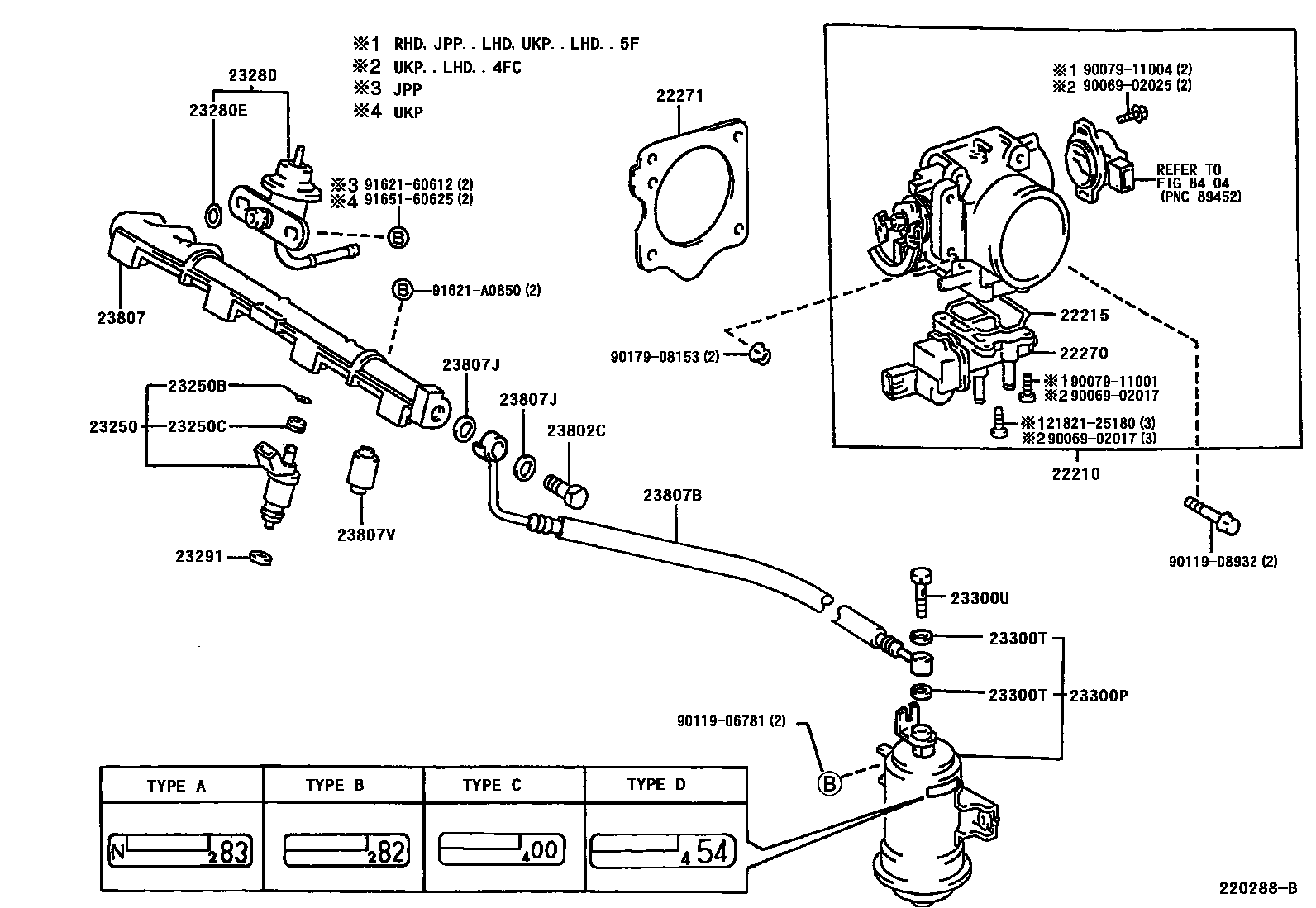

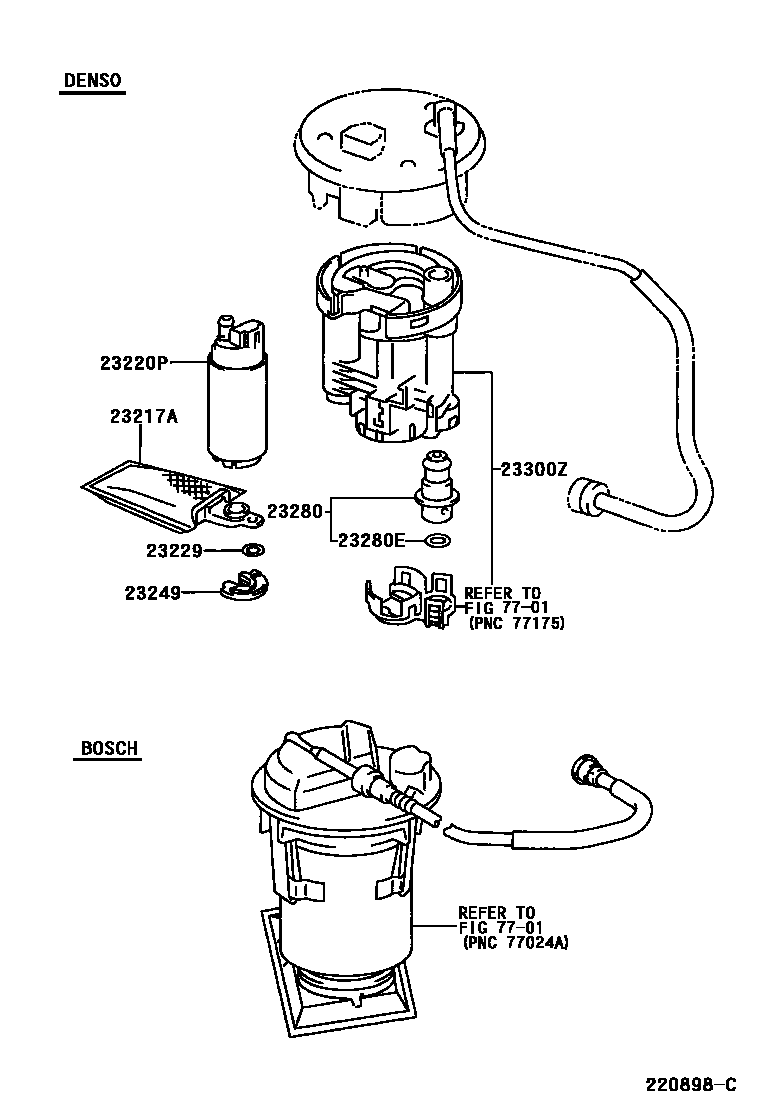

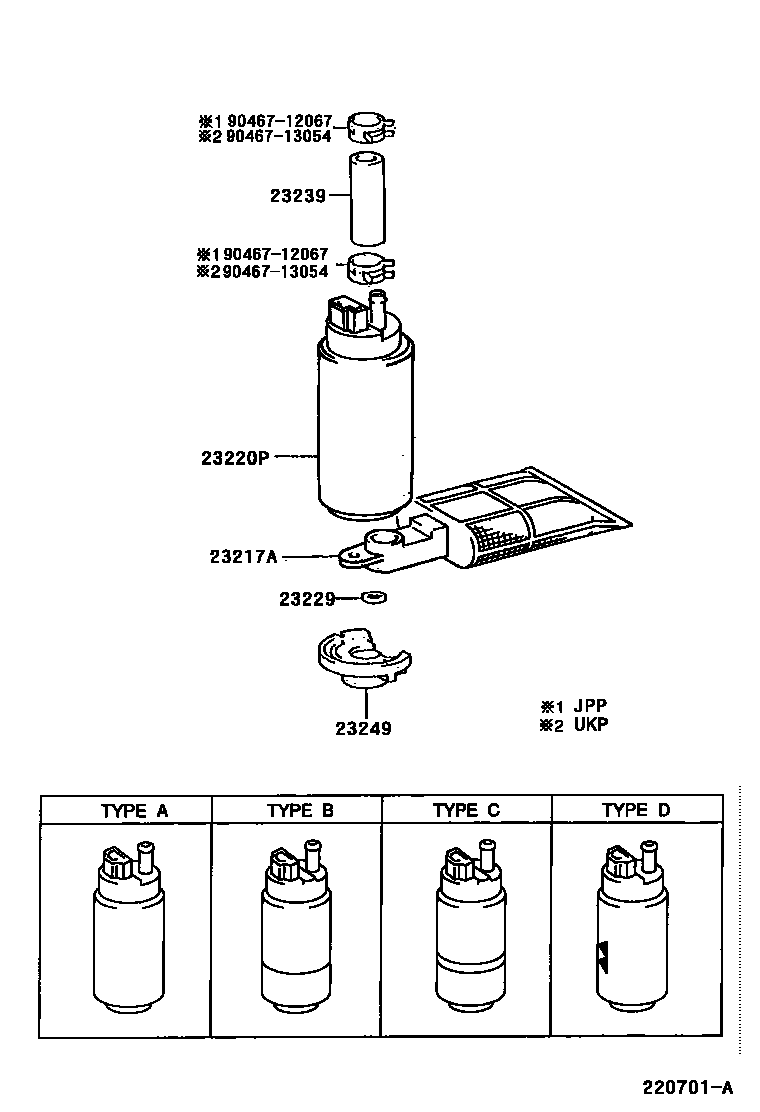

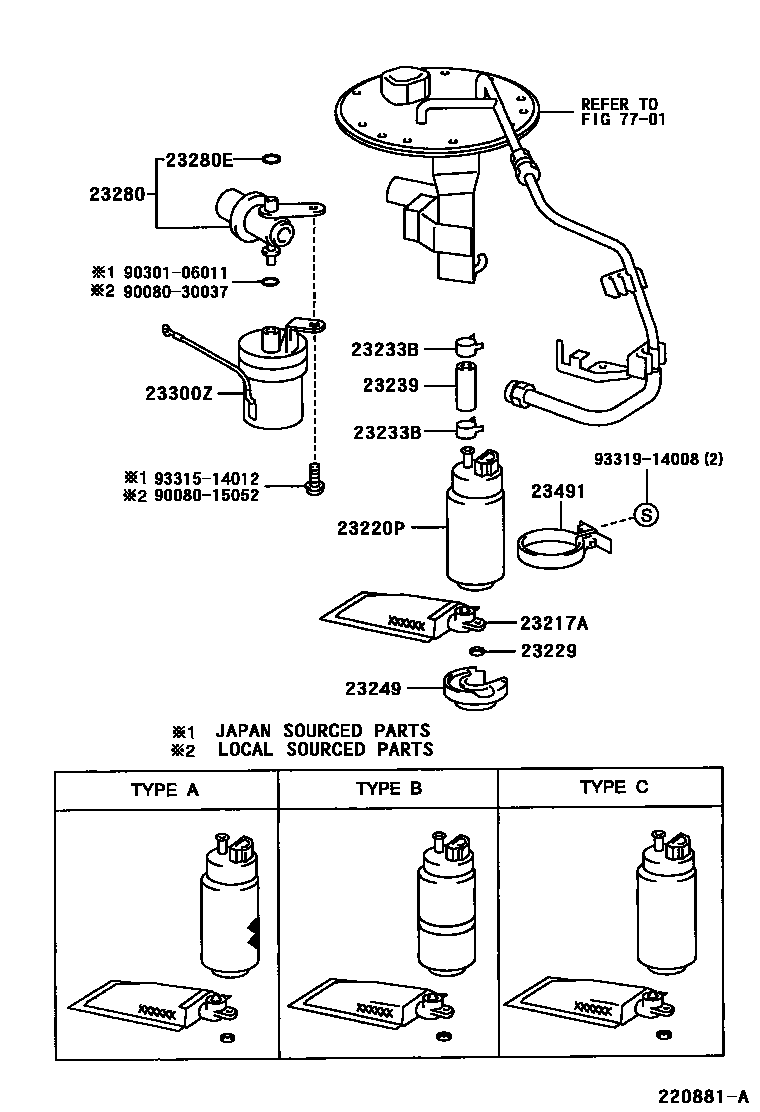

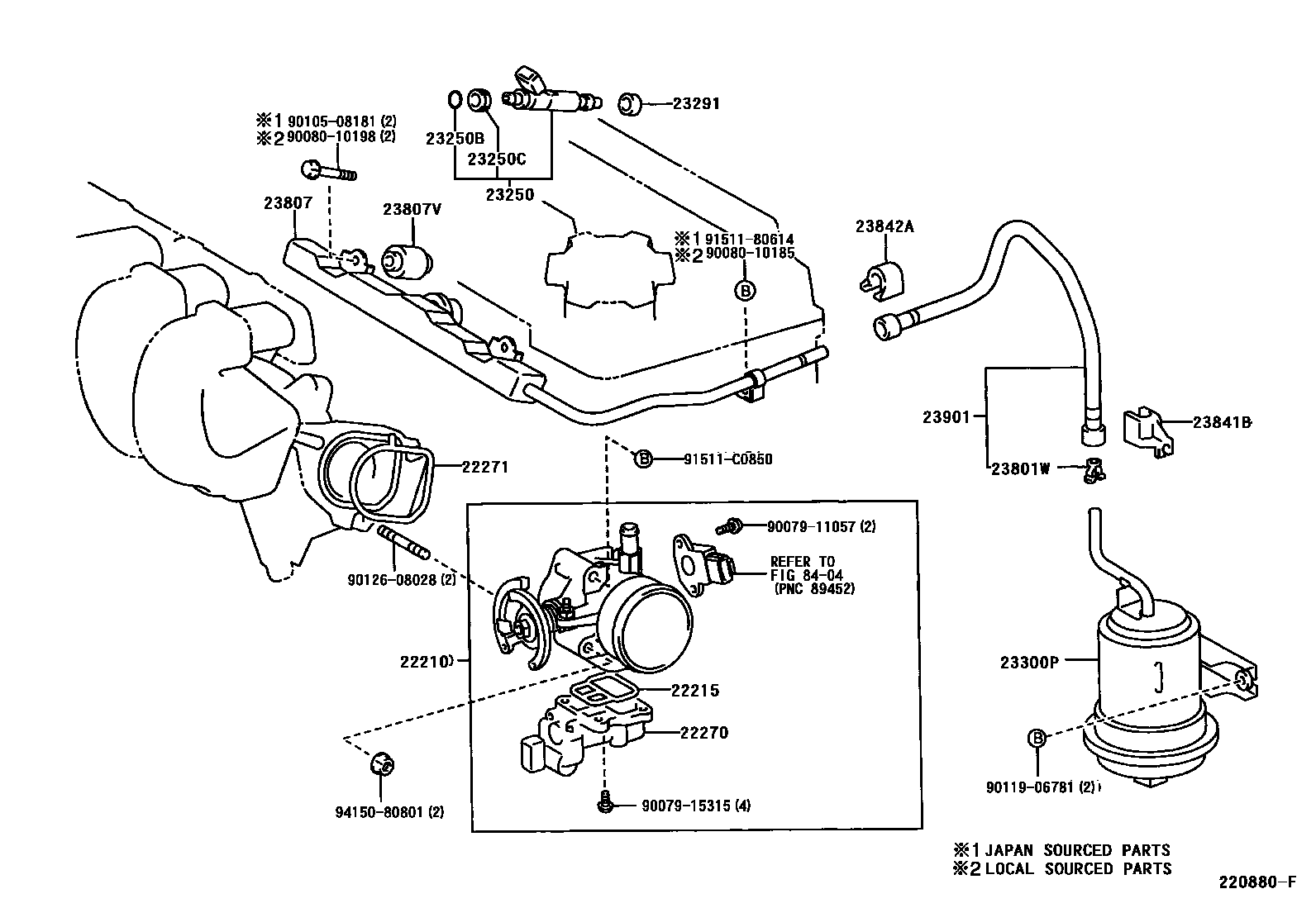

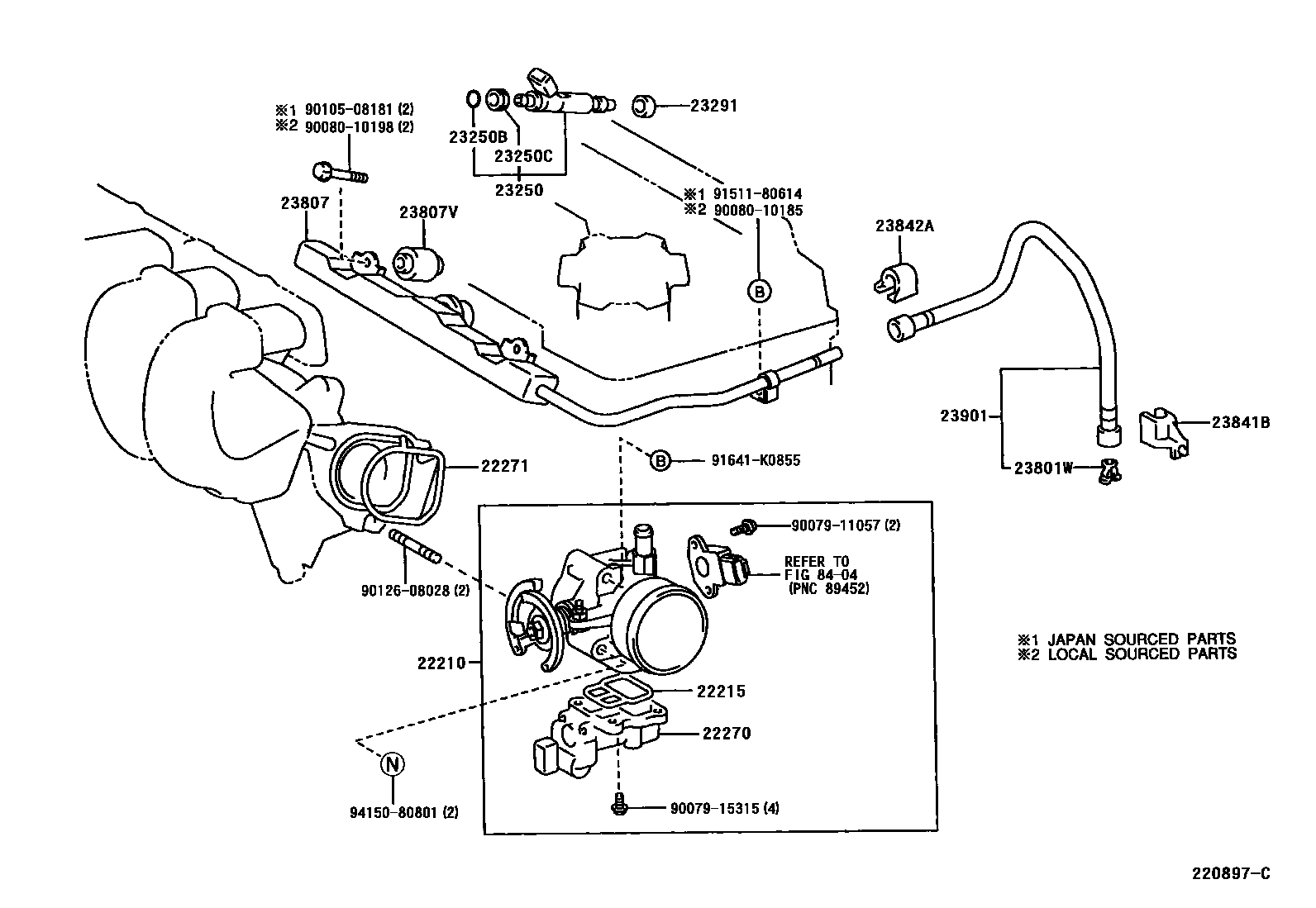

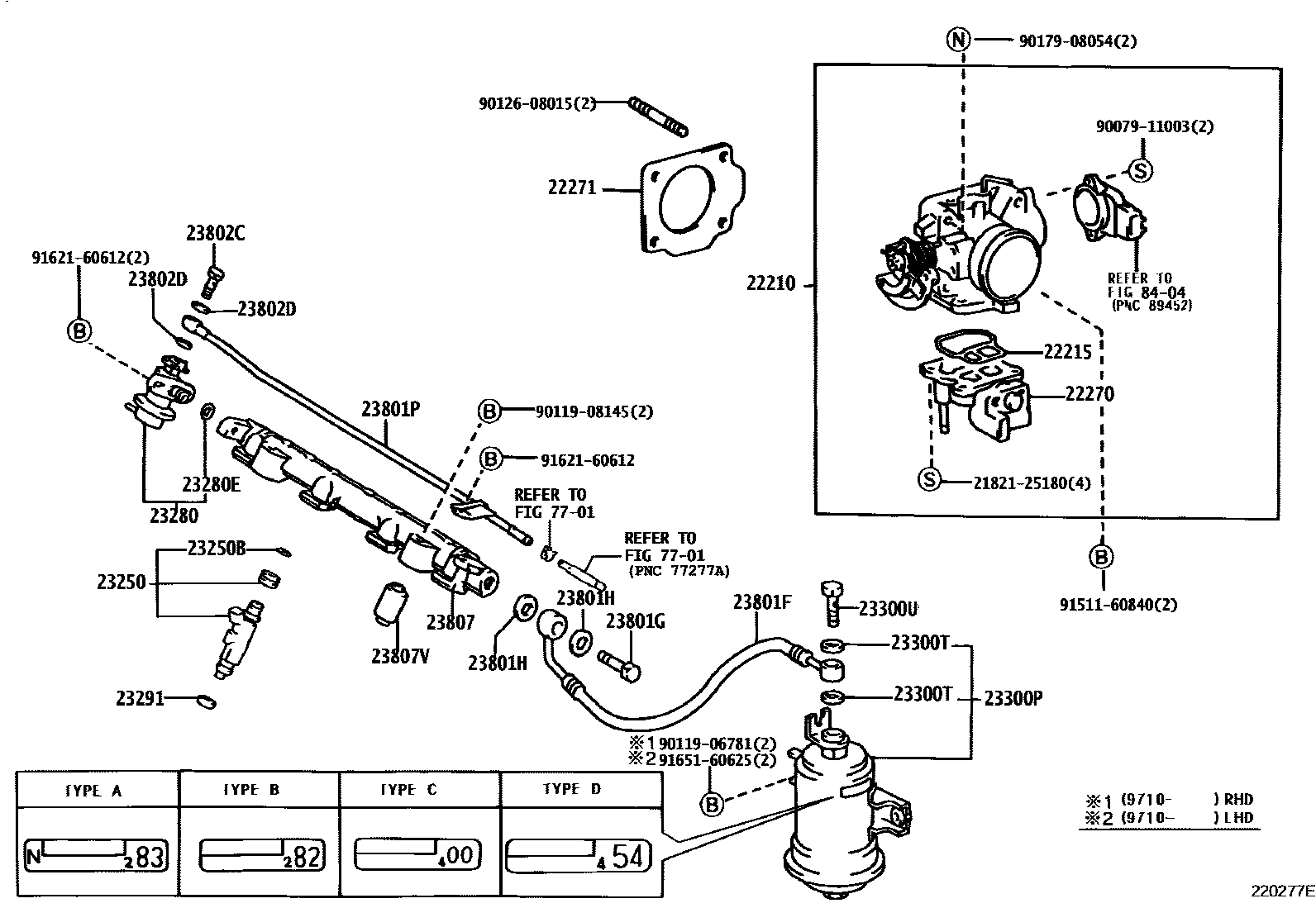

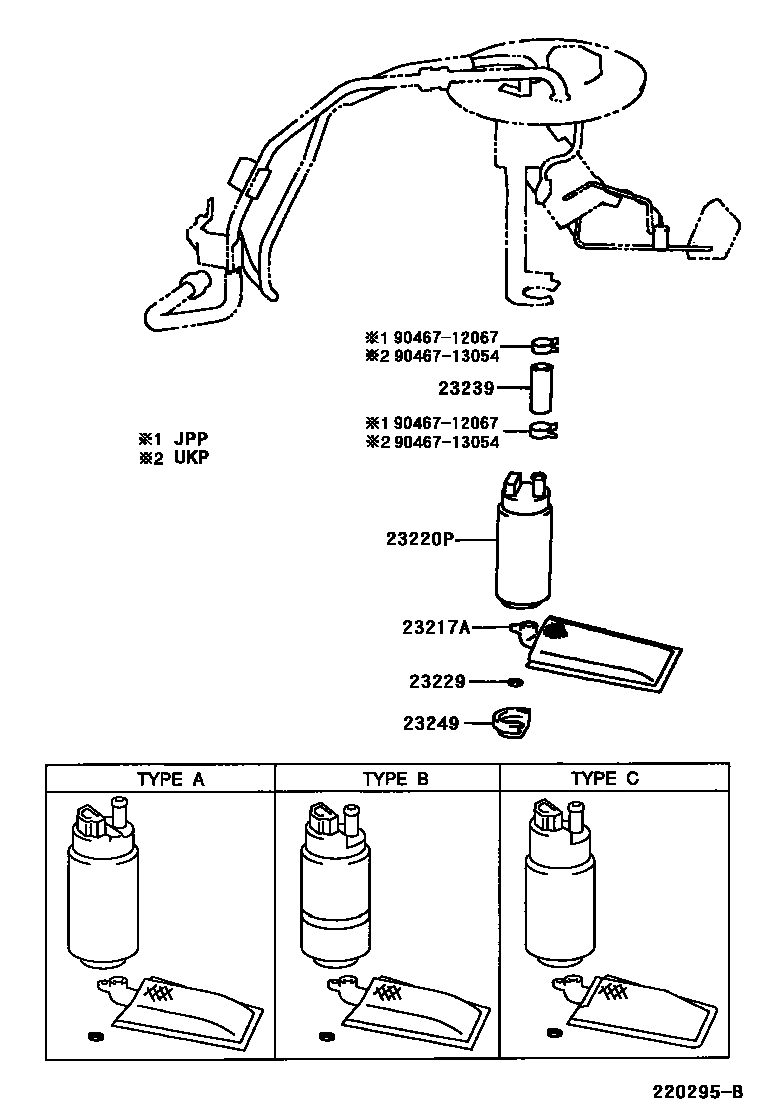

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 8 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-02200 · 22210-0D020 · 22210-0D030 · 22210-11610 · 22210-11620 · 22210-1A040 · 22210-1A050 · 22210-1A060 · 22210-22050 · 22210-22060 |
| 22215 | Throttle body cover gasket | 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-11020 · 22270-16090 · 22270-22050 |
| 22271 | Throttle body gasket | 22271-11030 · 22271-15020 · 22271-22030 |
| 23217A | fuel pump filter | 23217-03030 · 23217-11050 · 23217-74021 · 23217-76040 |
| 23220P | fuel pump assembly | 23220-02070 · 23221-0W010 · 23221-11060 · 23221-11070 · 23221-16520 · 23221-16530 · 23221-21010 · 23221-22010 |
| 23229 | Clip (for fuel pump filter) | 23219-03010 · 23229-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 |
| 23239 | hose | 23239-11010 · 23239-63010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-46180 · 23249-74610 |
| 23250 | Fuel injector assembly | 23209-0D020 · 23209-11130 · 23209-15040 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 · 90301-07030 |
| 23250C | Gasket (for injector) | 90080-48058 · 90480-13005 |
| 23280 | Fuel pressure regulator assembly | 23280-11070 · 23280-15020 · 23280-22010 · 23280-50030 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-07020 · 90301-07024 |
| 23291 | Injector vibration isolation pad | 23291-0D010 · 23291-22010 · 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-19285 · 23300-19295 · 23300-19515 · 23300-19555 · 23300-22020 · 23300-22030 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23300Z | Fuel filter (for fuel tank) | 23300-21010 · 23300-70150 |
| 23491 | Fuel filter ground clamp | 23491-74010 |
| 23801F | No. 1 fuel hose | 23271-11130 |
| 23801G | Connector bolt (for fuel pipe) | 90401-12033 |
| 23801H | Gasket (for fuel lines) | 23279-74010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11110 |
| 23801W | Fuel pipe connector clip | 90923-07010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-12097 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08014 |
| 23807 | Oil pipe sub-assembly | 23807-22030 · 23814-11060 · 23814-15050 |
| 23807B | Fuel line hose | 23271-15240 |
| 23807J | Oil pipe inlet gasket | 90430-12026 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-11020 · 90080-56052 · 90561-08020 · 90561-08055 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-22030 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-22050 · 23901-22060 |
