Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 8 images and 24 PNC and OE references.

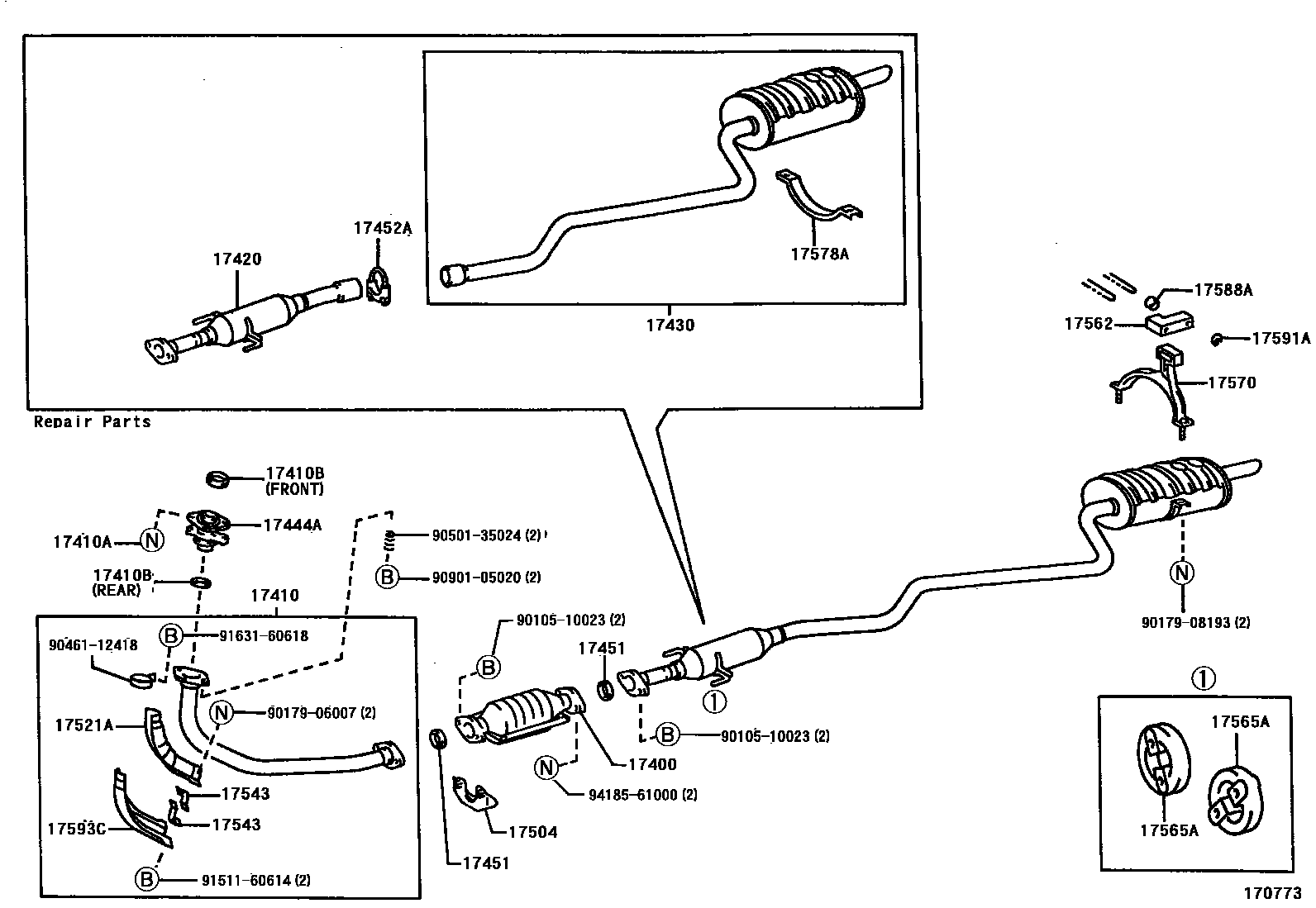

Toyota COROLLA Exhaust Pipe EPC diagram — 170773 — Exhaust Pipe — 170773 (199704 – 199910)

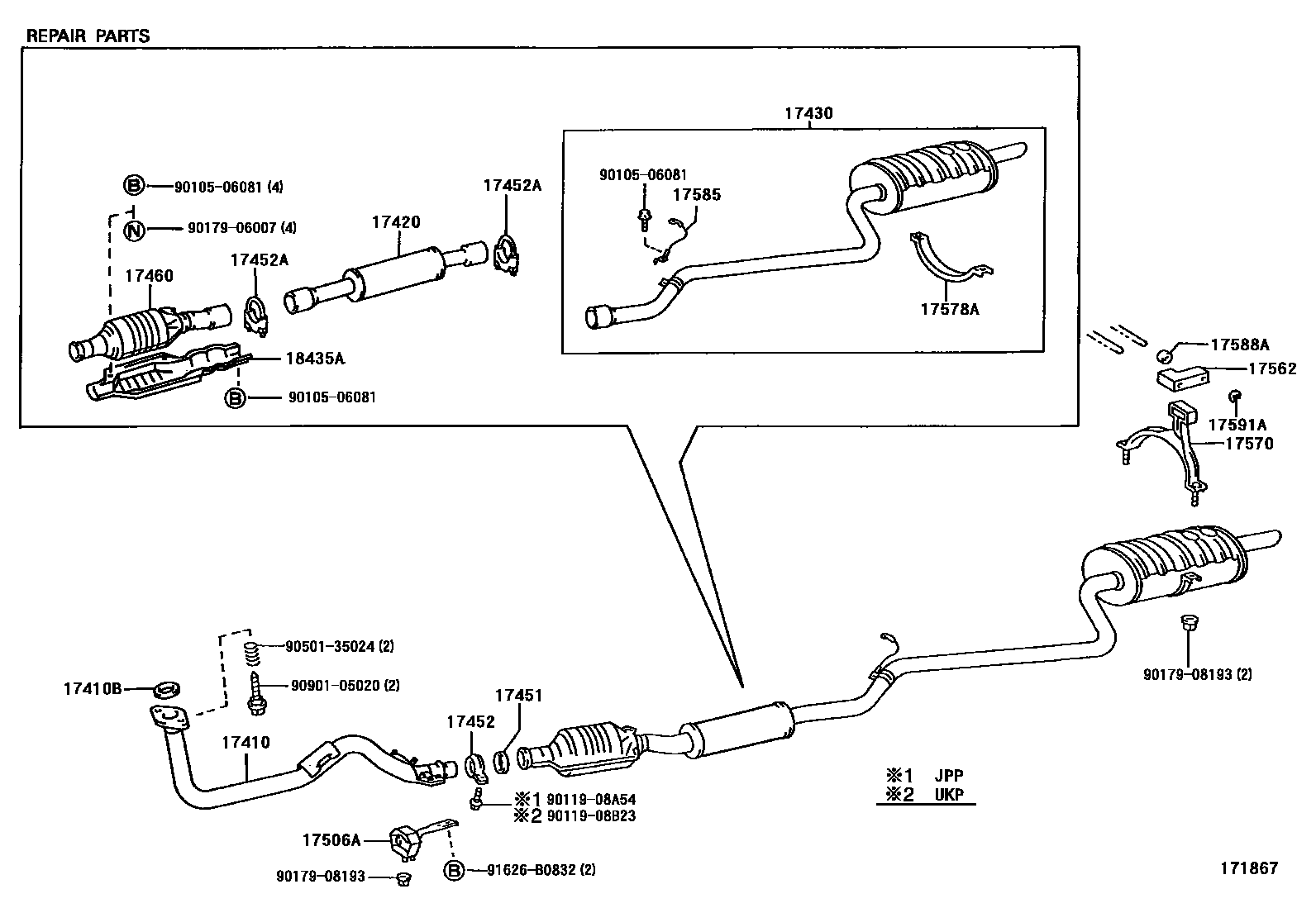

Toyota COROLLA Exhaust Pipe EPC diagram — 171867 — Exhaust Pipe — 171867 (199704 – 999999)

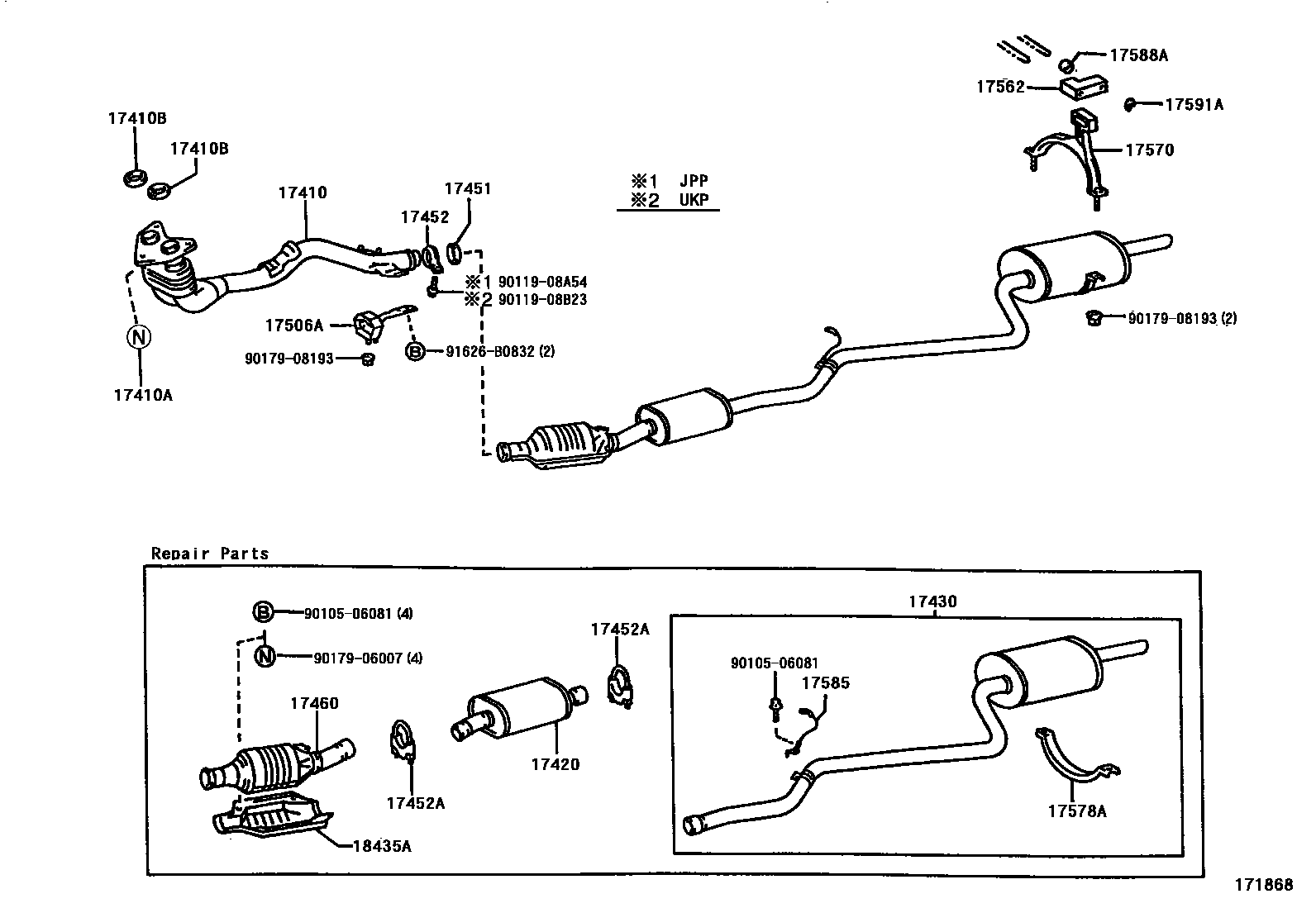

Toyota COROLLA Exhaust Pipe EPC diagram — 171868 — Exhaust Pipe — 171868 (199704 – 999999)

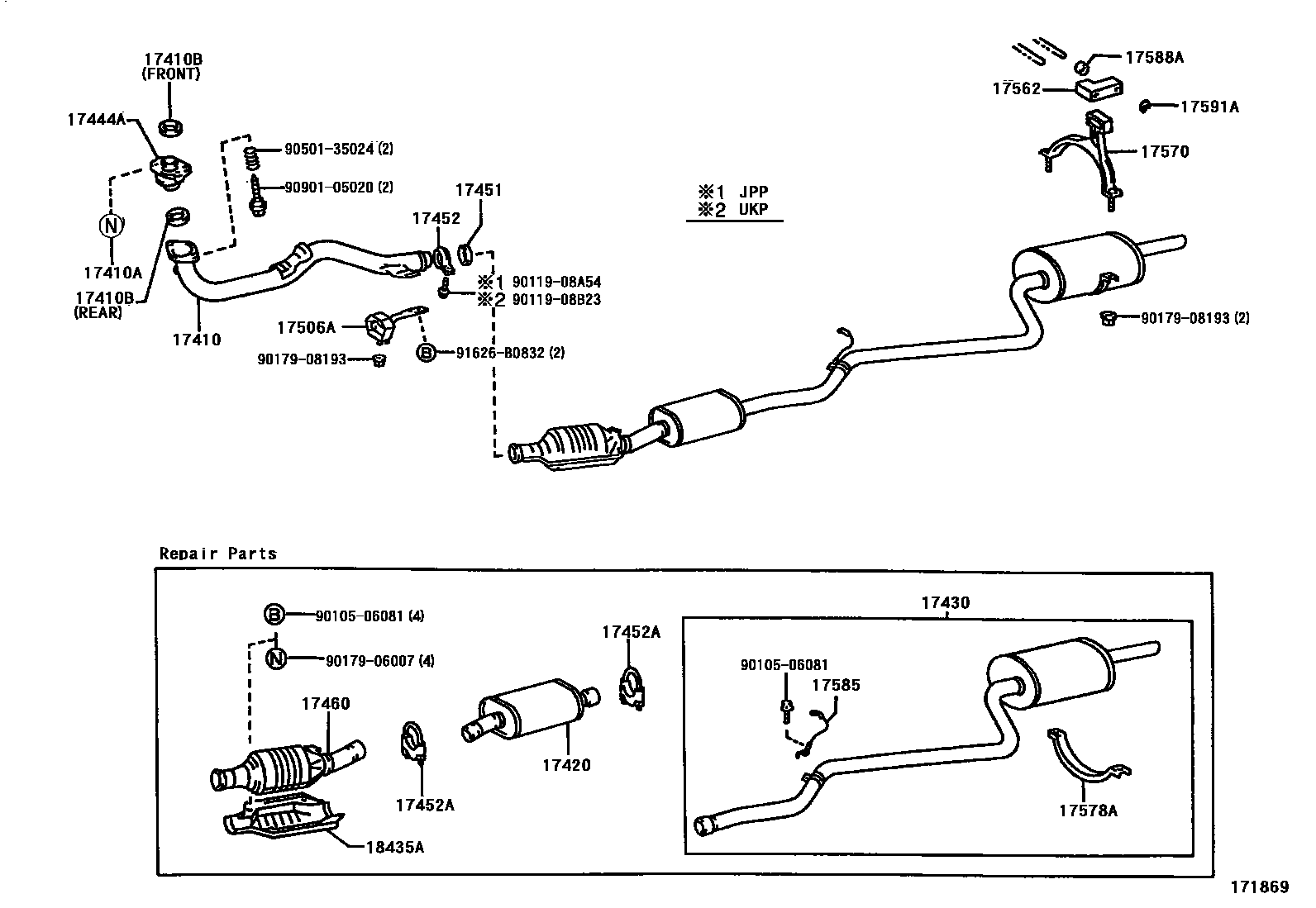

Toyota COROLLA Exhaust Pipe EPC diagram — 171869 — Exhaust Pipe — 171869 (199704 – 999999)

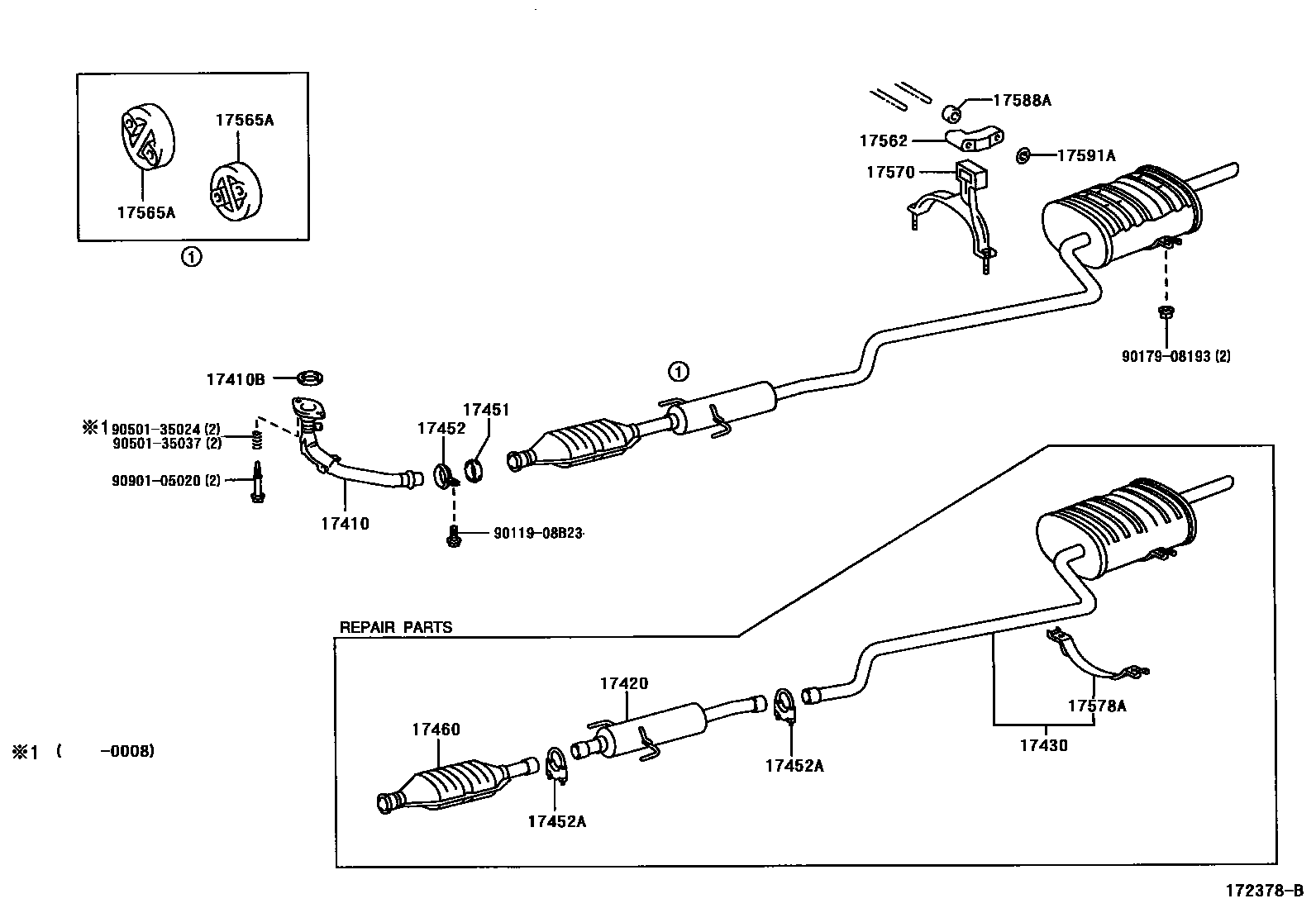

Toyota COROLLA Exhaust Pipe EPC diagram — 172378B — Exhaust Pipe — 172378B (199912 – 999999)

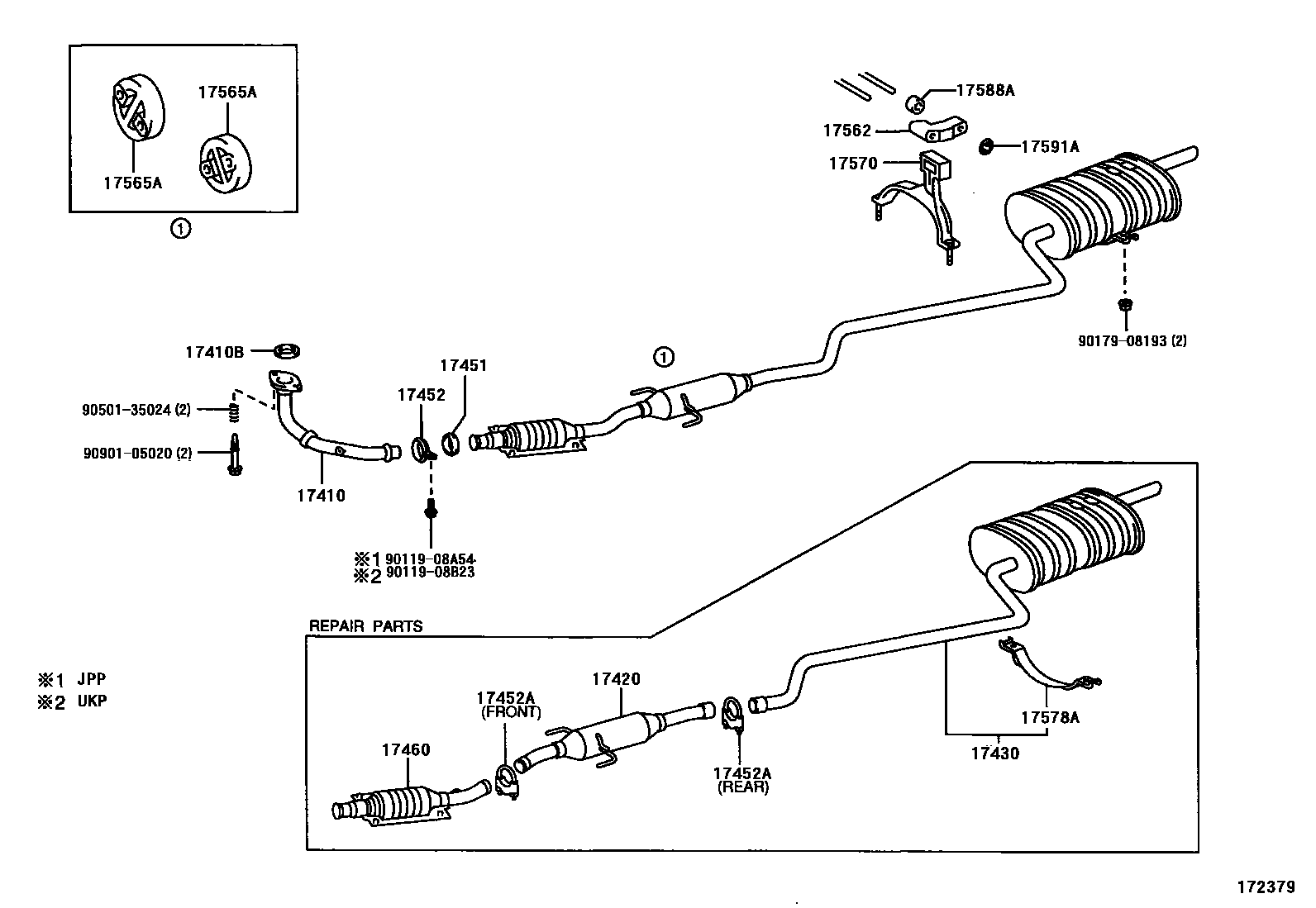

Toyota COROLLA Exhaust Pipe EPC diagram — 172379 — Exhaust Pipe — 172379 (199910 – 999999)

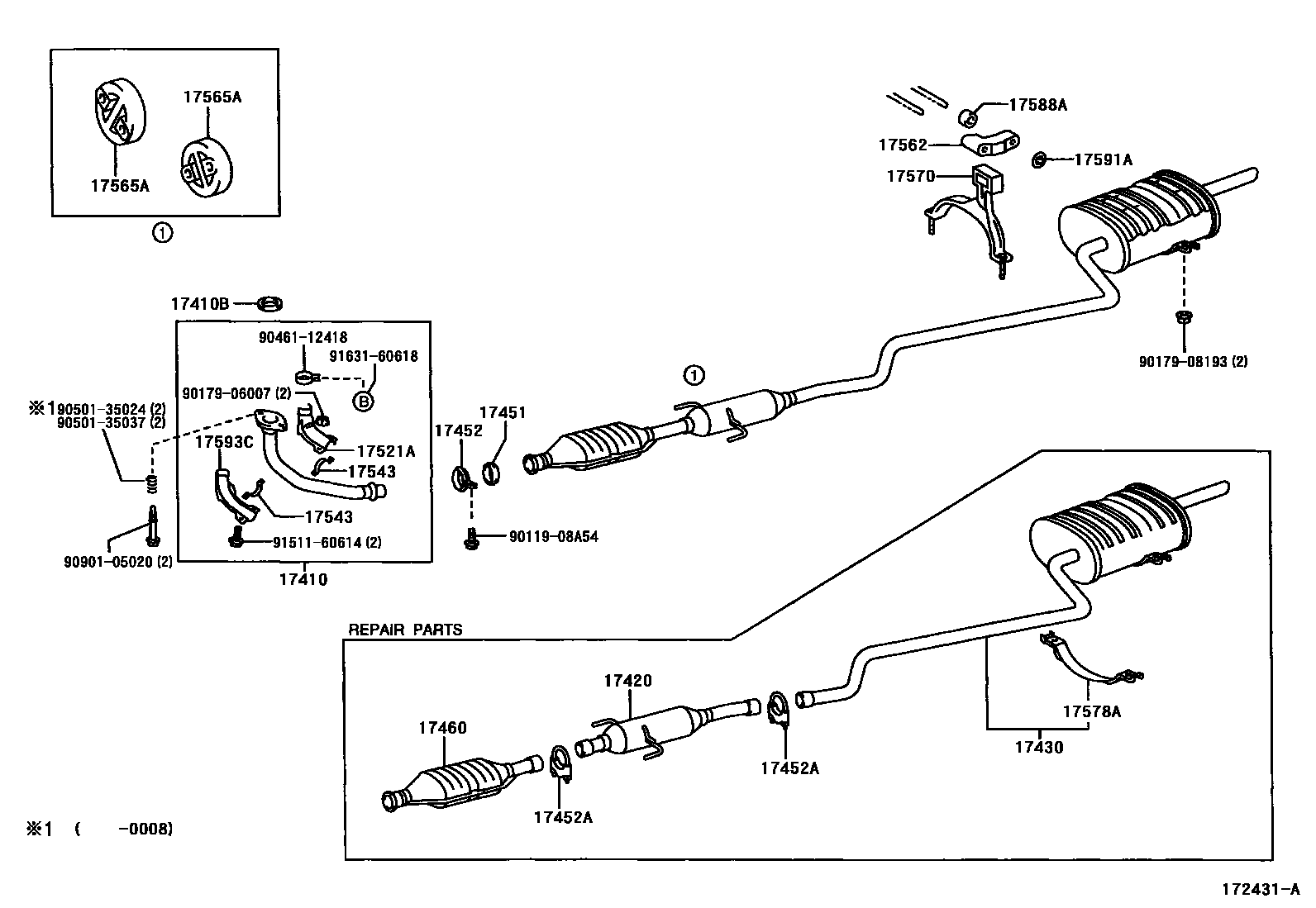

Toyota COROLLA Exhaust Pipe EPC diagram — 172431A — Exhaust Pipe — 172431A (200001 – 999999)

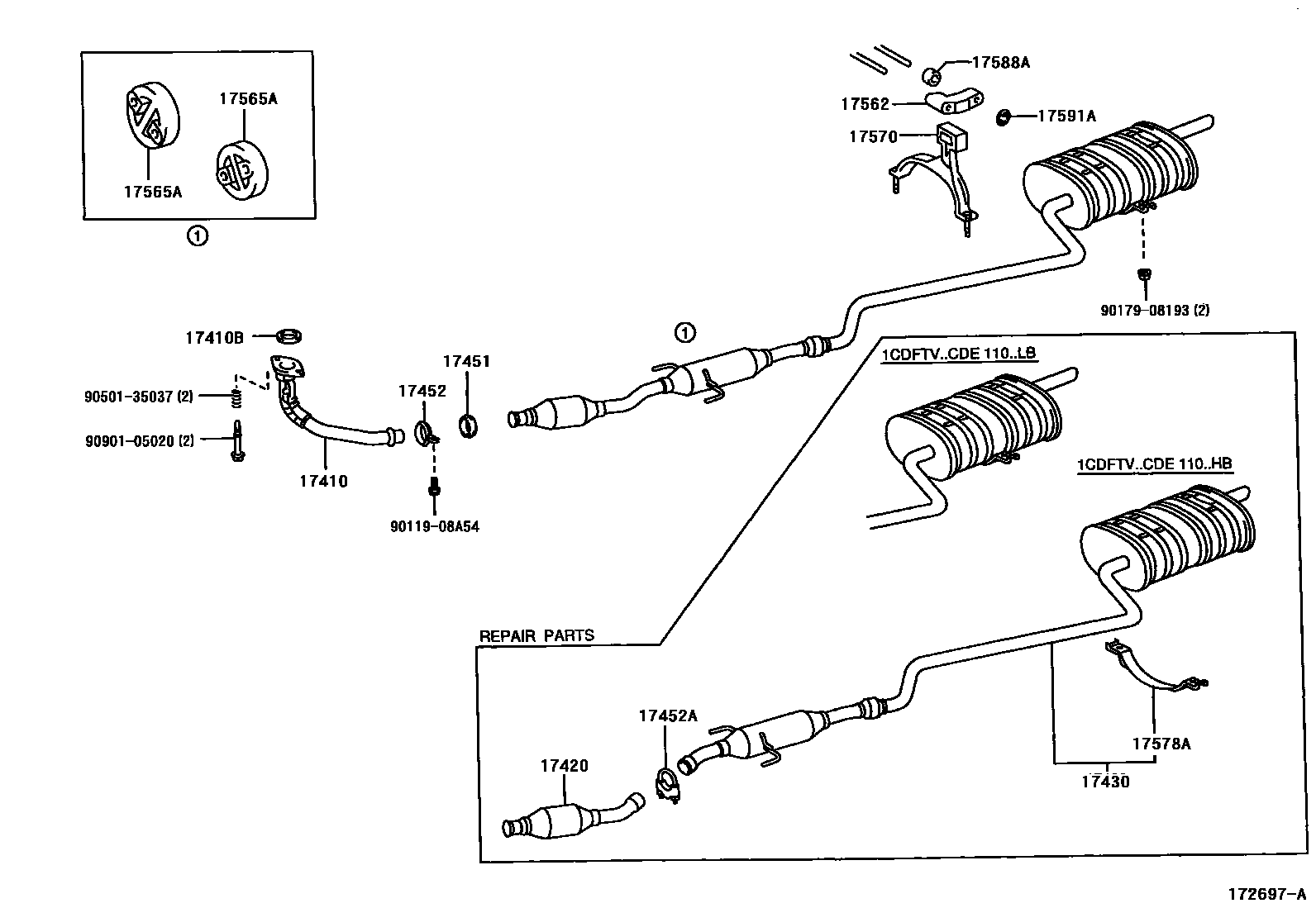

Toyota COROLLA Exhaust Pipe EPC diagram — 172697A — Exhaust Pipe — 172697A (200008 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	18450-64010
17410	Front exhaust pipe assembly	17410-02380 · 17410-02390 · 17410-0D020 · 17410-0E010 · 17410-0X020 · 17410-1A480 · 17410-1A490 · 17410-1B090 · 17410-22140 · 17410-27110 · 17410-53010 · 17410-64790
17410A	Exhaust pipe fixing studs and nuts	90179-10070
17410B	Exhaust pipe gasket	17451-02030 · 17451-0D010 · 17451-0E010 · 17451-16040 · 17451-22020 · 17451-74060 · 90917-06061 · 90917-06065 · 90917-06080
17420	Central exhaust pipe assembly	17420-02170 · 17420-0D060 · 17420-0E010 · 17420-0X010 · 17420-11370 · 17420-16720 · 17420-22010 · 17420-27020 · 17420-53010 · 17420-64280
17430	Exhaust tailpipe assembly	17430-02230 · 17430-0D040 · 17430-0E020 · 17430-0X020 · 17430-1B070 · 17430-1B080 · 17430-1D010 · 17430-1D020 · 17430-22120 · 17430-22130 · 17430-27100 · 17430-27110 · 17430-6A210 · 17430-6A220
17444A	front exhaust pipe spacer	17444-02030 · 17444-16050 · 17444-64030
17451	Exhaust pipe gasket	90917-06045 · 90917-06082 · 90917-06084
17452	Exhaust pipe clamp	90461-15013 · 90461-15016
17452A	Exhaust pipe clamp	17452-15020 · 17452-16120 · 17452-16160
17460	Three-way catalytic converter assembly with tube	17460-02170 · 17460-02200 · 17460-0D050 · 17460-0E010 · 17460-0X010 · 17460-11030 · 17460-16170 · 17460-16260 · 17460-22010 · 17460-53010
17504	Three-way catalytic converter bracket sub-assembly	17582-41030
17506A	No. 1 exhaust pipe bracket sub-assembly	17506-11100
17521A	No. 1 upper exhaust pipe protection device	17521-64180
17543	No. 3 exhaust pipe protection device stay	17543-26010
17562	No. 2 exhaust pipe lifting lug	17562-16240
17565A	No. 4 exhaust pipe lifting lug	17565-11160
17570	Exhaust pipe bracket assembly	17570-0E010 · 17570-11010 · 17570-16040
17578A	muffler clip	17578-0E010 · 17578-11020 · 17578-11030
17585	Exhaust pipe hanger	17585-0E010 · 17585-16060
17588A	Exhaust pipe hanger spacer	17588-16020
17591A	Exhaust pipe bracket block	17591-16020
17593C	No. 1 lower exhaust pipe protection device	17593-64150
18435A	Integrated three-way catalytic converter protection device	18435-02030 · 18435-11020 · 18435-11030 · 18435-16170 · 18435-20020
