Toyota COROLLA Manifold — Figure 1701

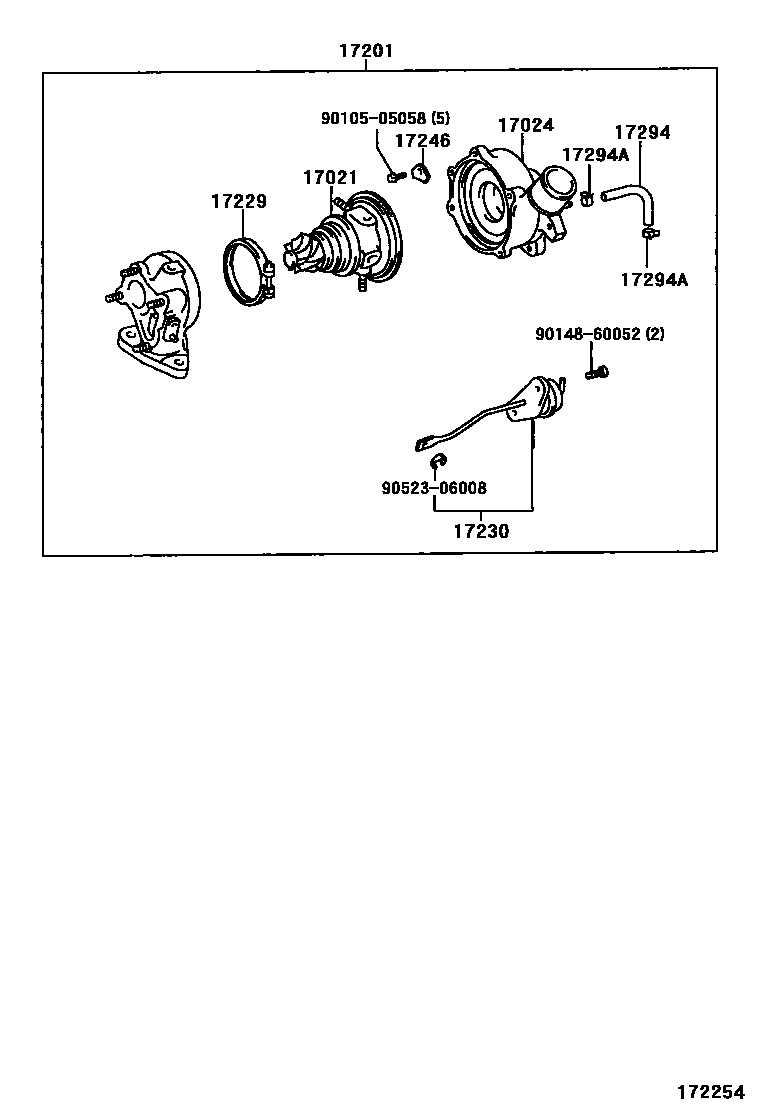

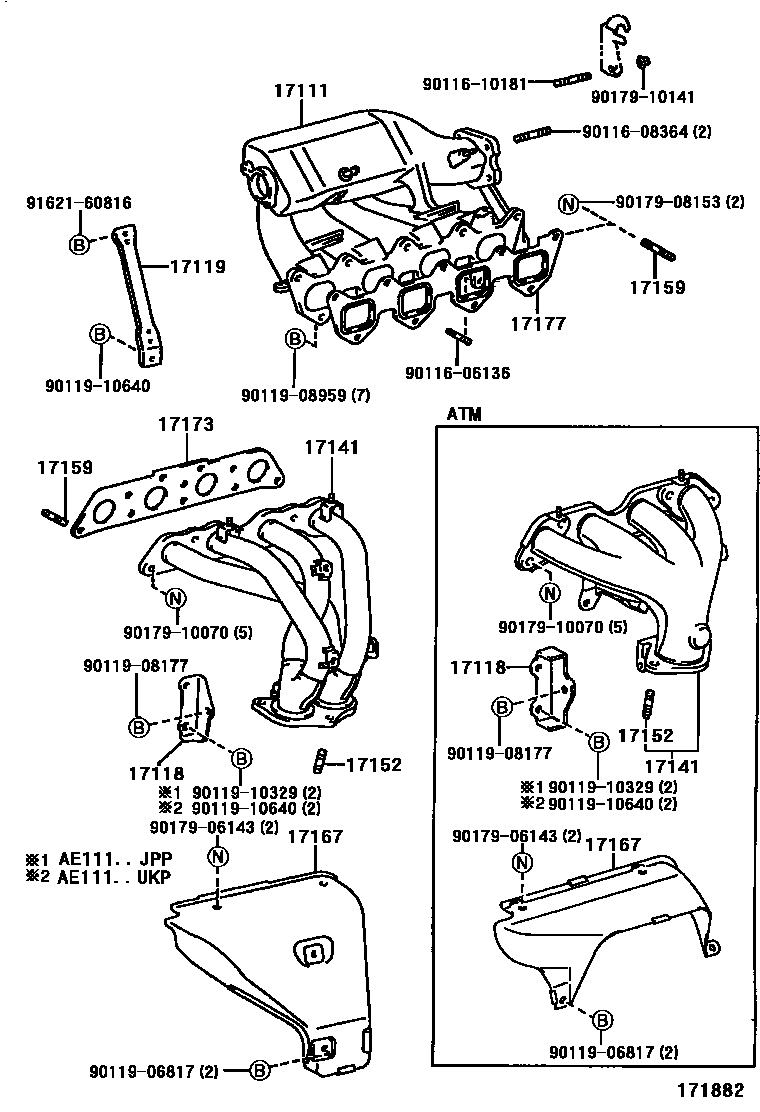

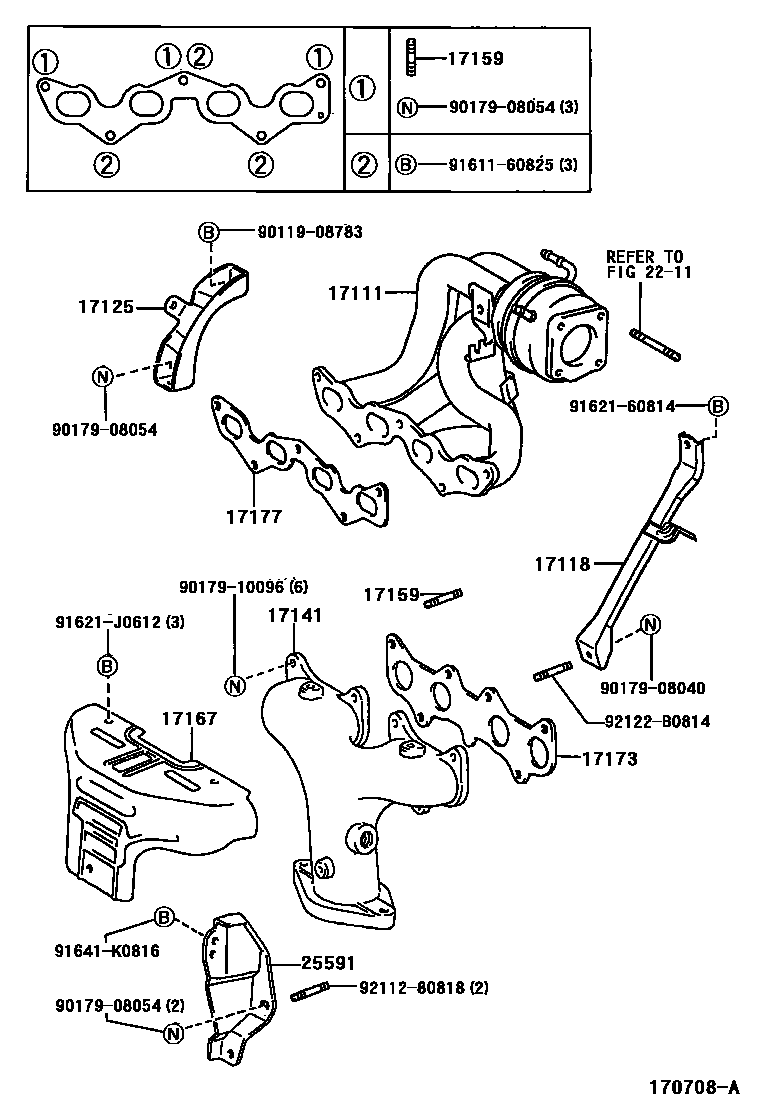

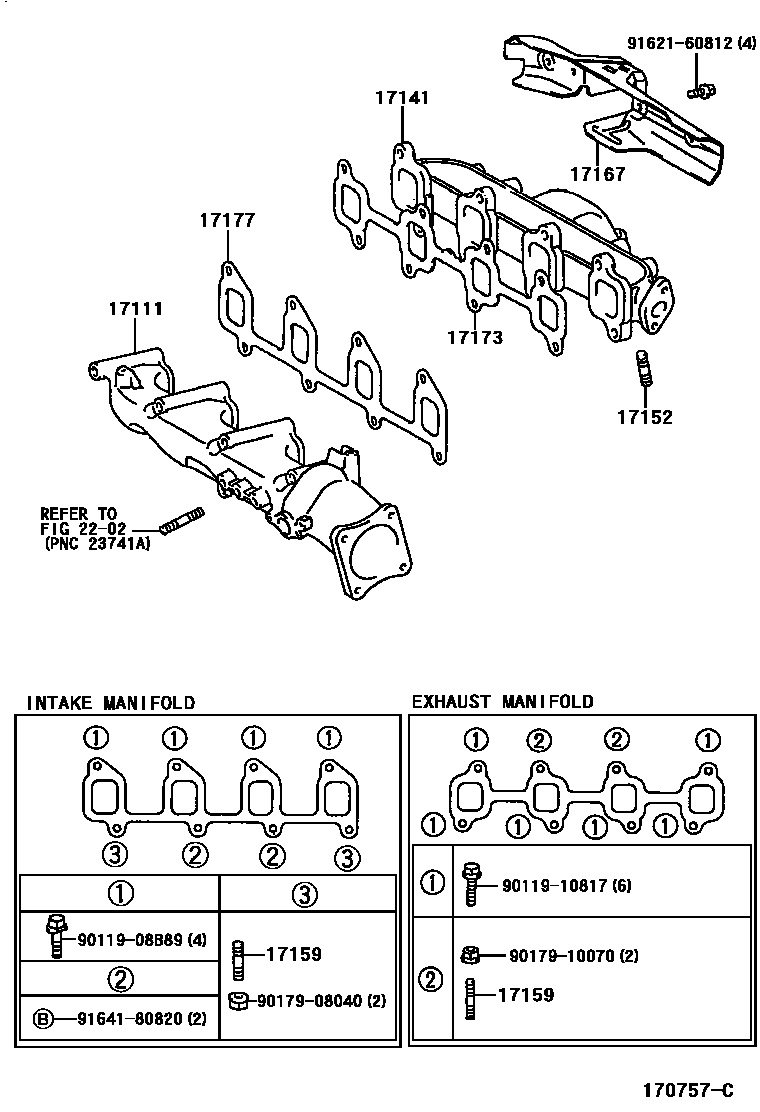

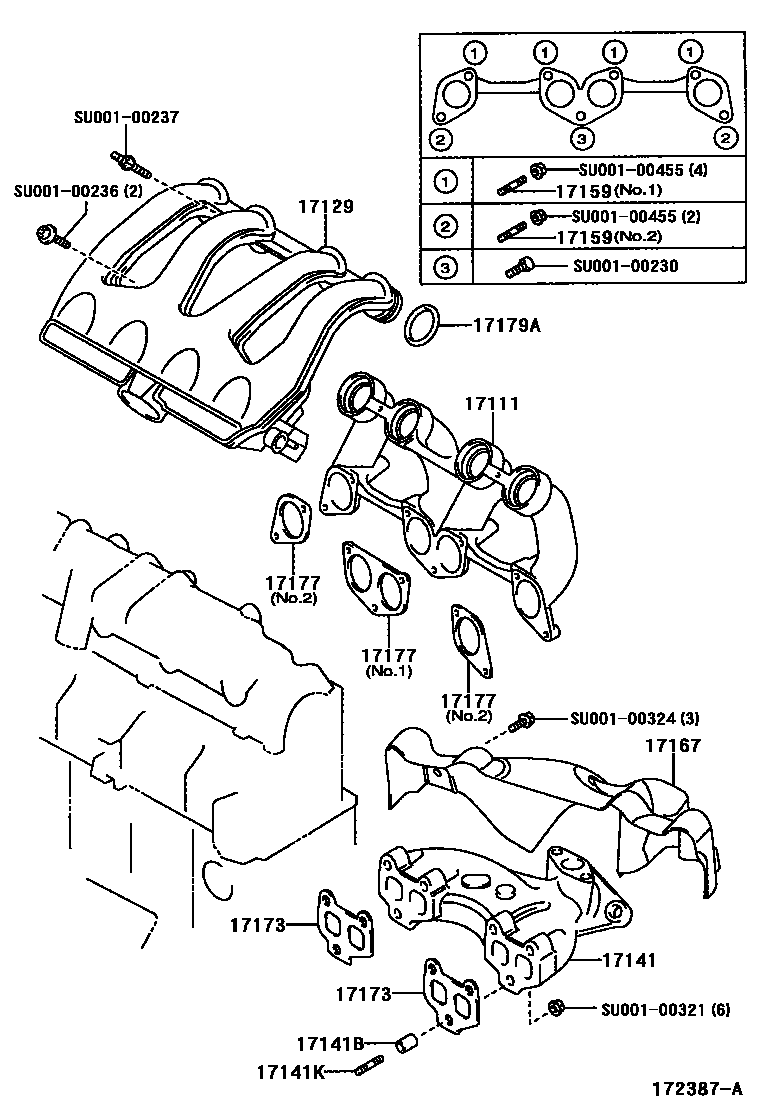

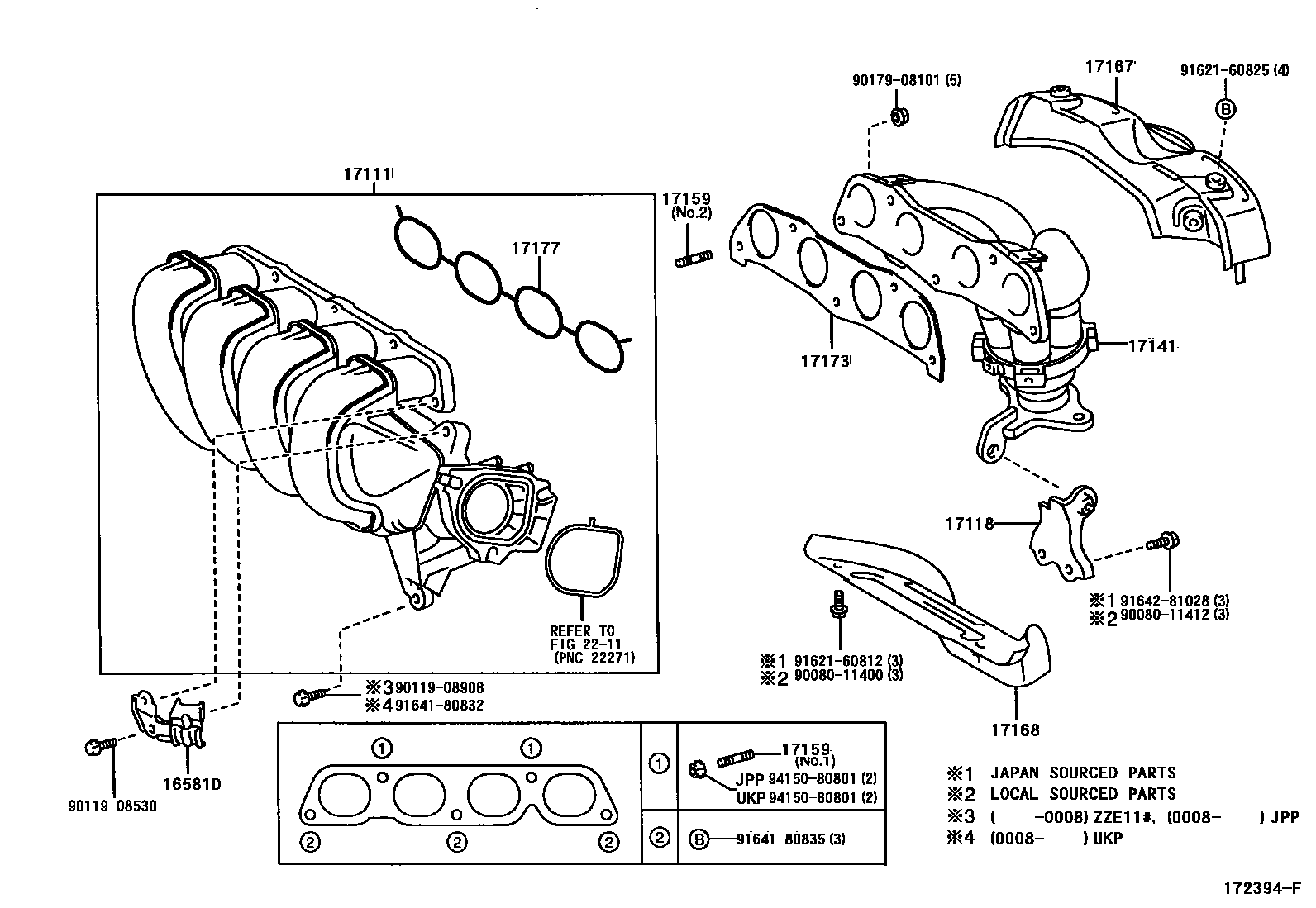

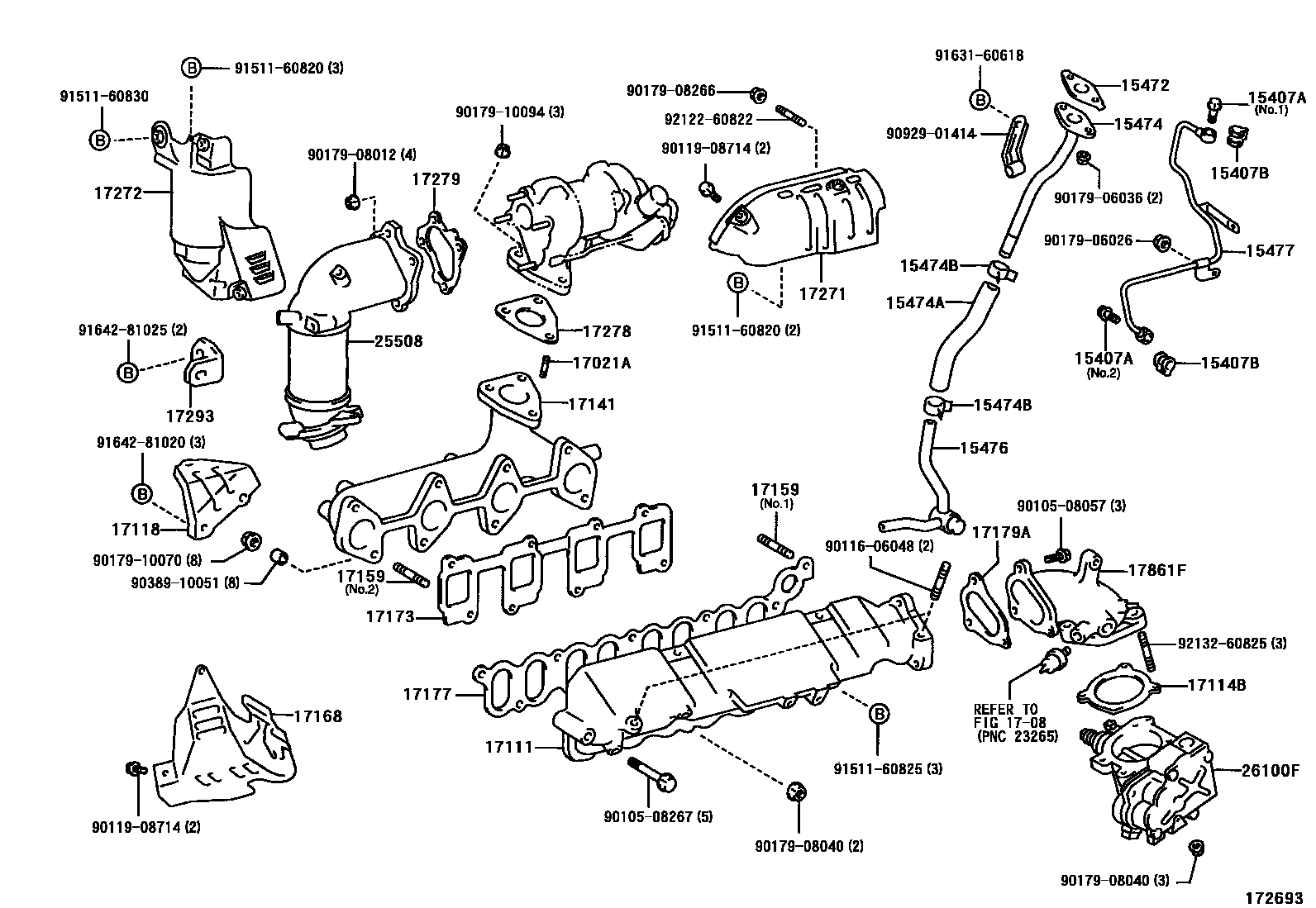

Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10061 · 90401-10063 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90904-30011 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-27010 |
| 15474 | Turbine oil outlet pipe | 15474-27010 |
| 15474A | Turbine oil outlet hose | 15491-27010 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-20005 |
| 15476 | No. 2 turbine oil outlet pipe | 15476-27010 |
| 15477 | Turbine oil inlet pipe | 15477-27011 |
| 16581D | Hose clamp (for water hose) | 16581-22020 |
| 17021 | Bearing shell sub-assembly | 17021-27020 |
| 17021A | Stud bolts (for bearing housing) | 90116-10148 |
| 17024 | Compressor housing sub-assembly | 17024-27020 |
| 17111 | Intake Manifold | 17101-02120 · 17101-11370 · 17101-16280 · 17101-16300 · 17111-27010 · 17111-27011 · 17111-64270 · 17120-0D010 · 17120-22020 · SU001-00227 |
| 17114B | Intake flange gasket | 26171-27010 |
| 17118 | Manifold stays | 17118-02030 · 17118-02080 · 17118-0D020 · 17118-11340 · 17118-16140 · 17118-22030 · 17118-27020 |
| 17119 | No. 2 manifold stay | 17139-02080 · 17139-15050 |
| 17125 | No. 1 pressure tank stay | 17125-11060 |
| 17129 | Intake pressure tank | 17111-0X010 |
| 17141 | exhaust manifold | 17104-0D010 · 17104-22040 · 17141-02040 · 17141-02120 · 17141-0X010 · 17141-11320 · 17141-16320 · 17141-16390 · 17141-27020 · 17141-64181 |
| 17141B | Collar (for exhaust manifold) | SU001-00320 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | SU001-00232 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10196 · 90126-08026 · 90126-08037 · 90126-10017 · 90126-10024 · 92112-60825 · 92112-61028 · 92122-60820 · 92132-60820 · 92132-60825 · SU001-00232 · SU001-00234 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-02030 · 17167-02050 · 17167-0D010 · 17167-0X010 · 17167-11310 · 17167-16171 · 17167-22030 · 17167-64090 · 17167-64120 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0D010 · 17168-22030 · 17168-27010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-02030 · 17173-0D010 · 17173-11040 · 17173-15040 · 17173-22010 · 17173-27010 · 17173-64060 · SU001-00319 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15030 · 17171-22030 · 17177-11070 · 17177-27010 · 17177-64020 · SU001-00228 · SU001-00229 |
| 17179A | No. 2 intake manifold gasket | 17179-27010 · SU001-00231 |
| 17201 | Turbocharger sub-assembly | 17201-27020 |
| 17229 | V-Belt | 17229-27010 |
| 17230 | Actuator assembly with bracket | 17230-29025 |
| 17246 | Compressor shell plywood | 17246-27010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-27020 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-27020 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-27010 |
| 17279 | Turbine outlet elbow gasket | 17279-27010 |
| 17293 | Turbocharger stay | 17293-27010 |
| 17294 | Actuator hose | 90445-09035 |
| 17294A | Clamp (for actuator hose) | 90466-07001 |
| 17861F | Intake connecting pipe | 17861-27011 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25051-27020 |
| 25591 | Manifold bracket | 25591-11080 |
| 26100F | Air intake baffle assembly | 26100-27010 · 26100-27020 |
