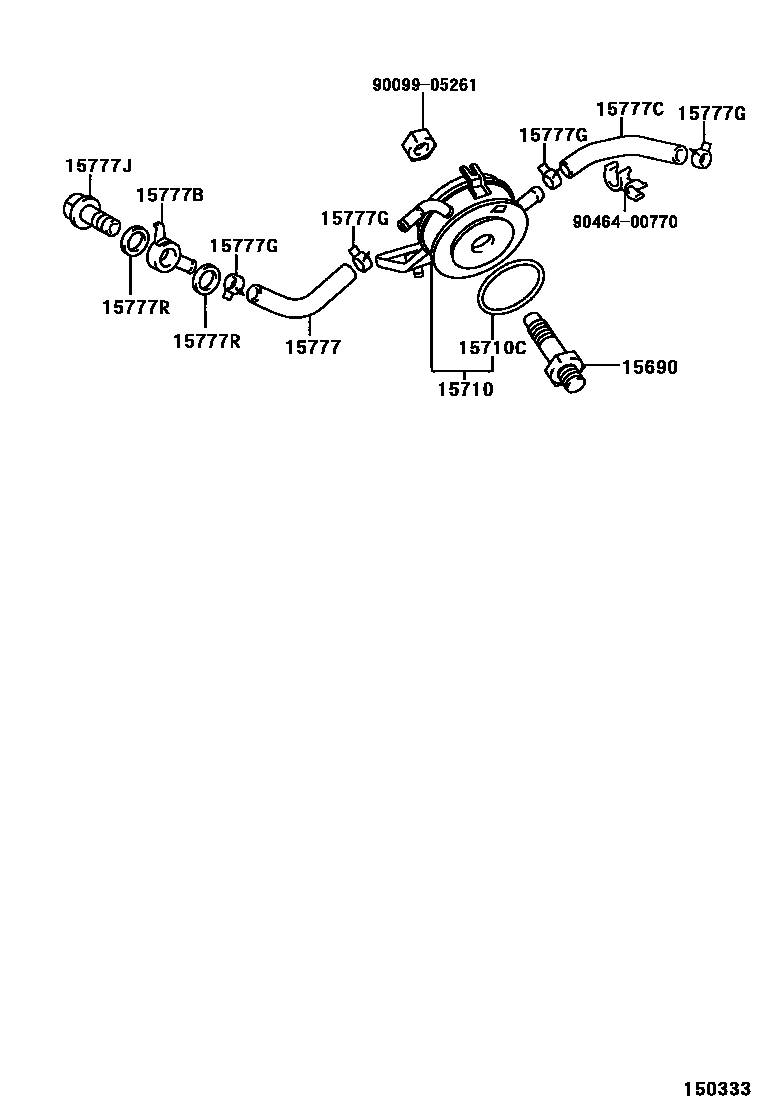

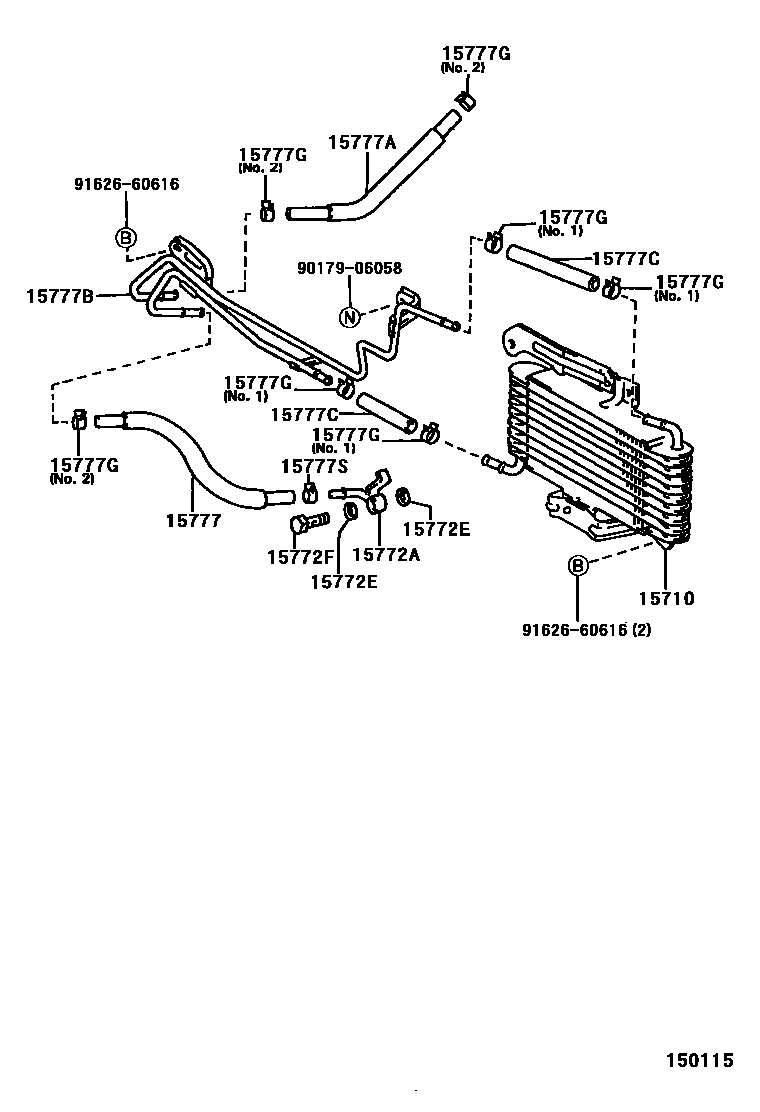

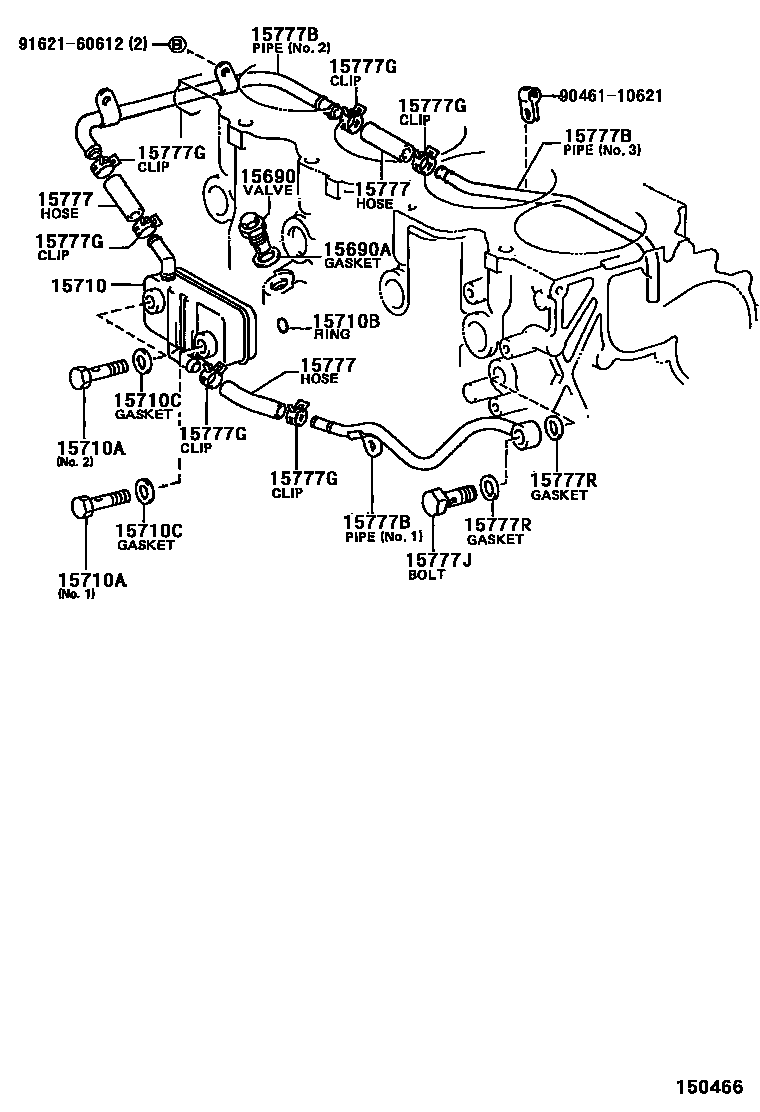

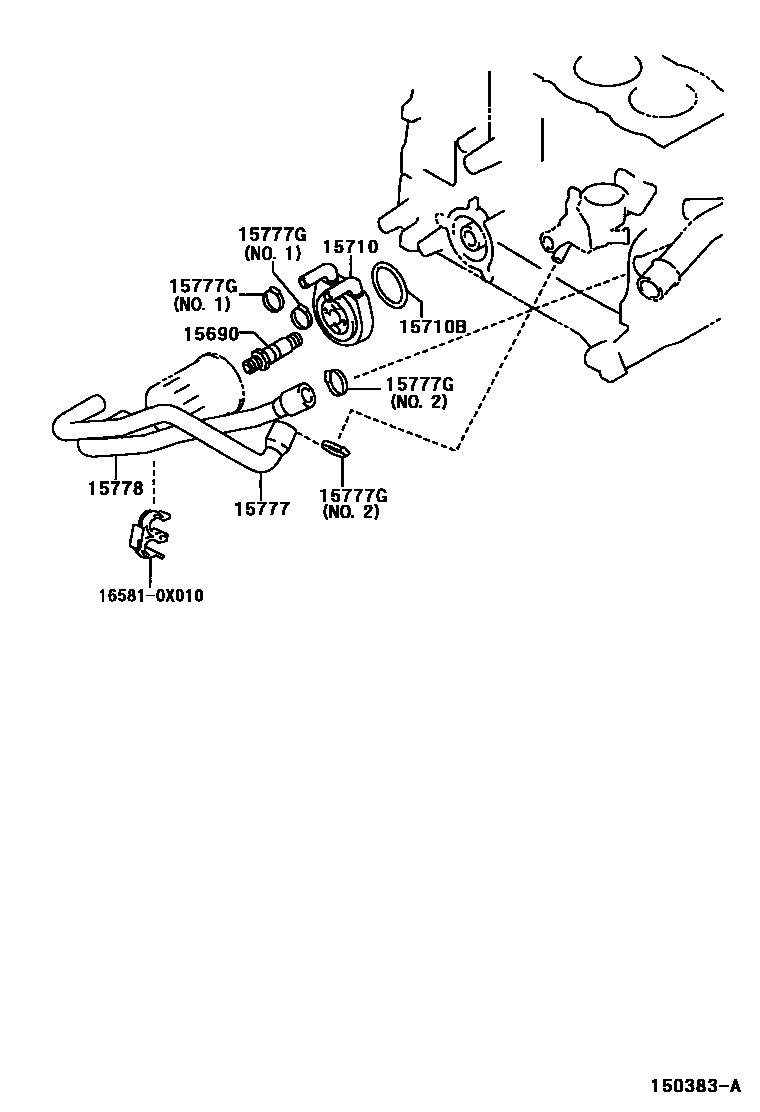

Toyota COROLLA Engine Oil Cooler — Figure 1503
Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-64010 · 15695-0X010 · 15695-64020 |
| 15690A | Gasket (for oil cooler pressure reducing valve) | 90430-22003 |
| 15710 | Oil cooler assembly | 15700-16100 · 15710-0X010 · 15710-27020 · 15710-64010 |
| 15710A | Connector bolt (for oil cooler) | 90401-18009 · 90401-18011 |
| 15710B | O-ring (for oil cooler) | 90301-22004 · SU001-00195 |
| 15710C | Gasket (for oil cooler) | 90301-67004 · 90430-18021 |
| 15772A | Connector (for oil pipe) | 90080-40016 · 90405-10030 |
| 15772E | Gasket (for oil pipe) | 90430-12031 |
| 15772F | Joint bolt (for oil pipe) | 90401-12009 |
| 15777 | oil cooler hose | 15777-0X010 · 15777-16110 · 15777-27010 · 90445-21006 |
| 15777A | oil cooler hose | 15778-16080 |
| 15777B | oil cooler pipe | 15767-16140 · 15767-64011 · 15768-27010 · 15768-64071 · 15769-64011 |
| 15777C | oil cooler hose | 15778-27020 · 15779-16030 |
| 15777G | Hose clips or clips | 90080-46296 · 90467-15018 · 90467-15025 · 90467-20005 |
| 15777J | Connector bolt (for oil cooler pipe) | 90401-20004 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 90430-20014 |
| 15777S | Hose clips or clips | 90467-15025 |
| 15778 | No. 2 oil cooler hose | 15778-0X010 |
