Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 6 images and 7 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120012
Ventilation Hose — 120012 (199704 – 199910)

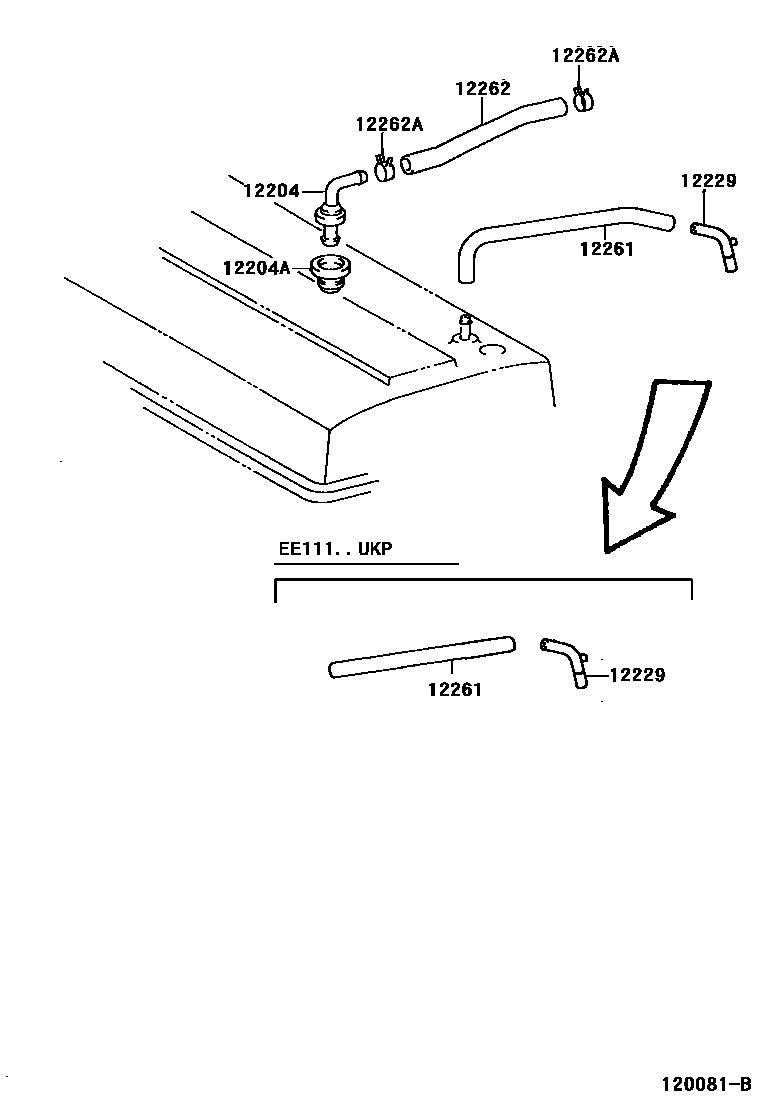

Toyota COROLLA Ventilation Hose EPC diagram — 120081B
Ventilation Hose — 120081B (199704 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120085
Ventilation Hose — 120085 (199704 – 199911)
Toyota COROLLA Ventilation Hose EPC diagram — 120110
Ventilation Hose — 120110 (200008 – 999999)

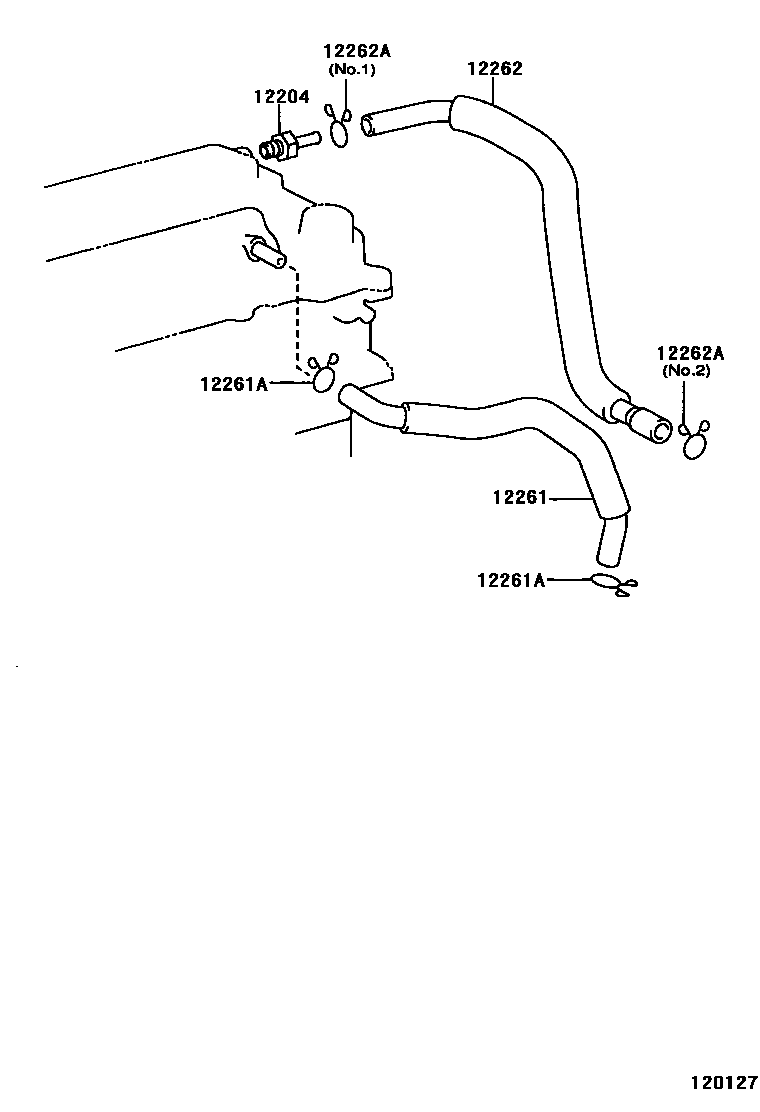

Toyota COROLLA Ventilation Hose EPC diagram — 120127
Ventilation Hose — 120127 (199910 – 999999)

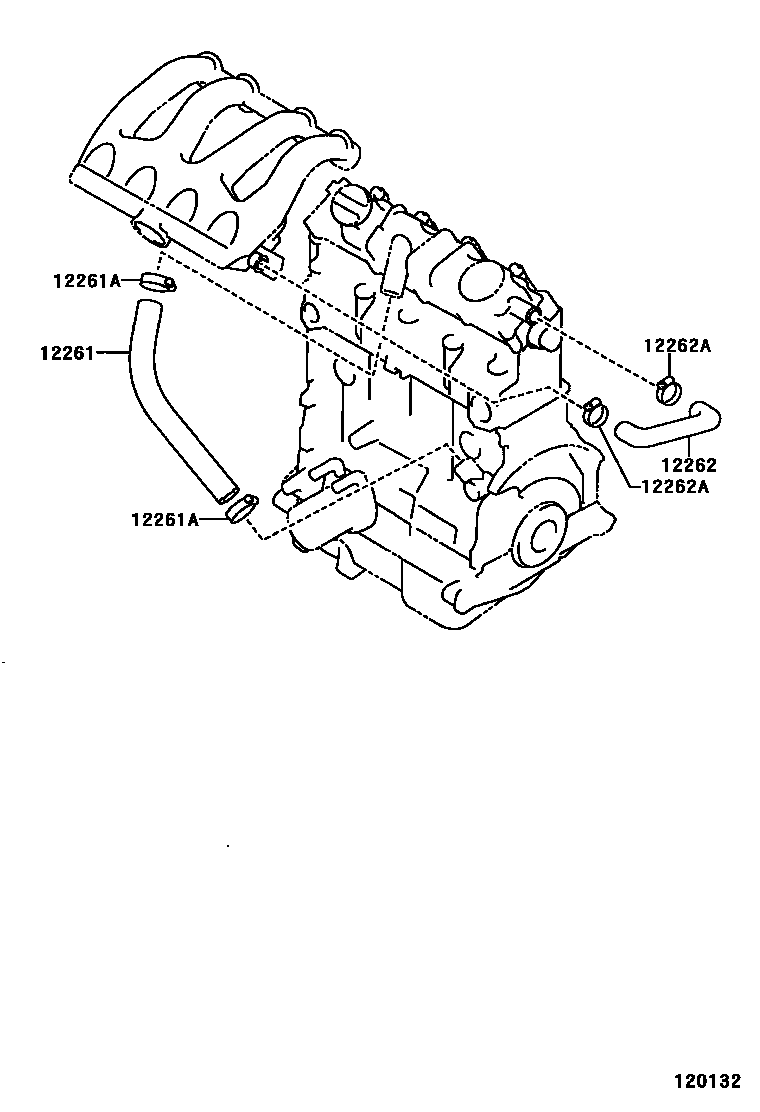

Toyota COROLLA Ventilation Hose EPC diagram — 120132
Ventilation Hose — 120132 (199912 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-11040 · 12204-11050 · 12204-15050 · 12204-22050
12204AGasket (for ventilation system)90480-18001 · 90480-18006
12229ventilation duct12229-02010 · 12229-11020
12261Ventilation Hose12261-02020 · 12261-11180 · 12261-22040 · 12261-27010 · 12261-64210 · 90910-05222 · SU001-00201
12261AClip or clip (for vent hose)90467-10099 · 90467-18003 · 90467-21004 · 90467-21152 · 90467-23002 · SU001-00203
12262Ventilation hose No. 212262-11050 · 12262-22030 · 90445-15068 · SU001-00202
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14001 · 90467-14017 · 90467-19003 · SU001-00203
