Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

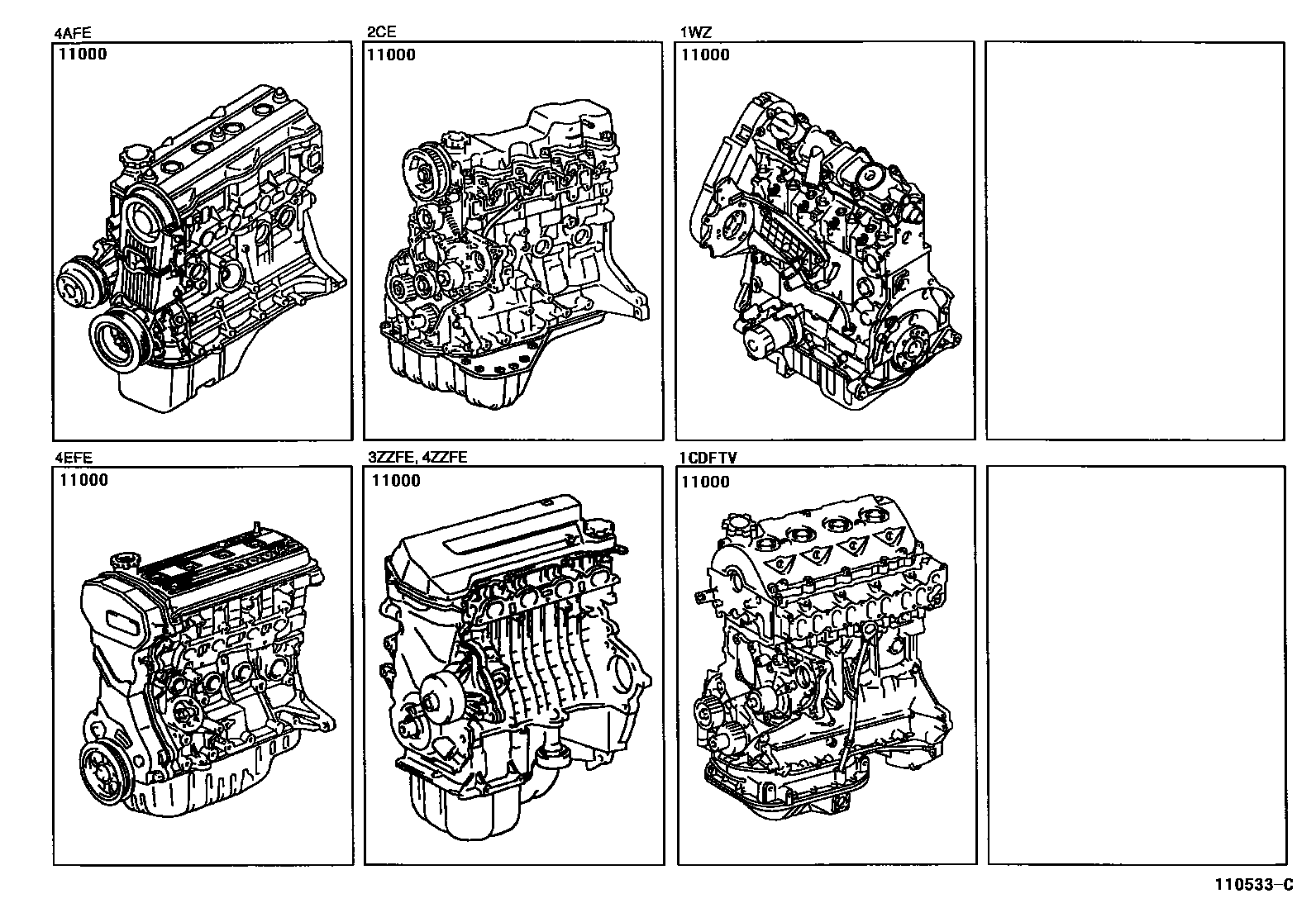

Toyota COROLLA Partial Engine Assembly EPC diagram — 110533C
Partial Engine Assembly — 110533C (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-02180 · 19000-0D030 · 19000-0D040 · 19000-11830 · 19000-1A530 · 19000-1A600 · 19000-22110 · 19000-22120 · 19000-27150 · 19000-6A140 · 19000-6A141 · SU001-00001
