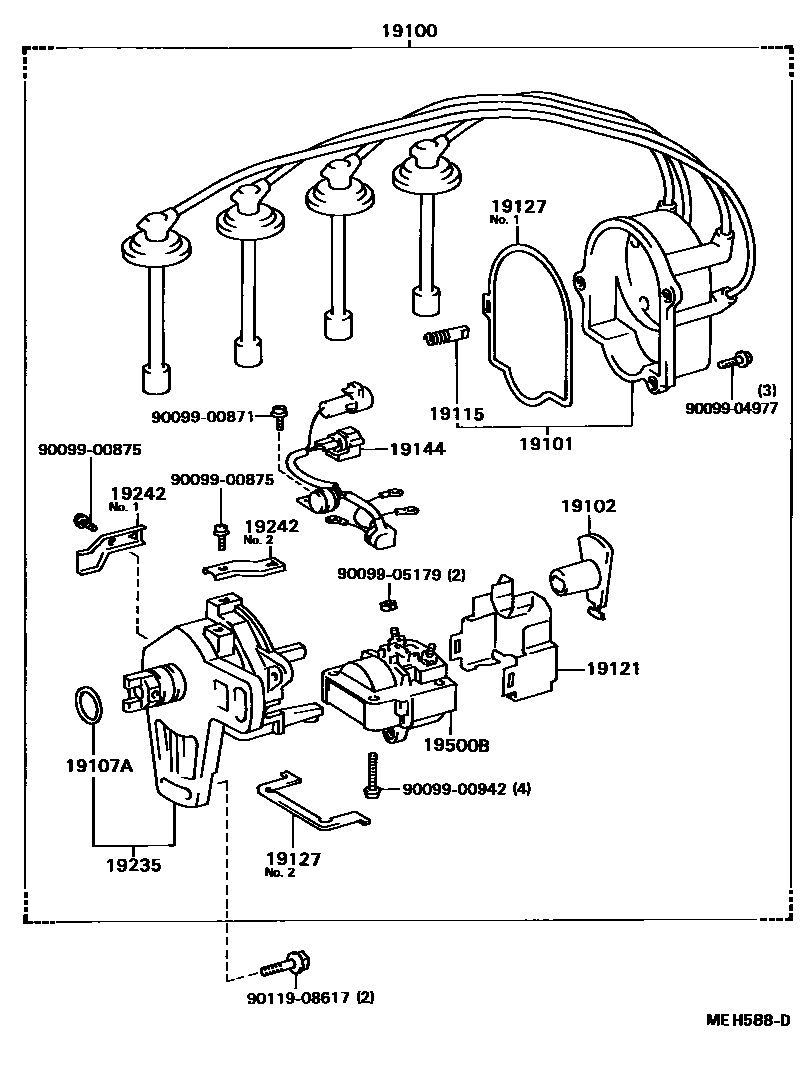

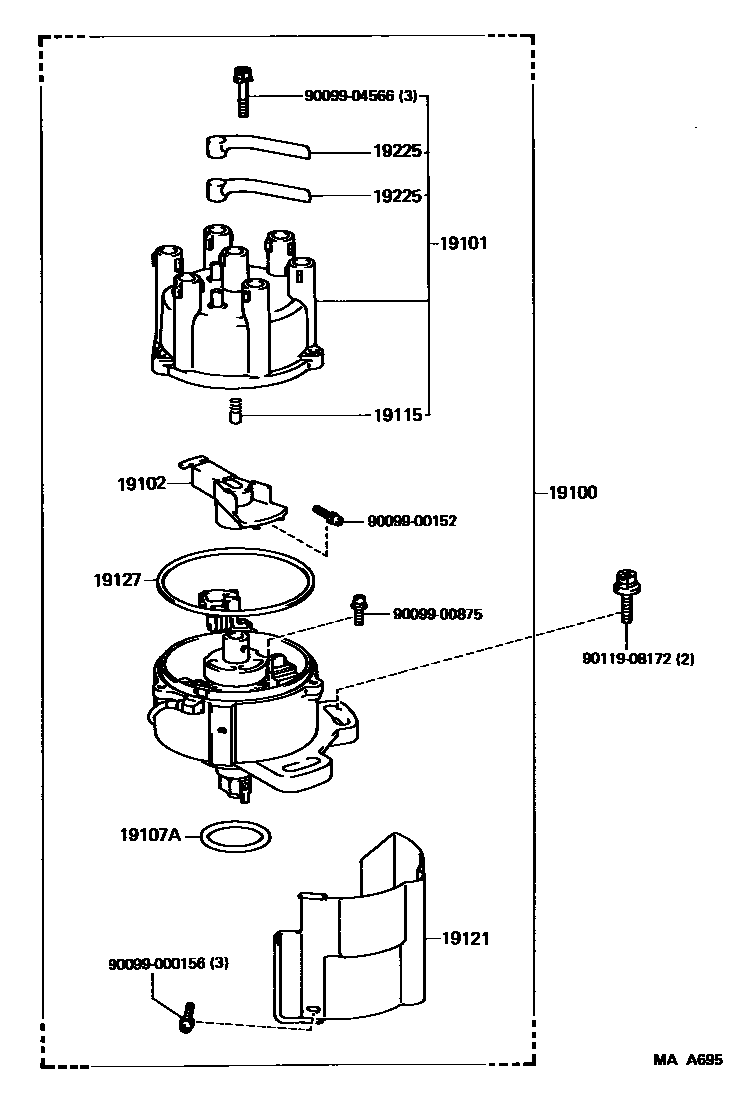

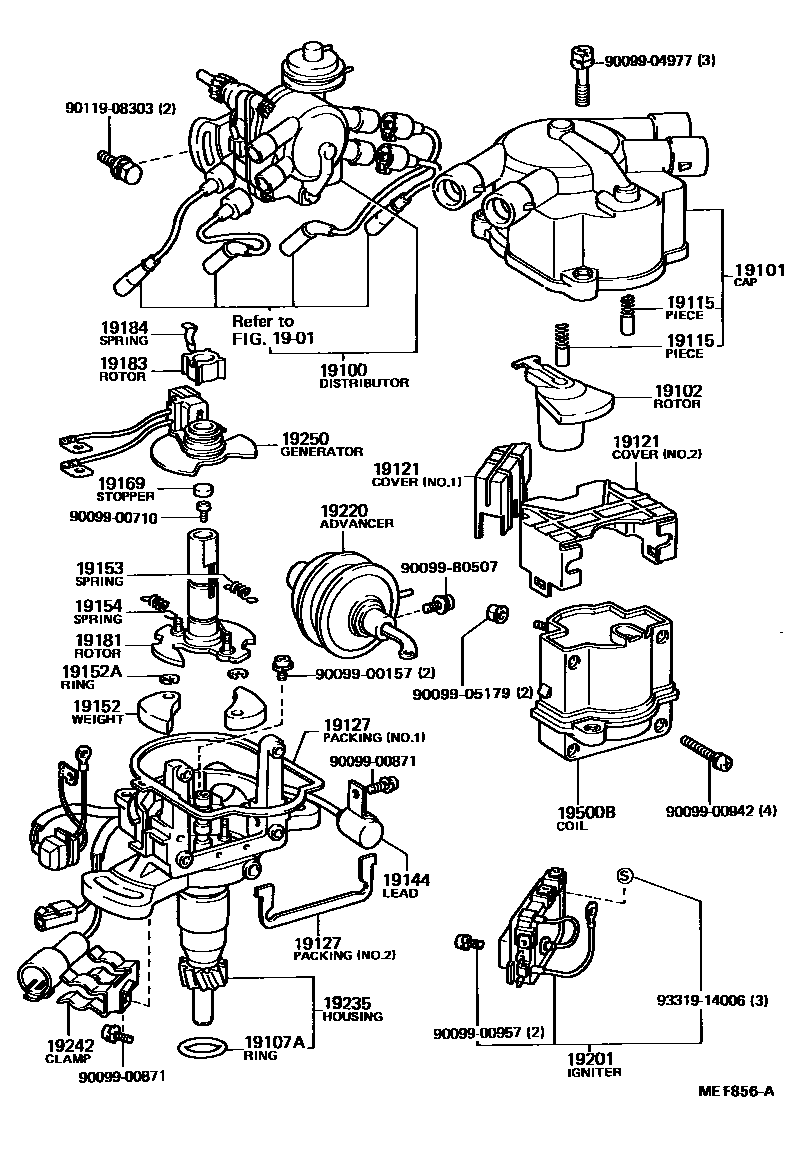

Toyota CAMRY 分电器 — Figure 1902
Toyota CAMRY EPC diagram 1902, 分电器, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-63052 · 19040-74030 · 19040-74031 · 19100-62020 |
| 19101 | Distributor cover sub-assembly | 19101-62020 · 19101-63011 · 19101-74030 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-16060 · 19102-62020 · 19102-73021 |
| 19107A | Distributor housing O-ring | 90099-14020 · 90099-14089 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-62011 · 19121-63010 · 19121-63040 |
| 19127 | Dust seal | 19127-61240 · 19127-63010 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-63052 · 19144-74040 · 19144-74060 |
| 19152 | Speed regulator weight | 19152-63010 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-63055 |
| 19154 | B governor spring | 19154-63055 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-63053 |
| 19183 | Signal splitter | 19183-63030 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-32020 |
| 19220 | Distributor vacuum advance device assembly | 19220-63050 |
| 19225 | rubber cap | 19225-62020 |
| 19235 | Distributor housing | 19235-63013 · 19235-74020 · 19235-74060 |
| 19242 | Cable clip | 19242-63020 · 19242-74020 · 19242-74030 |
| 19250 | Signal generator assembly | 19251-63011 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02152 |
