Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

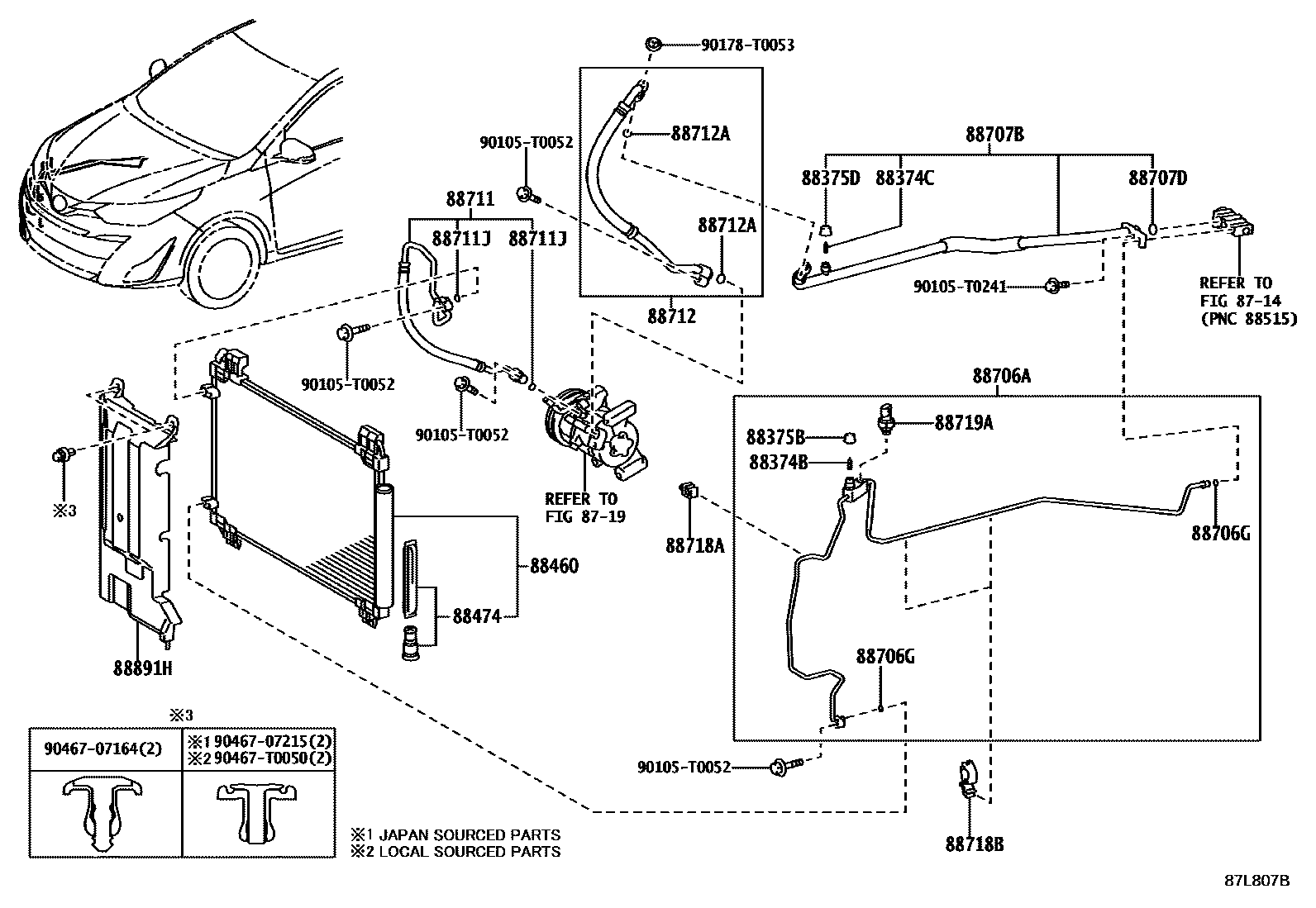

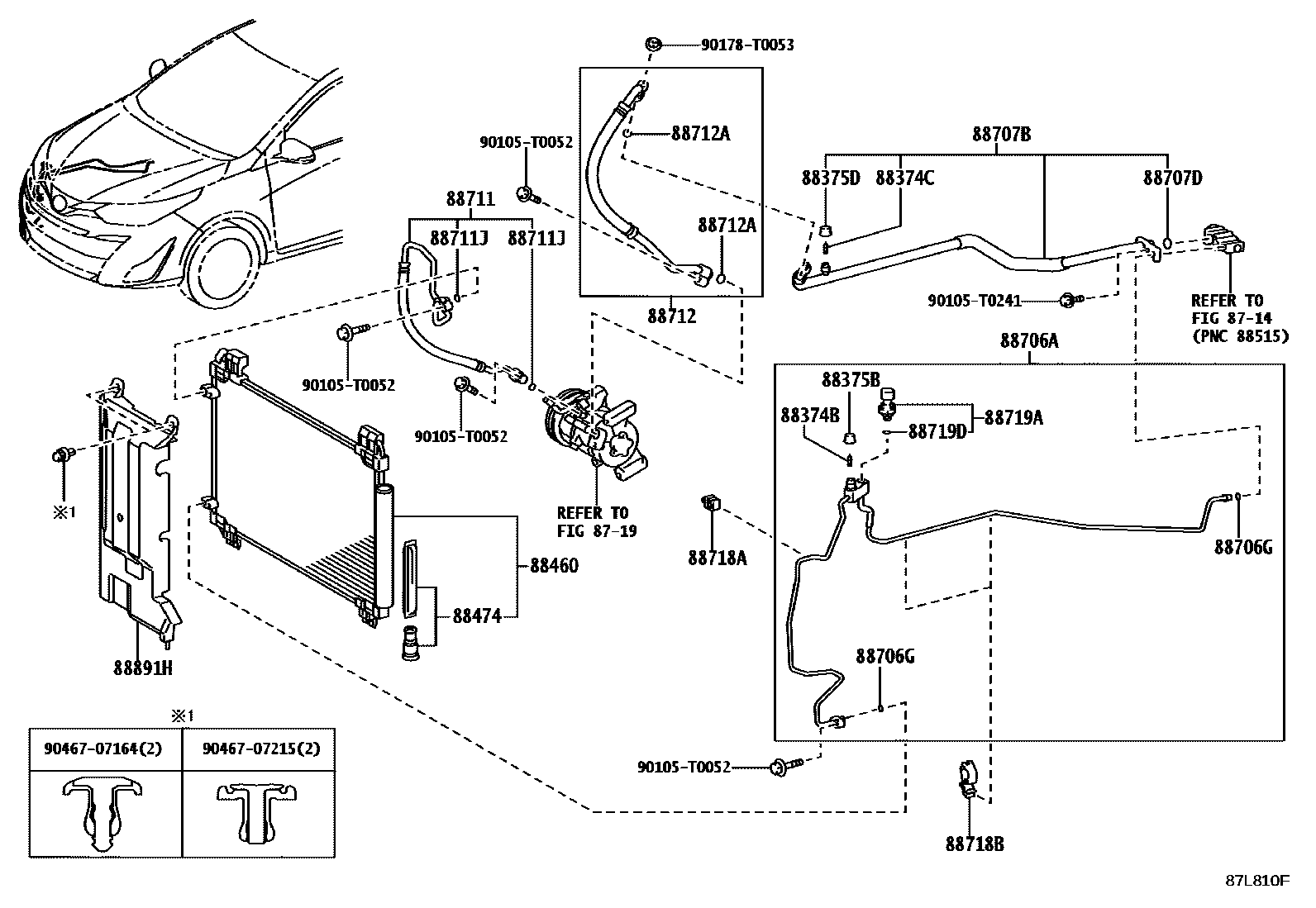

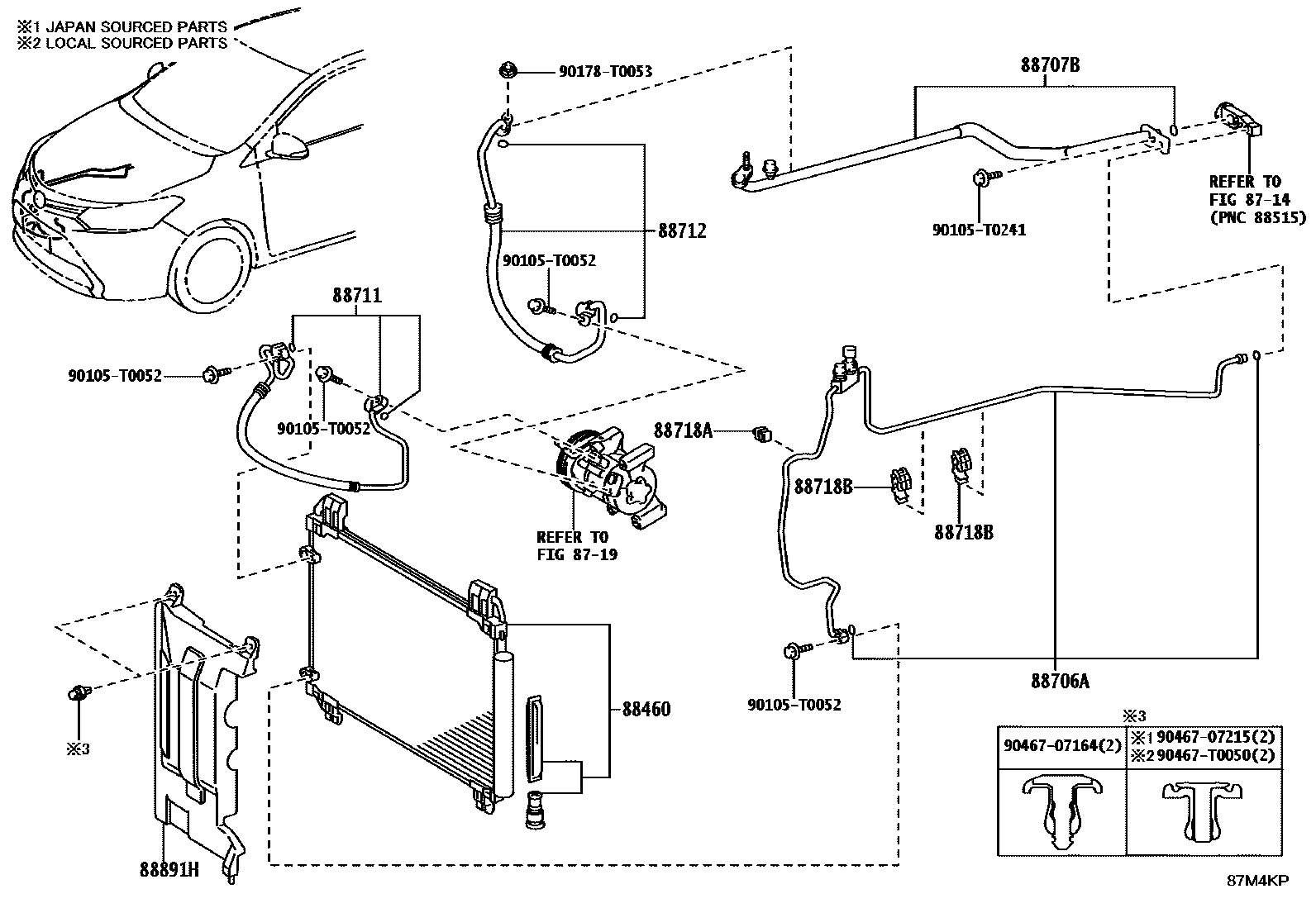

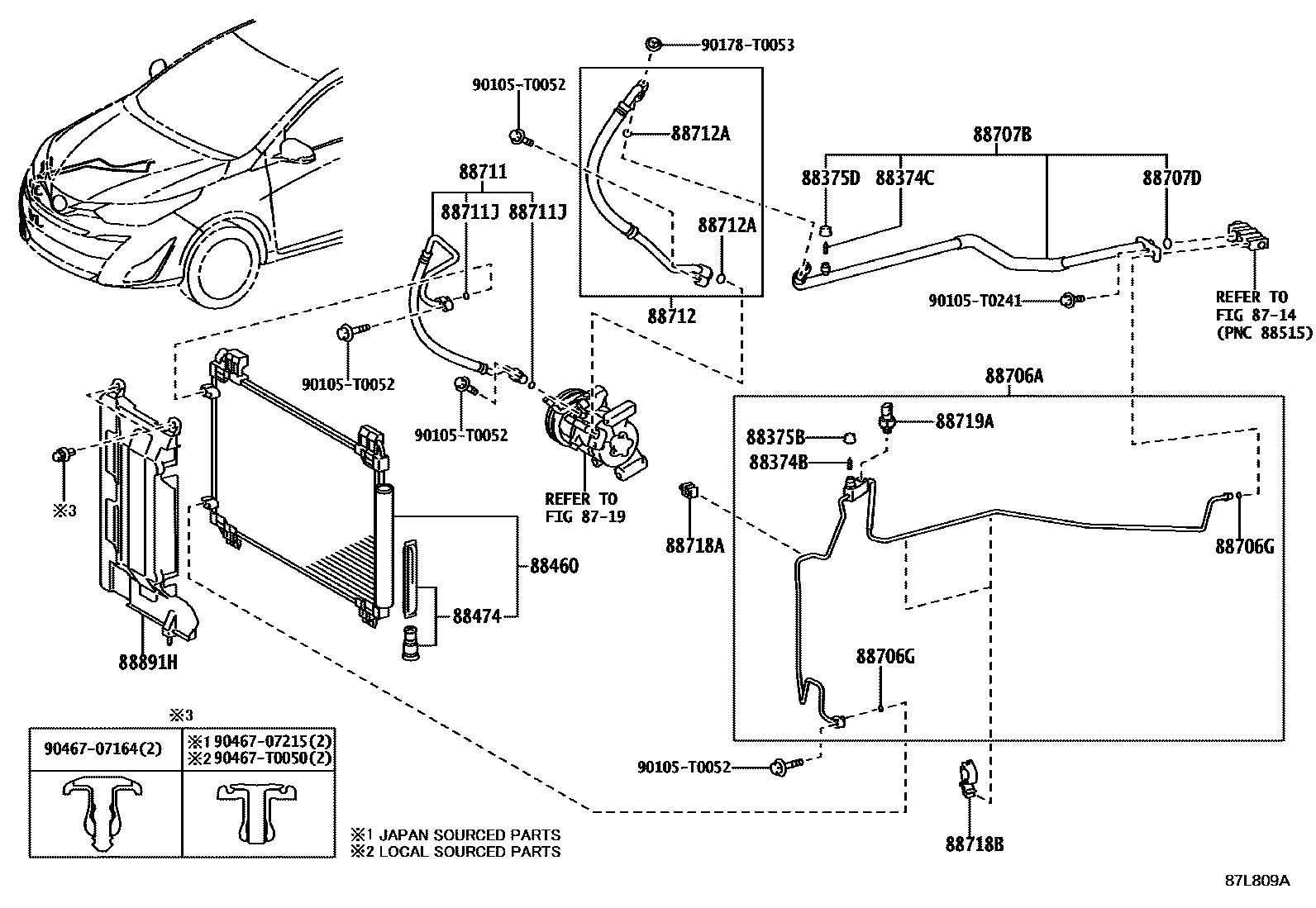

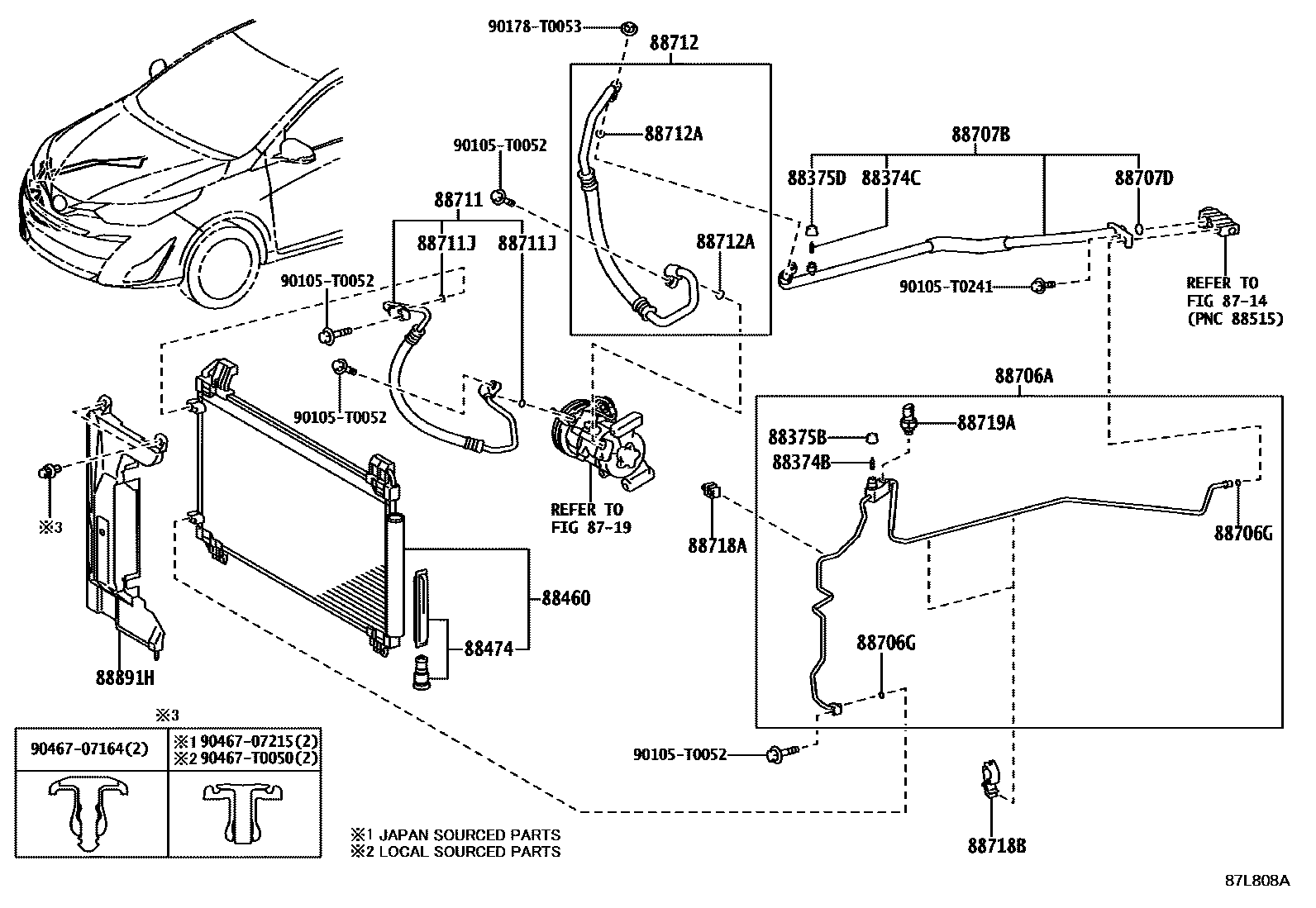

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D560 · 88460-0D570 · 88460-0D640 · 88460-0D660 |
| 88474 | cooler dryer | 88474-12010 |
| 88706A | Liquid pipe A sub-assembly | 88706-0DA30 · 88706-0DA80 · 88706-0DA90 · 88706-0DC10 · 88706-0DE00 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90099-14119 |
| 88707B | Suction pipe B sub-assembly | 88707-0D340 · 88707-0D370 · 88707-0D380 · 88707-0D430 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90068-14043 · 90099-14121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0D770 · 88711-0D780 · 88711-0D790 · 88711-0D880 · 88711-0DA20 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90099-14120 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0D760 · 88712-0D800 · 88712-0D820 · 88712-0DA30 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0D210 · 88718-0D290 · 88718-0DB10 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0D550 · 88718-0D810 · 88718-0DB20 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
| 88719D | JOINT, TORIQUE(POUR CAPTEUR PRESSION CLIM) | 90099-14122 |
| 88891H | Cooler cover No. 1 | 88891-0D290 · 88891-0D320 · 88891-0D360 · 88891-0D460 · 88891-0D480 |
