Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.

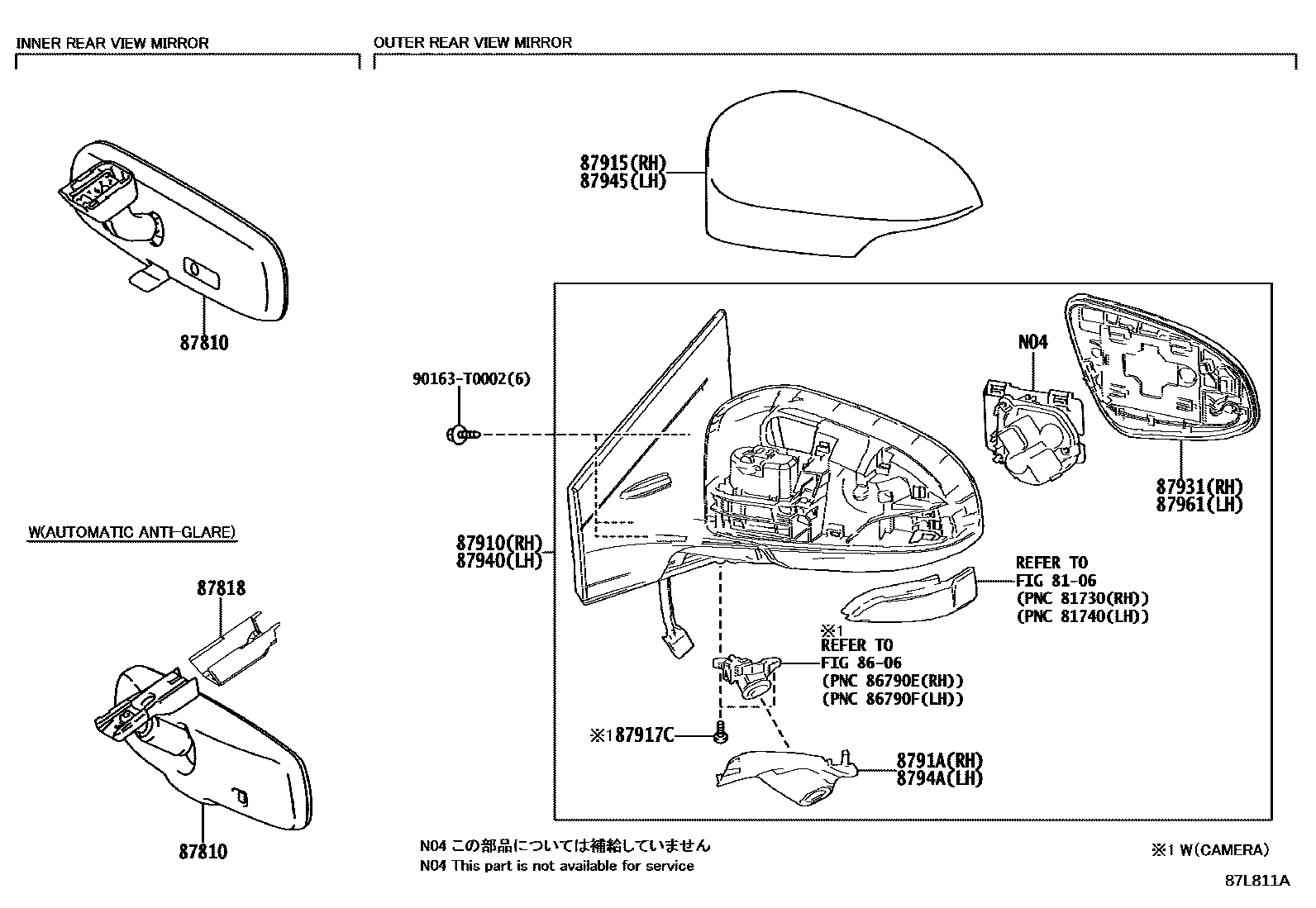

Toyota YARIS 后视镜 EPC diagram — 87L811A
后视镜 — 87L811A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02260 · 87810-06041 · 87810-0D090 · 87810-0D120 · 87810-0WM62
87818Interior rearview mirror cover87818-0W070
87910Right exterior rearview mirror assembly87910-0D720 · 87910-0D730 · 87910-0D740 · 87910-0D750 · 87910-0D820 · 87910-0D840 · 87910-0DE20 · 87910-0DF40 · 87910-0DF50
87915Right exterior rearview mirror cover87915-02932 · 87915-06910 · 87915-0D914 · 87915-0D917
87917CExterior rearview mirror screws87917-0DF40
8791ARight exterior rearview mirror cover No. 28791A-0DF40
87931Right exterior rearview mirror87931-0D750 · 87931-0D760 · 87931-0D840 · 87931-0DF40
87940Left exterior rearview mirror assembly87940-0D710 · 87940-0D720 · 87940-0D730 · 87940-0D740 · 87940-0D820 · 87940-0D840 · 87940-0DE20 · 87940-0DF30 · 87940-0DF40
87945Left exterior rearview mirror cap87945-02932 · 87945-06910 · 87945-0D914 · 87945-0D917
8794ANo. 2 left exterior rearview mirror cap8794A-0DF30
87961Left exterior rearview mirror87961-0D740 · 87961-0D750 · 87961-0D840 · 87961-0DF30
