Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.

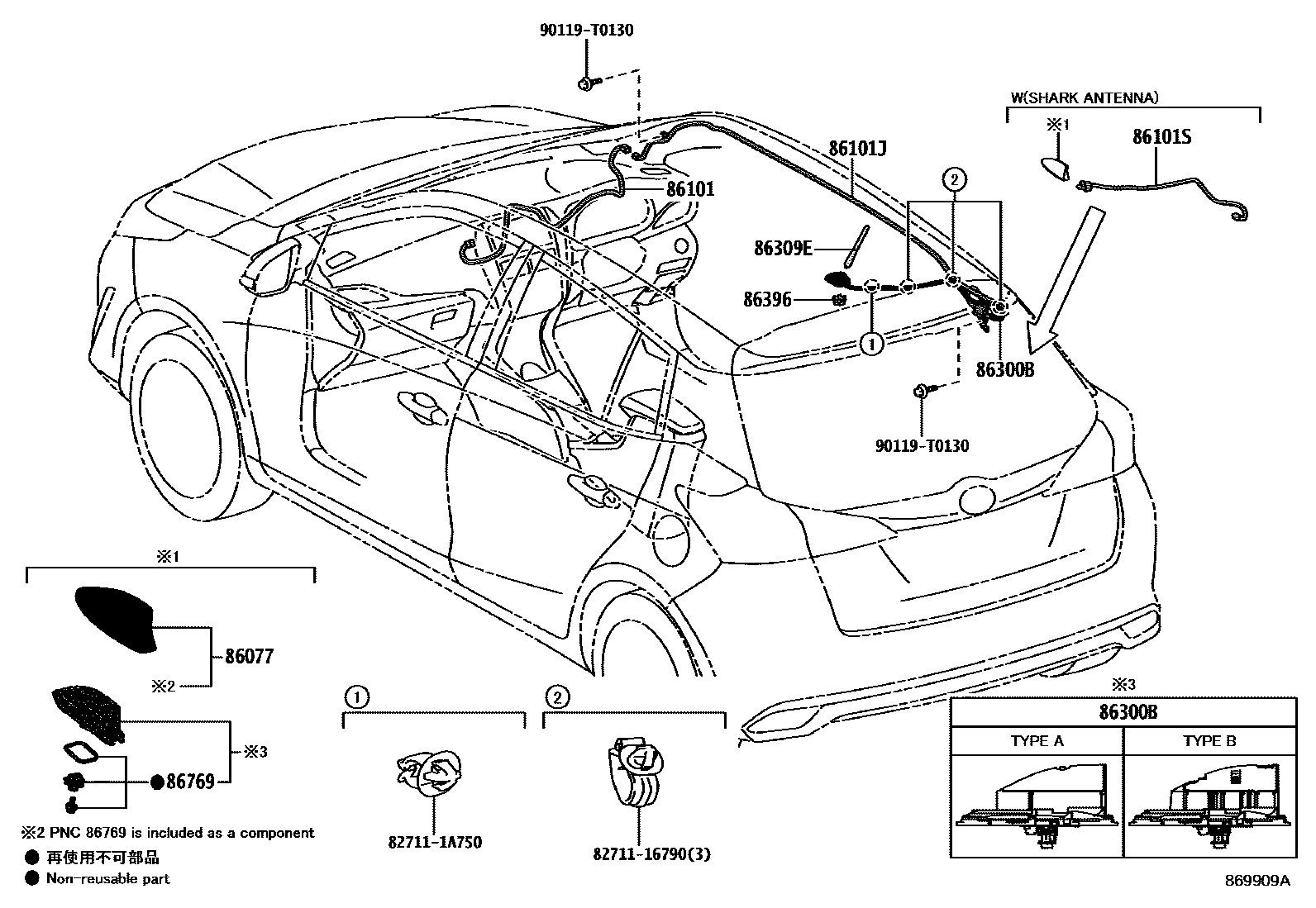

Toyota YARIS antenna EPC diagram — 869909A
antenna — 869909A (202303 – 999999)

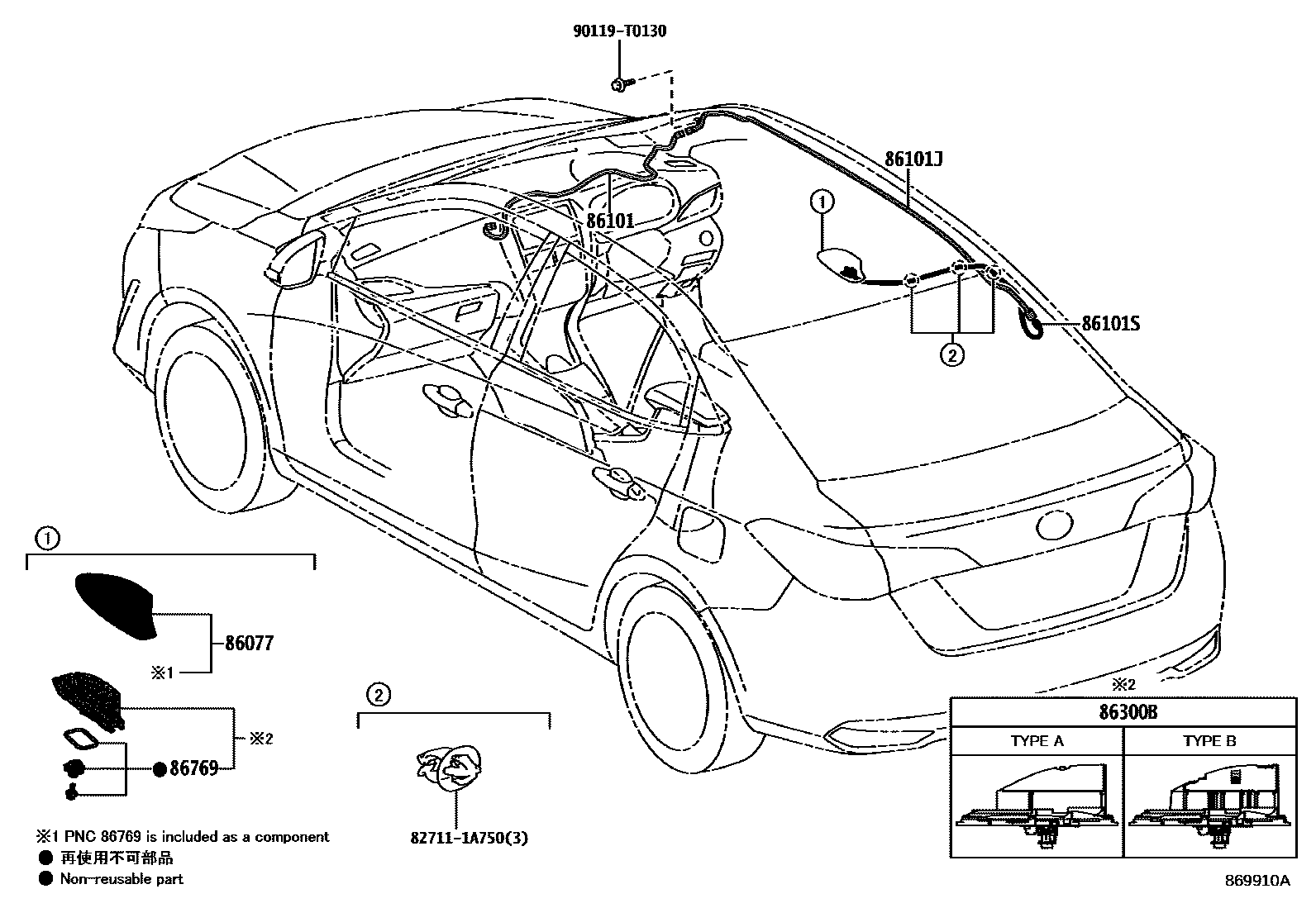

Toyota YARIS antenna EPC diagram — 869910A
antenna — 869910A (202304 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0DA30 · 86101-0DA40 · 86101-0DA60 · 86101-0DA70 · 86101-0DD10
86101JNo. 2 antenna wire sub-assembly86101-0D880 · 86101-0D890 · 86101-0DA00
86101SAntenna wire sub-assembly86101-0D860 · 86101-0DA80 · 86101-0DA90
86300BAmplifier antenna assembly86300-0D390 · 86300-0D471 · 86300-0D480 · 86300-0D481
86309ERoof antenna sub-assembly86309-0D140
86396Antenna nut86396-47010
86769LOGEMENT, ANTENNE DE TOIT86769-0K010 · 86769-0K020
