Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

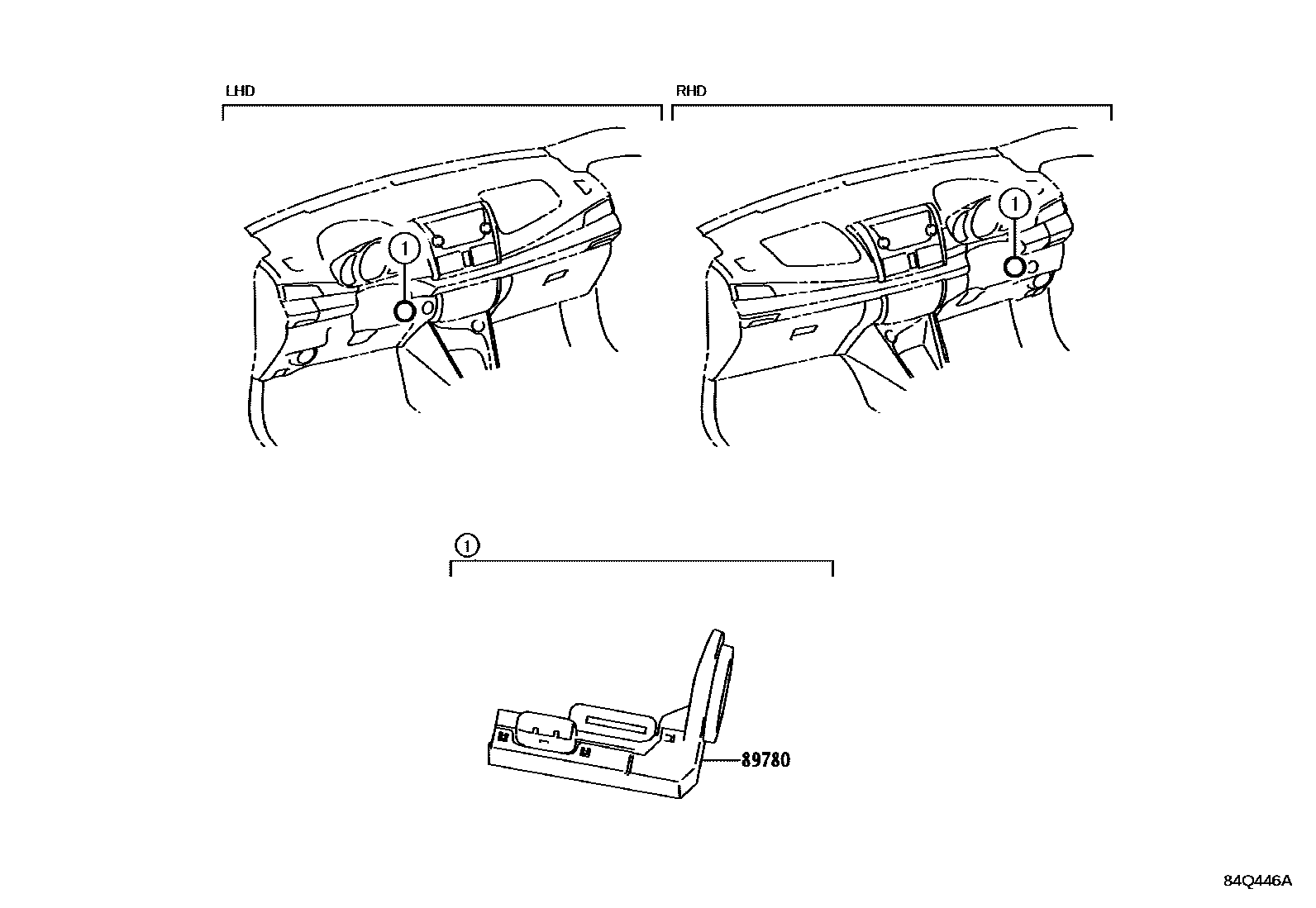

| 89780 | Transceiver key ECU assembly | 89780-0D091 · 89780-0D092 · 89780-0D122 · 89780-0D230 |

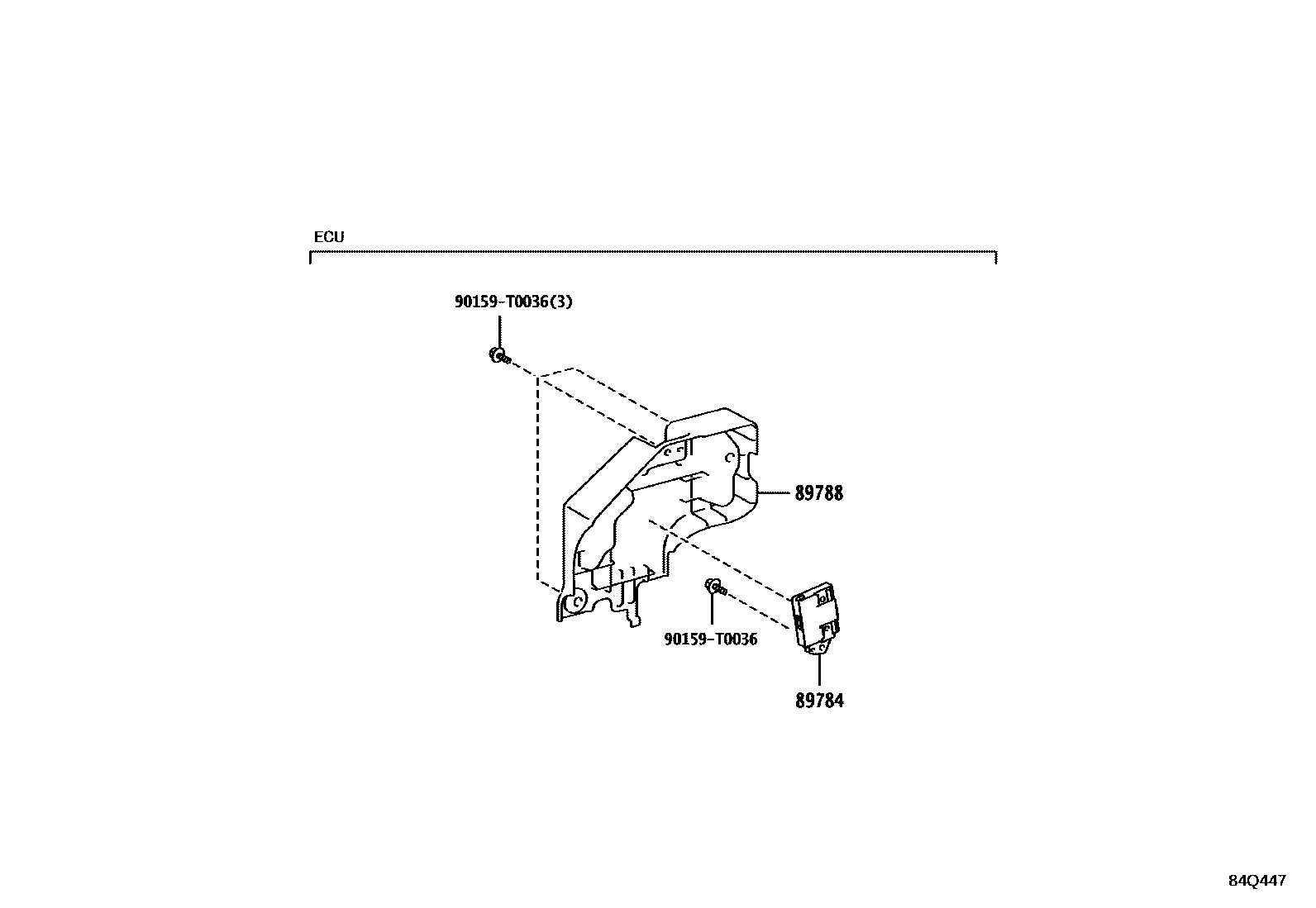

| 89784 | Shutdown code system ECU | 89784-52050 |
| 89788 | transceiver key holder | 89788-0D010 |
