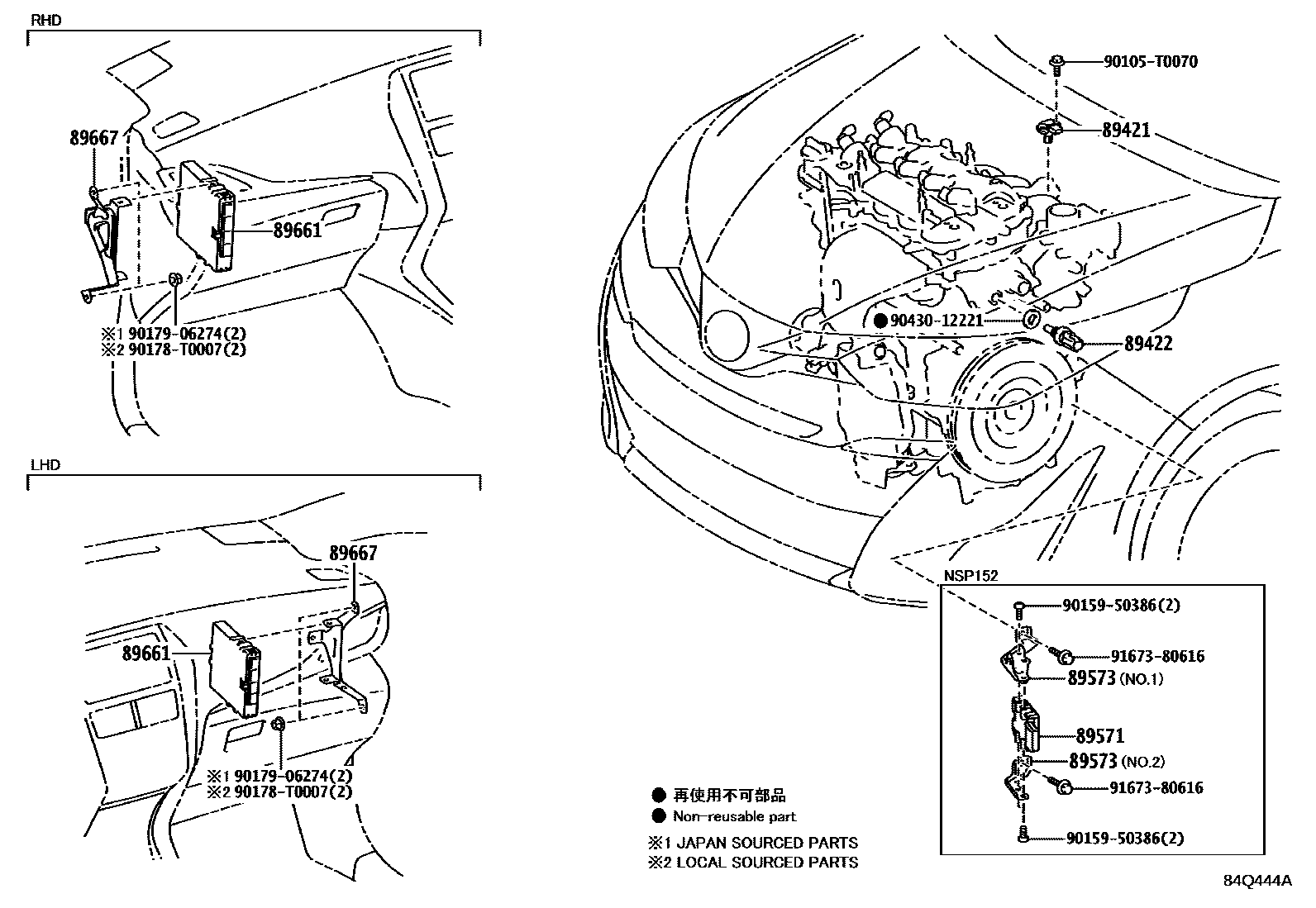

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-47010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89571 | Fuel pump control ECU | 89571-34070 |
| 89573 | Fuel pump control ECU bracket | 89573-52030 · 89573-52040 |
| 89661 | Engine control ECU | 89661-0DW90 · 89661-0DZ40 · 89661-0U280 · 89661-0U350 · 89661-0U360 · 89661-0UC20 · 89661-0UC30 · 89661-0UE80 · 89661-0UG20 · 89661-0UG30 · 89661-0UG40 · 89661-0UG50 · 89661-0UG60 · 89661-0UG70 · 89661-0UG80 · 89661-0UG90 |
| 89667 | Engine control ECU bracket | 89667-0D150 · 89667-0D340 |
