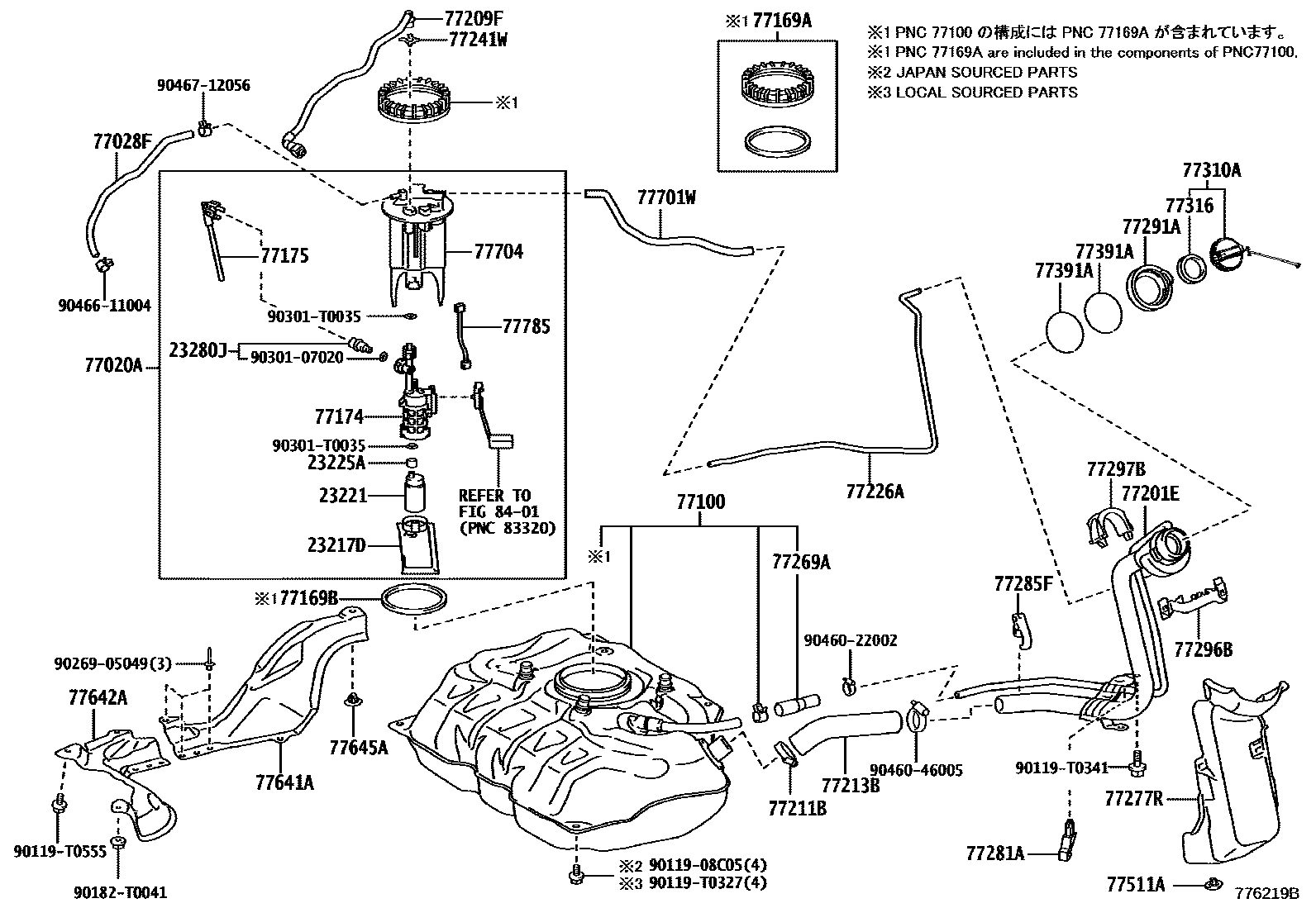

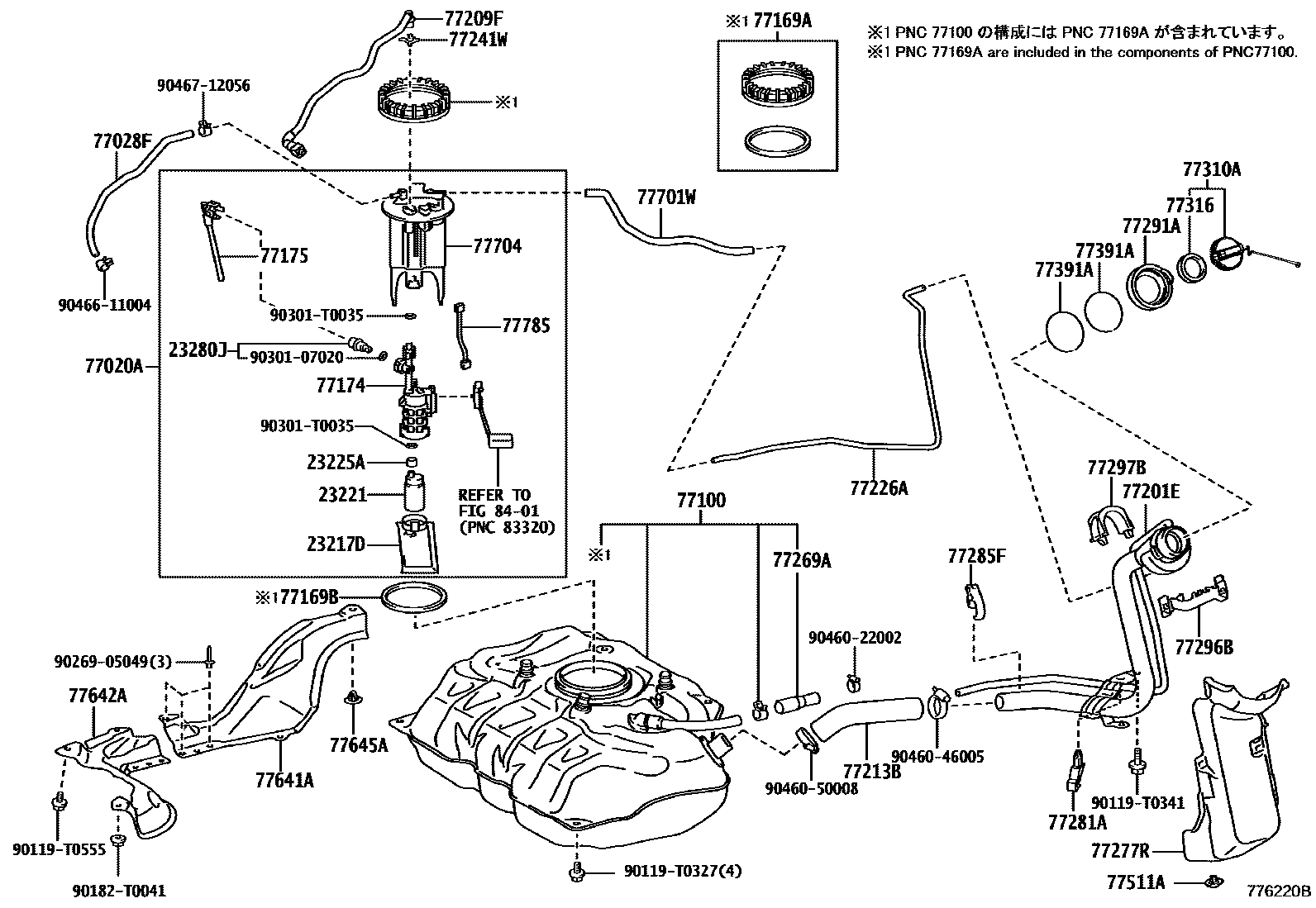

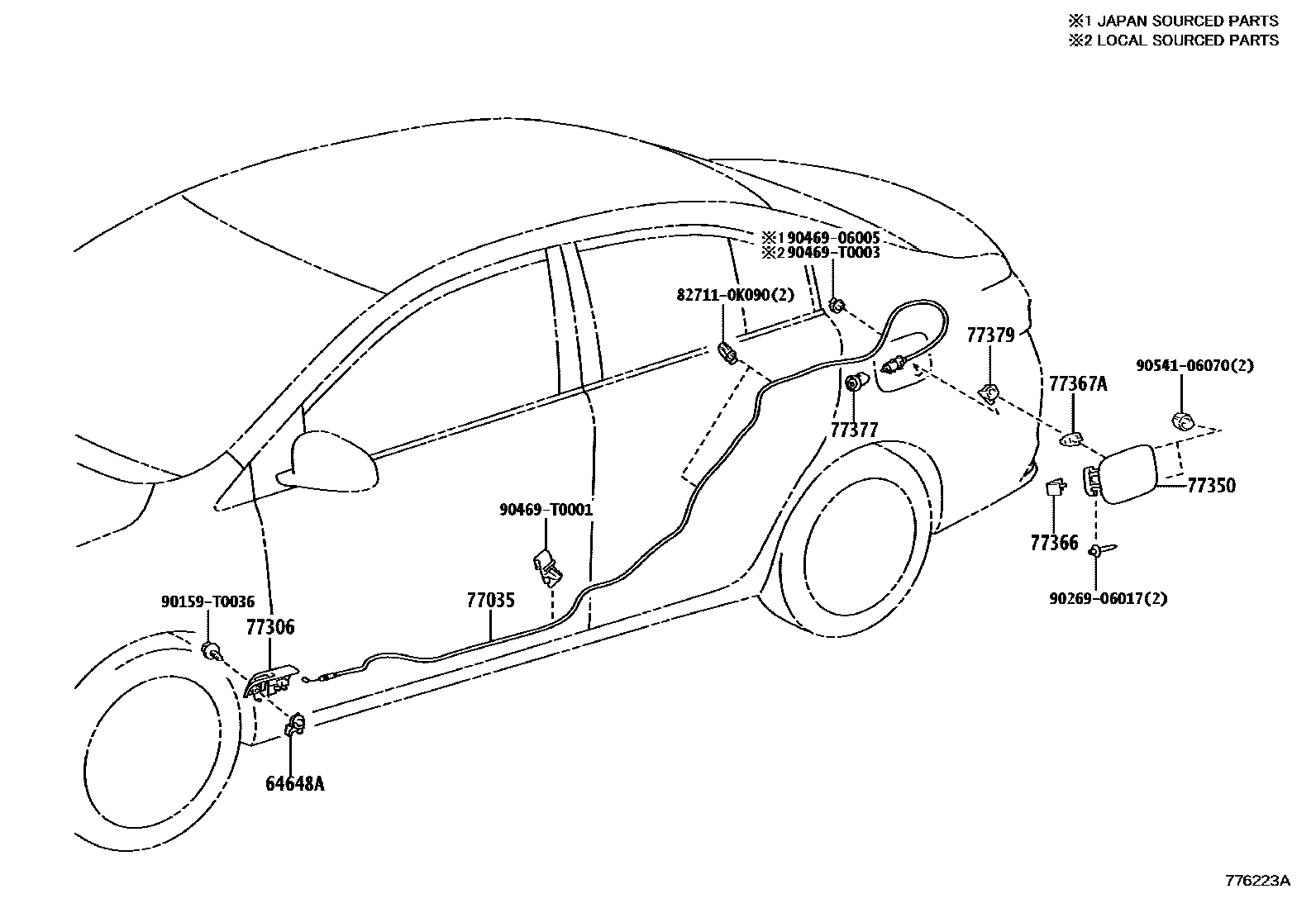

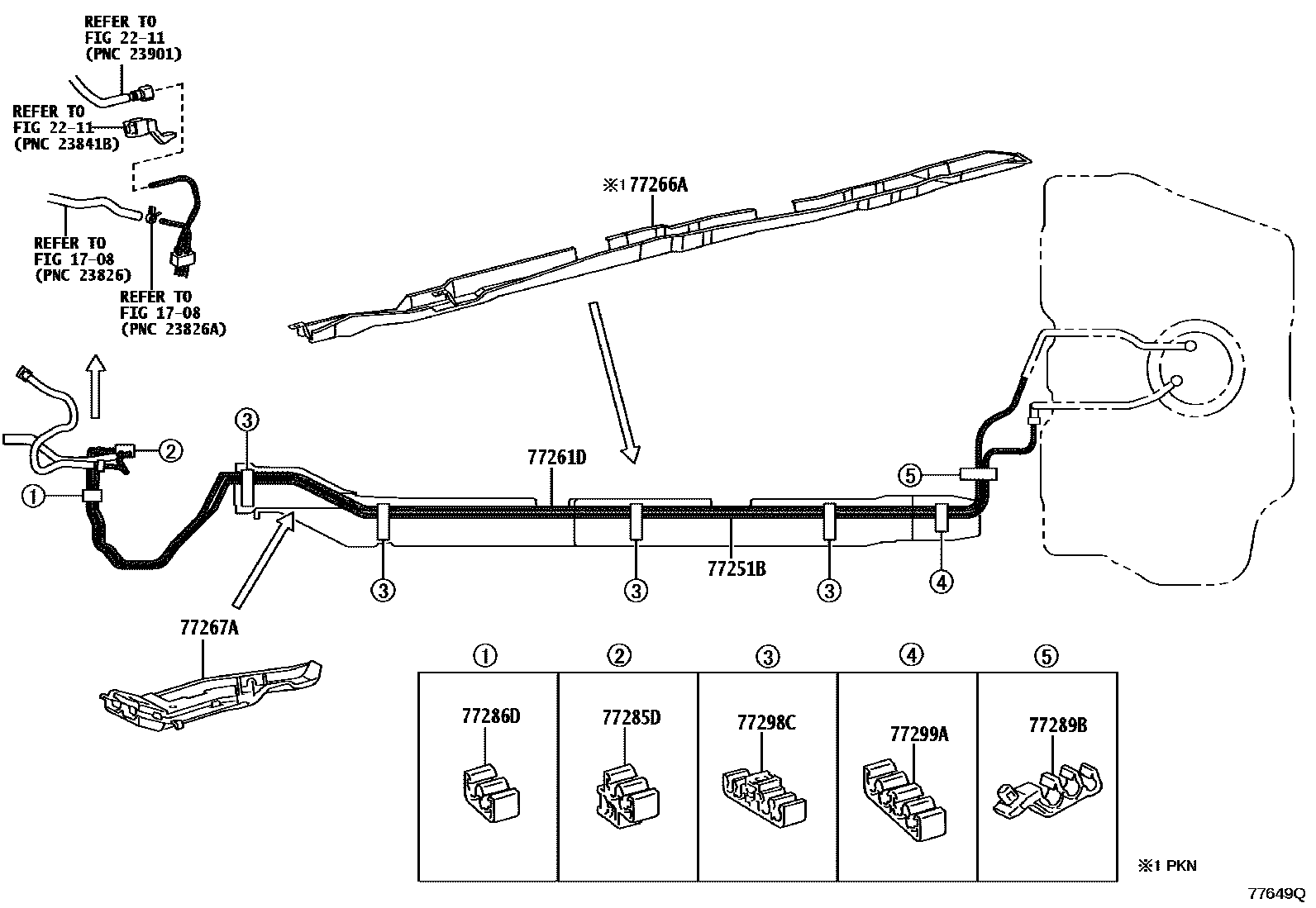

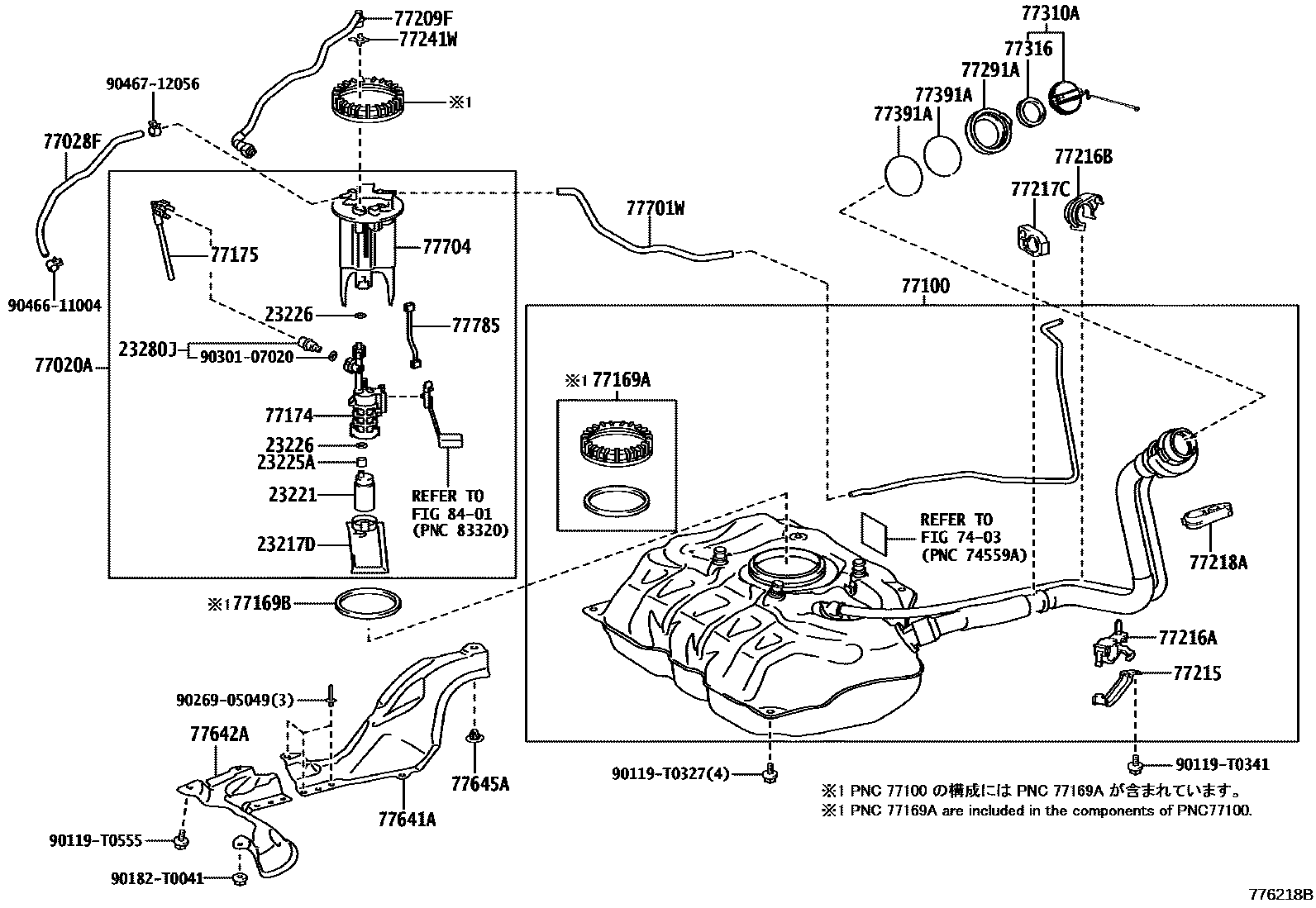

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 6 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0Y030 |
| 23221 | fuel pump | 23221-0Y040 |
| 23225A | fuel pump septum | 23225-0V030 |
| 23226 | O-ring (for fuel pump) | 90301-T0035 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 64648A | Trunk door lock opener seal | 64648-0D020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D190 |
| 77028F | SS-ENS. TUYAU, EMISSION DE CARBURANT, NO.2 | 77028-0D140 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D330 · 77035-0D340 · 77035-0D520 · 77035-0D610 · 77035-0D650 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-T0001 |
| 77100 | fuel tank assembly | 77001-0D271 · 77001-0D280 · 77001-0D430 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-52030 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D100 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0D050 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0D251 · 77201-0D301 · 77201-0D410 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0D160 |
| 77211B | Clamp (for fuel filler tube) | 90460-50008 |
| 77213B | Fuel tank to filler pipe hose | 77213-0D060 · 77213-0D080 · 77213-0D170 |
| 77215 | Fuel tank filler pipe flange piece | 77219-0D070 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-0D150 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-0D140 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-0D120 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-0D050 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0D070 · 77226-0D110 · 77226-0D120 |
| 77241W | Pipe joint clip | 77241-0K010 · 77241-33011 |
| 77251B | main fuel pipe | 77251-0D490 · 77251-0D520 · 77251-0D650 · 77251-0D660 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D430 · 77261-0D460 · 77261-0D560 · 77261-0D570 |
| 77266A | No. 1 fuel line protection device | 77266-0D150 |
| 77267A | No. 2 fuel pipe protection device | 77267-0D060 · 77267-0D100 |
| 77269A | fuel tank breather hose | 77269-0D110 |
| 77277R | Fuel tank filler pipe protection device | 77277-0D060 · 77277-0D100 · 77277-0D110 |
| 77281A | Fuel filler pipe clamp | 77229-0D010 · 77229-52040 |
| 77285D | No. 1 fuel pipe clamp | 77285-0D140 · 77285-0D220 |
| 77285F | No. 1 fuel pipe clamp | 77285-0D040 · 77285-52080 |
| 77286D | No. 2 fuel pipe clamp | 77286-0D120 · 77286-0D160 |
| 77289B | No. 3 fuel pipe clamp | 77289-0D090 · 77289-0D120 |
| 77291A | Fuel tank filler pipe cover | 77291-0D160 · 77291-0D220 · 77291-0D240 |
| 77296B | No. 1 fuel line protector bracket | 77296-0D010 · 77296-52030 |
| 77297B | SUPPORT, PROTECTEUR DU TUYAU DE CARBURANT, NO.2 | 77297-0D010 · 77297-0D030 |
| 77298C | No. 4 fuel pipe clamp | 77298-0D110 · 77298-0D150 |
| 77299A | No. 5 fuel pipe clamp | 77299-0D070 · 77299-0D120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-0D130 · 64606-0D140 · 77306-0D070 · 77306-0D080 |
| 77310A | Fuel tank cap assembly | 77300-0K010 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-0D190 · 77350-0D240 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77367A | No. 1 fuel filler cap pin clip | 77367-0D010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-0D010 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77511A | fuel tank bracket | 77512-35140 · 77644-0K010 |
| 77641A | No. 1 fuel tank protective shell | 77641-0D090 |
| 77642A | No. 2 fuel tank protective shell | 77642-0D090 |
| 77645A | Fuel tank protective shell fixings | 77645-0D030 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-0D090 · 77701-0D120 |
| 77704 | Carbon canister sub-assembly | 77704-0D110 |
| 77785 | fuel pump wiring harness | 77785-0D110 |
