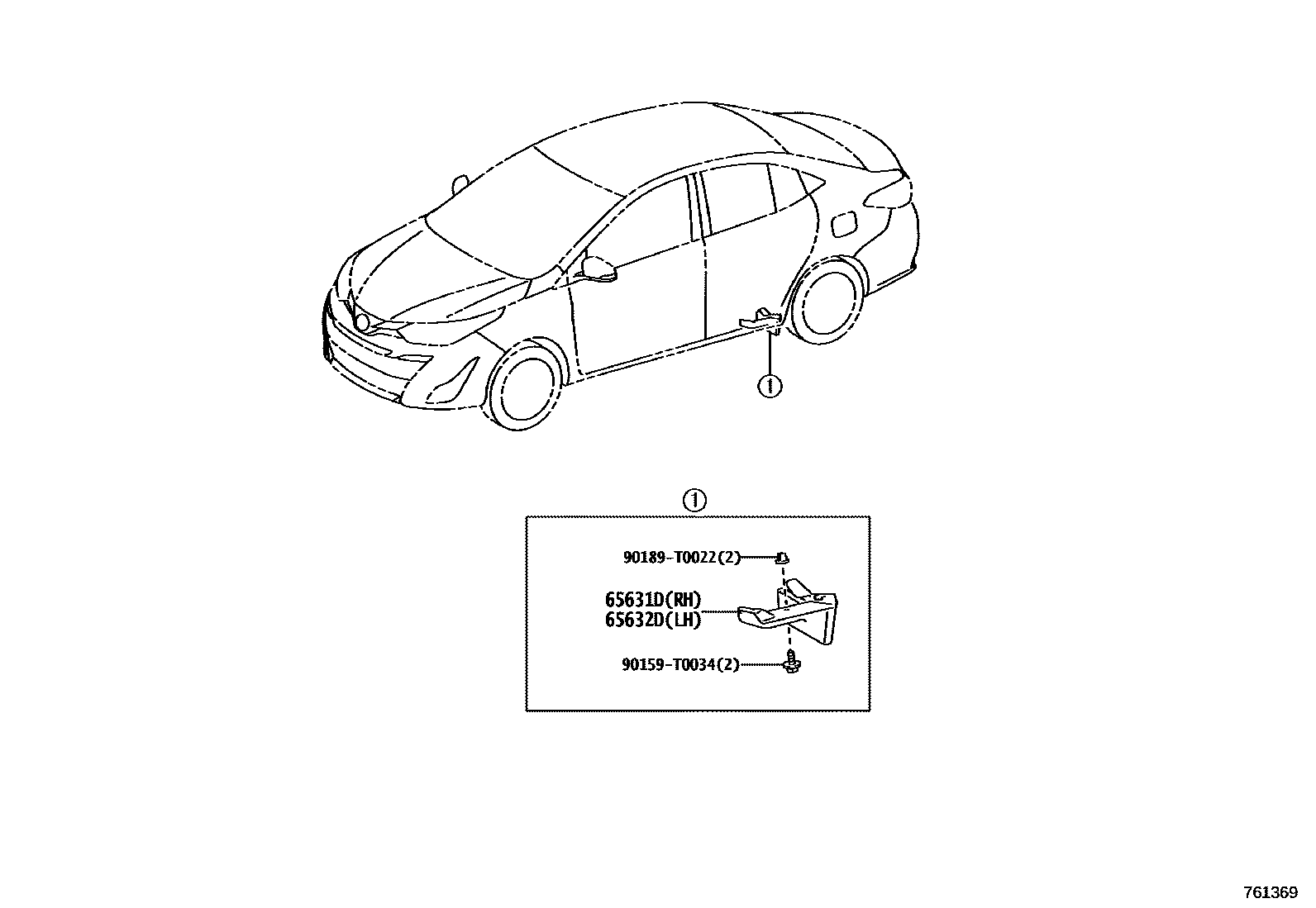

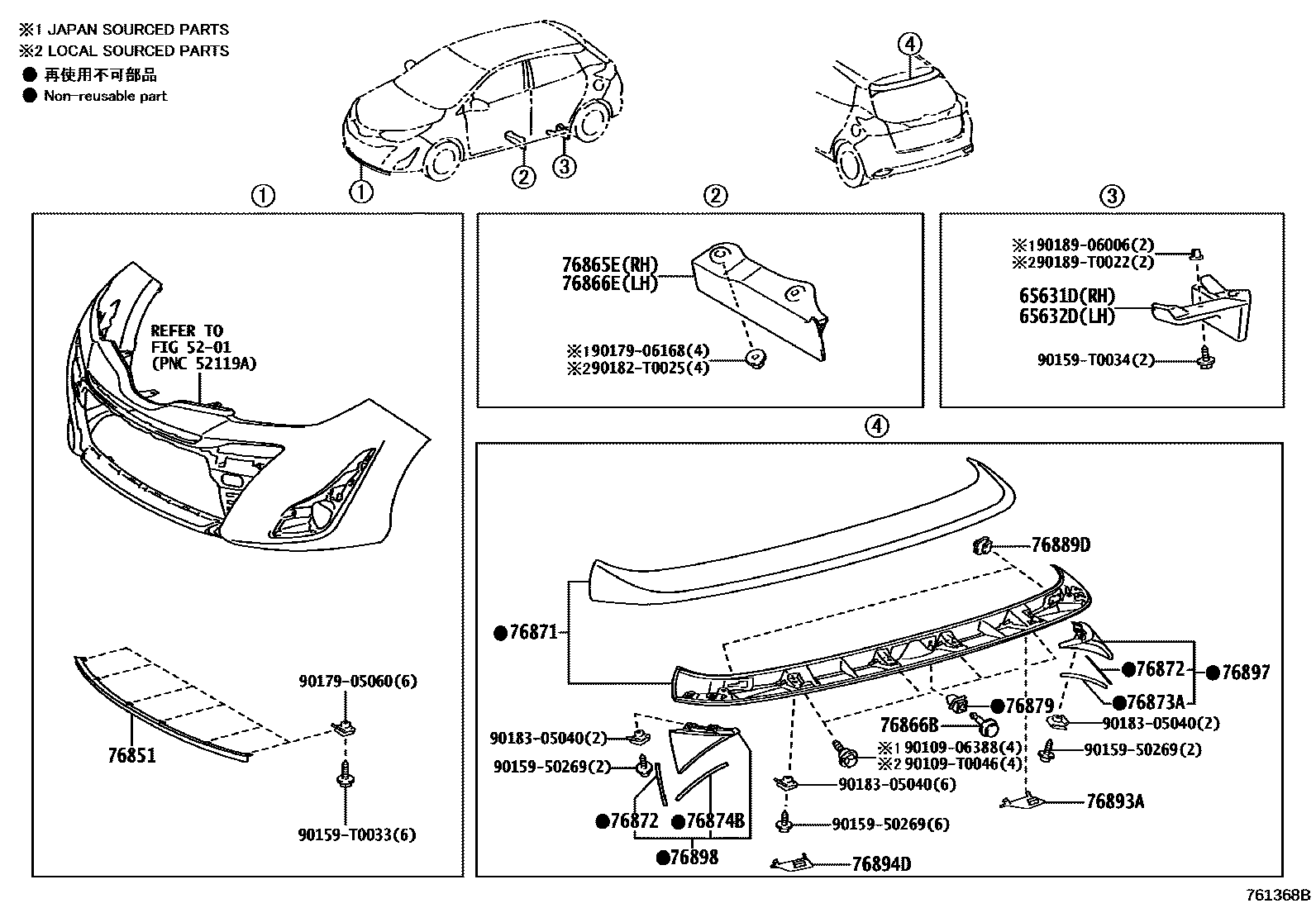

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0D070 · 65631-0D140 · 65631-0D200 |
| 65632D | Left rear wheel house front panel | 65632-0D070 · 65632-0D140 · 65632-0D200 |
| 76851 | front spoiler cover | 76851-0D230 |
| 76865E | No. 5 door sill panel protective strip protective cover | 75865-0D030 |
| 76866B | No. 2 rear spoiler fixing piece | 76866-48010 |
| 76866E | No. 6 rocker panel protective strip protective cover | 75866-0D030 |
| 76871 | rear spoiler | 76085-0D908 · 76085-0D911 |
| 76872 | No. 1 rear spoiler protective strip | 76872-0D040 · 76872-0D050 |
| 76873A | Right rear spoiler protective strip | 76873-0D100 · 76873-0D110 |
| 76874B | Left rear spoiler protective strip | 76873-0D100 · 76873-0D110 |
| 76879 | No. 1 rear spoiler clip | 76879-0D070 |
| 76889D | No. 2 rear spoiler clip | 76889-0D030 |
| 76893A | Right rear spoiler cover | 76893-0D912 · 76893-0D913 |
| 76894D | Left rear spoiler cover | 76894-0D912 · 76894-0D913 |
| 76897 | Right rear spoiler protection strip | 76897-0D081 · 76897-0D091 |
| 76898 | Left rear spoiler protection strip | 76898-0D081 · 76898-0D091 |
