Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 10 PNC and OE references.

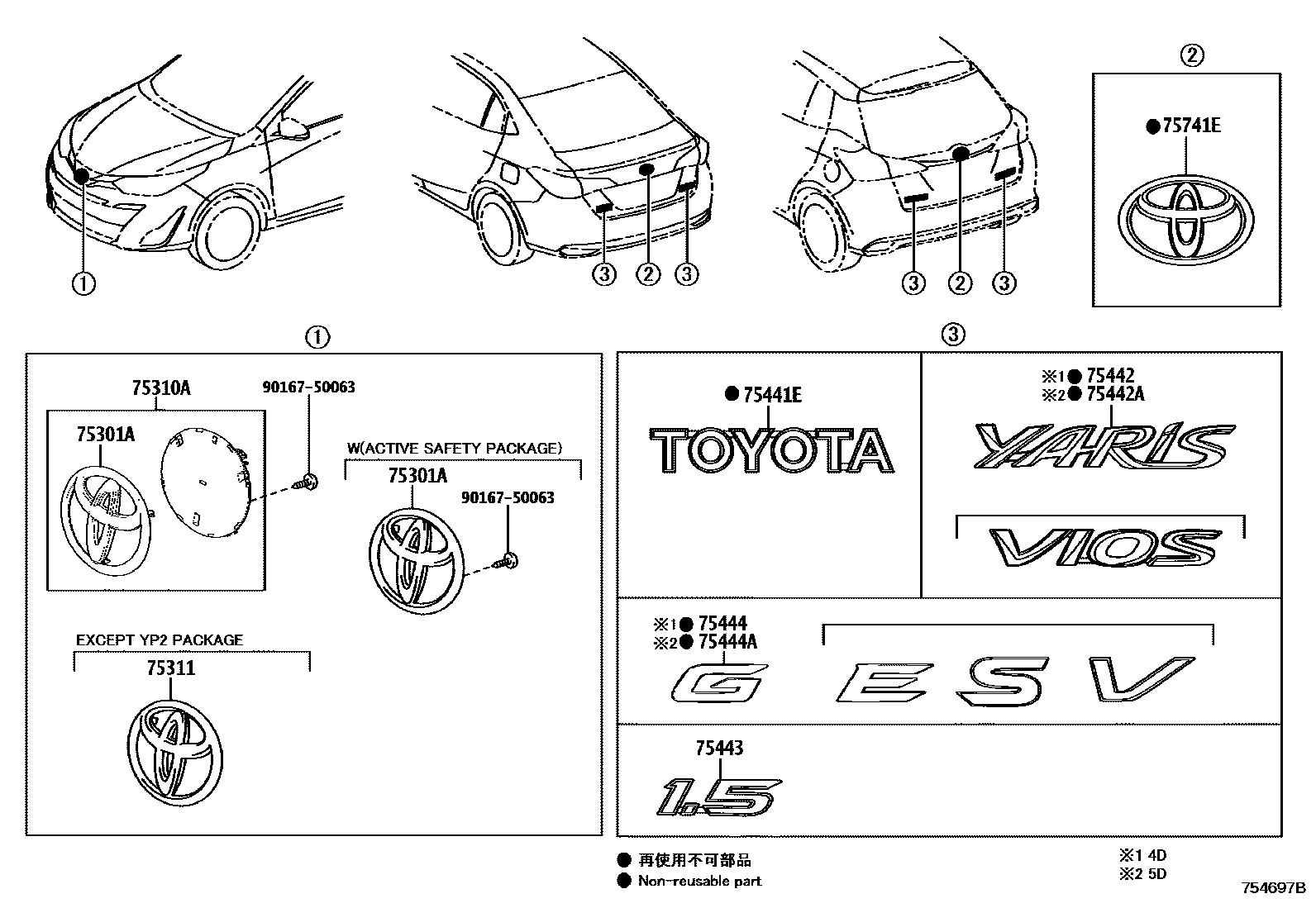

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754697B
丰田徽标和铭牌(车外和车内) — 754697B (202303 – 999999)

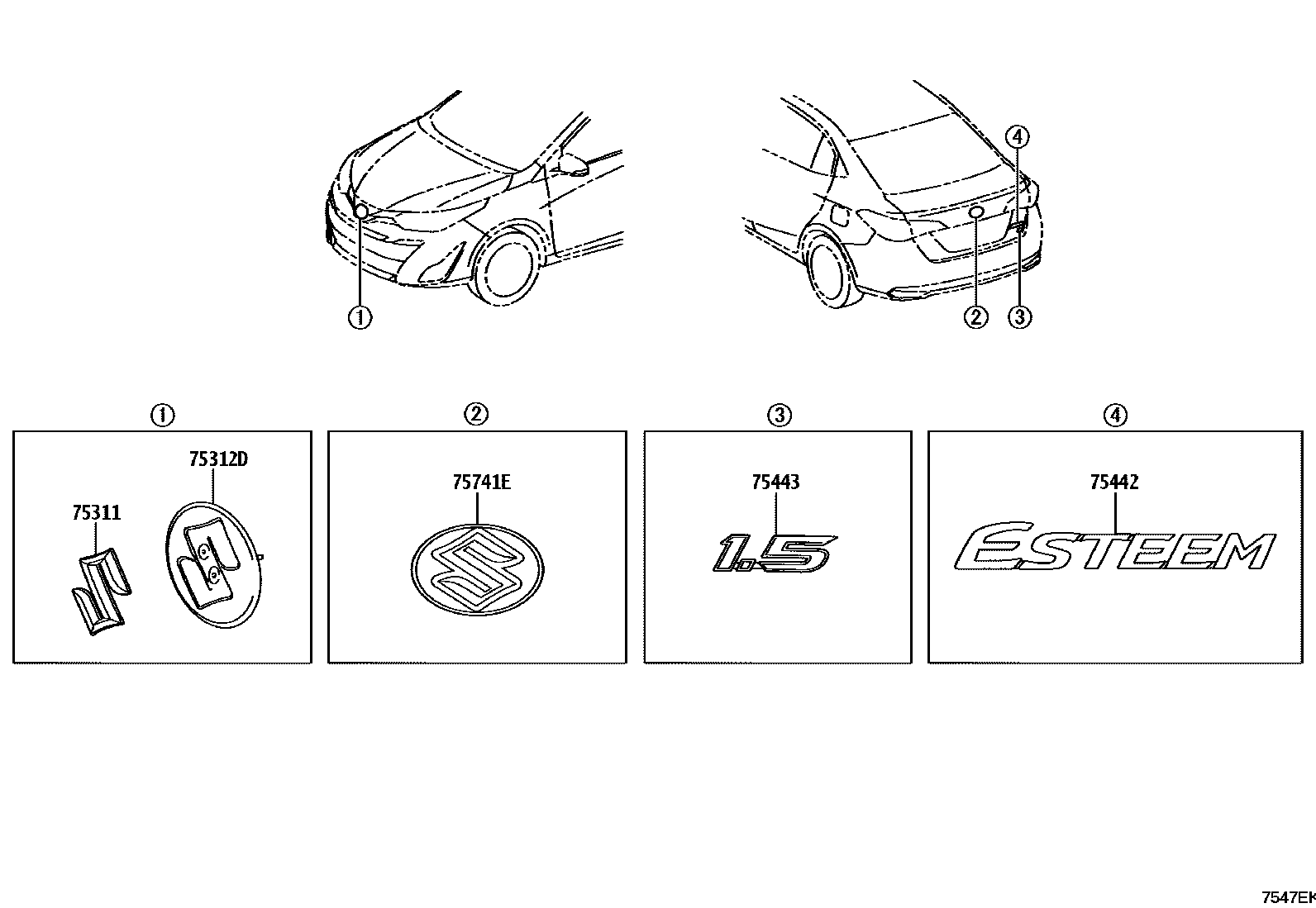

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 7547EK
丰田徽标和铭牌(车外和车内) — 7547EK (202407 – 999999)

PNC and OE references

PNCPart nameOE numbers
75301AFront bumper sign sub-assembly90975-02160 · 90975-T2005 · 90975-T2031
75310ARadiator grille plate assembly75310-YP050 · 75403-YP030
75311Radiator grille (or front panel) plate75431-02200 · 90975-02160 · 90975-T2008 · 90975-T2009
75441EBack door No. 1 nameplate75447-0D240 · 75447-0D270
75442Trunk door number plate No. 275442-0D340 · 75442-0D550 · 75442-0D560
75442ANo. 2 nameplate on back door75442-0D470 · 75442-0D520
75443No. 3 nameplate on back door75471-0D310
75444Trunk door No. 4 nameplate75444-0DB30 · 75444-0DB40 · 75444-0DB50 · 75444-0DB80 · 75444-0DB90
75444ANo. 4 nameplate on back door75444-0D690 · 75444-0D700 · 75444-0D710
75741Elogo67930-0D020 · 75431-02090
