Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

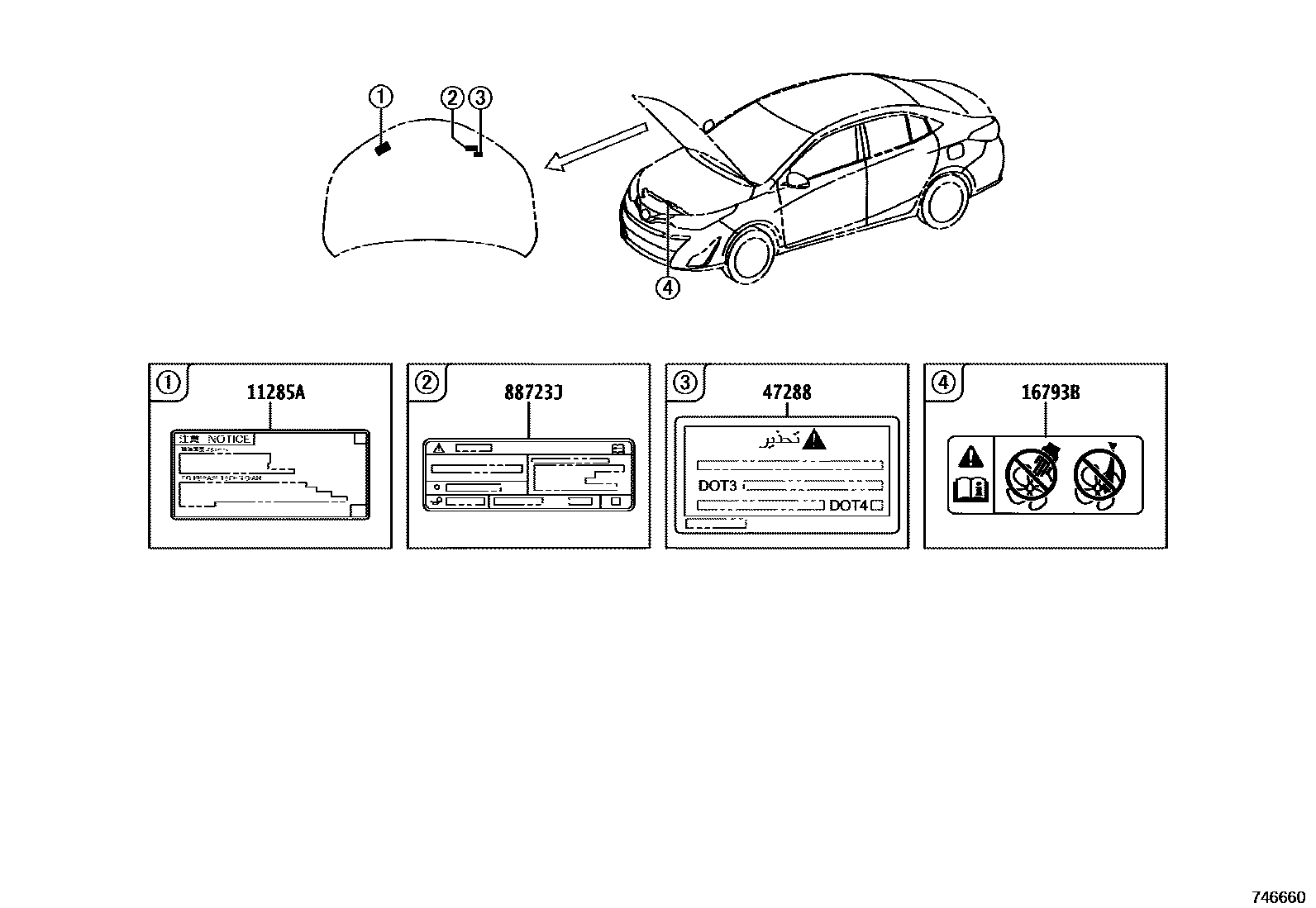

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-47010 |
| 16793B | Cooling fan information label | 16793-36030 |
| 47288 | Brake Fluid Caution Label | 47288-71010 |
| 69339C | Child Restraint Information Label | 69339-06060 |
| 74559A | Fuel warning plate | 74559-0D110 |
| 74559B | fuel information label | 74559-06040 · 74559-20140 |
| 74751 | tire pressure information label | 42661-0D211 · 42661-0D291 · 42661-0D550 · 42661-0D560 · 42661-0DA90 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-0D090 · 88723-0D110 · 88723-0D120 · 88723-0D130 · 88723-0D300 |
