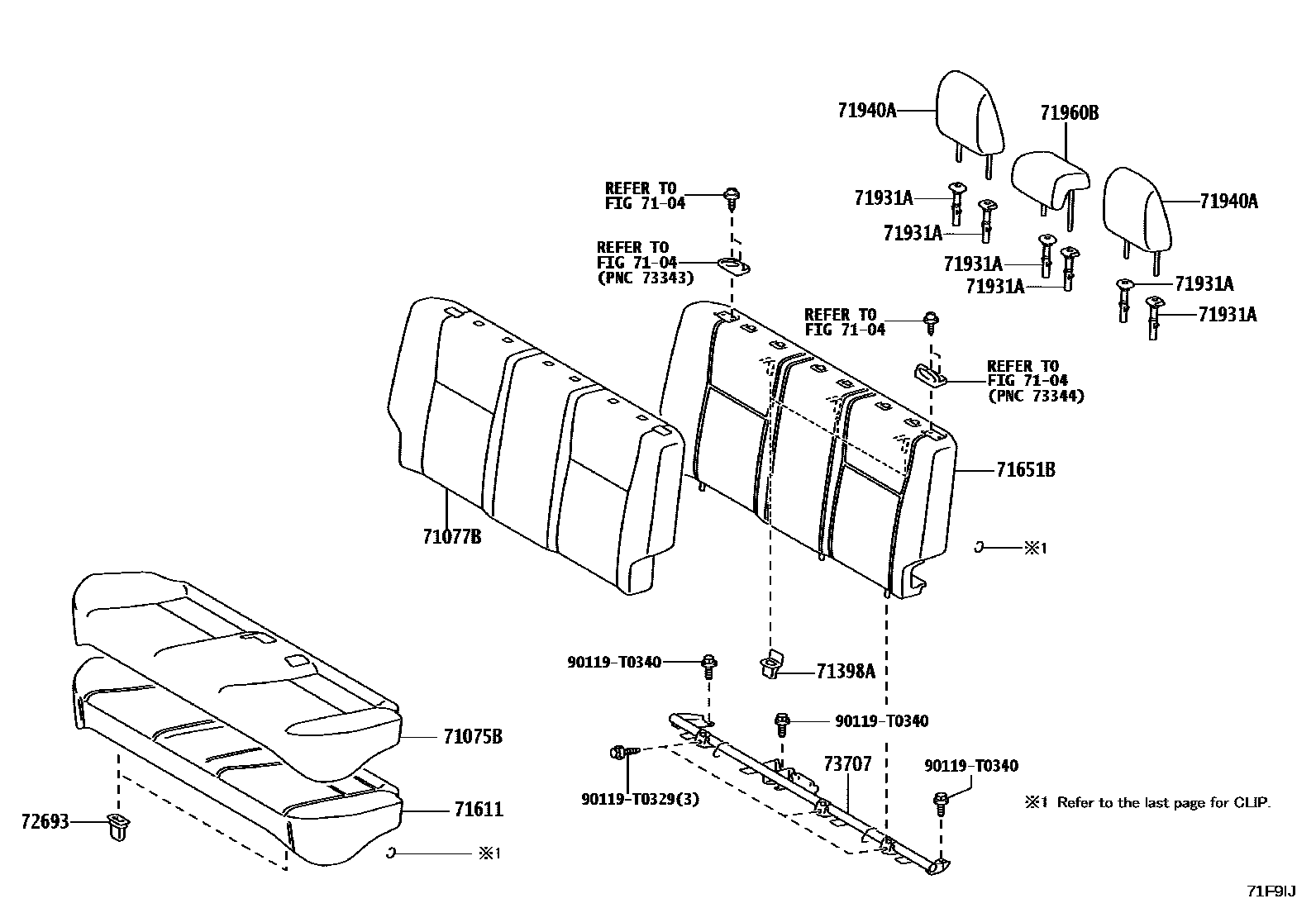

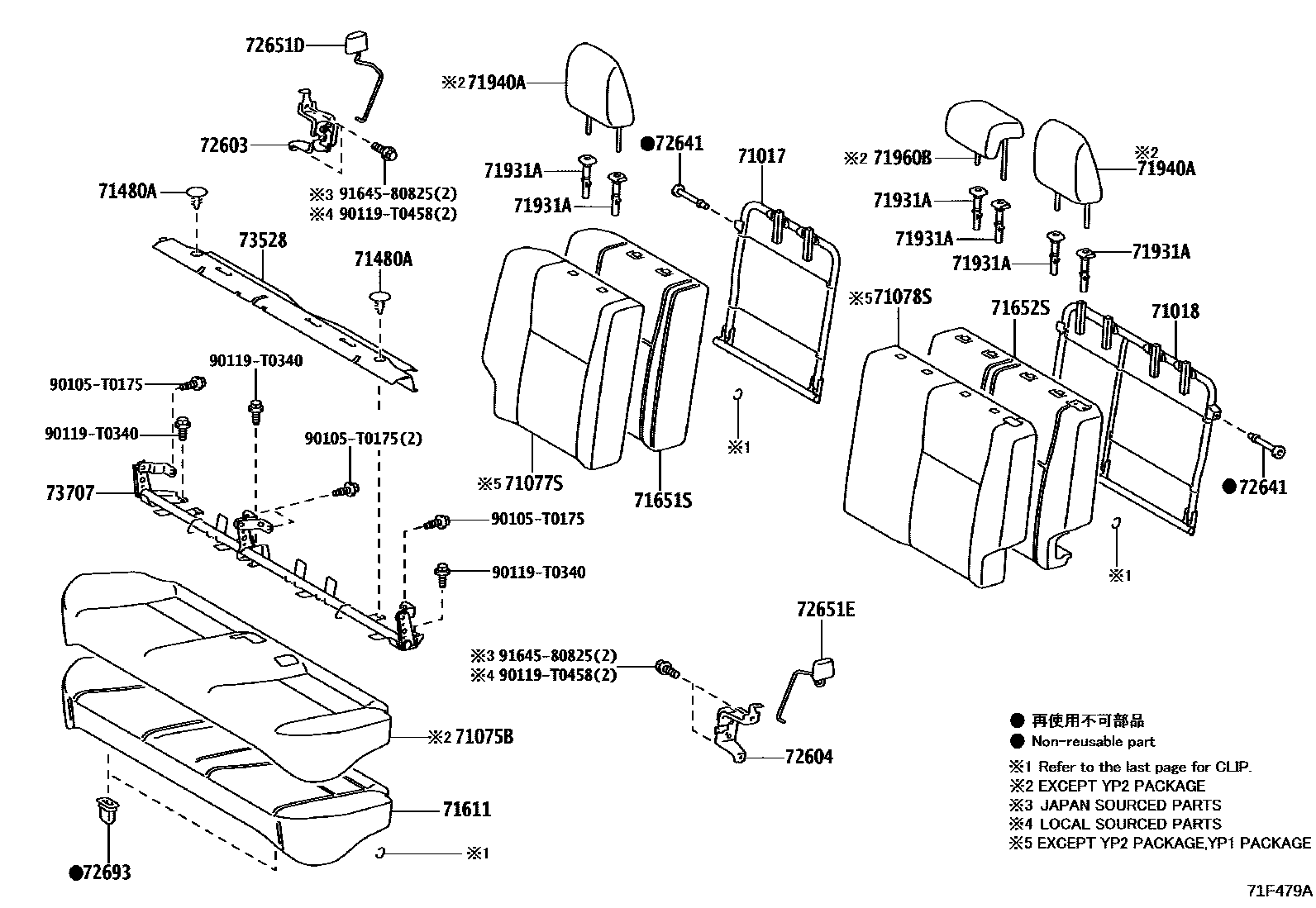

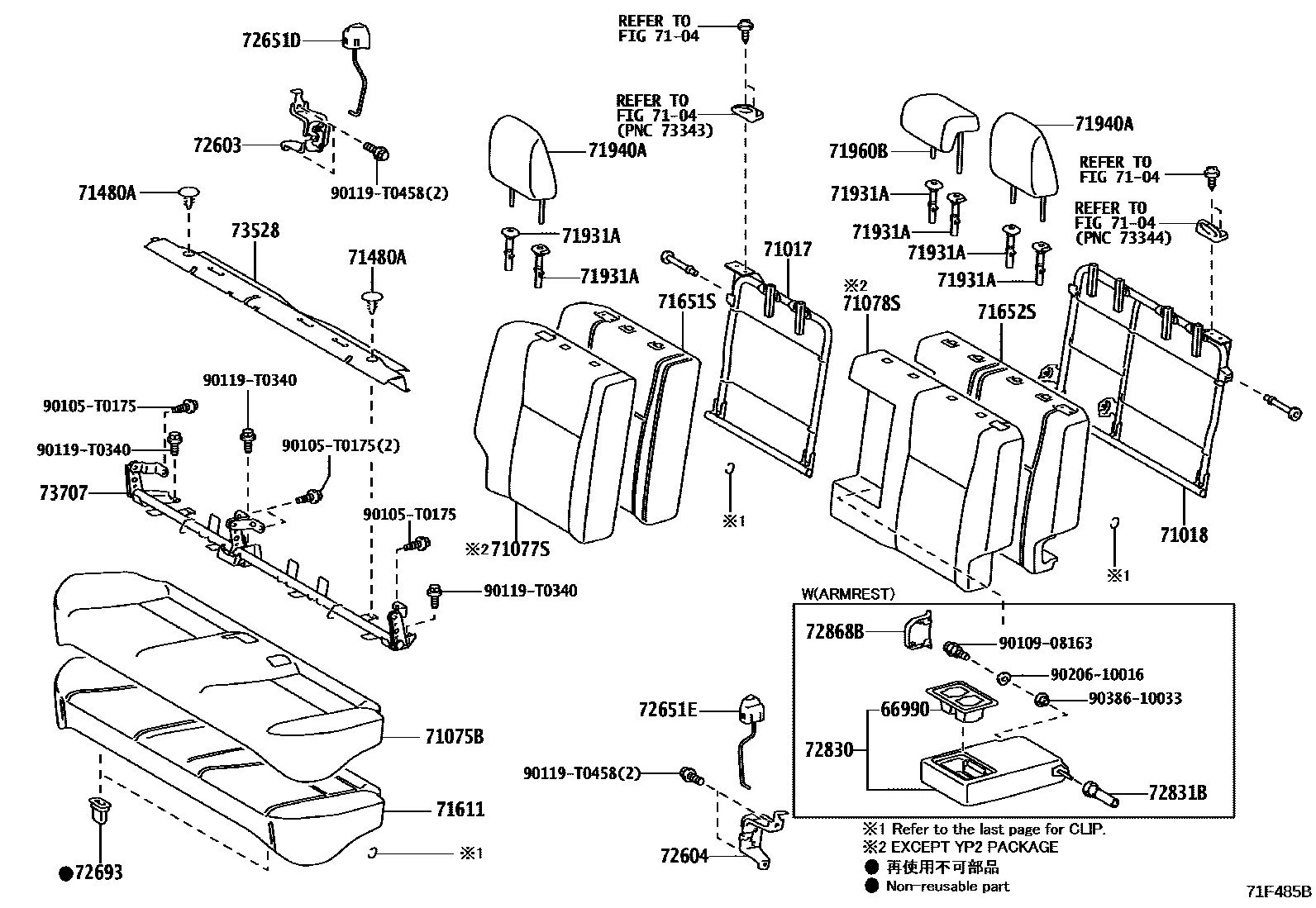

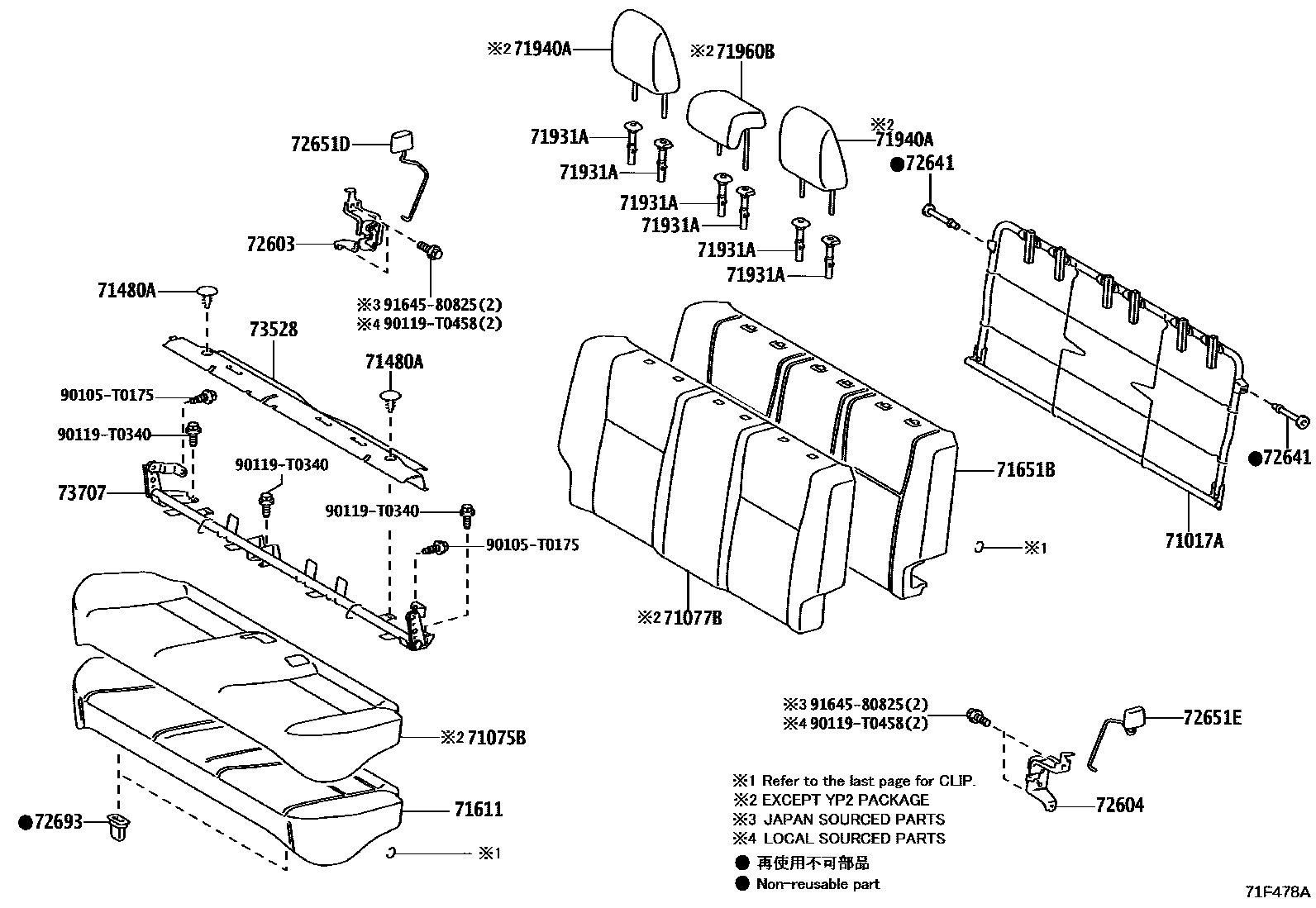

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0D610 · 71017-0D650 · 71017-0D780 |
| 71017A | Rear seat back frame sub-assembly | 71017-0D680 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D340 · 71018-0D380 · 71018-0D470 |
| 71077B | Rear seat backrest cover (for bench seat) | 71077-YP400 |
| 71398A | Rear seat back retainer | 71398-02040 |
| 71611 | Rear seat cushion cushion | 71503-0D340 · 71503-0D360 · 71503-0D450 · 71503-0D520 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-0D590 · 71651-0DA60 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D290 · 71651-0D350 · 71651-0DA50 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D210 · 71652-0D300 · 71652-0D510 |
| 72603 | Rear right seat back lock sub-assembly | 72630-0D080 |
| 72604 | Rear left seat back lock sub-assembly | 72640-0D080 |
| 72641 | Rear seat back lock pin | 72641-0D120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72831B | No. 1 rear seat center armrest panel | 72831-47010 |
| 73707 | Child restraint seat inner anchor bracket sub-assembly | 73705-0D360 · 73705-0D370 · 73705-0D380 · 73705-0D390 |
