Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

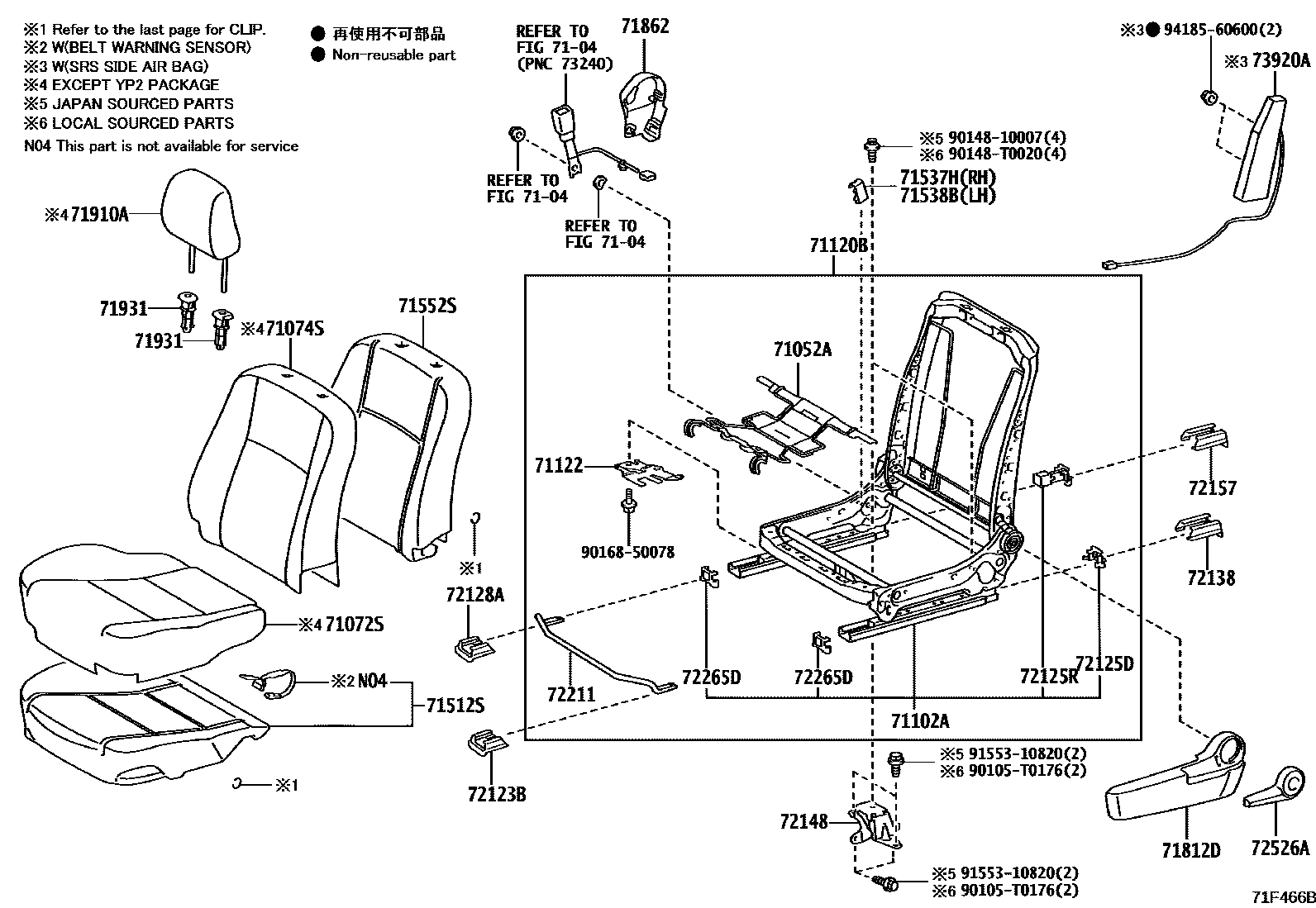

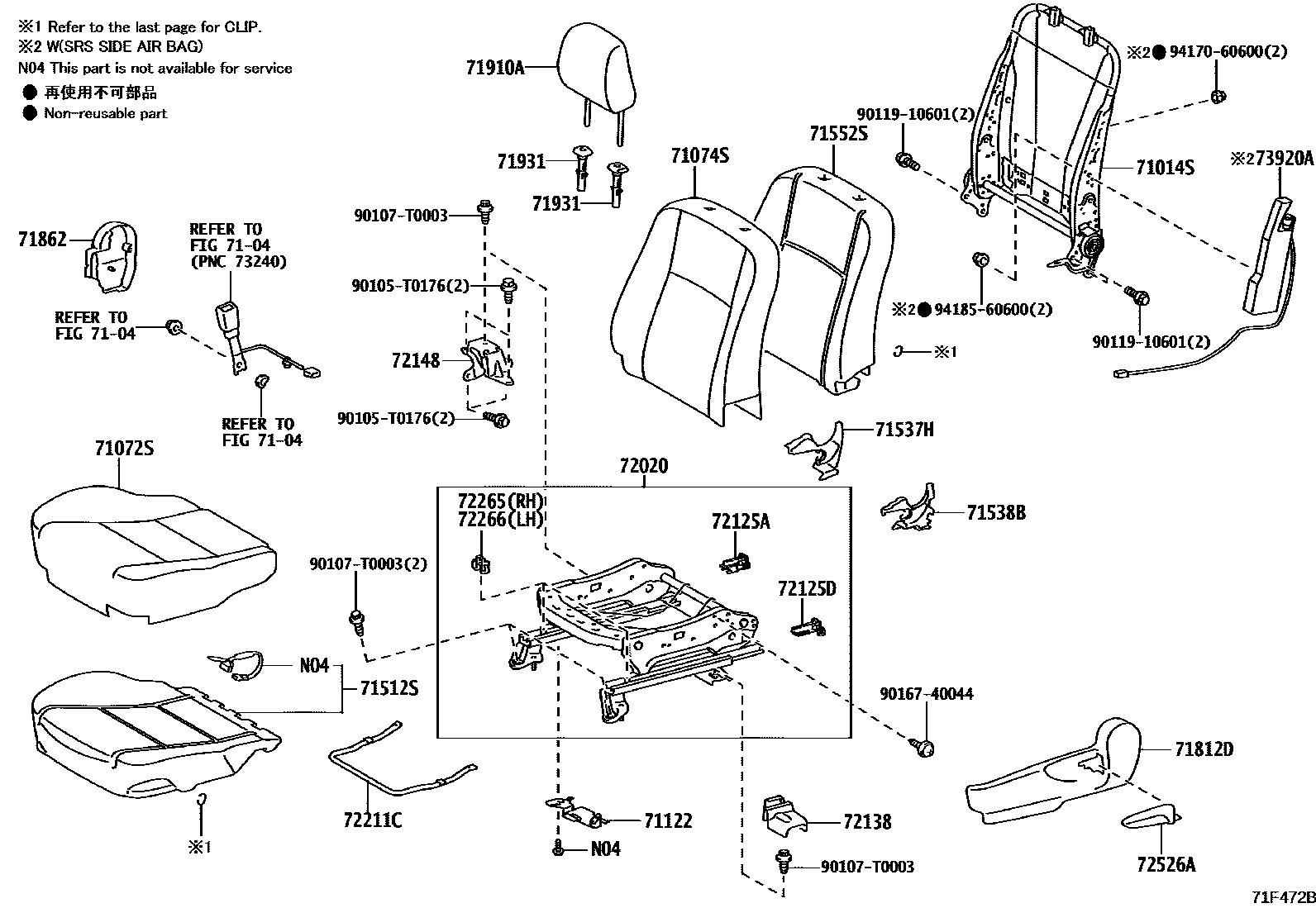

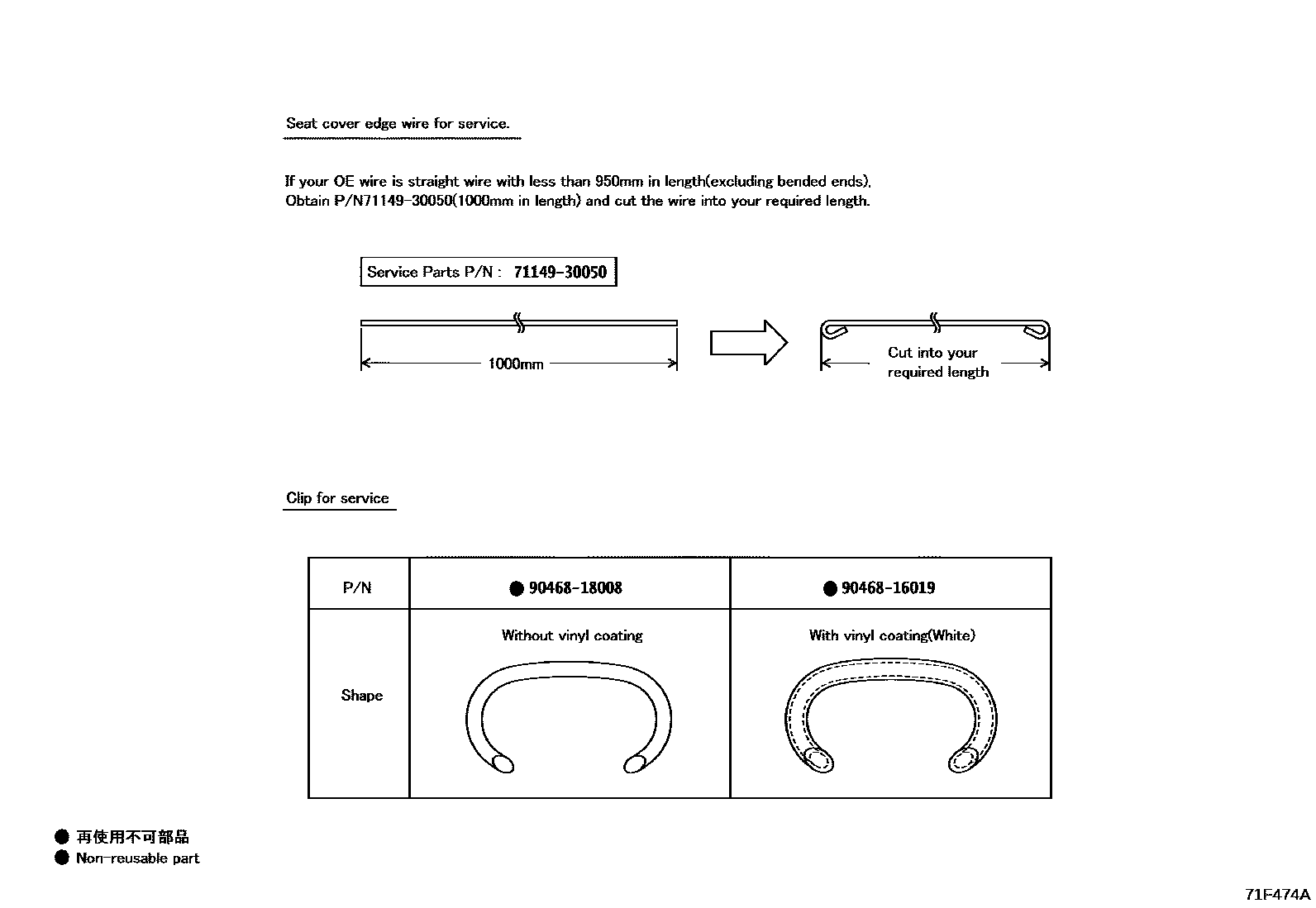

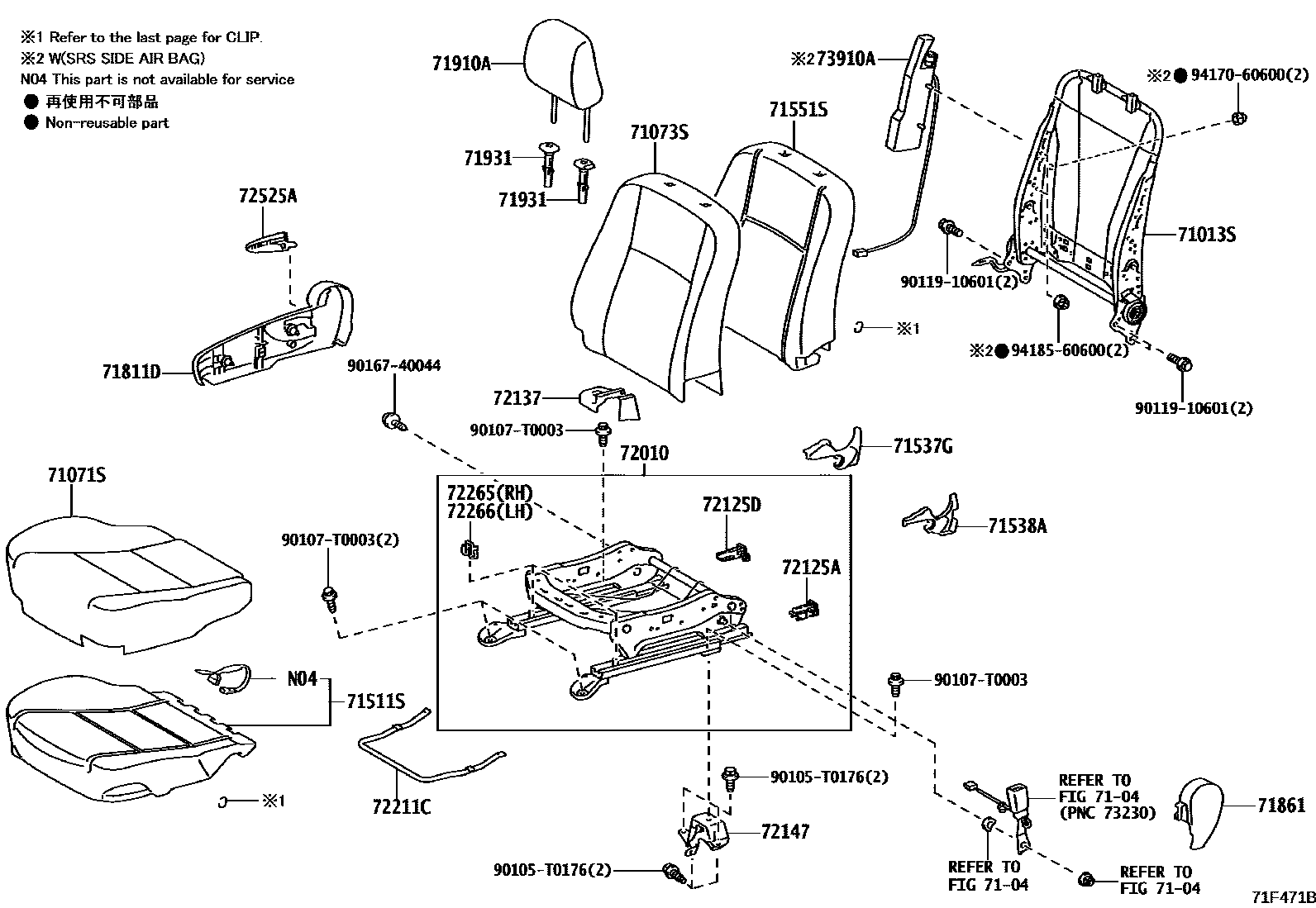

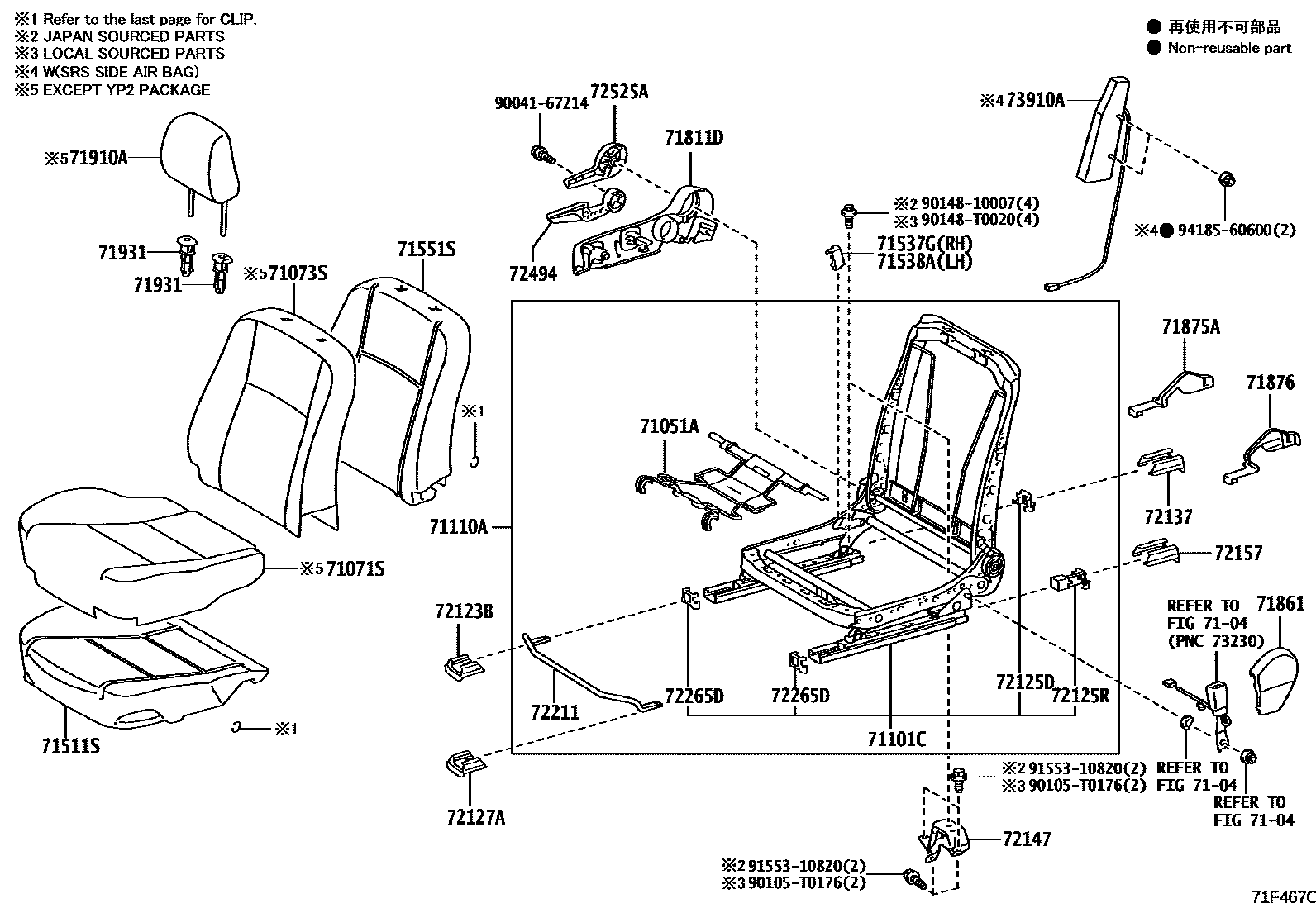

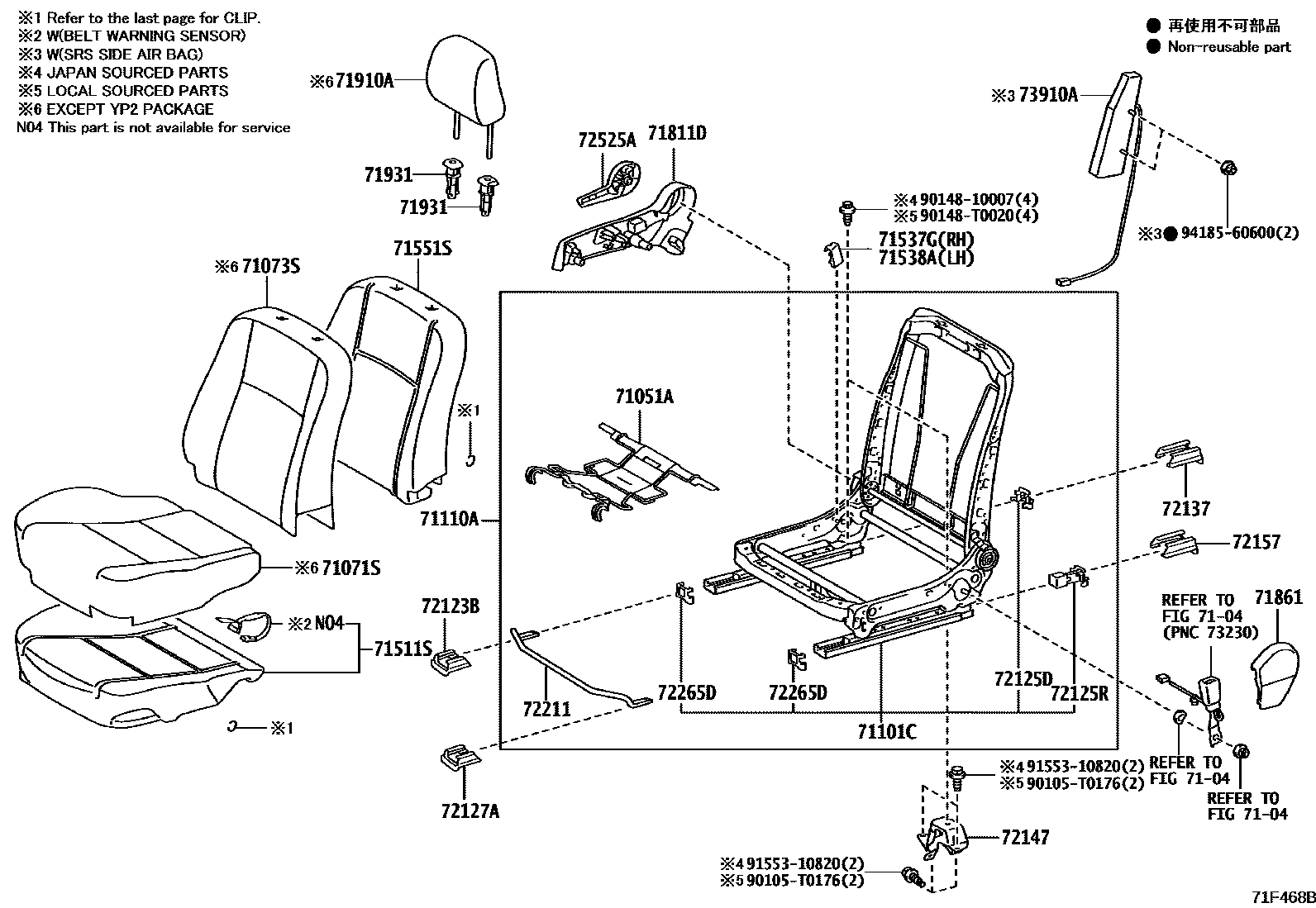

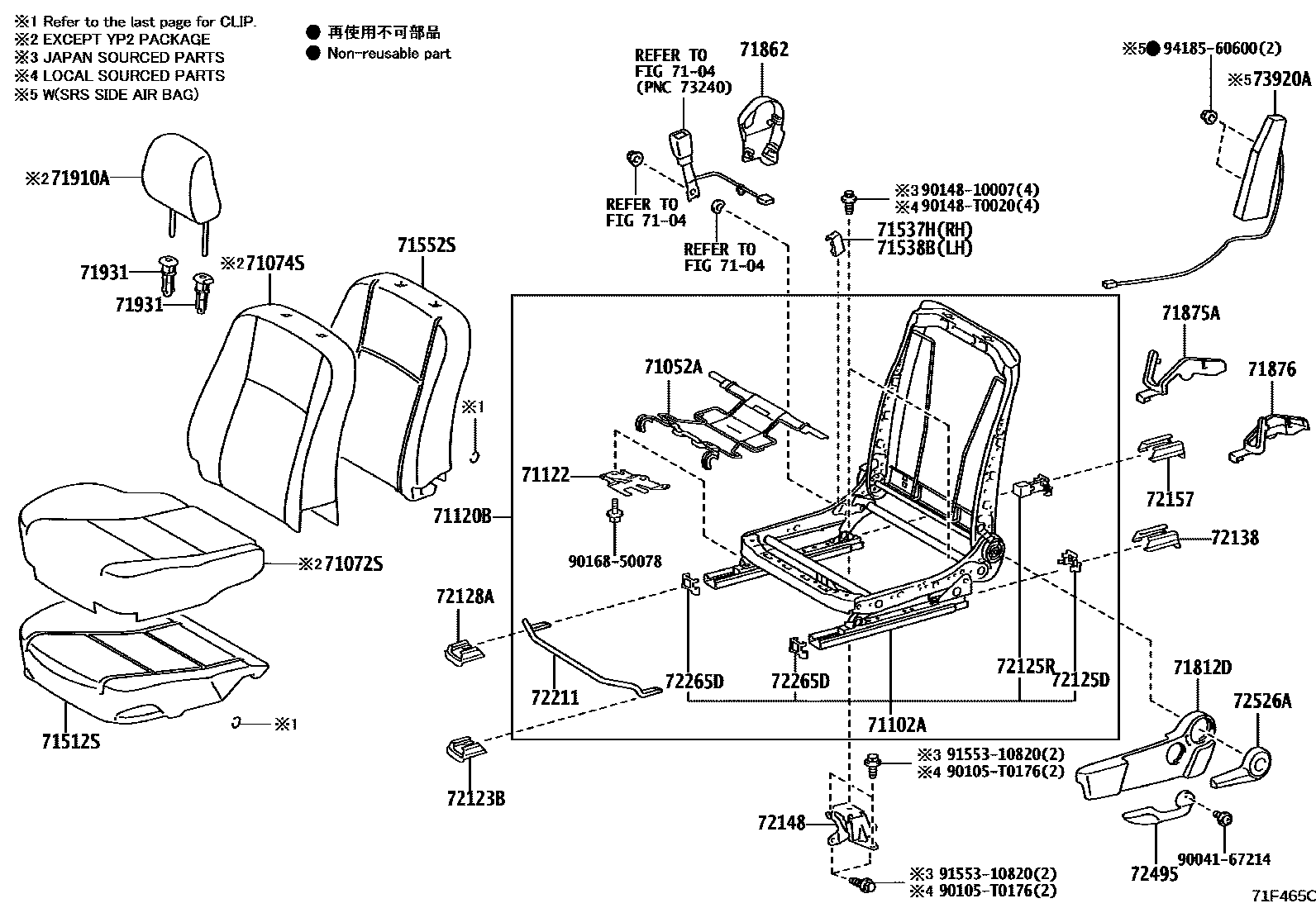

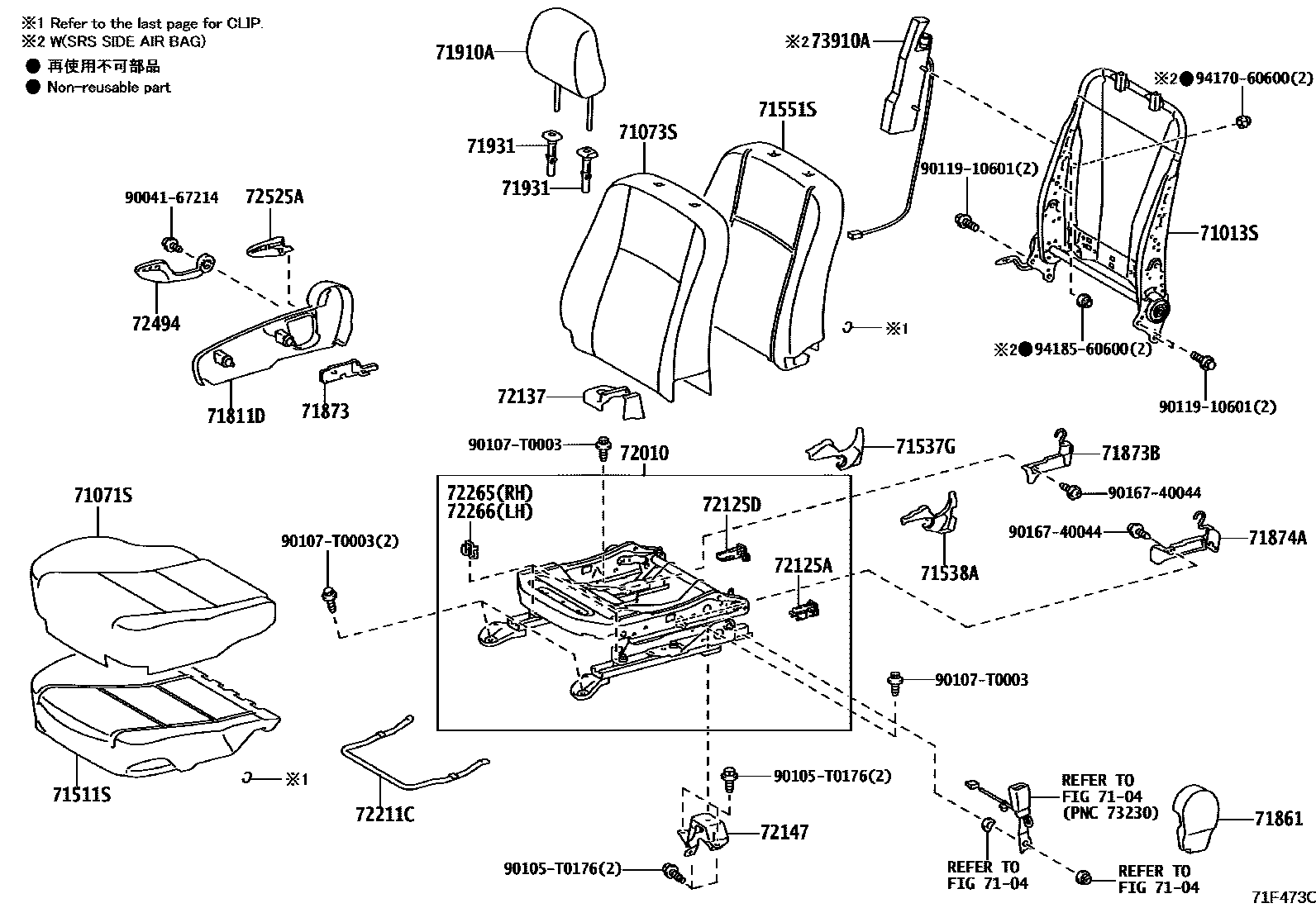

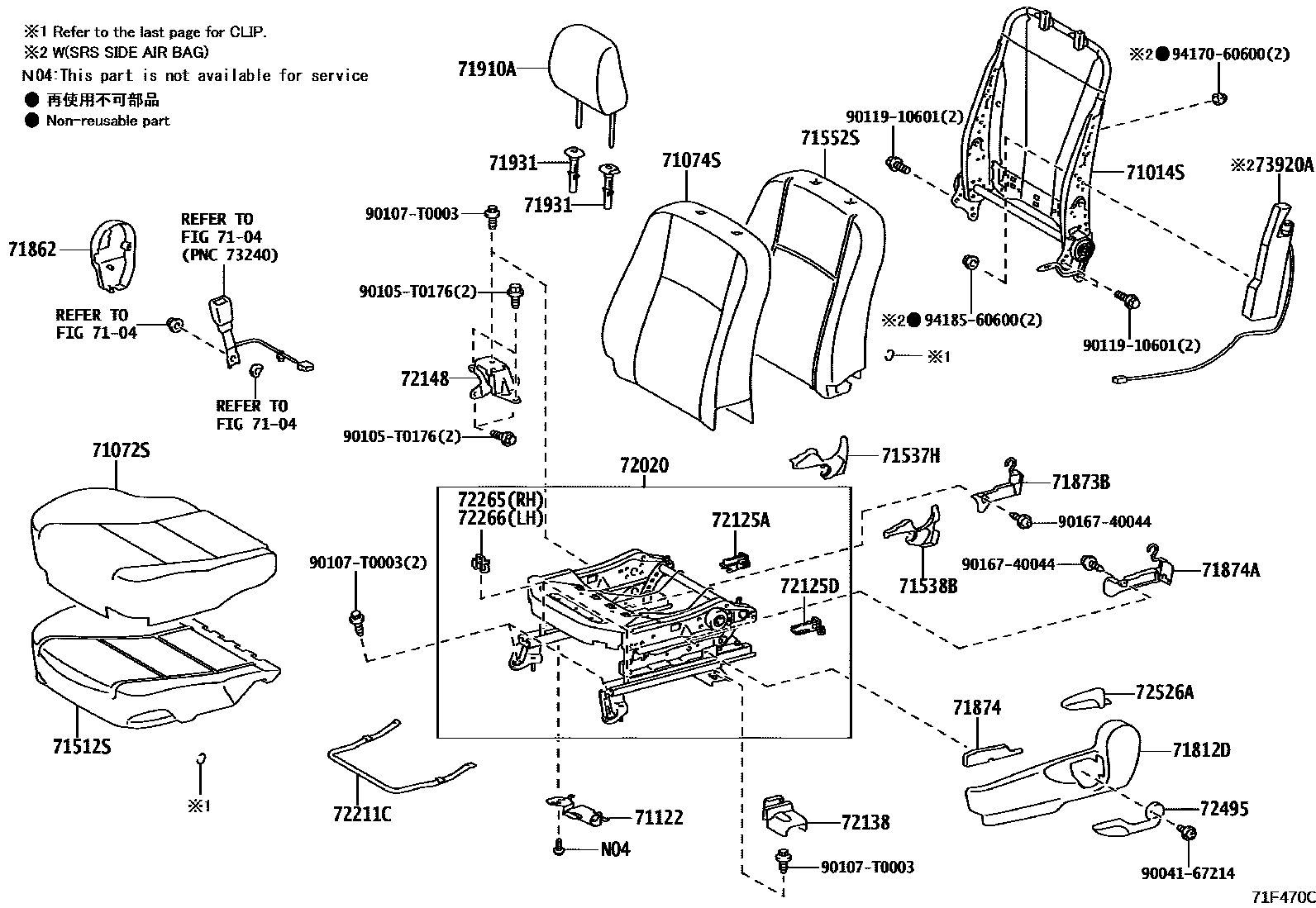

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0D100 · 71013-0D260 · 71013-0D290 · 71013-0D370 |
| 71014S | Front left seat back frame sub-assembly | 71014-0D100 · 71014-0D270 · 71014-0D290 · 71014-0D360 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-0D160 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-0D160 |
| 71101C | ENSEMBLE SOUS LE SIEGE, AVANT MD | 71101-0D030 · 71101-0D040 · 71101-0D050 |
| 71102A | ENSEMBLE SOUS LE SIEGE, AVANT MG | 71102-0D040 · 71102-0D050 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-0D030 · 71110-0D040 · 71110-0D050 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-0D040 · 71120-0D050 |
| 71122 | Front left seat cushion bracket | 71122-0D110 · 71122-0D130 · 71122-0D160 · 71122-0D220 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0D241 · 71501-0D250 · 71501-0D300 · 71501-0D321 · 71501-0D331 · 71501-0D370 · 71511-0D750 · 71511-0D870 · 71511-0DA20 · 71511-0DA40 · 71511-0DA50 · 71511-0DC20 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0D110 · 71502-0D140 · 71502-0D151 · 71502-0D161 · 71502-0D240 · 71512-0D670 · 71512-0D840 · 71512-0D850 · 71512-0DA30 · 71512-0DA70 · 71512-0DB80 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-0D400 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-0D400 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71537-0D400 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71537-0D400 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D550 · 71551-0D690 · 71551-0D730 · 71551-0D850 · 71551-0D860 · 71551-0D880 · 71551-0DA20 · 71551-0DB00 · 71551-0DB10 · 71551-0DB20 · 71551-0DB50 · 71551-0DB60 · 71551-0DC00 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D450 · 71552-0D610 · 71552-0D670 · 71552-0D740 · 71552-0D800 · 71552-0D810 · 71552-0D830 · 71552-0DA50 · 71552-0DA60 · 71552-0DA70 · 71552-0DB00 · 71552-0DB10 · 71552-0DB60 |
| 71873 | Front right seat cushion lower guard panel | 71873-0D350 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71873-06510 · 71873-06530 |
| 71874 | Front left seat cushion lower guard | 71874-0D360 |
| 71874A | Front left seat cushion lower guard | 71874-06480 · 71874-06550 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-0D250 · 71875-0D260 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-0D250 · 71876-0D260 |
| 72010 | Front right seat adjuster assembly | 72010-0D740 · 72010-0D760 · 72010-0D800 |
| 72020 | Front left seat adjuster assembly | 72020-0D481 · 72020-0D511 · 72020-0D630 |
| 72125A | Rear seat upper slide rail cover | 72125-0D030 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-0D080 · 72125-0D120 |
| 72125R | CACHE, RAIL SIEGE, SUP ARR NO.1 | 72125-06090 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D080 · 72147-0D090 · 72147-0D190 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D090 · 72148-0D100 · 72148-0D200 |
| 72211 | Seat slide adjustment handle | 72211-0D320 |
| 72211C | Seat slide adjustment handle | 72211-0D160 · 72211-0D310 |
| 72265 | Right seat rail upper rail cover | 72265-0D080 |
| 72265D | COUVERCLE, RAIL SUPERIEUR DE PISTE DE SIEGE | 72265-06060 |
| 72266 | Left seat rail upper rail cover | 72265-0D080 |
| 73910A | Front right seat airbag assembly | 73910-0D100 · 73910-0D160 |
| 73920A | Front left seat airbag assembly | 73920-0D100 · 73920-0D160 |
