Toyota YARIS 后门锁和后门把手 — Figure 6706

Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 21 PNC and OE references.

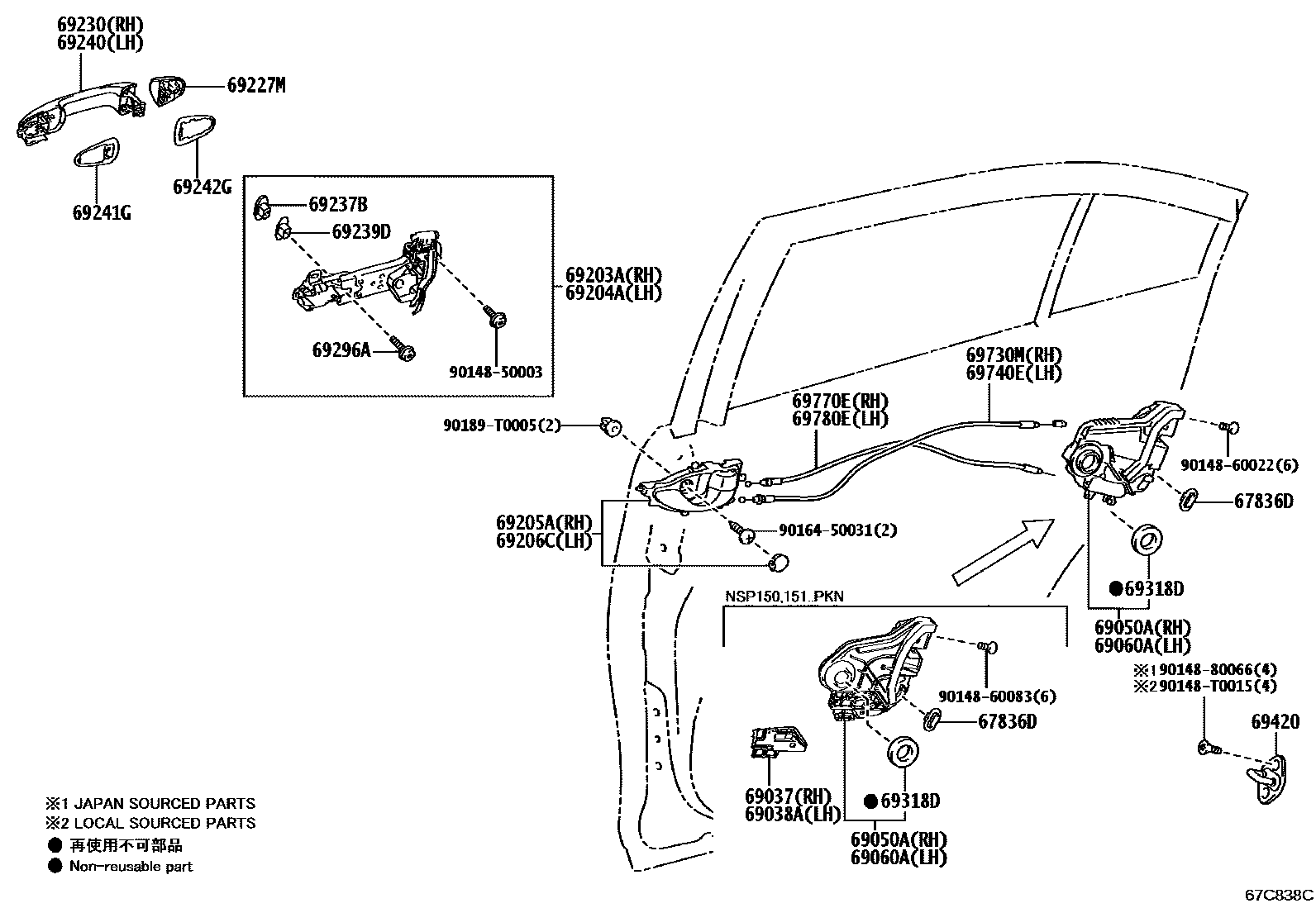

Toyota YARIS 后门锁和后门把手 EPC diagram — 67C838C
后门锁和后门把手 — 67C838C (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
67836DRear door lock child restraint cover67836-02030
69037SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD69037-02040
69038ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG69038-02040
69050ARight rear door lock assembly with motor69050-0D200 · 69050-0D210 · 69050-0D290 · 69050-0D430
69060ALeft rear door lock assembly with motor69060-0D200 · 69060-0D210 · 69060-0D290 · 69060-0D440
69203ARight rear door outer handle frame sub-assembly69203-0D210 · 69203-0D260 · 69203-0D270
69204ALeft rear door outer handle frame sub-assembly69204-0D210 · 69204-0D260 · 69204-0D270
69227MRear door outer handle cover69227-0D909 · 69227-0K200 · 69227-0K350 · 69227-0K905 · 69227-0K912
69230Right rear door outer handle assembly69210-0D984 · 69210-0K200 · 69210-0K370 · 69210-0K901 · 69210-0K938
69237BECROU, POIGNEE PORTE ARRIERE69237-0E010 · 69237-0K040 · 69237-0K060
69239DBAGUE, POIGNEE PORTE ARRIERE69239-0K040 · 69239-0K080
69240Left rear door outer handle assembly69210-0D984 · 69210-0K200 · 69210-0K370 · 69210-0K901 · 69210-0K938
69241GRear door front exterior handle pad69241-0K041 · 69241-0K100
69242GRear door rear outer handle pad69242-0K030 · 69242-0K090
69296ACar door inner handle screws69296-0K040 · 69296-0M010
69318Ddoor lock harness seal69318-51010
69420Rear door lock plate assembly69410-0D060 · 69410-0D070
69730MCABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE)69730-0D270 · 69730-0D290
69740ECABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE)69730-0D270 · 69730-0D290
69770ECABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR)69770-0D200 · 69770-0D220
69780ECABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR)69770-0D200 · 69770-0D220
