Toyota YARIS 前门锁和车门把手 — Figure 6703

Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.

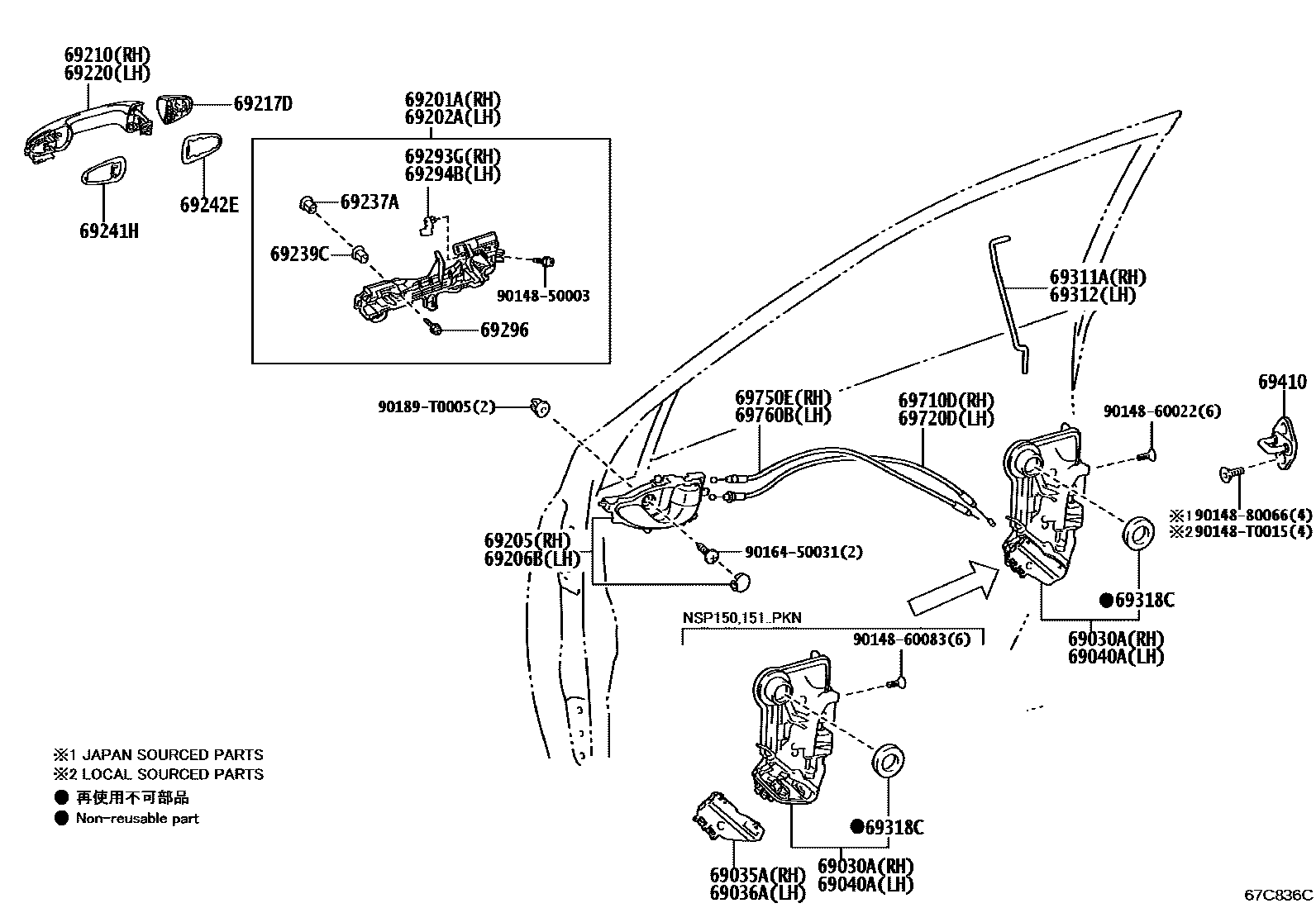

Toyota YARIS 前门锁和车门把手 EPC diagram — 67C836C
前门锁和车门把手 — 67C836C (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-0D370 · 69030-0D380 · 69030-0D390 · 69030-0K090
69035ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD69035-02040
69036ALeft front door lock cover sub-assembly69036-02040
69040ALeft front door door lock assembly with motor69040-0D400 · 69040-0D410 · 69040-0D420 · 69040-0D670 · 69040-0K030
69201ARight front door outer handle frame sub-assembly69201-0D220 · 69201-0K061 · 69201-0K090
69202ALeft front door outer handle frame sub-assembly69202-0D220 · 69202-0K061 · 69202-0K090
69210Right front door outer handle assembly69210-0D140 · 69210-0D984 · 69210-0K200 · 69210-0K901
69217DFront door outer handle cover69217-0D926 · 69217-0K370 · 69217-0K380 · 69217-0K690 · 69217-0K710 · 69217-0K909 · 69217-0K910 · 69217-0K923 · 69217-0K924
69220Left front door outer handle assembly69210-0D140 · 69210-0D984 · 69210-0K200 · 69210-0K370 · 69210-0K901 · 69210-0K938
69237AECROU, POIGNEE PORTE AVANT69237-0E010 · 69237-0K040 · 69237-0K060
69239CBAGUE, POIGNEE PORTE AVANT69239-0K040 · 69239-0K080
69241HFront door exterior handle pad69241-0K041 · 69241-0K100
69242EFront door rear outer handle pad69242-0K030 · 69242-0K090
69293GRight front door outer handle buckle69293-0K070 · 69293-12030
69294BLeft front door outer handle buckle69293-0K080 · 69293-12040
69296Car door inner handle screws69296-0K040 · 69296-0M010
69311ARight front door lock opening lever69311-0D230 · 69311-0D250
69312Left front door lock opening lever69312-0D230 · 69312-0D250
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-0D060 · 69410-0D070
69710DCABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE)69710-0D280 · 69710-0D300
69720DCABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE)69710-0D280 · 69710-0D300
69750ECABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR)69750-0D220 · 69750-0D240
69760BCABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR)69750-0D220 · 69750-0D240
