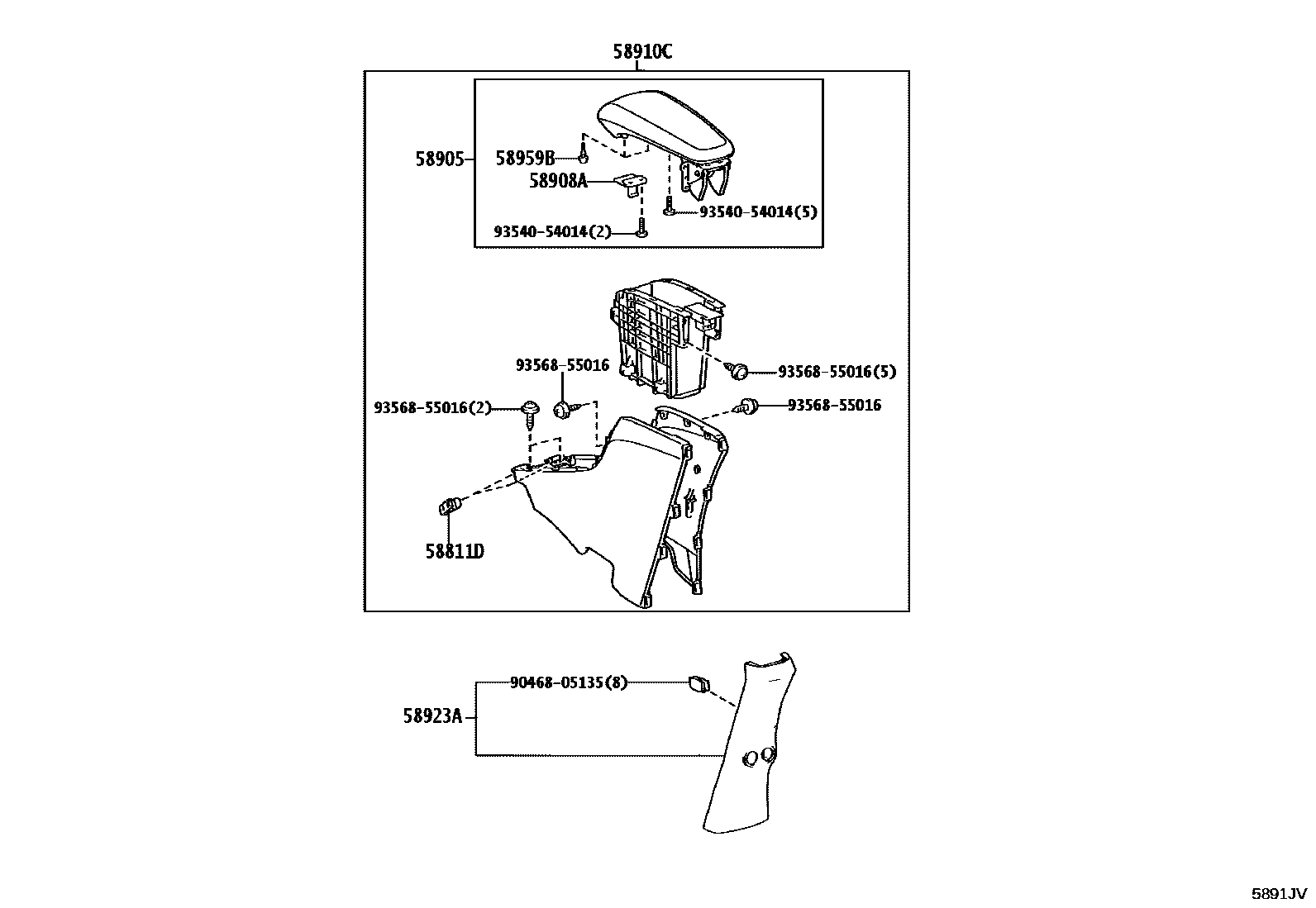

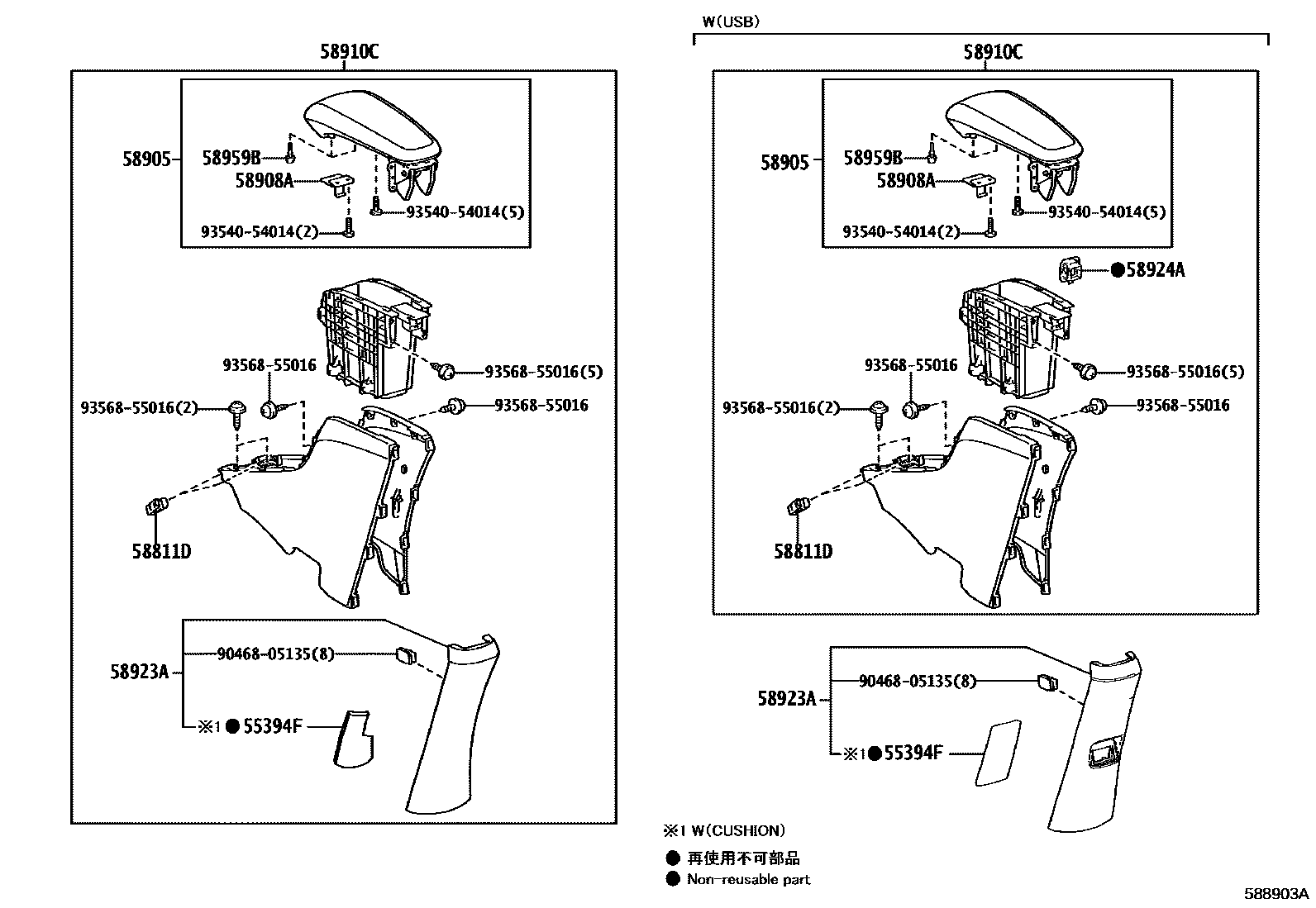

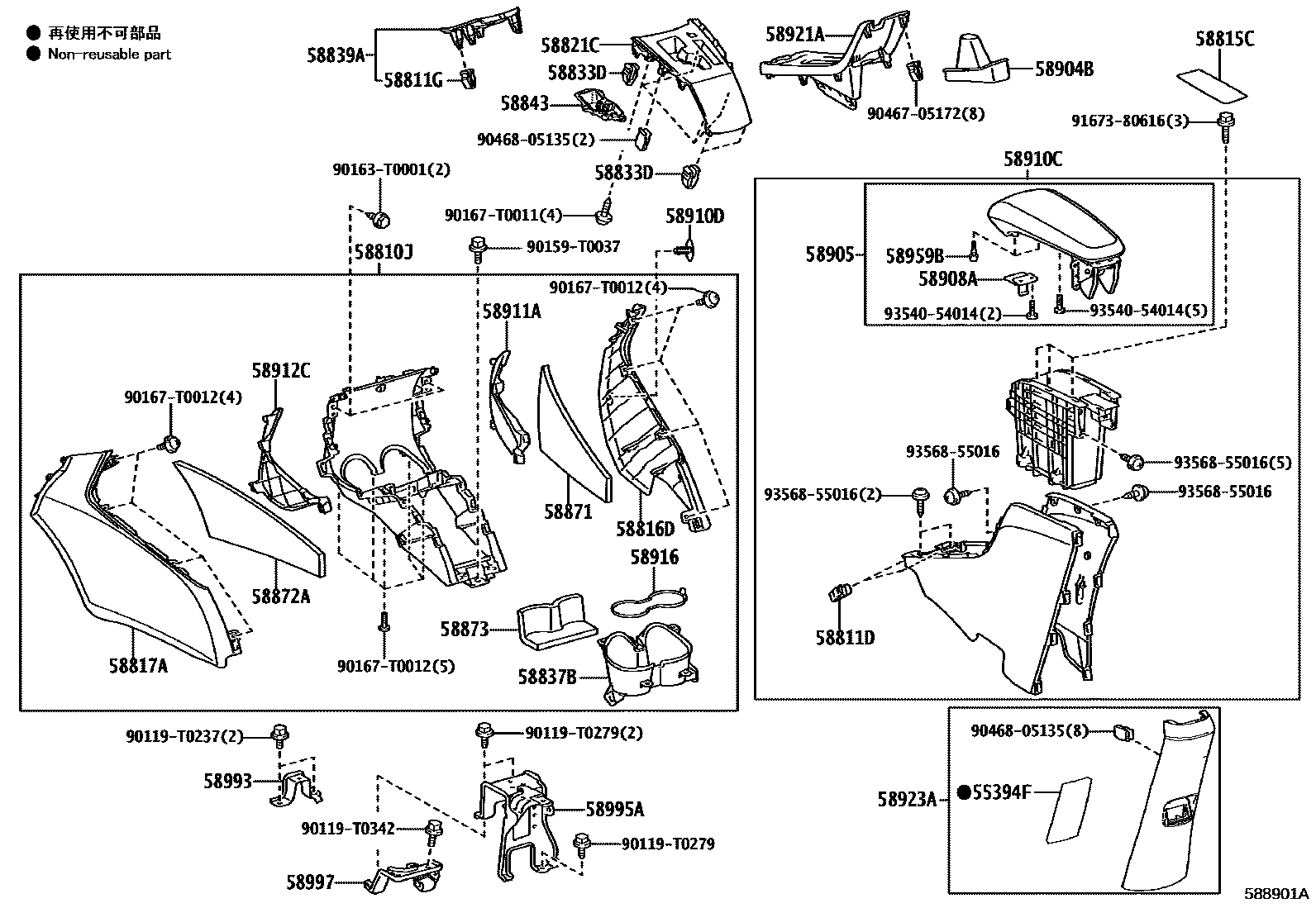

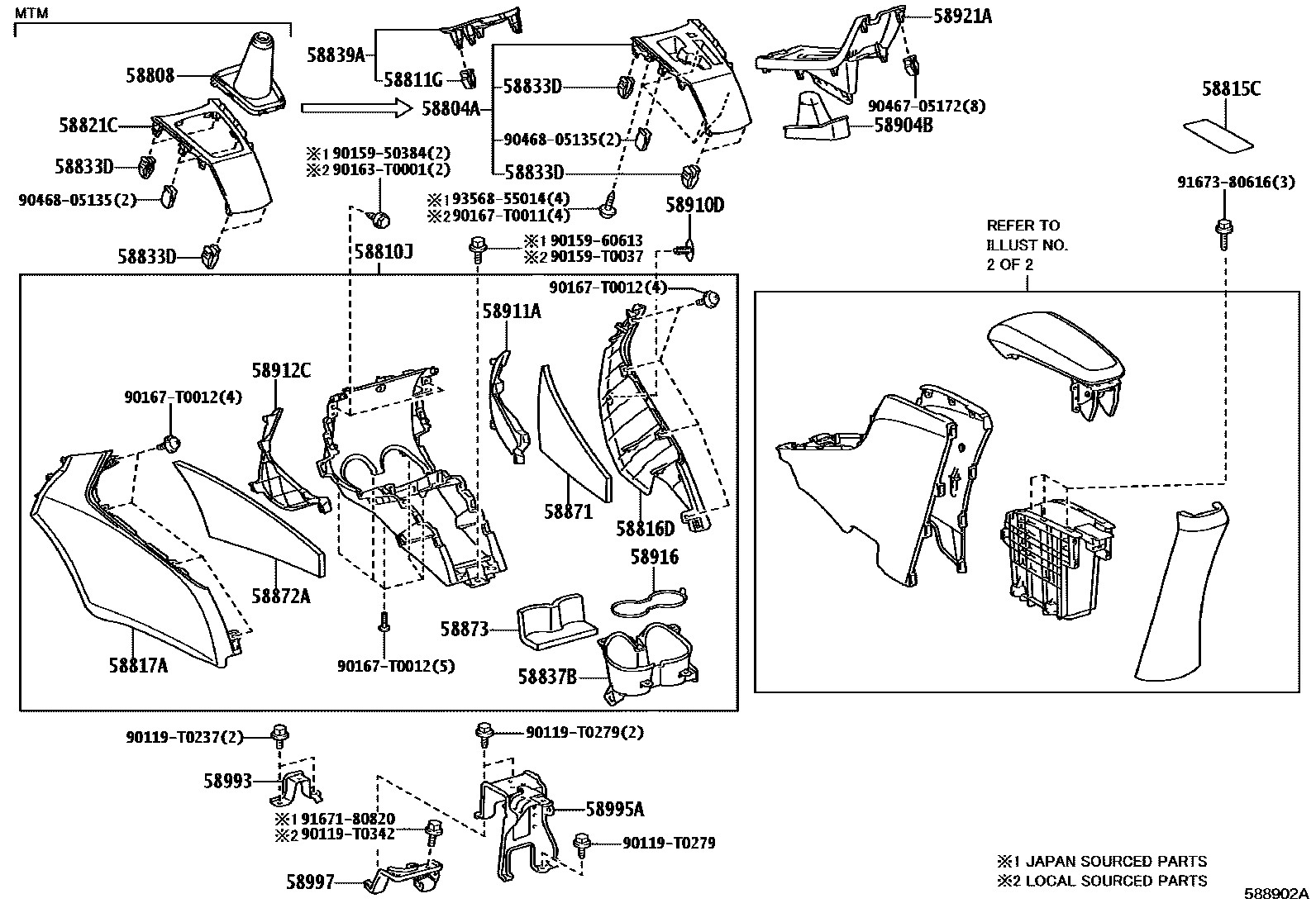

Toyota YARIS 中央扶手箱和支架 — Figure 5806
Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55394F | Under-dash cushion | 55394-0D170 · 55394-0D310 · 55394-0D320 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0D280 · 58804-0D300 · 58804-0D340 · 58804-0D350 · 58804-0D360 · 58804-0D710 · 58804-0D720 · 58804-YP010 · 58804-YP020 · 58804-YP030 |
| 58811D | Clip (for armrest box) | 90467-10203 |
| 58811G | Clip (armrest box) | 90467-05172 |
| 58815C | Armrest box felt pad | 58815-0D300 · 58815-0D310 · 58815-0D400 |
| 58821C | Armrest box upper panel | 58821-0D520 · 58821-0D580 · 58821-0D590 |
| 58833D | Clip (for armrest box cover) | 90467-05172 |
| 58843 | shift hole frame | 58843-0D480 · 58843-0D490 |
| 58871 | Armrest box cushion | 58871-0D080 · 58871-0D100 |
| 58872A | Armrest Box No. 2 Cushion Pad | 58872-0D030 · 58872-0D050 |
| 58873 | Armrest Box No. 3 Cushion Pad | 58873-0D010 · 58873-0D020 |
| 58921A | Rear armrest box upper panel | 58921-0D020 · 58921-0D030 · 58921-0D140 |
| 58923A | Armrest box rear end panel | 58923-0D330 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58993 | Armrest box rear mounting bracket | 58993-0D010 · 58993-0D060 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-0D150 · 58995-0D200 · 58995-0D220 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-0D070 |
