Toyota YARIS 前围板和挡风玻璃 — Figure 5503

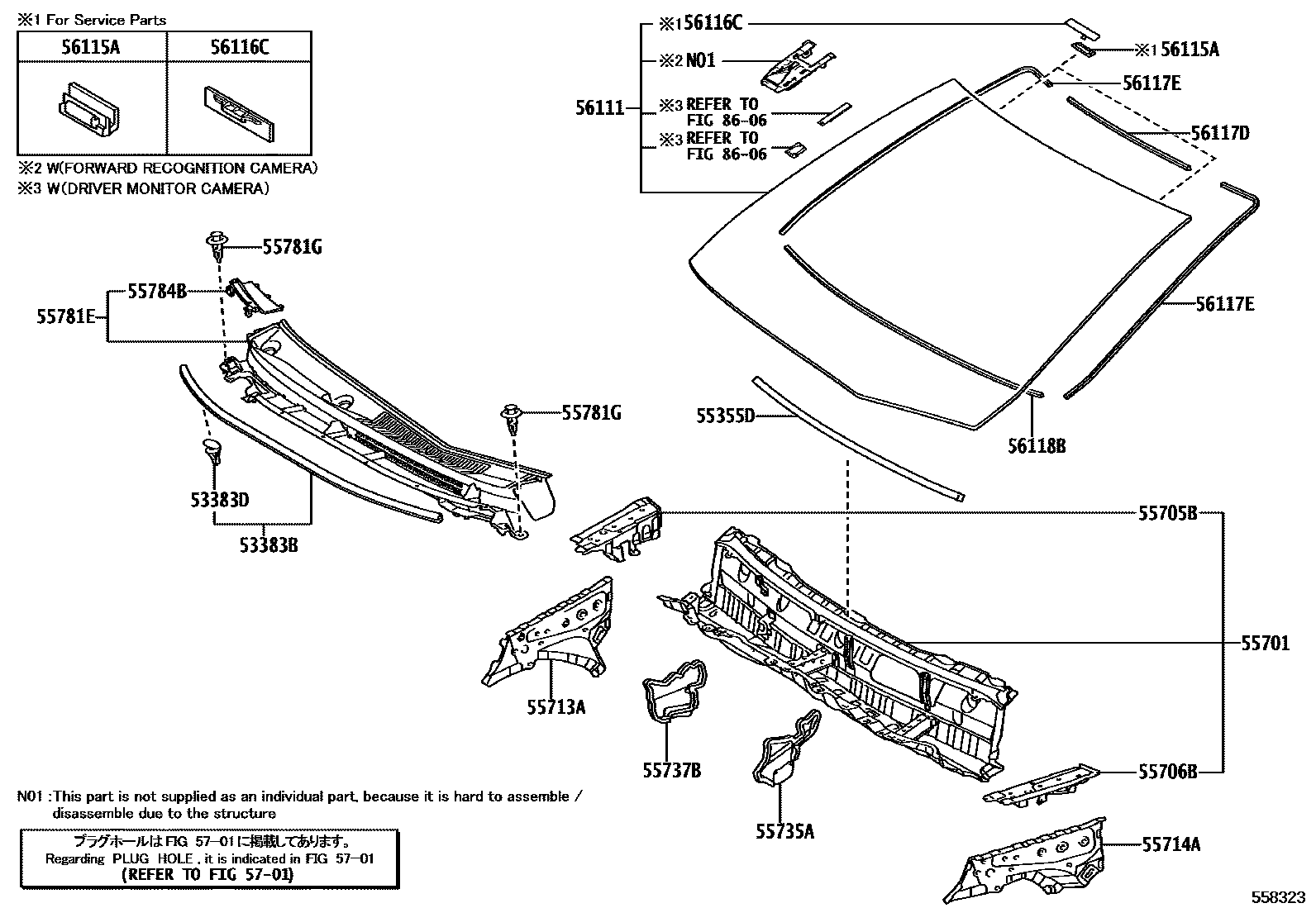

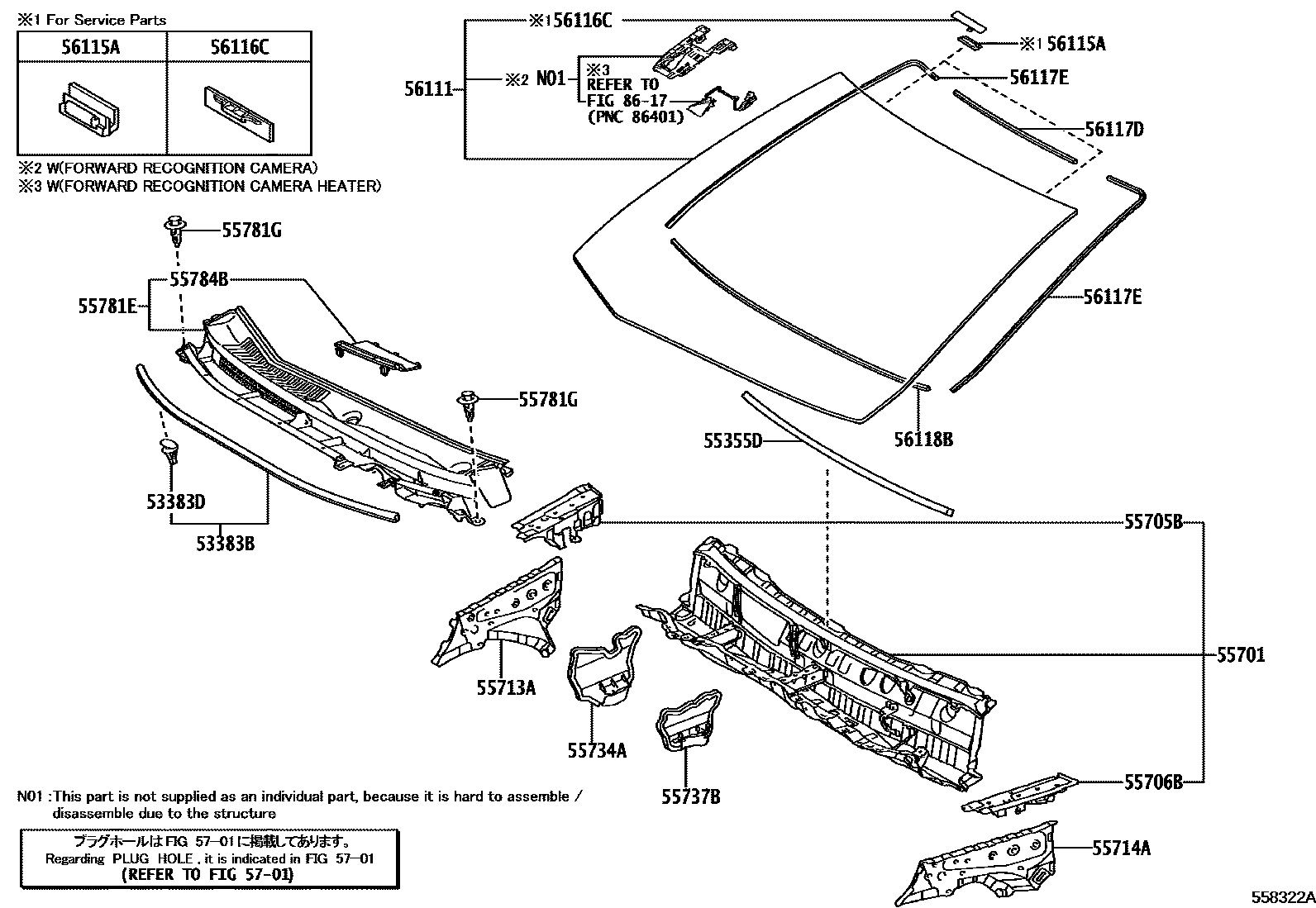

Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0D150 · 53383-0D180 · 53383-0D250 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-0D070 |
| 55355D | Dashboard No. 1 Cushion Pad | 55355-0D160 · 55355-0D480 |
| 55701 | Front apron sub-assembly | 55700-0D311 · 55700-0D321 · 55700-0D331 · 55700-0D450 · 55700-0D460 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0D120 · 55705-0D200 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0D120 · 55706-0D200 |
| 55713A | Right front wall upper side panel | 55713-0D190 · 55713-0D220 · 55713-0D250 · 55713-0D260 |
| 55714A | Left front wall upper side panel | 55714-0D190 · 55714-0D220 · 55714-0D250 · 55714-0D260 |
| 55734A | Right waterproof cover | 55734-0D070 |
| 55735A | Left waterproof cover panel | 55734-0D060 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-0D170 · 55737-0D180 · 55737-0D200 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0D272 · 55708-0D282 · 55708-0D322 · 55708-0D500 |
| 55781G | Ventilation grille clips on front apron | 52161-0K040 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-0D070 · 55784-0D080 · 55784-0D110 · 55784-0D270 |
| 56111 | windshield | 56101-0D360 · 56101-0D370 · 56101-0D390 · 56101-0D401 · 56101-0D411 · 56101-0D430 · 56101-0D710 · 56101-0D860 · 56101-0DA40 · 56101-0DD20 · 56101-0DE30 · 56101-0DE40 · 56101-0DE50 · 56101-0DG90 · 56101-0DJ00 · 56101-0DJ10 · 56101-YP010 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-0D160 · 56117-0D250 |
| 56117E | Window glass adhesive seals | 56117-0D170 · 56117-0D260 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56117-0D180 · 56117-0D270 |
