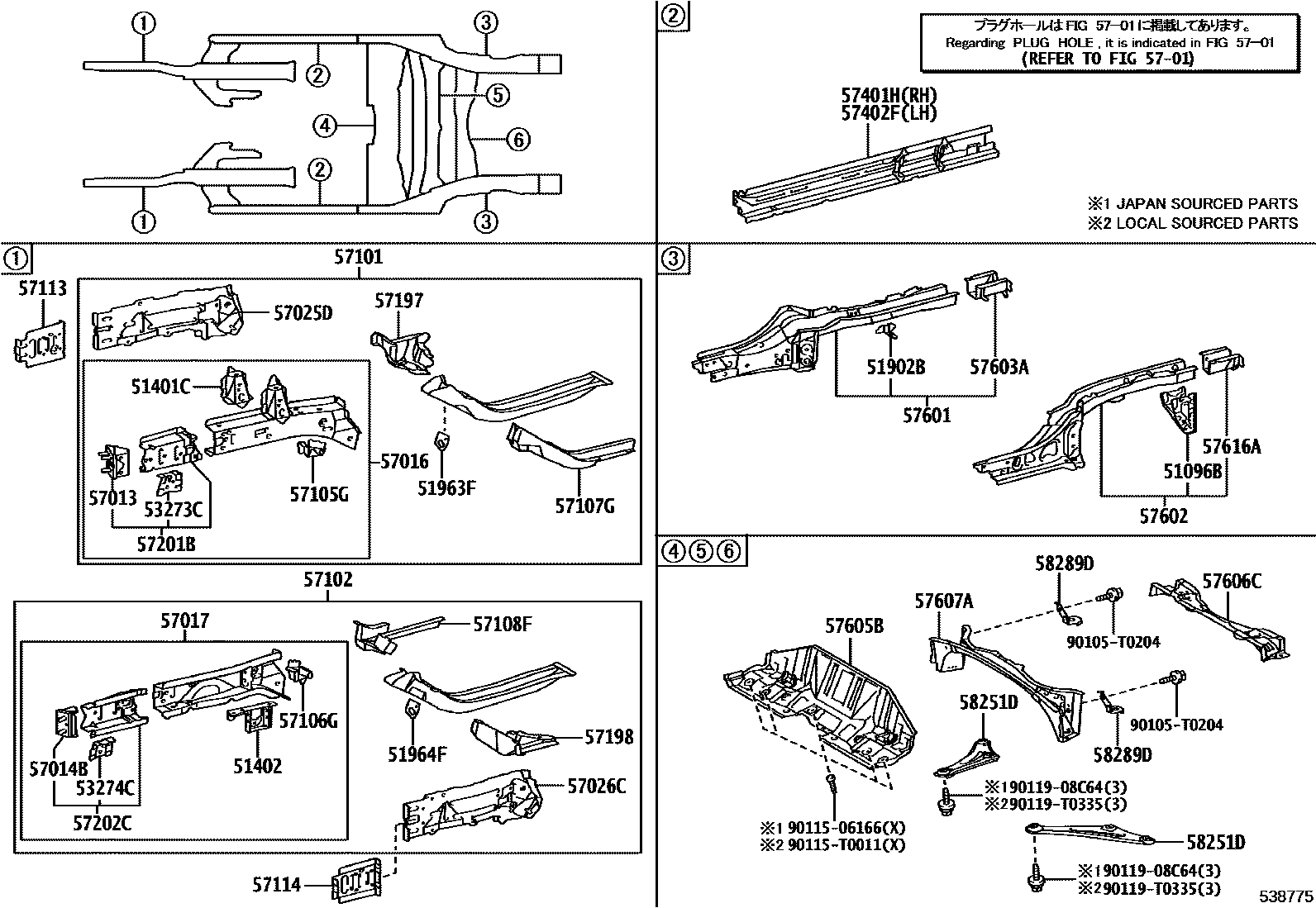

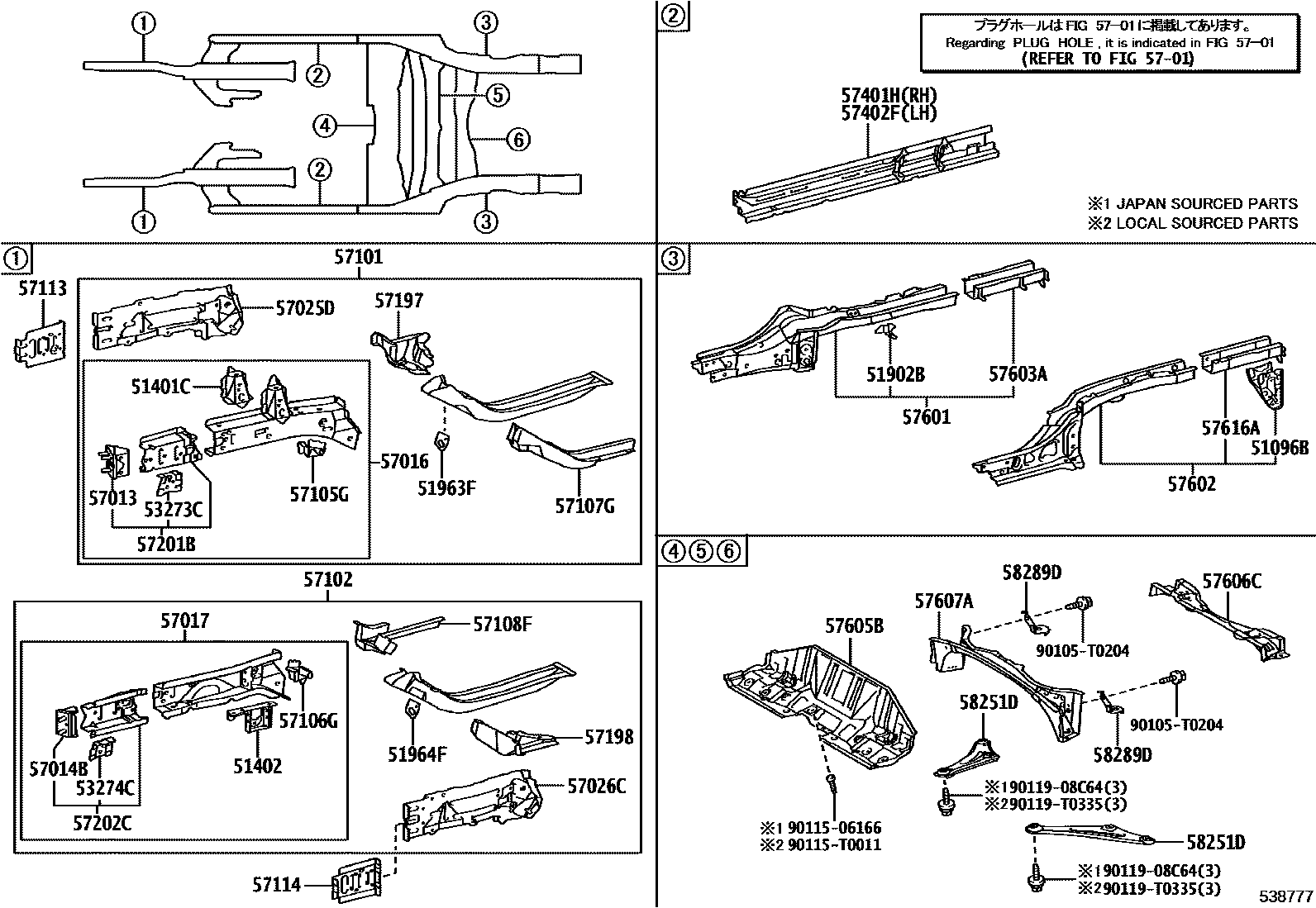

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51096B | Left rear transport hook sub-assembly | 51096-0D040 · 51096-0D100 |
| 51401C | Engine right front mounting bracket sub-assembly | 51401-0D020 · 51401-0D070 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-0D020 |
| 51902B | No. 2 exhaust pipe hanger sub-assembly | 51902-0D020 |
| 51963F | transport hook | 51963-0D030 |
| 51964F | left transport hook | 51963-0D030 |
| 53273C | Radiator right side bracket reinforcement | 53273-0D070 |
| 53274C | Radiator left bracket reinforcement | 53274-0D040 |
| 57013 | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MD | 57013-0D061 |
| 57014B | SOUS-ENSEMBLE SUPPORT, ELEMENT DE COTE AVANT, MG | 57014-0D051 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-0D110 · 57016-0D190 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-0D180 · 57017-0D290 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-0D030 · 57025-0D100 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-0D030 · 57026-0D100 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0D140 · 57101-0D270 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0D200 · 57102-0D360 |
| 57105G | Right front suspension cross member spacer sub-assembly | 57105-0D040 |
| 57106G | SOUS-ENSEMBLE ENTRETOISE, ELEMENT DE SUSPENSION, AVANT MG | 57106-0D020 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-0D060 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-0D060 |
| 57113 | Right front longitudinal beam extension | 57113-0D030 · 57113-0D080 |
| 57114 | Left front longitudinal beam extension | 57114-0D030 · 57114-0D080 |
| 57197 | Right front torsion box section piece | 57197-0D040 |
| 57198 | Left front anti-torsion box section piece | 57198-0D040 |
| 57201B | Right front longitudinal beam extension sub-assembly | 57201-0D021 |
| 57202C | Left front longitudinal beam extension sub-assembly | 57202-0D031 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-0D240 · 57401-0D280 · 57401-0D290 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-0D220 · 57402-0D250 · 57402-0D260 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0D240 · 57601-0D250 · 57601-0D470 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0D190 · 57602-0D200 · 57602-0D410 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0D090 · 57603-0D100 · 57603-0D250 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0D120 · 57605-0D190 · 57605-0D270 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0D060 · 57606-0D150 · 57606-0D160 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0D040 · 57607-0D100 · 57607-0D110 · 57607-0D120 |
| 57616A | Rear floor left rear longitudinal member | 57616-0D070 · 57616-0D080 · 57616-0D210 |
| 58251D | front floor bracket | 58251-0D090 · 58251-0D110 · 58251-0D160 · 58251-0D170 · 58252-0D070 · 58252-0D090 · 58252-0D150 · 58252-0D170 |
| 58289D | Rear floor brake hose bracket | 58289-0D120 · 58299-0D120 |
