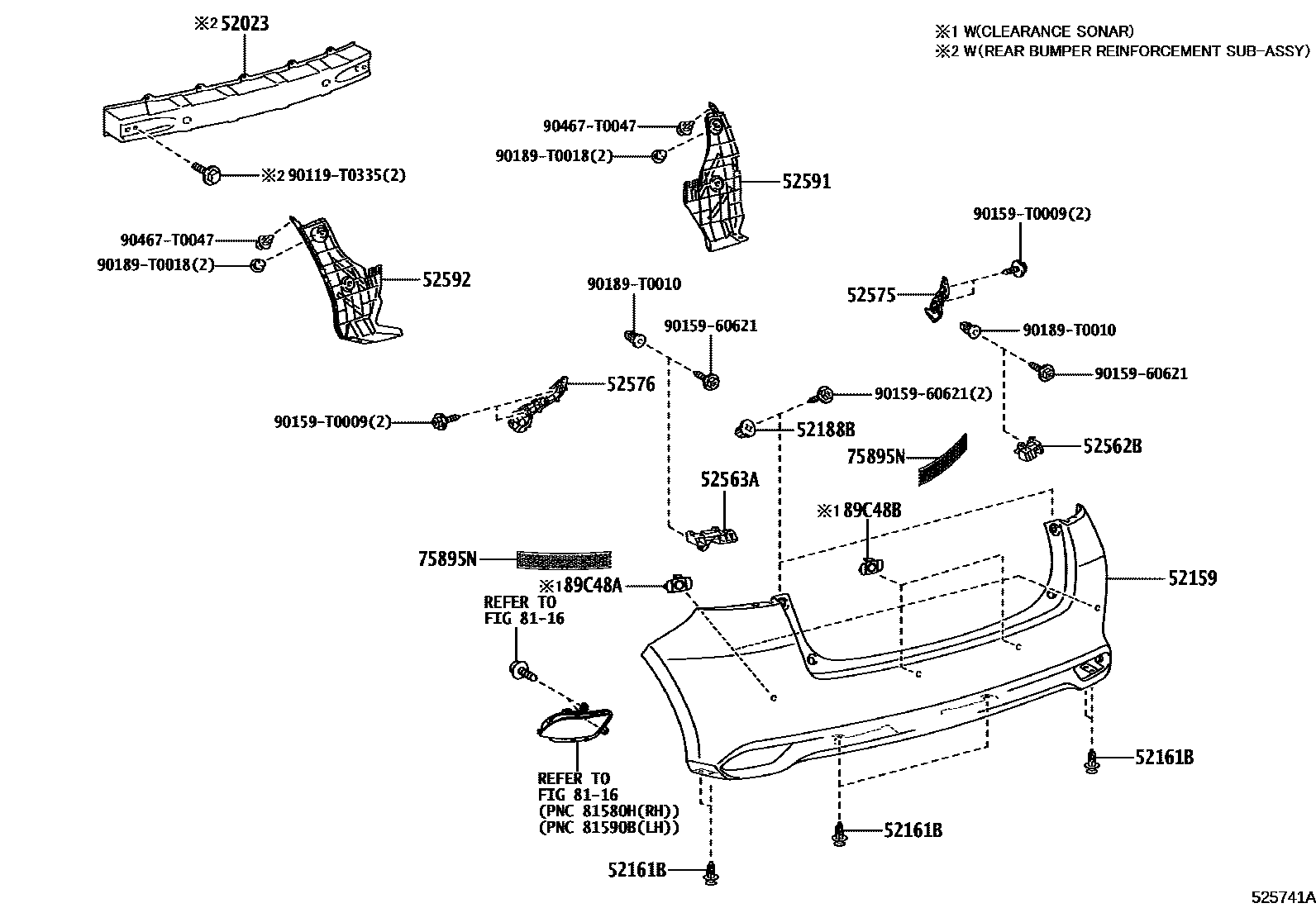

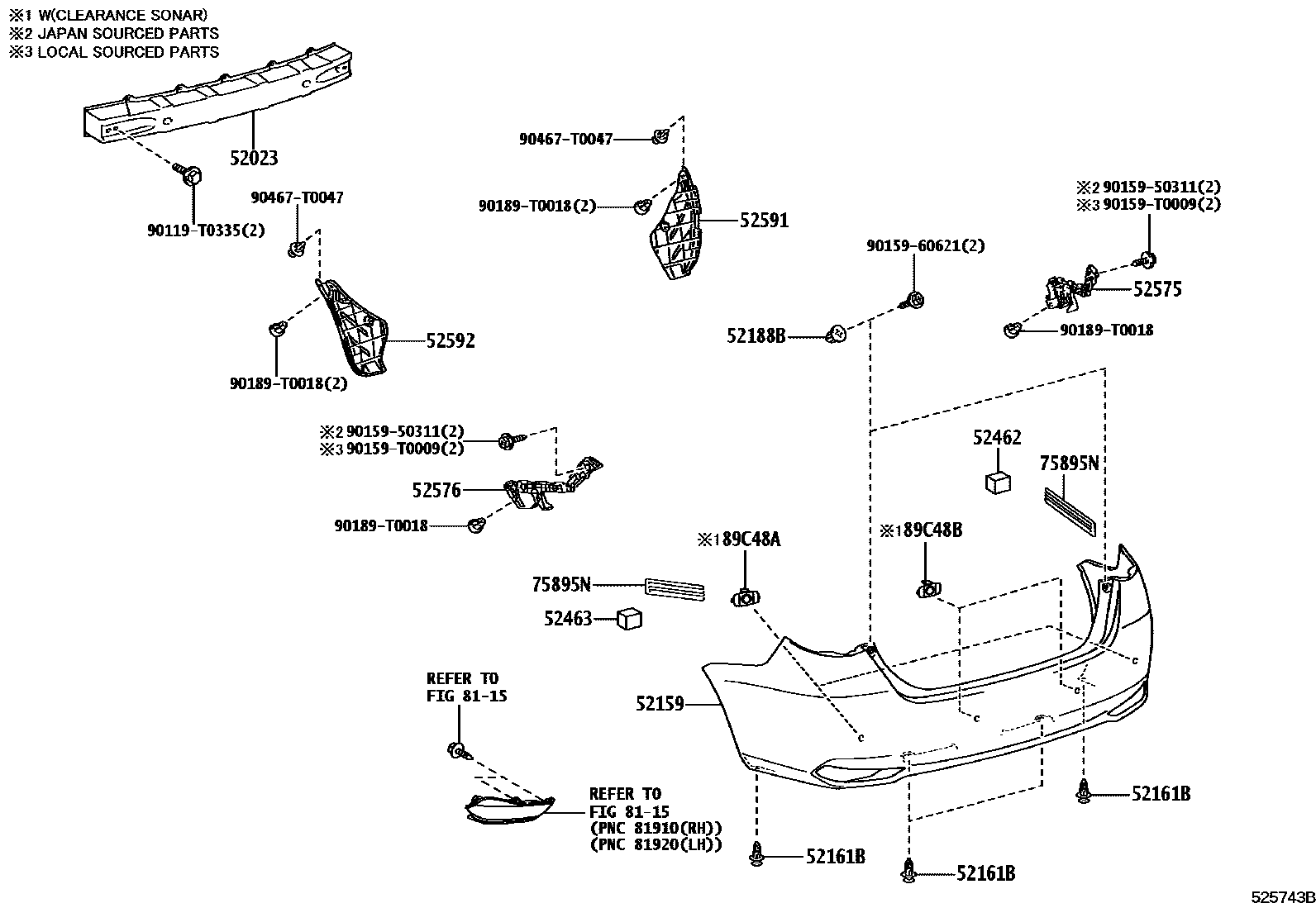

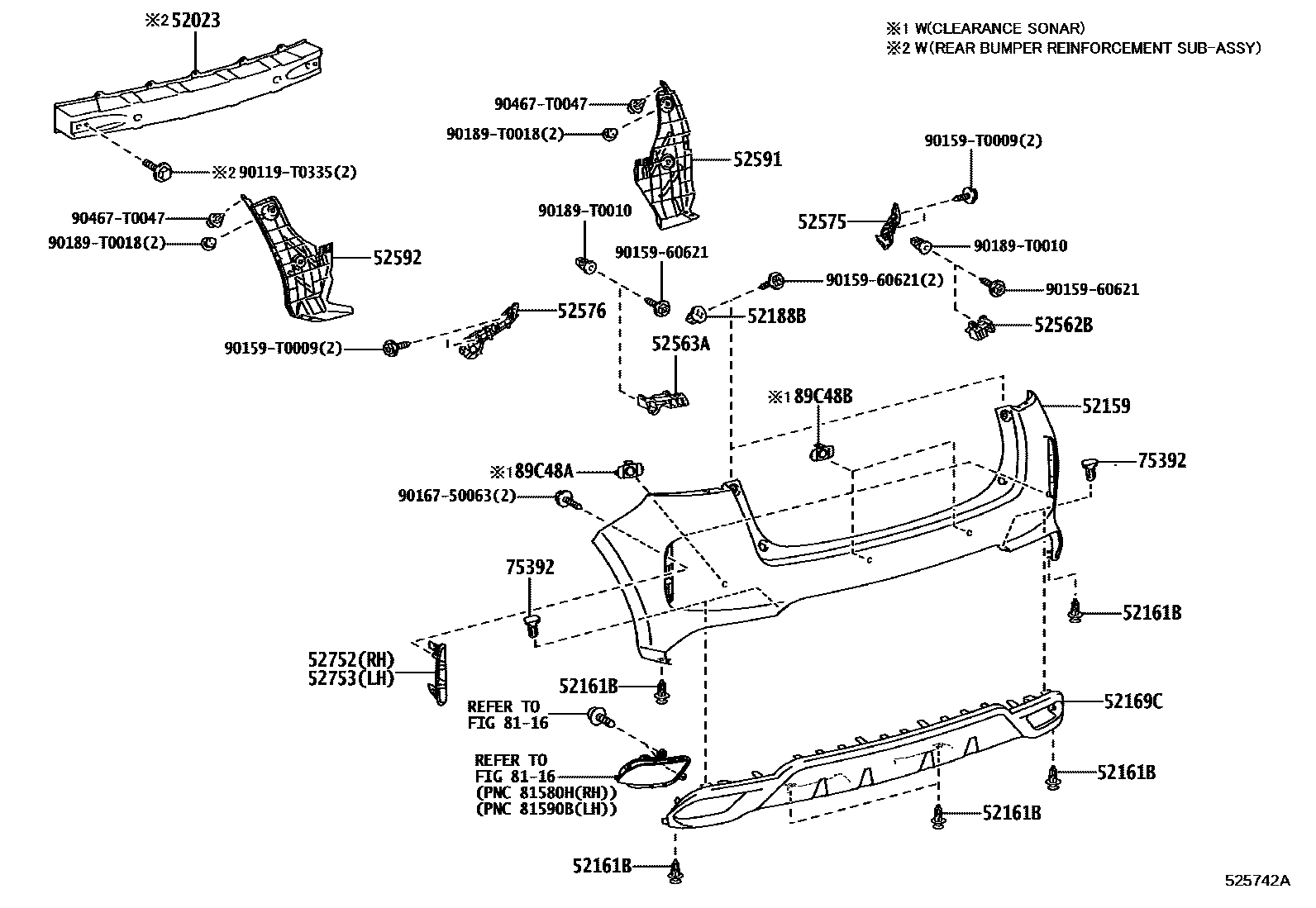

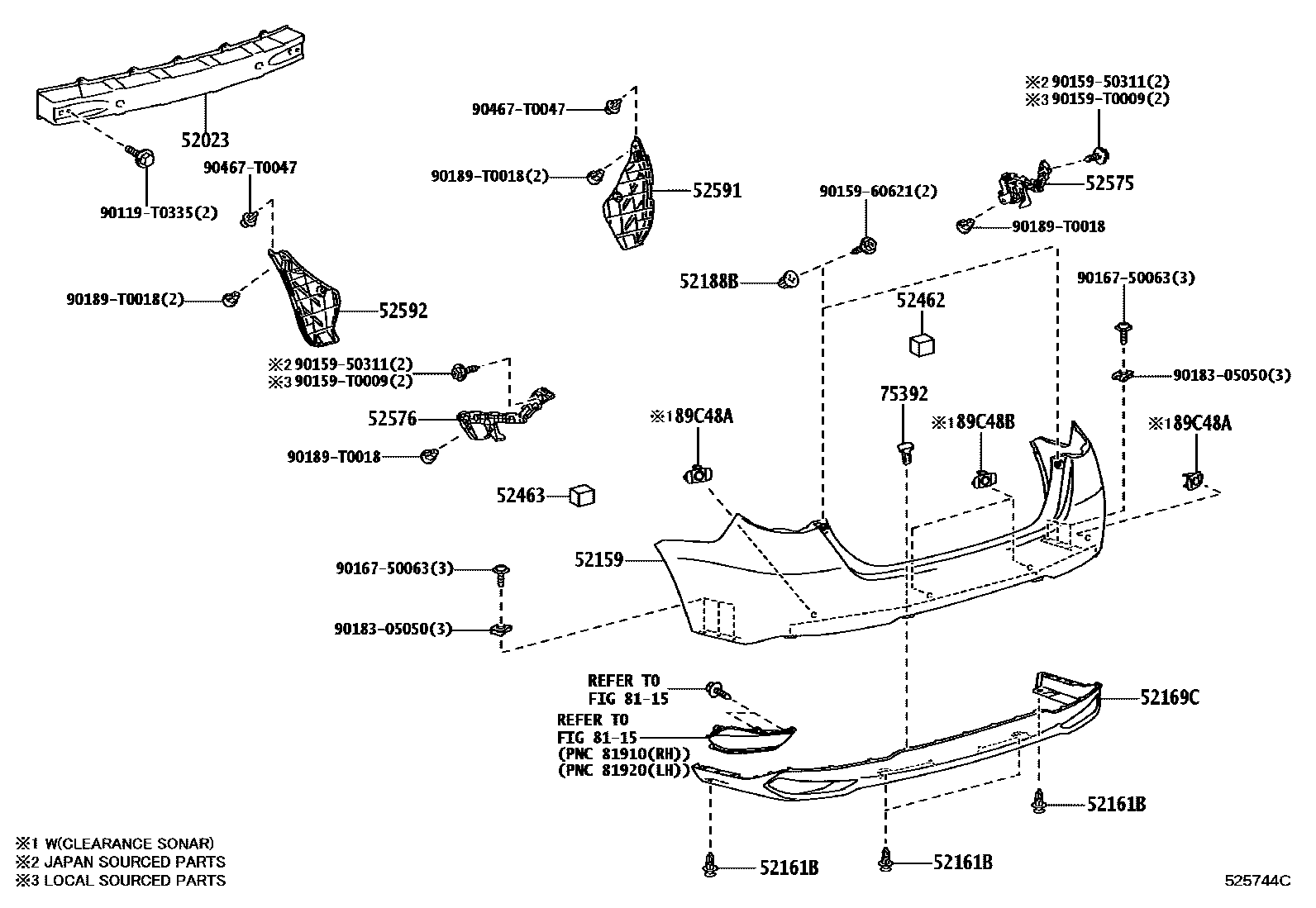

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0D090 · 52023-0D140 · 52023-0D150 · 52023-0D190 |
| 52159 | rear bumper cover | 52159-0U950 · 52159-0U956 · 52159-0U958 · 52159-0U963 · 52159-0U967 · 52159-0U969 · 52159-0U972 · 52159-1K901 · 52159-YP924 · 52159-YP925 · 52159-YP928 |
| 52161B | Rear bumper insert | 52161-0K040 |
| 52169C | Rear bumper lower cover | 52169-YP100 · 52169-YP120 · 52169-YP160 |
| 52188B | Rear bumper installation spacer | 52188-0D010 · 52188-33040 |
| 52462 | Rear bumper right side lining | 52462-0D020 · 52462-0D120 |
| 52463 | Rear bumper left lining | 52462-0D020 · 52462-0D120 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0D170 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0D070 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D340 · 52575-0D400 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D330 · 52576-0D390 |
| 52591 | Rear bumper right seal | 52591-0D460 · 52591-0D520 · 52591-0D530 |
| 52592 | Rear bumper left seal | 52592-0D460 · 52592-0D520 · 52592-0D530 |
| 52752 | Rear bumper right side protective strip | 52752-YP040 |
| 52753 | Rear bumper left protective strip | 52753-YP040 |
| 75392 | External protective strip fixings | 75392-0K010 |
| 75895N | RUBAN, MOULURE, NO.1 | 75895-0D310 · 75895-53010 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-0D030 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-0D030 |
