Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

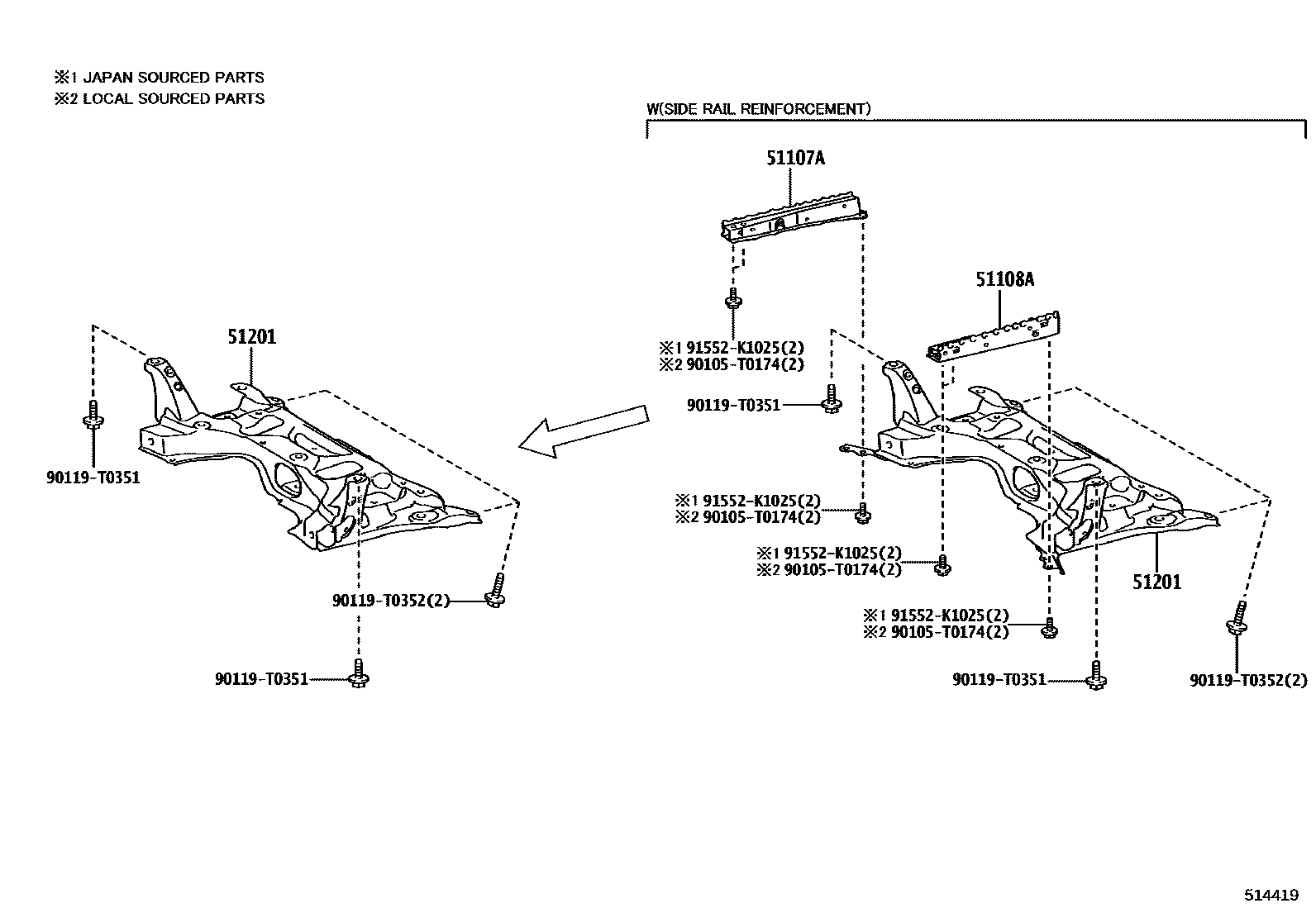

| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-0D060 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-0D060 |
| 51201 | Front suspension cross member sub-assembly | 51201-0D151 · 51201-0D260 |

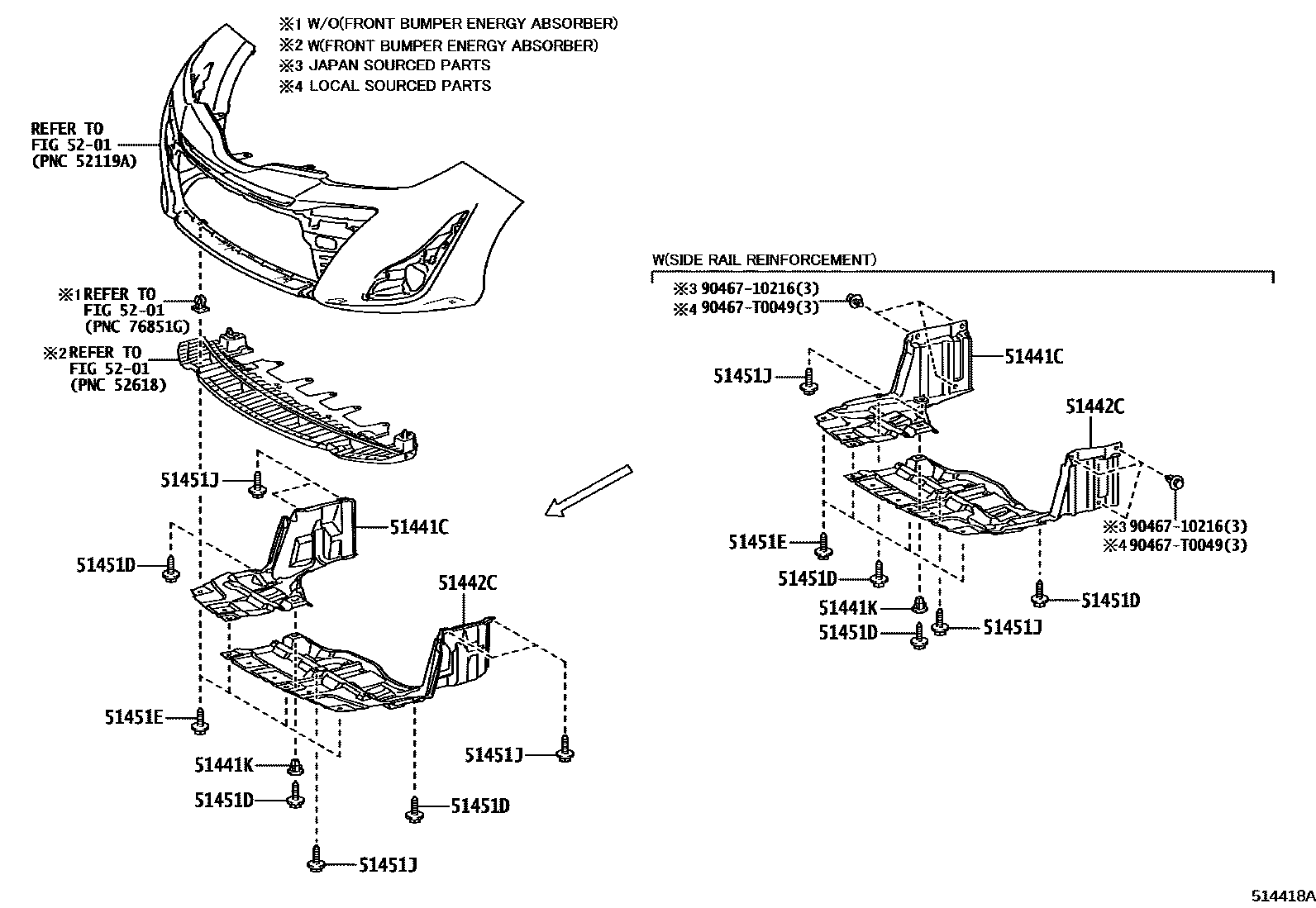

| 51441C | Engine right bottom cover | 51441-0D280 · 51441-0D282 · 51441-0D370 |
| 51441K | OEILLET(POUR PROTECTION SOUS MOTEUR) | 90189-06076 · 90189-T0022 |
| 51442C | Engine left bottom cover | 51442-0D170 · 51442-0D172 · 51442-0D350 |
| 51451D | VIS, NO.1 | 90159-T0008 |
| 51451E | VIS, NO.2 | 90159-T0033 |
| 51451J | BOULON, NO.1 | 90119-T0144 |
