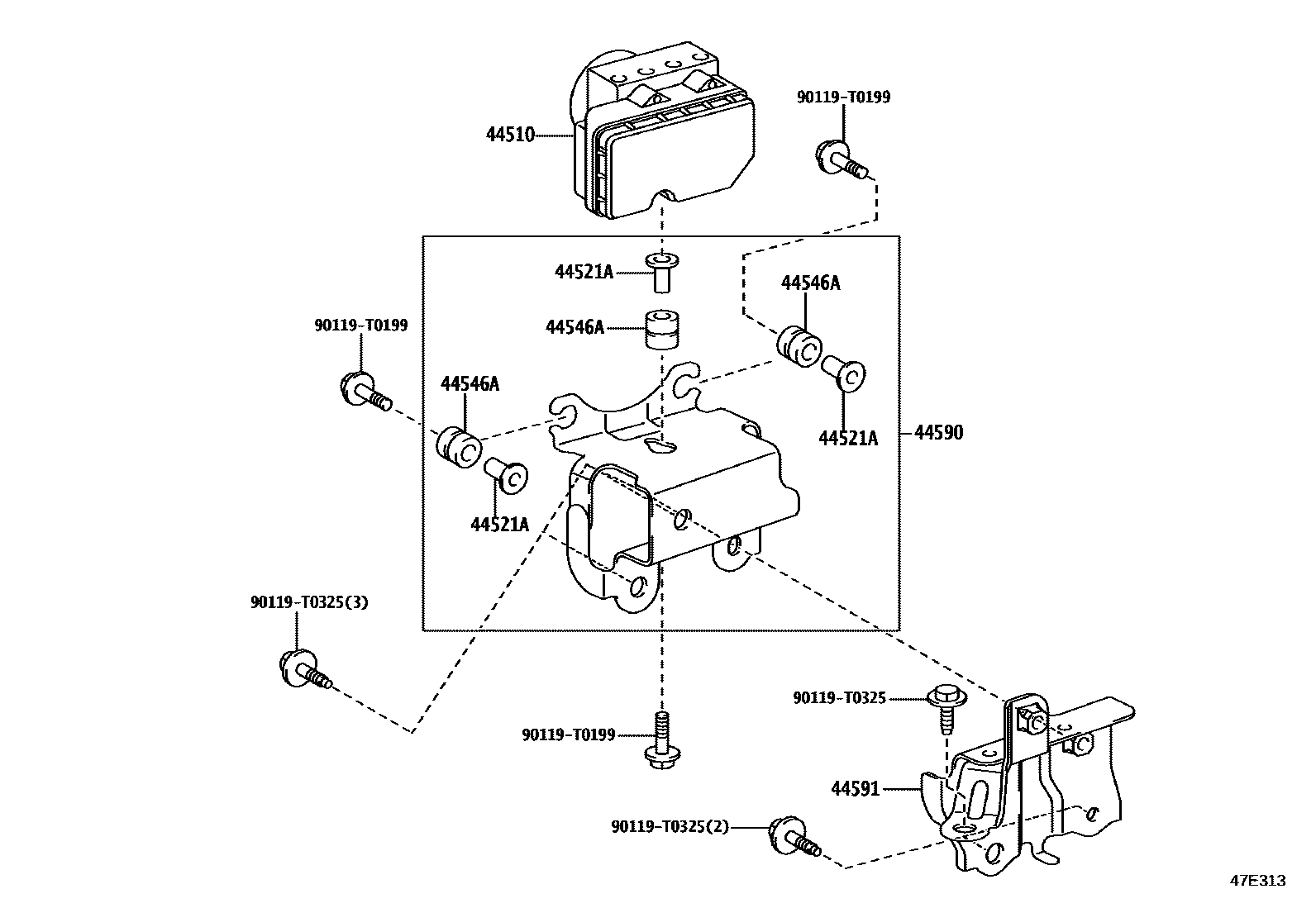

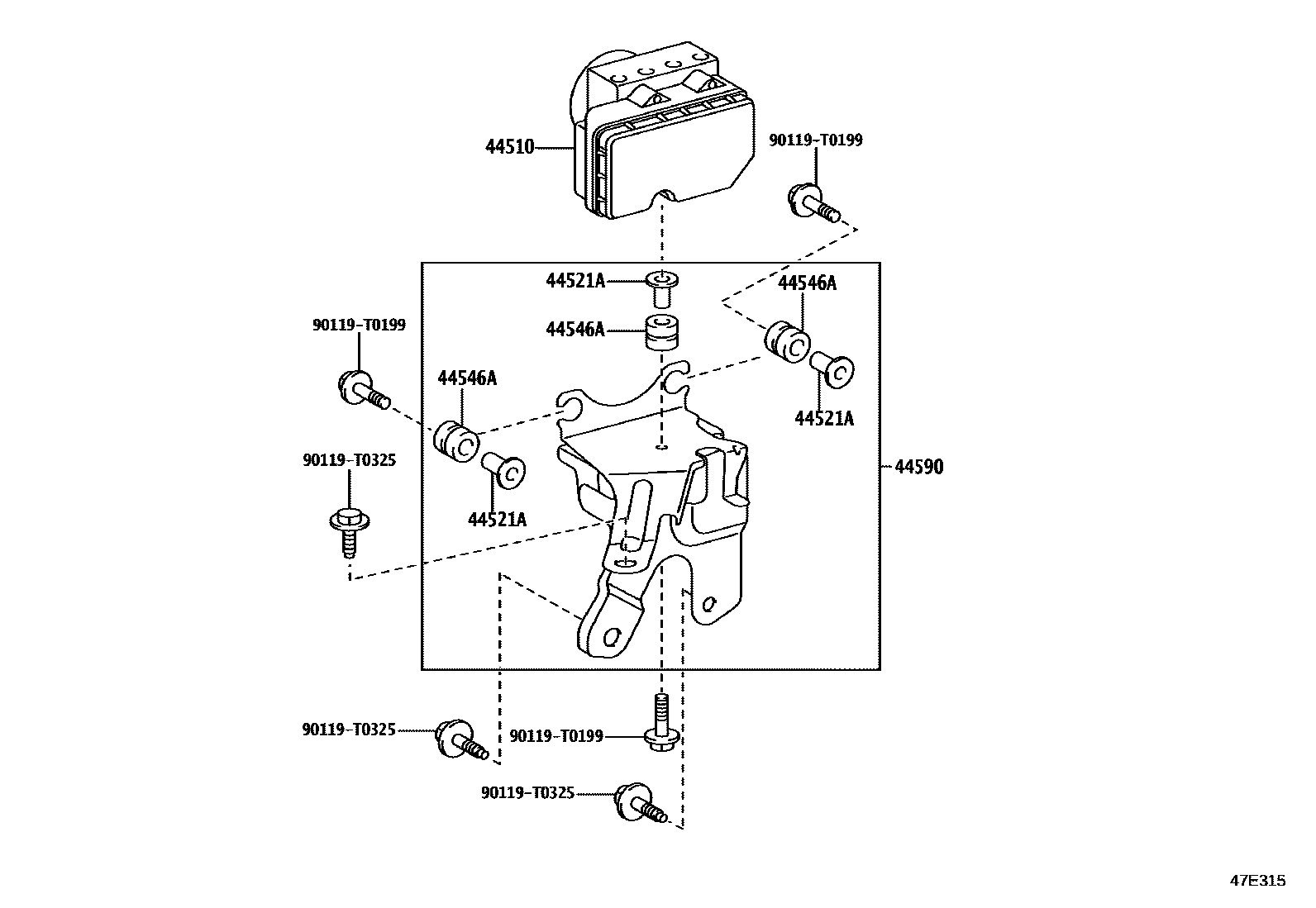

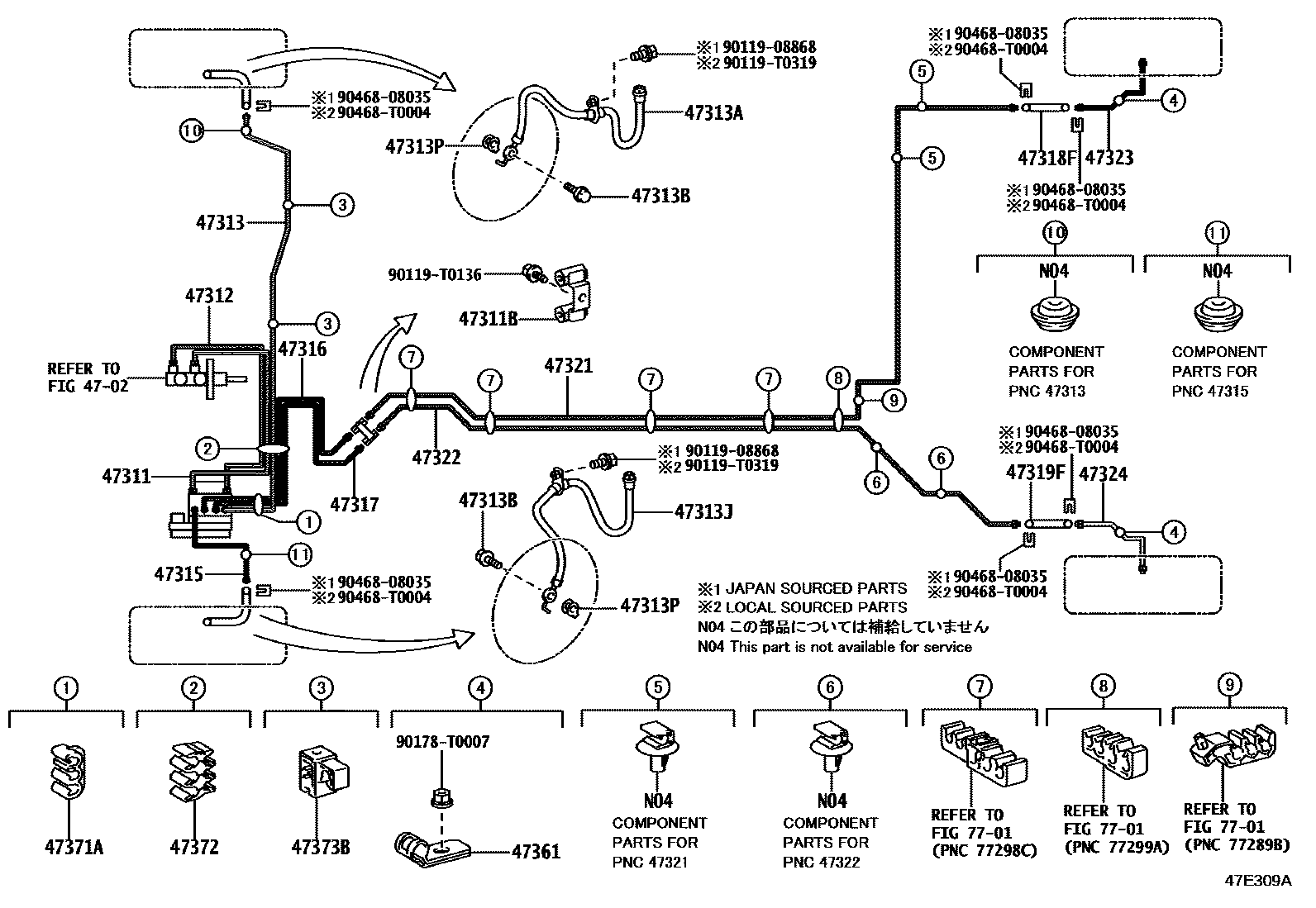

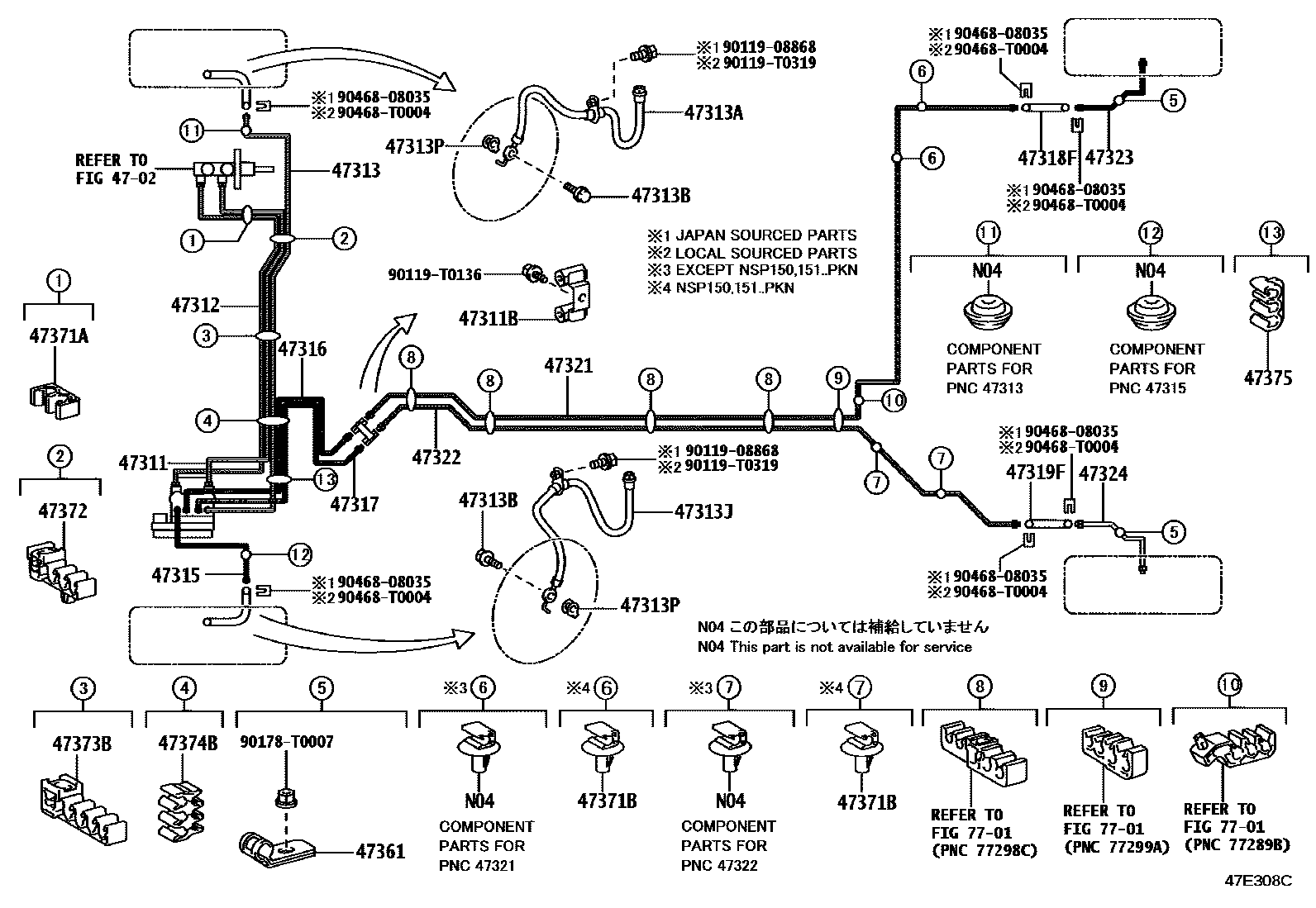

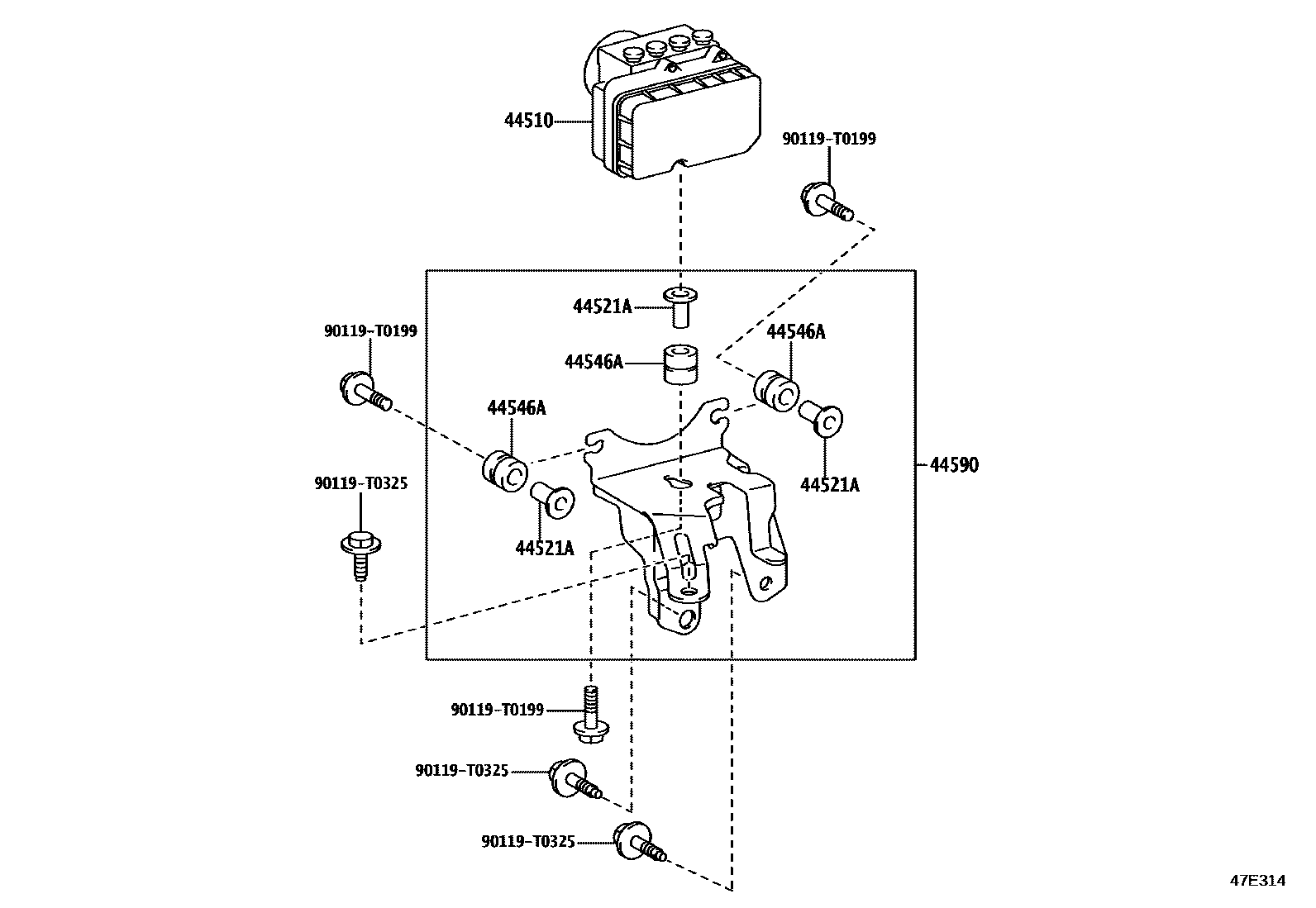

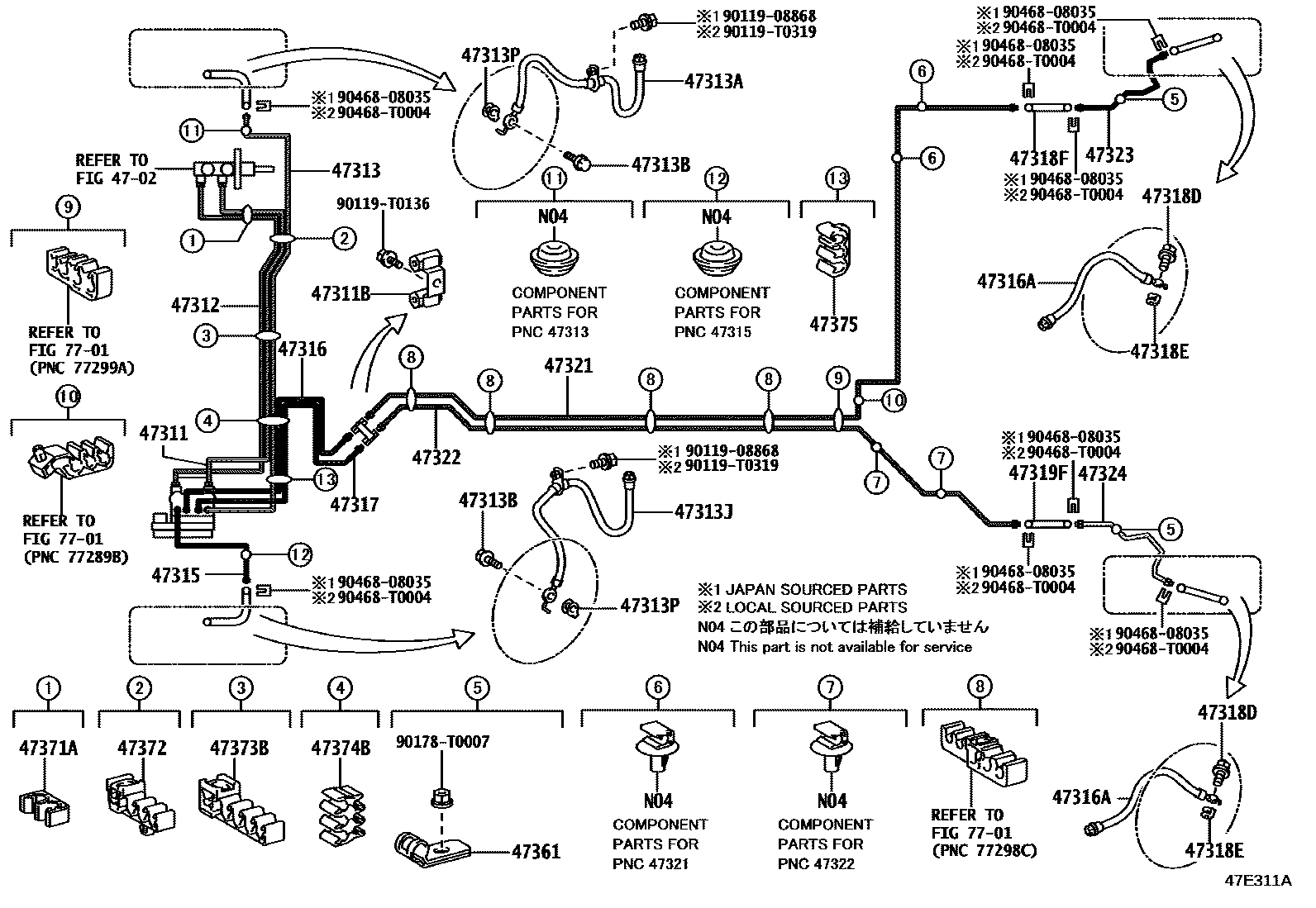

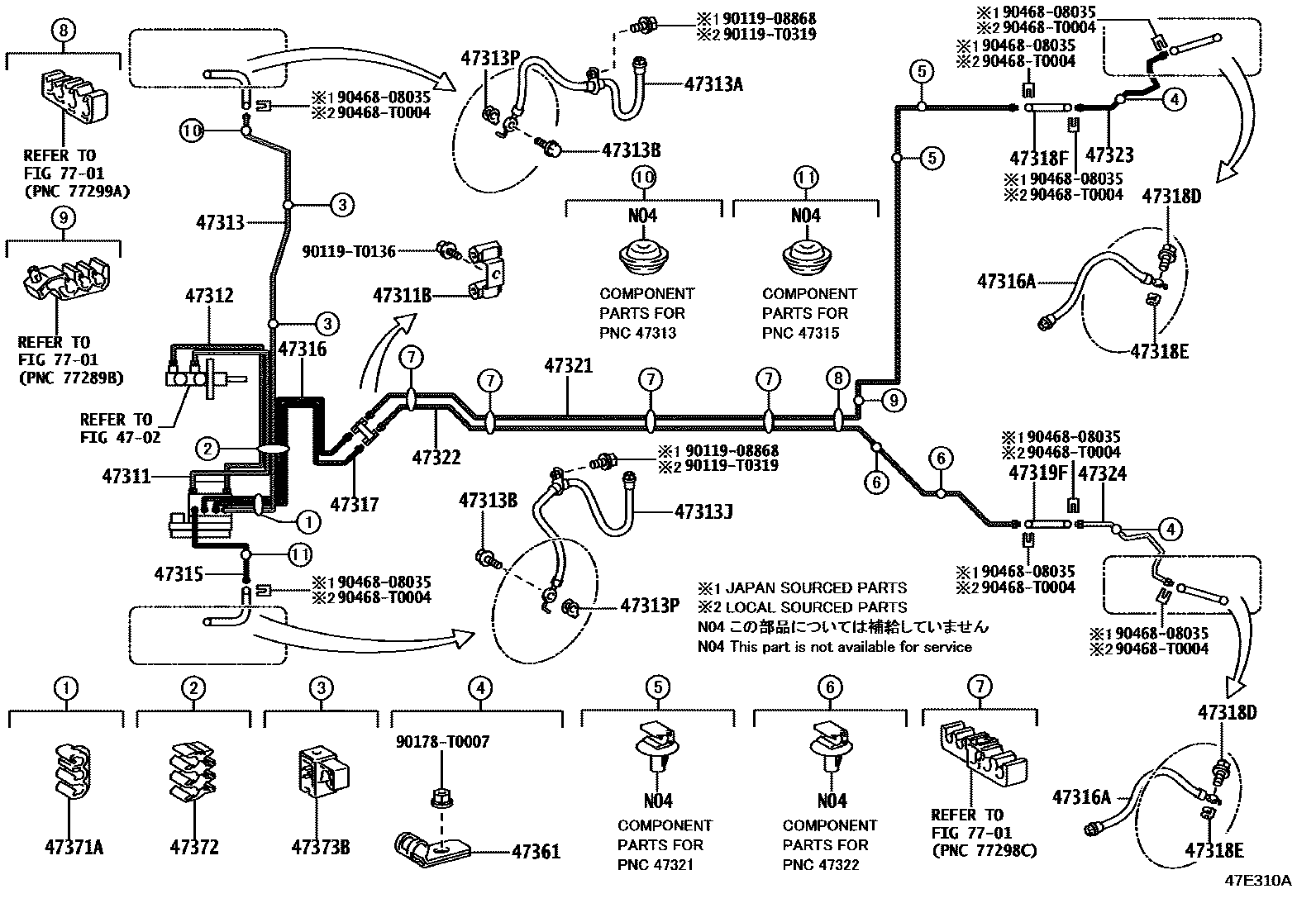

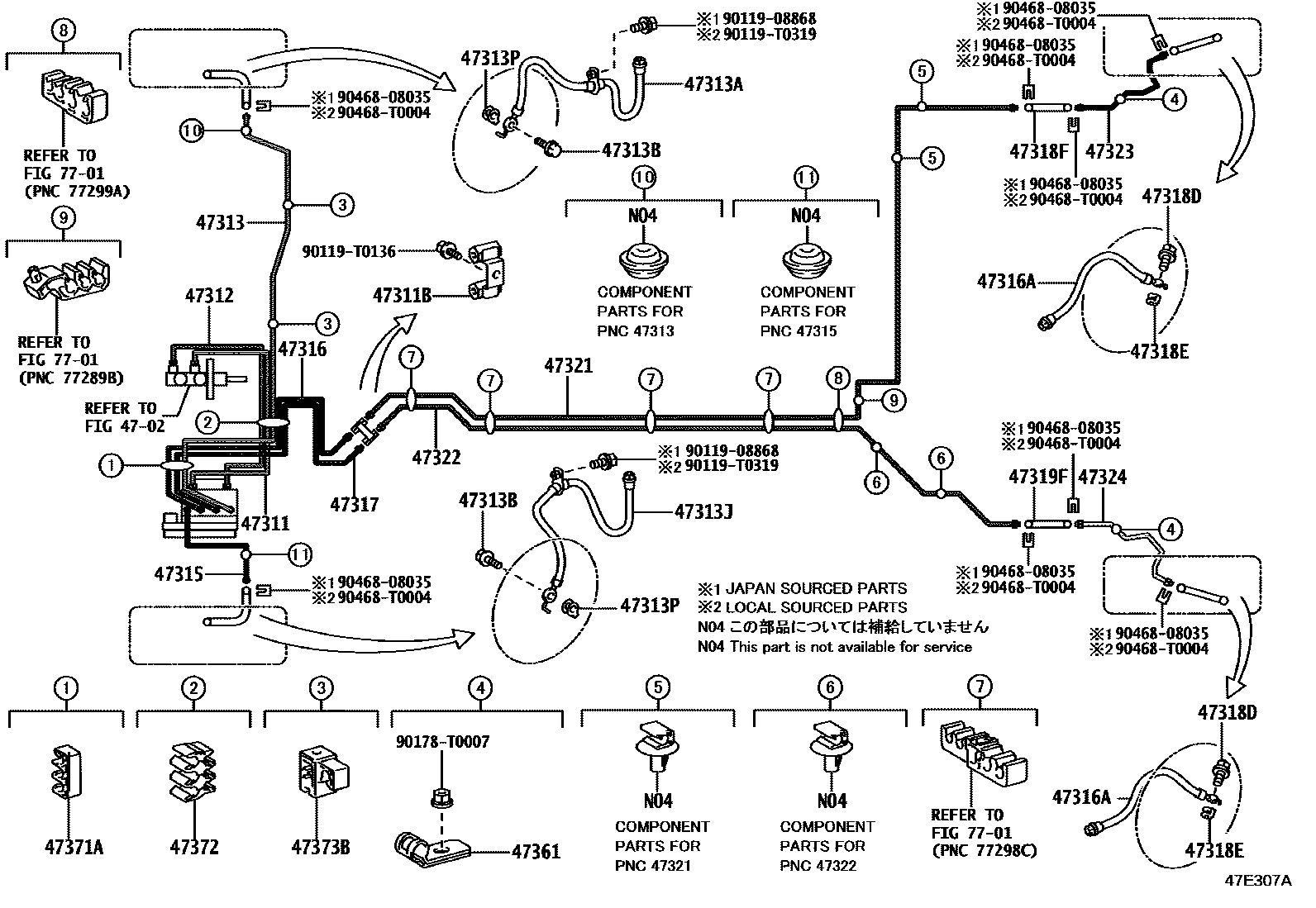

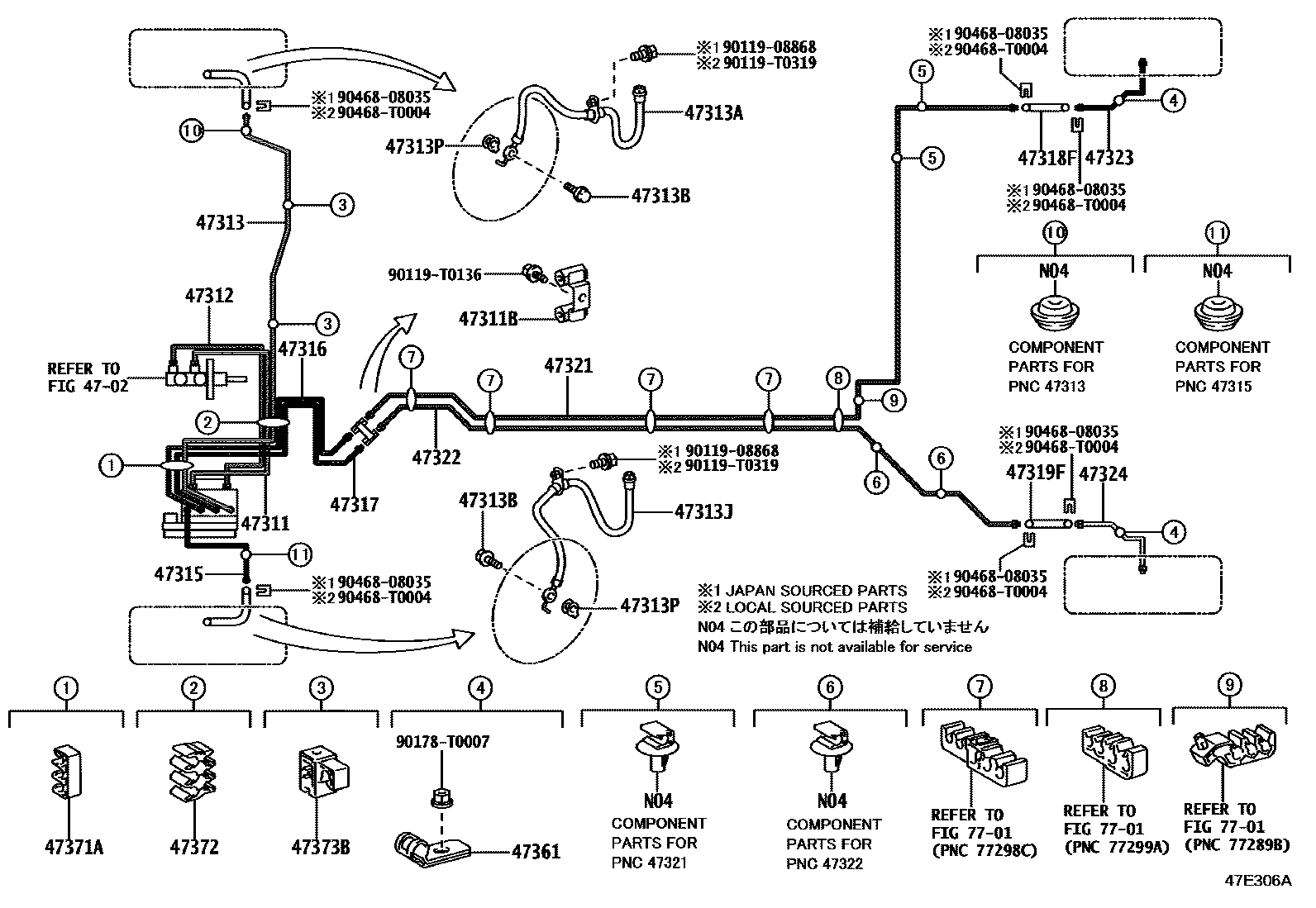

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 9 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-0D500 · 44050-0DD90 · 44050-0DE10 · 44050-0DE20 · 44050-0DE30 · 44050-52C80 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-0D010 |
| 44546A | Brake actuator bolt cushion | 44547-02050 |
| 44590 | Brake actuator bracket assembly | 44590-0D430 · 44590-0D440 · 44590-0D450 |
| 44591 | No. 1 brake actuator bracket | 44591-0D270 |
| 47311 | No. 1 front brake pipe | 47311-0D780 · 47311-0D790 · 47311-0D800 · 47311-0DB20 · 47311-0DB70 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0D710 · 47312-0D720 · 47312-0D730 · 47312-0DA50 · 47312-0DB00 |
| 47313 | No. 3 front brake pipe | 47313-0D490 · 47313-0D690 · 47313-0D700 · 47313-0D870 · 47313-0DA00 |
| 47313A | No. 1 front flexible hose | 90947-T2081 · 90947-T2119 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2082 · 90947-T2120 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47315 | No. 5 front brake pipe | 47315-0D500 · 47315-0D670 · 47315-0D680 · 47315-0D850 · 47315-0D880 |
| 47316 | No. 6 front brake pipe | 47316-0D390 · 47316-0D580 · 47316-0D590 · 47316-0D760 · 47316-0D800 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-T2085 |
| 47317 | No. 7 front brake pipe | 47317-0D390 · 47317-0D580 · 47317-0D590 · 47317-0D760 · 47317-0D790 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-T2083 |
| 47319F | Left rear flexible hose | 90947-T2084 |
| 47321 | No. 1 rear brake pipe | 47321-0D360 · 47321-0D370 · 47321-0D470 |
| 47322 | No. 2 rear brake pipe | 47322-0D360 · 47322-0D370 · 47322-0D490 |
| 47323 | No. 3 rear brake pipe | 47323-0D220 · 47323-0D230 · 47323-0D240 · 47323-0D250 · 47323-0D380 |
| 47324 | No. 4 rear brake pipe | 47324-0D220 · 47324-0D230 · 47324-0D240 · 47324-0D250 · 47324-0D380 |
| 47361 | pipe clamp | 90461-T0006 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00868 · 90464-00899 |
| 47371B | No. 6 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90464-00925 · 90949-01D84 |
| 47373B | No. 3 brake pipe clamp | 90949-01D18 · 90949-01D85 |
| 47374B | No. 4 brake pipe clamp | 90464-00925 |
| 47375 | No. 5 brake pipe clamp | 90464-00868 |
