Toyota YARIS 变矩器、前油泵(CVT) — Figure 3402

Toyota YARIS EPC diagram 3402, 变矩器、前油泵(CVT), with 2 images and 10 PNC and OE references.

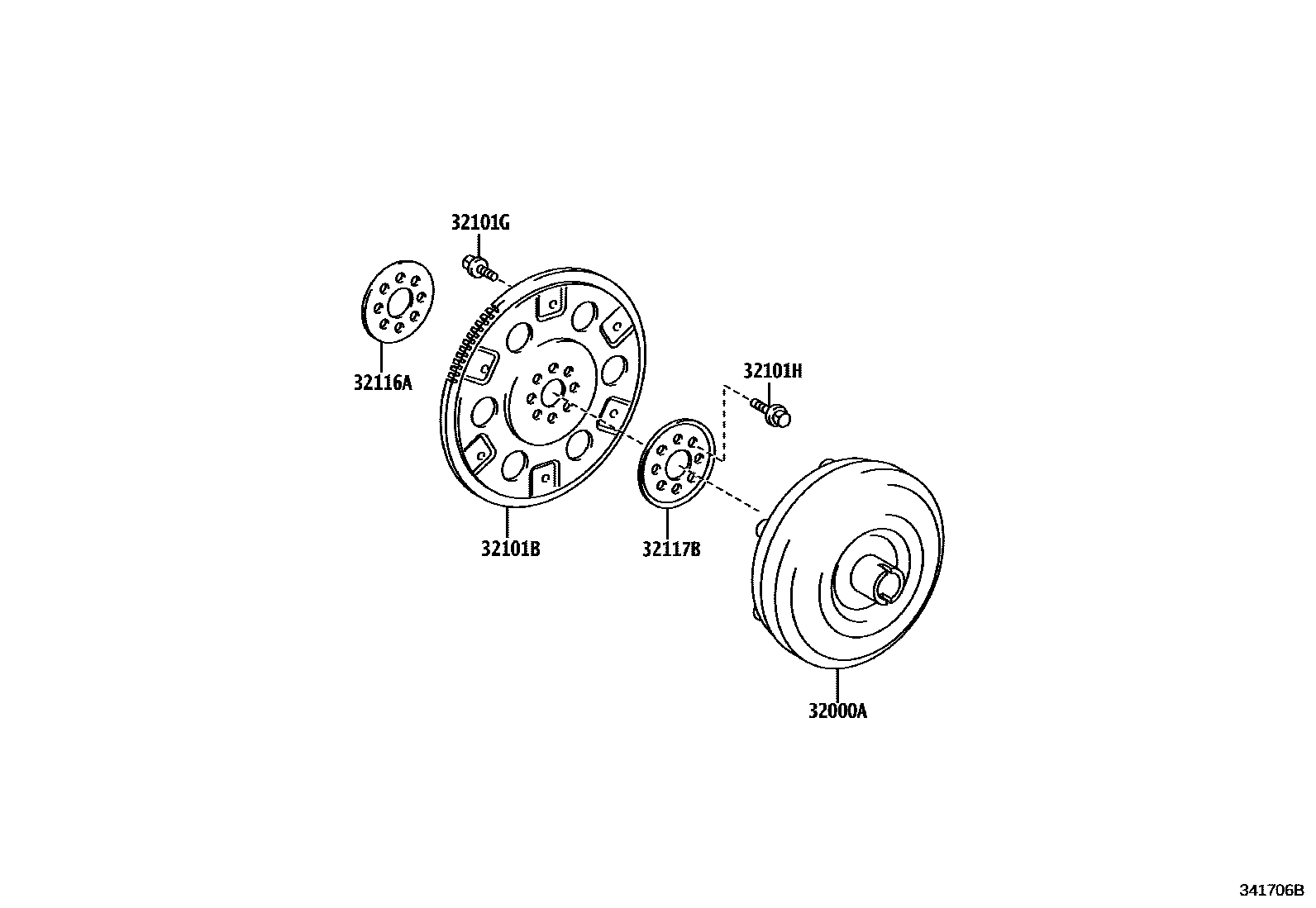

Toyota YARIS 变矩器、前油泵(CVT) EPC diagram — 341706B
变矩器、前油泵(CVT) — 341706B (202303 – 999999)

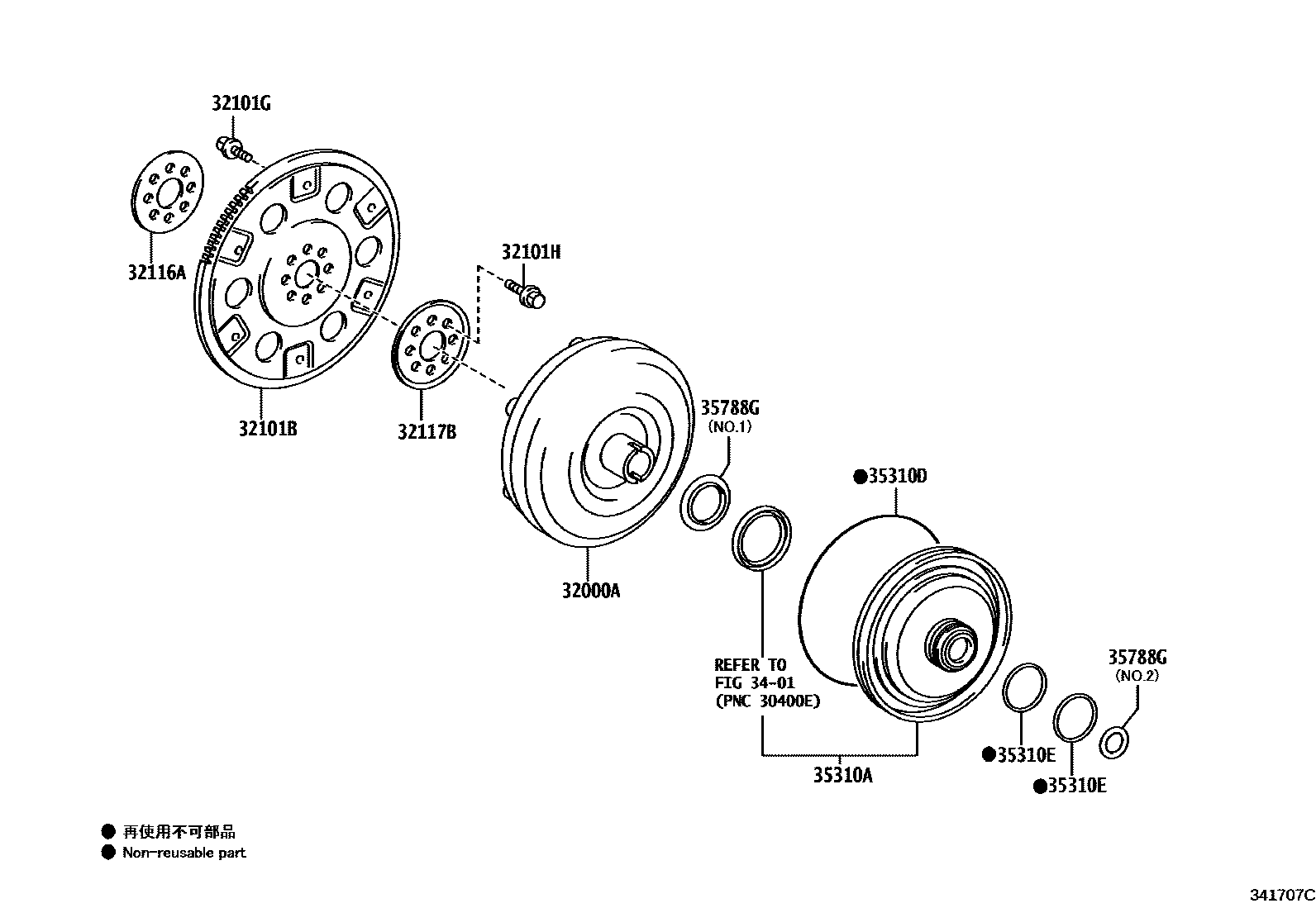

Toyota YARIS 变矩器、前油泵(CVT) EPC diagram — 341707C
变矩器、前油泵(CVT) — 341707C (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
32000ATorque converter assembly32000-52160 · 32000-52201 · 32000-52240
32101BTransmission plate and ring gear sub-assembly32101-0D040 · 32101-52090 · 32111-52110
32101GBolts (for securing transmission plate and torque converter)90109-08113 · 90119-08498
32101HHexagonal bolts (used to fix the transmission plate)90105-10048
32116AFront transmission plate spacer32116-12030
32117BRear transmission plate spacer32117-12040
35310AFront oil pump assembly35310-52130
35310DO-ring (for front oil pump)90301-99093
35310ET-type oil seal (for front oil pump)35617-52060
35788Gthrust bearing race35789-52060 · 35789-52090
