Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 1 images and 3 PNC and OE references.

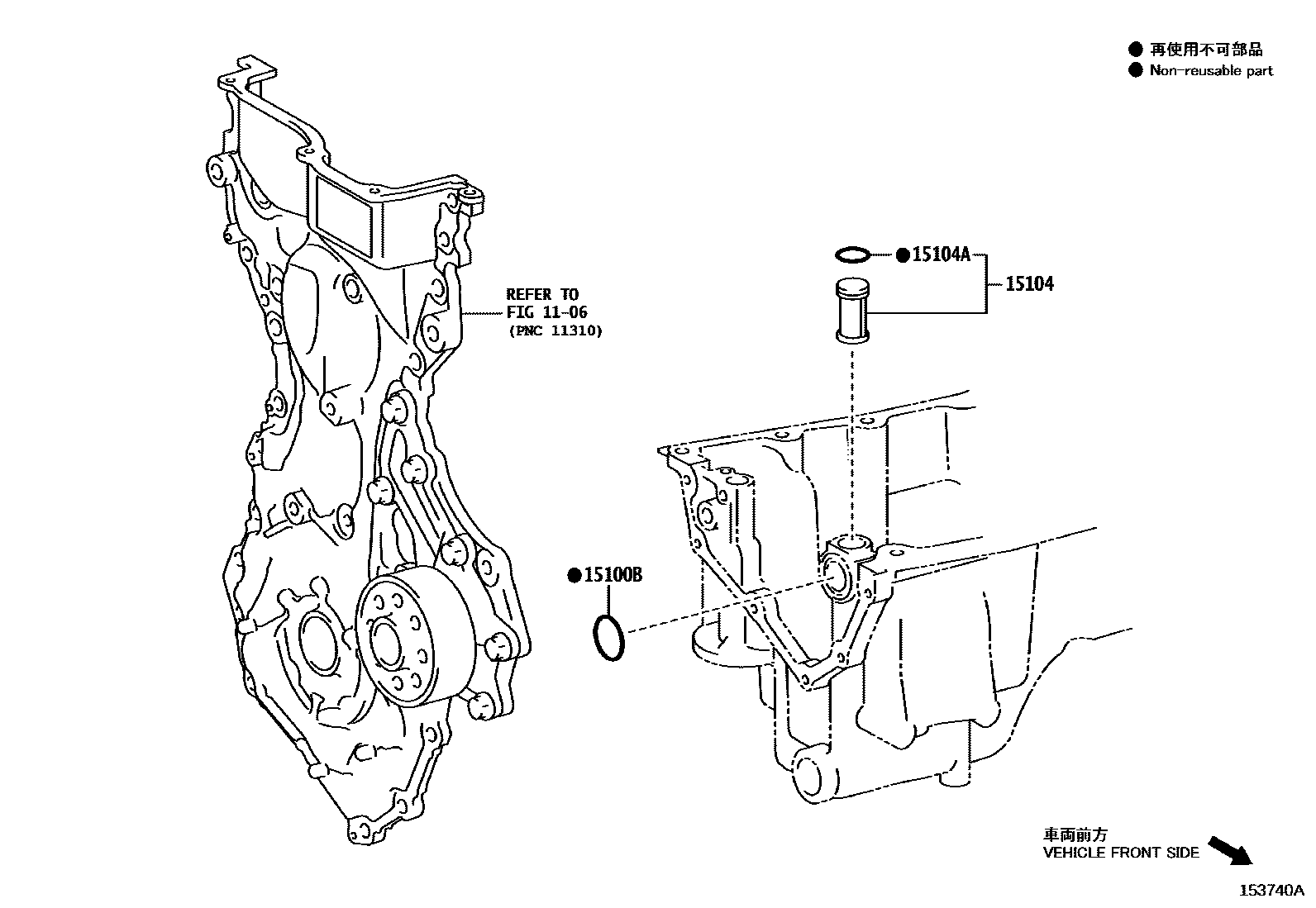

Toyota YARIS Engine Oil Pump EPC diagram — 153740A
Engine Oil Pump — 153740A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
15100BO-ring (for oil pump)90301-T0058 · 90301-T0059
15104Oil filter sub-assembly15104-0Y010
15104AO-ring (for oil filter)90301-T0061
