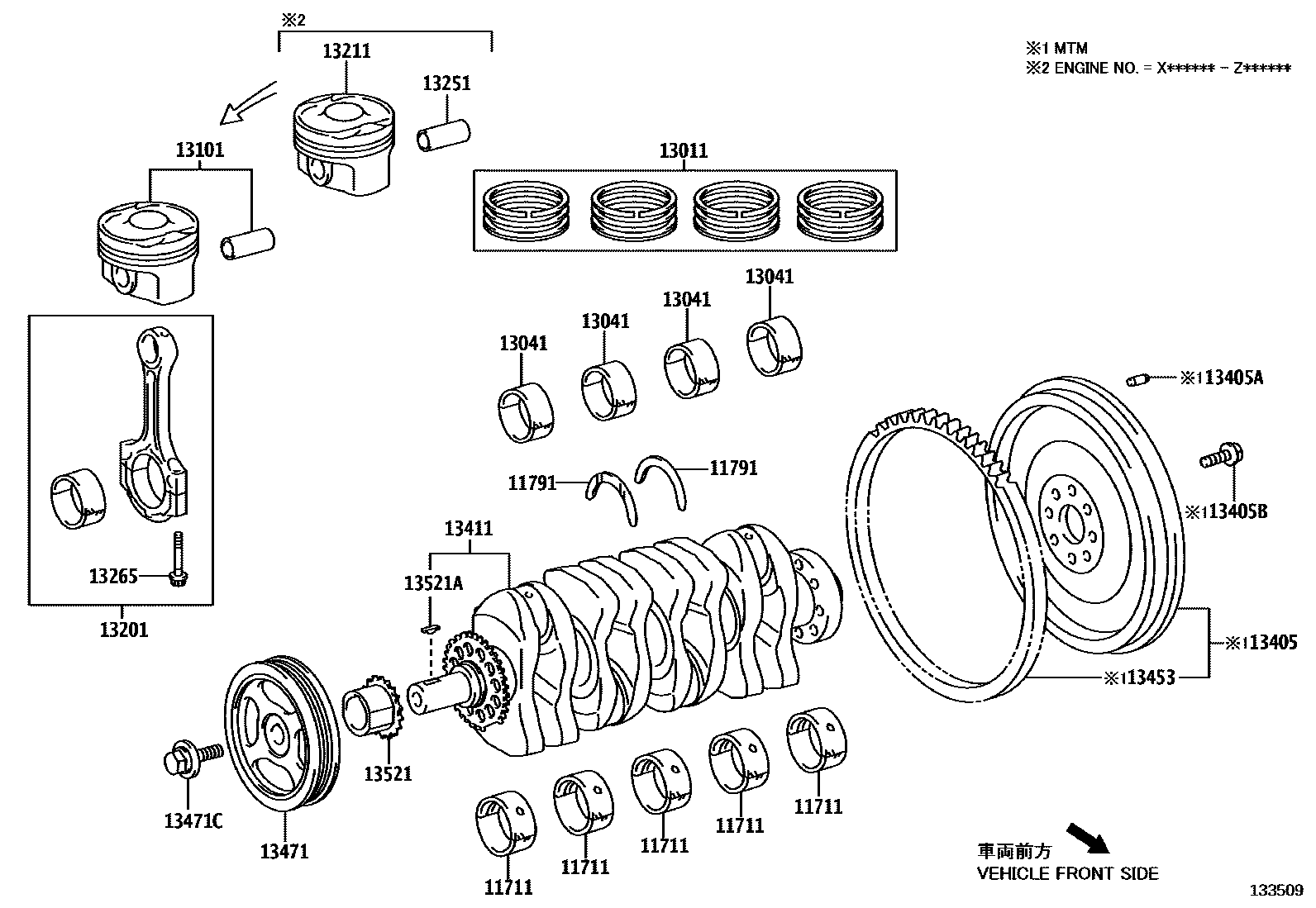

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0Y010 · 11791-0Y040 · 11791-47031 · 11791-B0010 |
| 13011 | Piston ring assembly | 13011-0Y030 · 13011-0Y130 |
| 13101 | Piston sub-assembly with pin | 13101-0Y070 · 13101-0Y120 · 13101-0Y130 |
| 13201 | Connecting rod sub-assembly | 13201-09C20 · 13201-09C30 · 13201-09C60 · 13201-09C70 |
| 13211 | piston | 13211-0Y011 · 13211-0Y061 |
| 13251 | Piston pin | 13251-0Y030 |
| 13265 | Connecting rod bolts | 13265-0Y010 · 13265-0Y020 · 13265-21020 |
| 13405 | Flywheel sub-assembly | 13405-0Y080 · 13405-0Y110 · 13405-0Y150 · 13405-0Y160 |
| 13405A | Direct sales (for flywheel) | 90250-T0007 |
| 13405B | Flywheel fixing bolt | 90913-01029 |
| 13411 | crankshaft | 13401-0Y140 · 13401-0Y150 · 13401-0Y160 · 13401-0Y170 · 13401-0Y180 · 13401-BZ100 |
| 13453 | flywheel ring gear | 13453-0Y050 · 13453-10010 |
| 13471 | crankshaft pulley | 13470-0Y020 · 13470-0Y030 · 13470-0Y040 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-T0444 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0Y040 · 13521-0Y070 · 13521-BZ040 |
| 13521A | Key (for crankshaft timing gear) | 90280-04001 |
