Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 5 PNC and OE references.

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H188A
Timing Gear Cover & Rear End Plate — 11H188A (202303 – 999999)

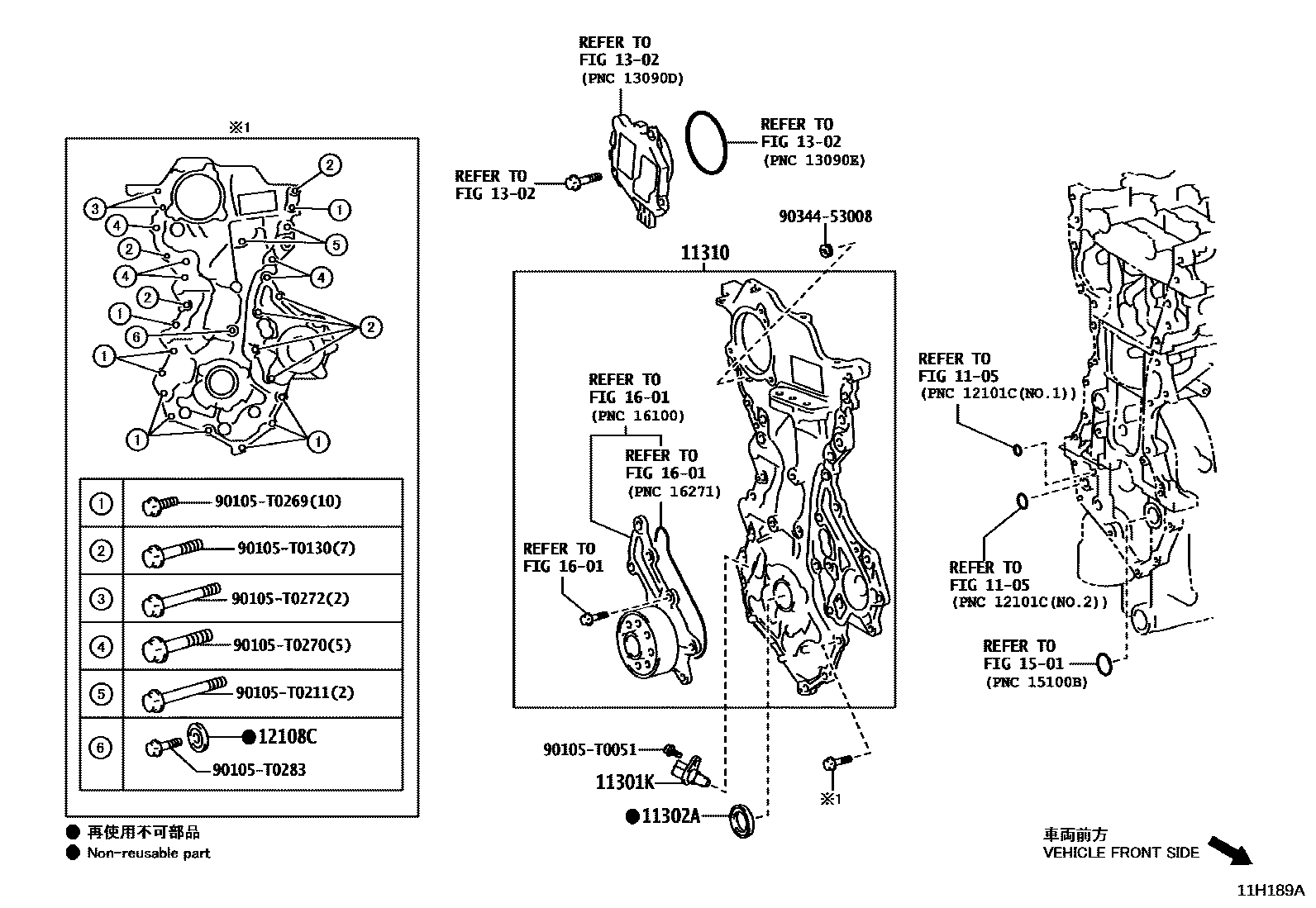

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H189A
Timing Gear Cover & Rear End Plate — 11H189A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05079 · 90919-T5001
11302AOil seal (for timing chain or timing belt cover)90311-T0075 · 90311-T0076
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-0Y040 · 11310-0Y061 · 11310-0Y080
11310ABOUCHON, VIS CONIQUE(POUR CARTER CHAINE DISTRIBUTION)90043-44022
12108Cpadding16258-0T020 · 16258-0Y010 · 16258-37010
