Toyota YARIS Cylinder Head — Figure 1104

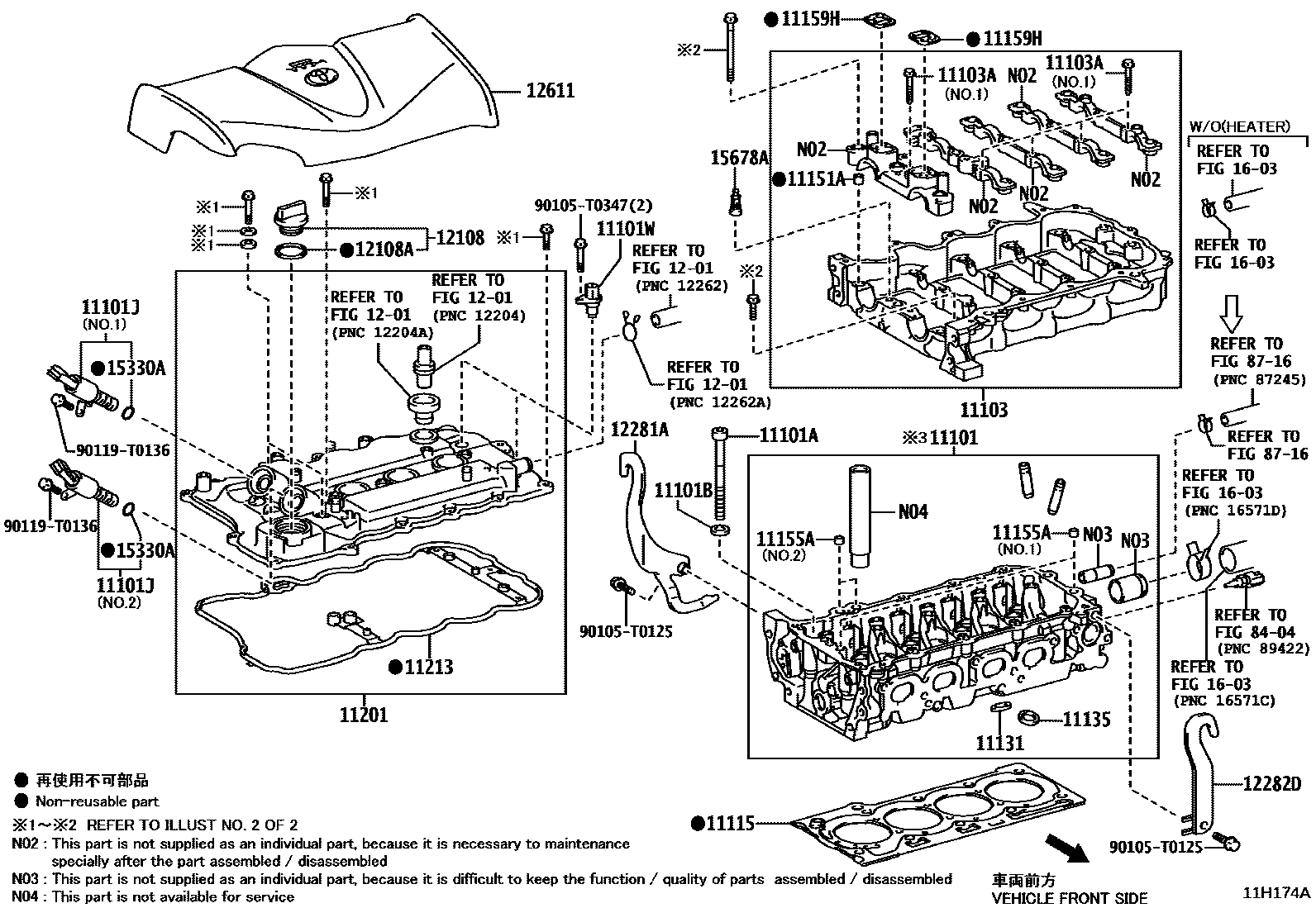

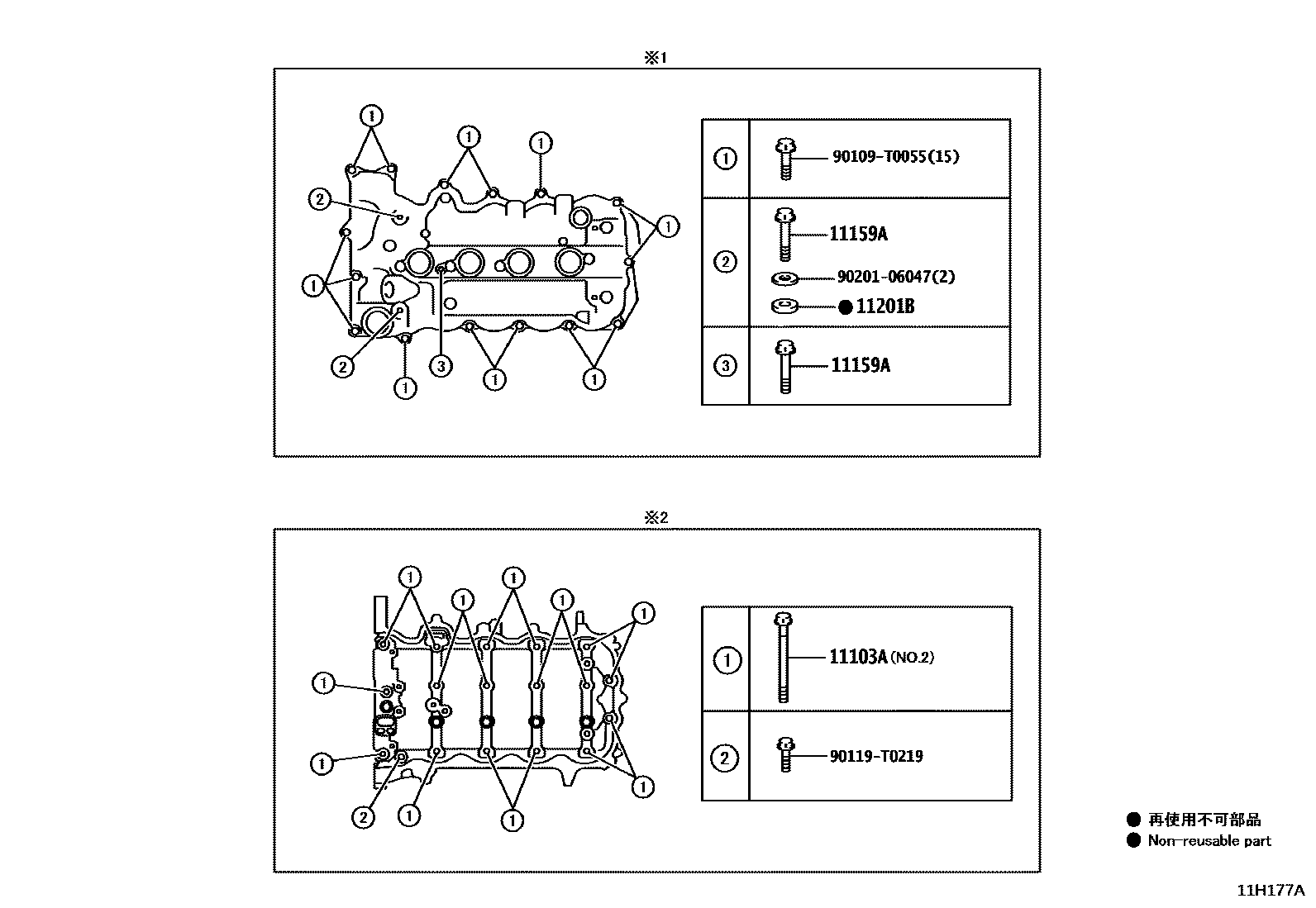

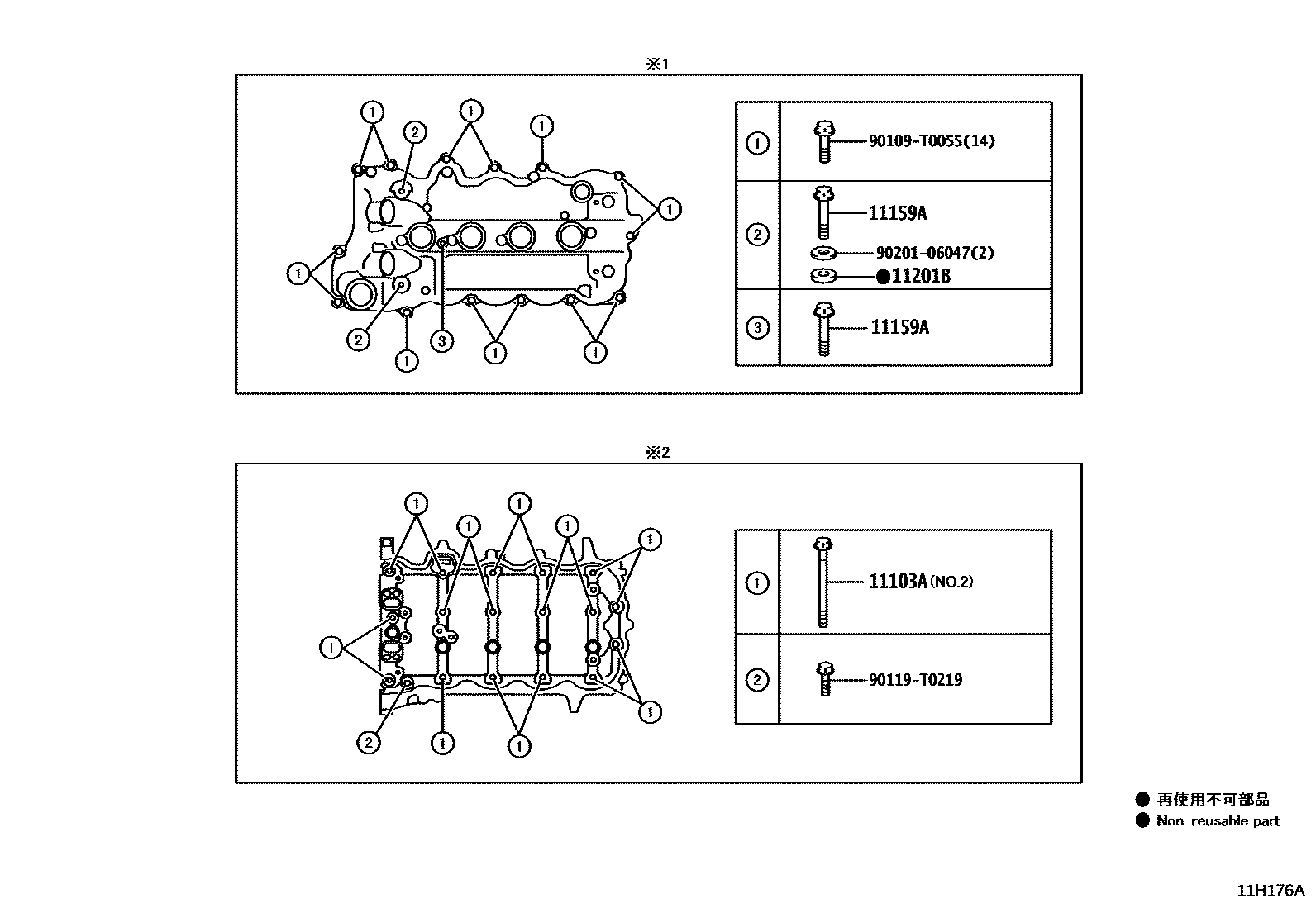

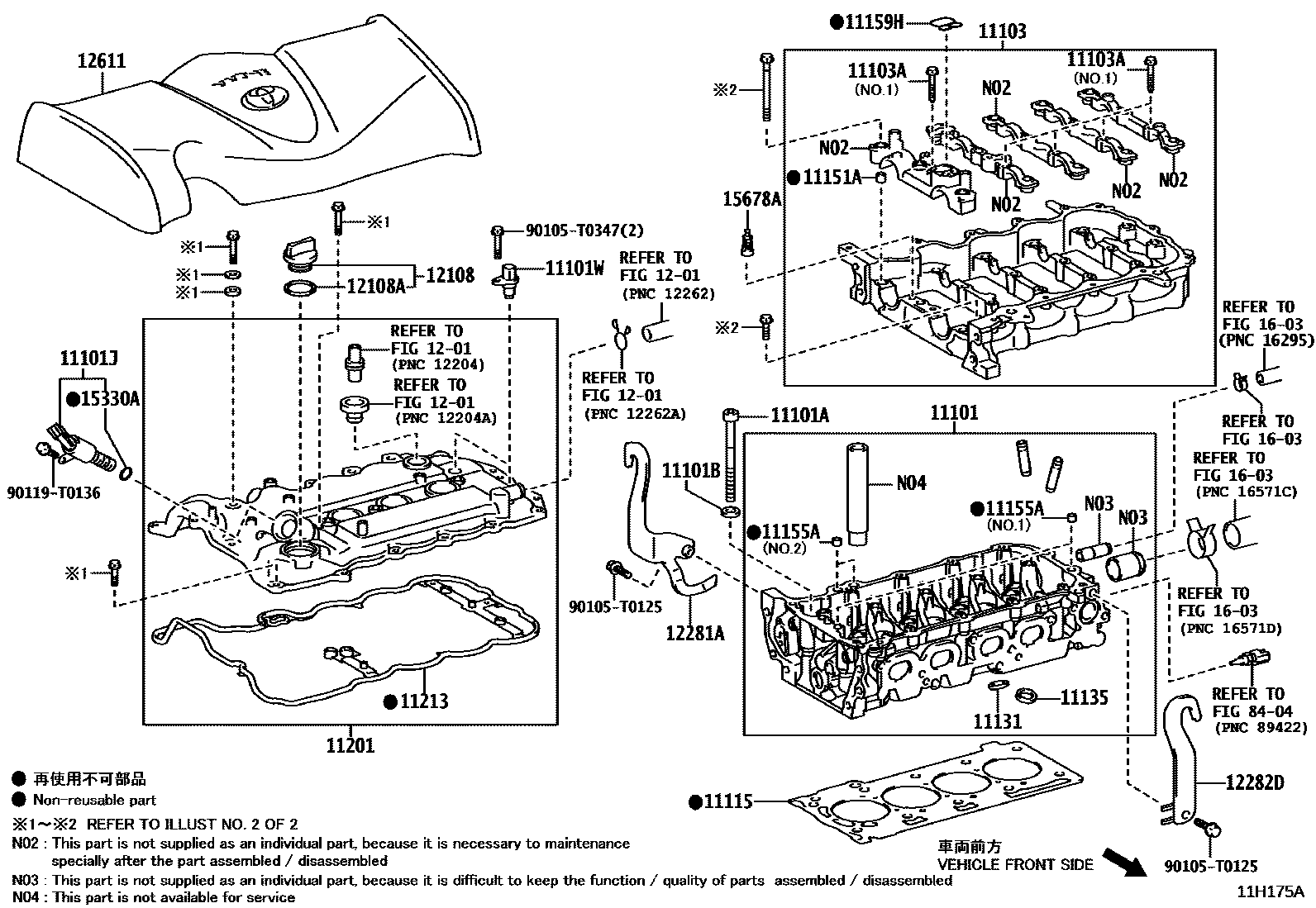

Toyota YARIS EPC diagram 1104, Cylinder Head, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09570 · 11101-09610 · 11101-09830 · 11101-09850 · 11101-B9641 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-T2012 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0Y050 · 15330-0Y060 |
| 11101W | No. 1 crankshaft position sensor | 90919-T5002 |
| 11103 | Camshaft housing sub-assembly | 11103-0Y040 · 11103-0Y050 · 11103-0Y070 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-T0271 · 90119-T0443 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0Y030 · 11115-0Y040 · 11115-0Y070 |
| 11131 | intake valve seat | 11131-0Y030 · 11131-0Y080 |
| 11135 | Exhaust valve seat | 11135-0Y030 · 11135-0Y050 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11155A | PIN, RING W/HEAD | 90253-11004 · 90253-11005 · 90253-12002 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-T0347 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0Y020 · 11159-0Y030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0Y030 · 11201-0Y040 |
| 11201B | Gasket (for cylinder head cover) | 90210-T0001 · 90210-T0002 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0Y010 · 11213-0Y030 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43027 |
| 12281A | Engine No. 1 hanger | 12281-0Y070 · 12281-0Y080 · 12281-0Y120 · 12281-0Y130 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0Y050 · 12282-0Y060 |
| 12611 | Engine hood No. 1 | 12611-0Y110 · 12611-0Y220 · 12611-0Y270 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14041 |
| 15678A | Oil control valve filter | 15678-0Y010 |
