Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

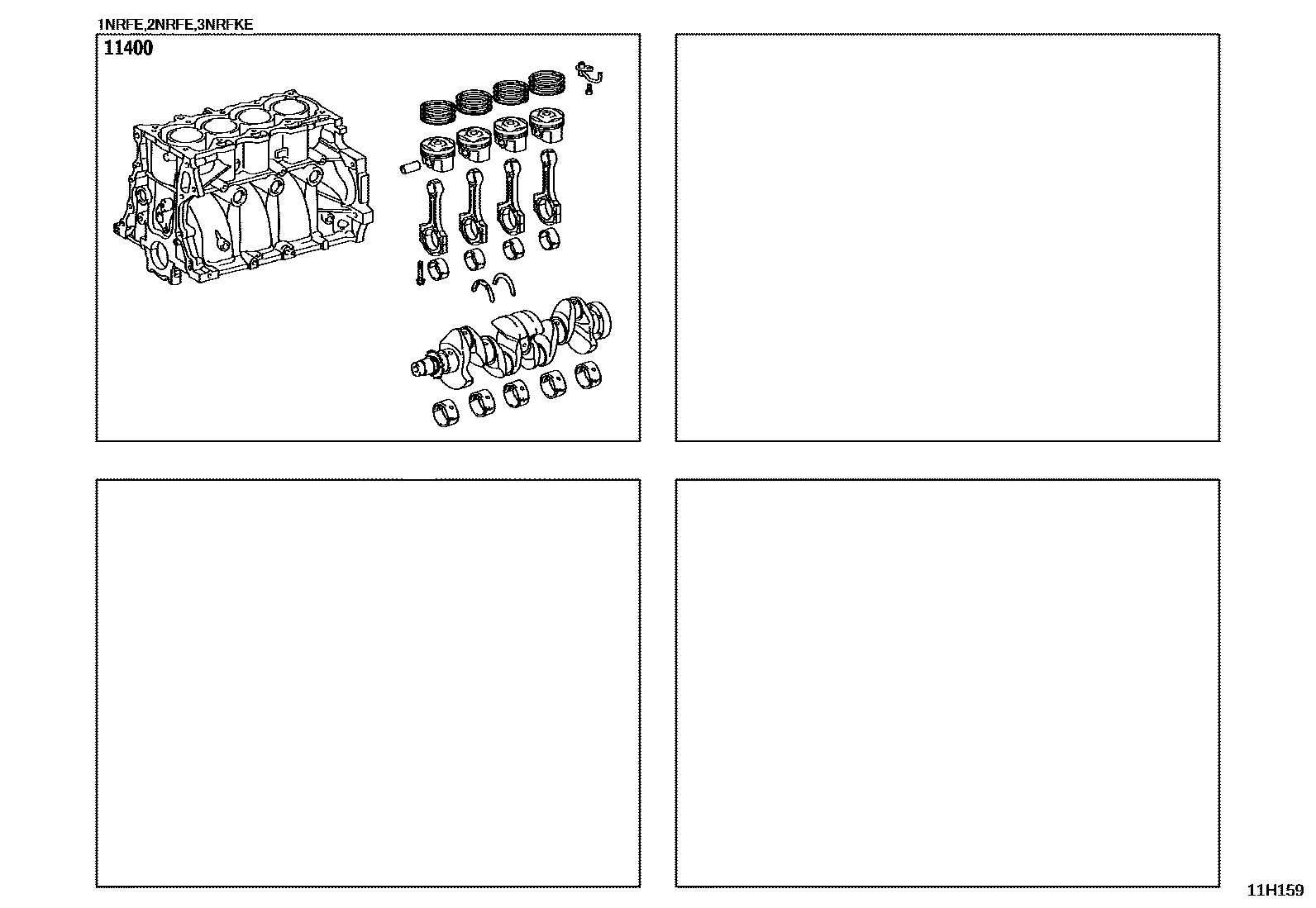

Toyota YARIS Short Block Assembly EPC diagram — 11H159
Short Block Assembly — 11H159 (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0Y100 · 11400-0Y110 · 11400-0Y150 · 11400-0Y160 · 11400-0Y220 · 11400-0Y300
