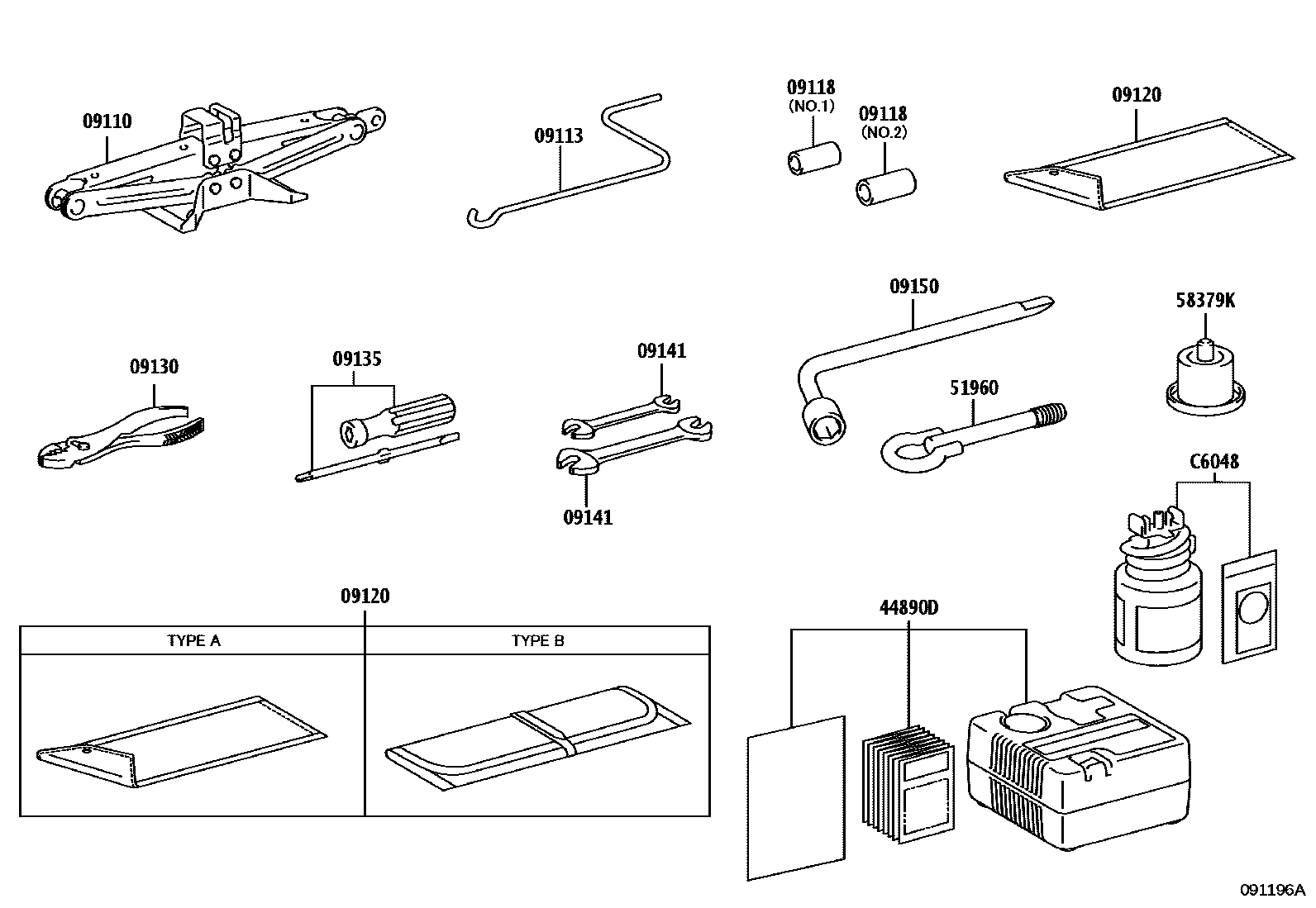

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0D110 · 09111-0D220 |
| 09113 | Jack Handle | 09113-0D050 · 09113-0D060 · 09113-0D100 · 09113-0D110 |
| 09118 | jack cover | 09118-0D030 · 09118-0D040 |
| 09120 | Tool Bag | 09120-02020 · 09120-0D130 · 09120-0D160 · 09120-0D190 · 09120-0D220 |
| 09130 | Pliers | 90089-99010 · 99913-11500 |
| 09135 | Screwdriver | 90089-99009 · 99915-10700 |
| 09141 | Wrench | 09141-0K030 · 09141-0K040 · 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-02090 · 09150-0A010 · 09150-0D050 · 09150-40010 |
| 44890D | Air Compressor Assembly | 44890-0D010 |
| 51960 | Front Towing Hook Assembly | 51960-0D190 · 51960-0D250 · 51960-0D260 |
| 58379K | PROTECTEUR, BAS DE L'ARRIERE DE LA CARROSSERIE | 58379-0D040 |
| C6048 | Tire Repair Kit | C6048-0D010 |
