Toyota YARIS 挡风玻璃清洗器 — Figure 8503

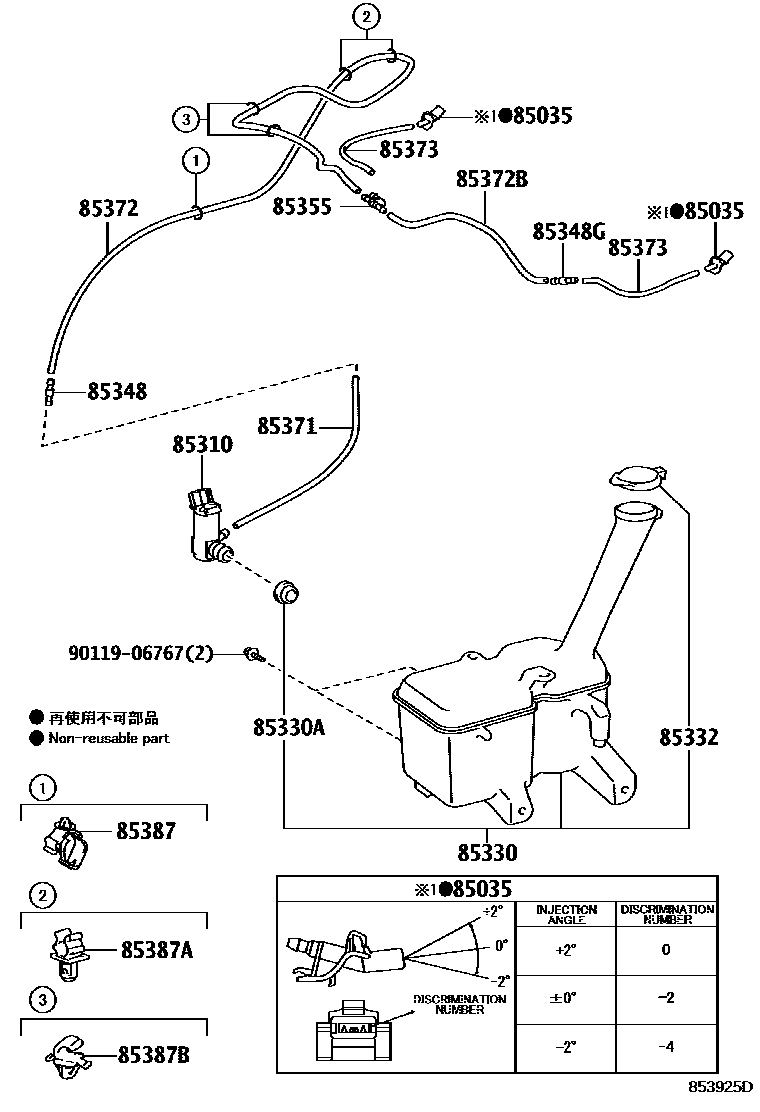

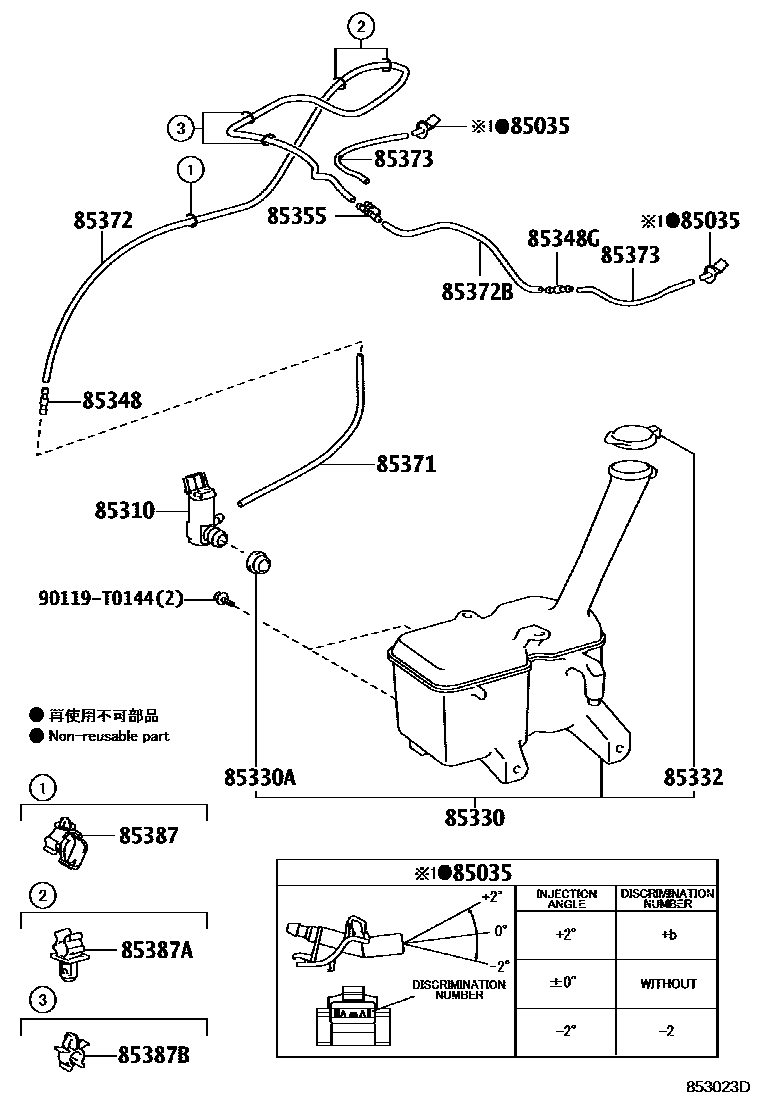

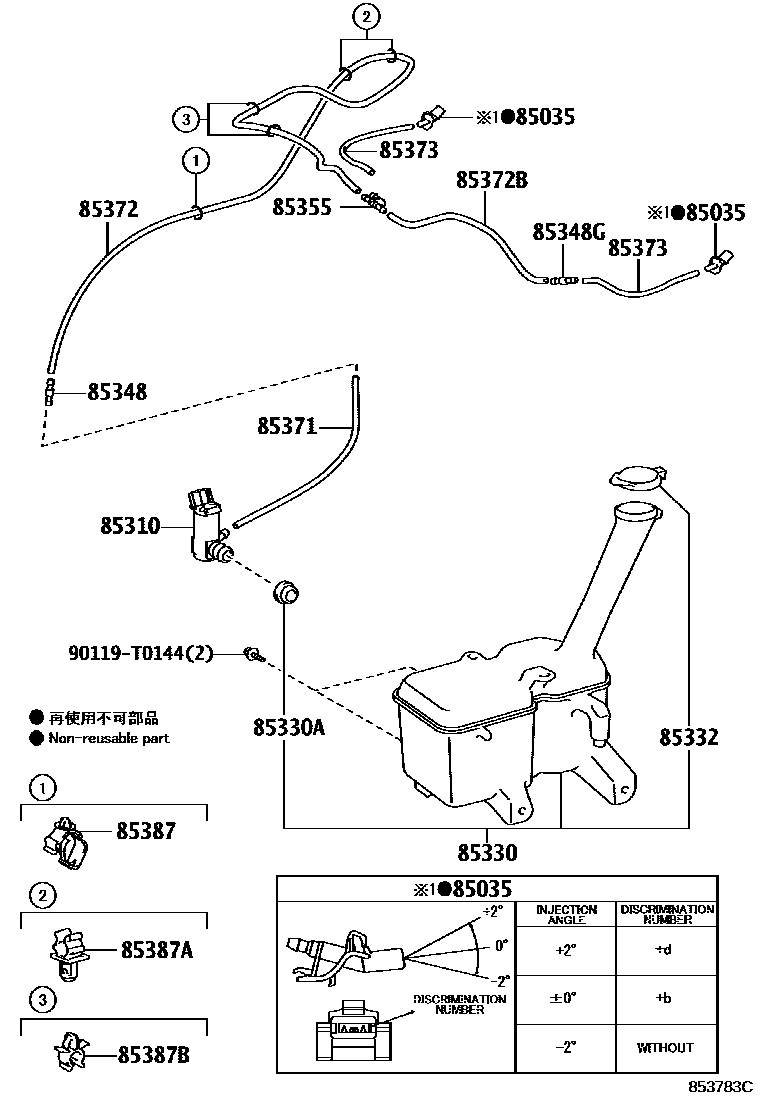

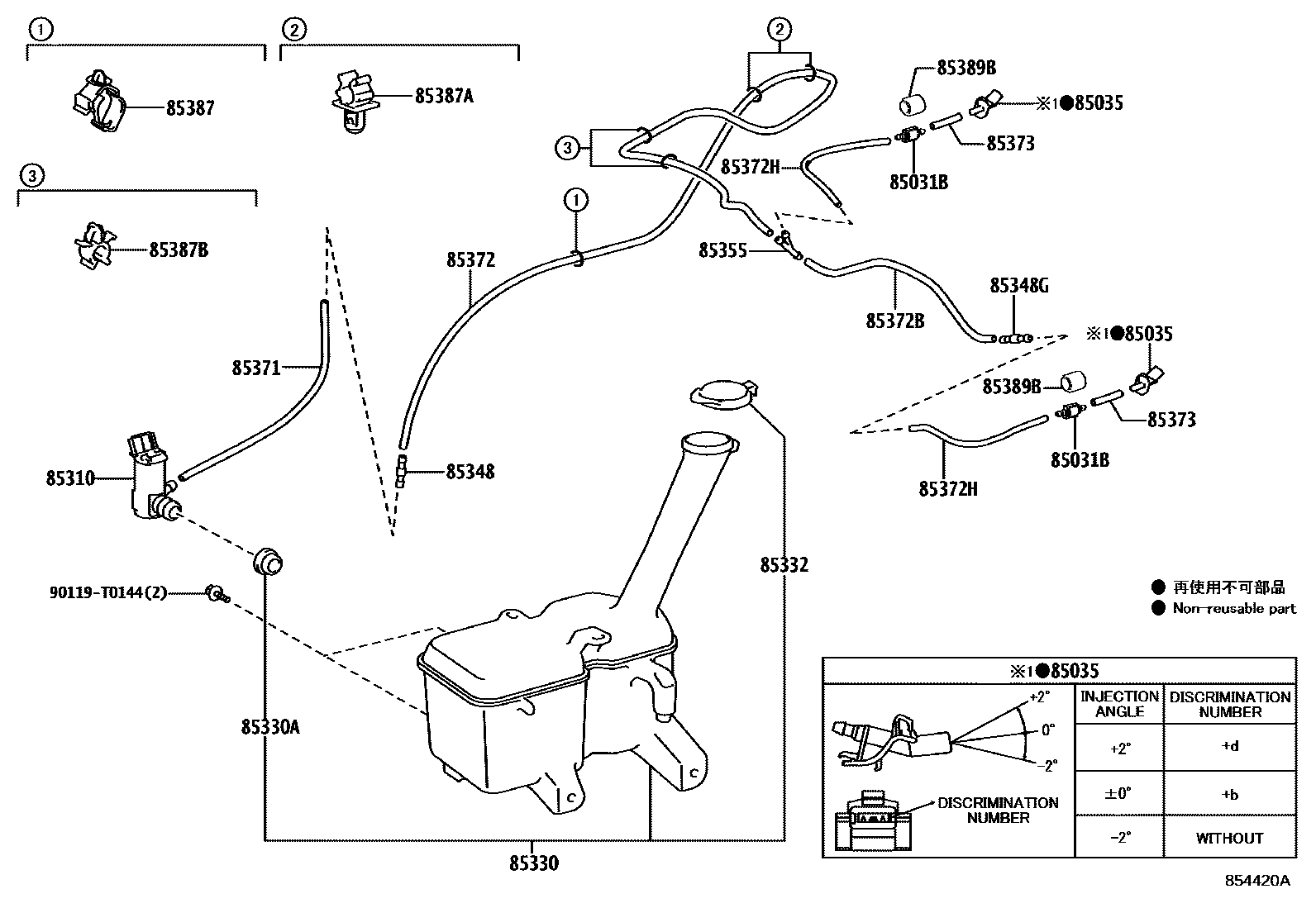

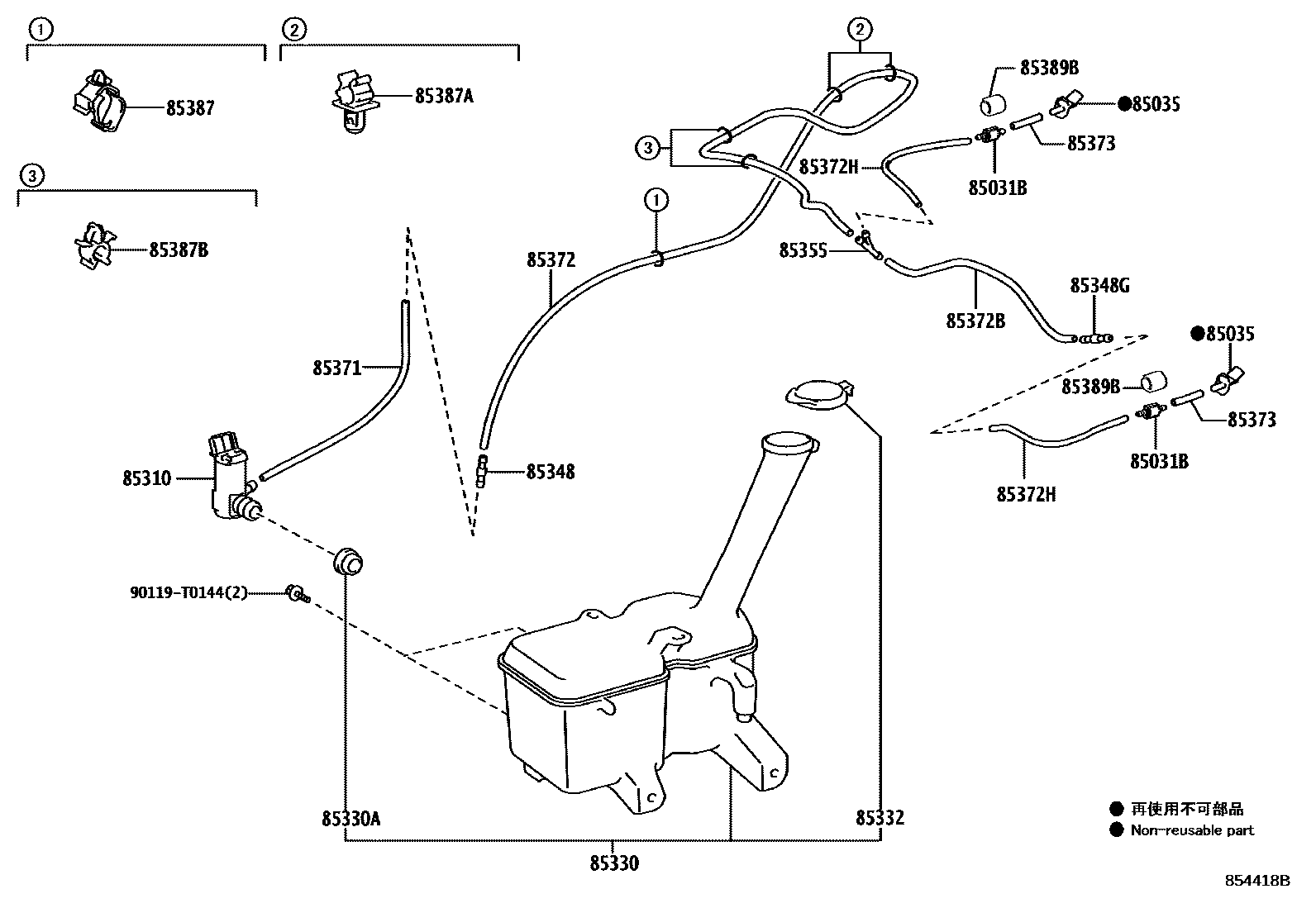

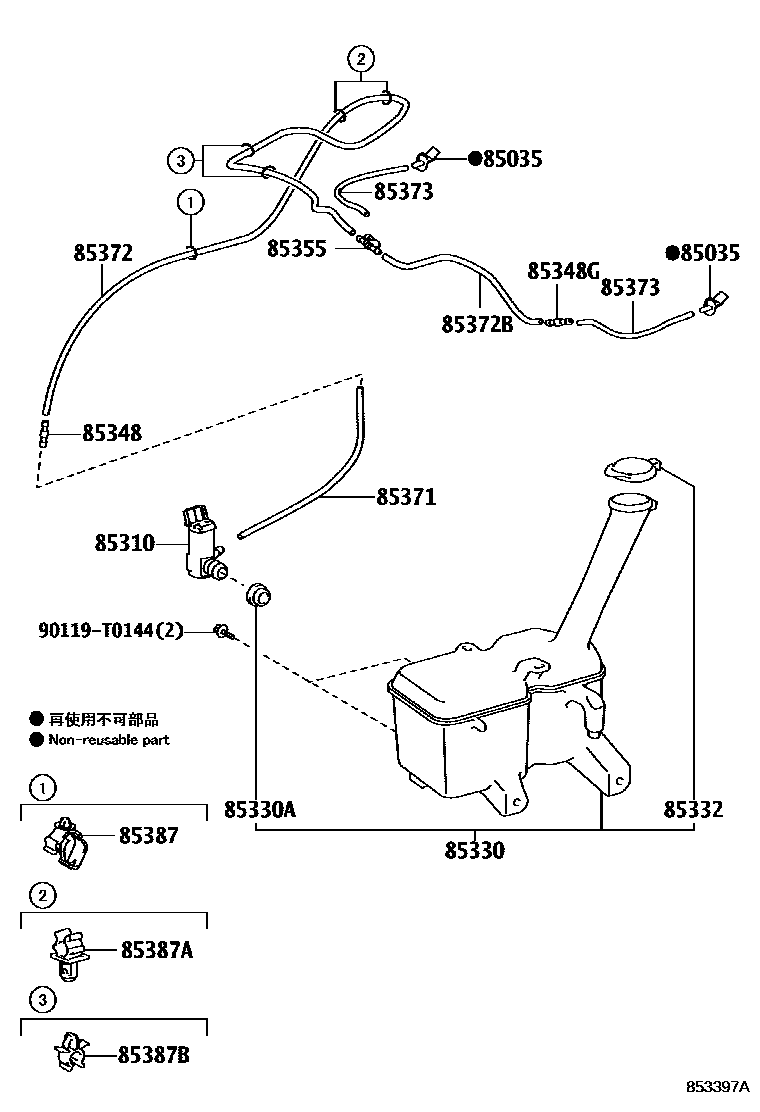

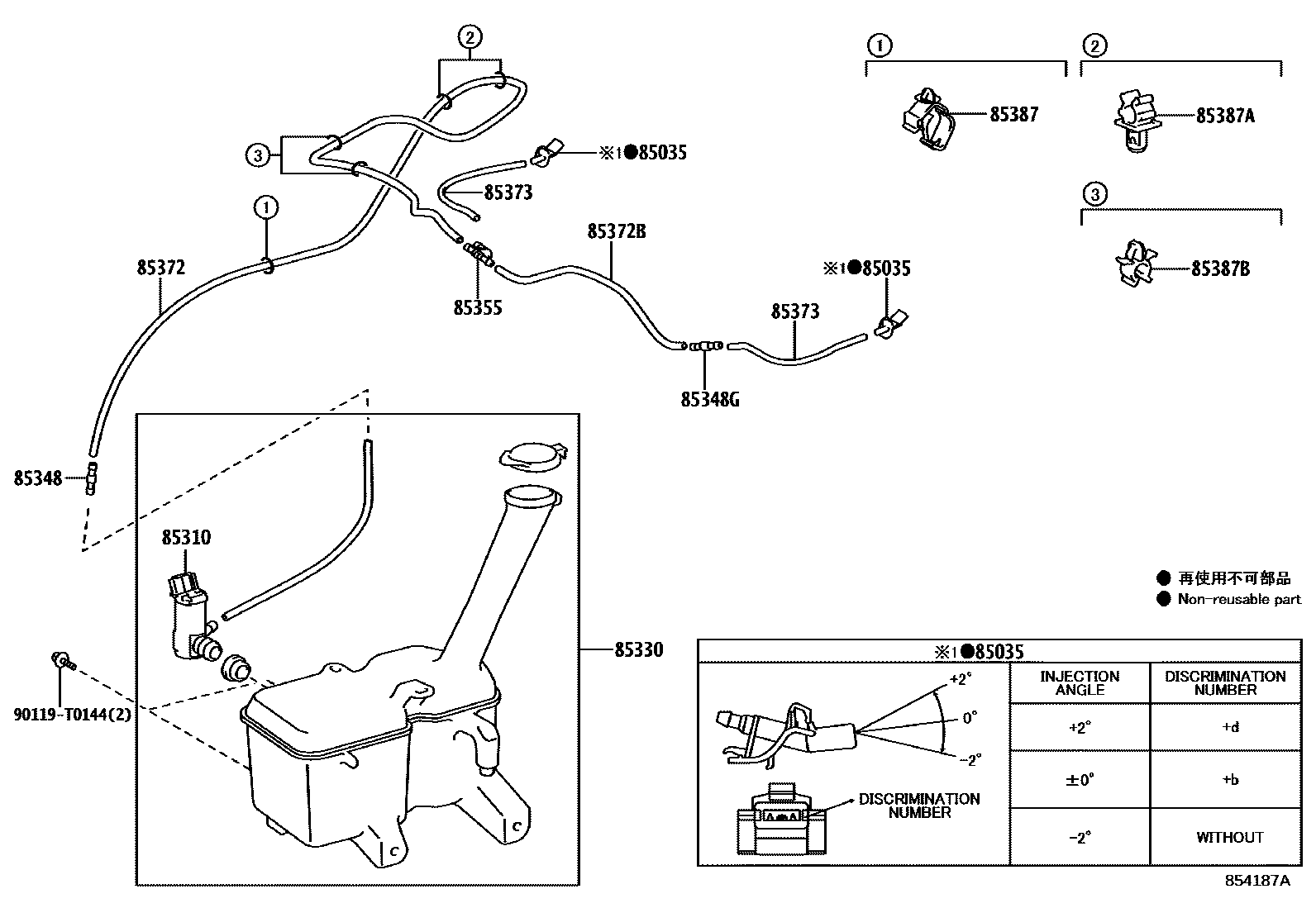

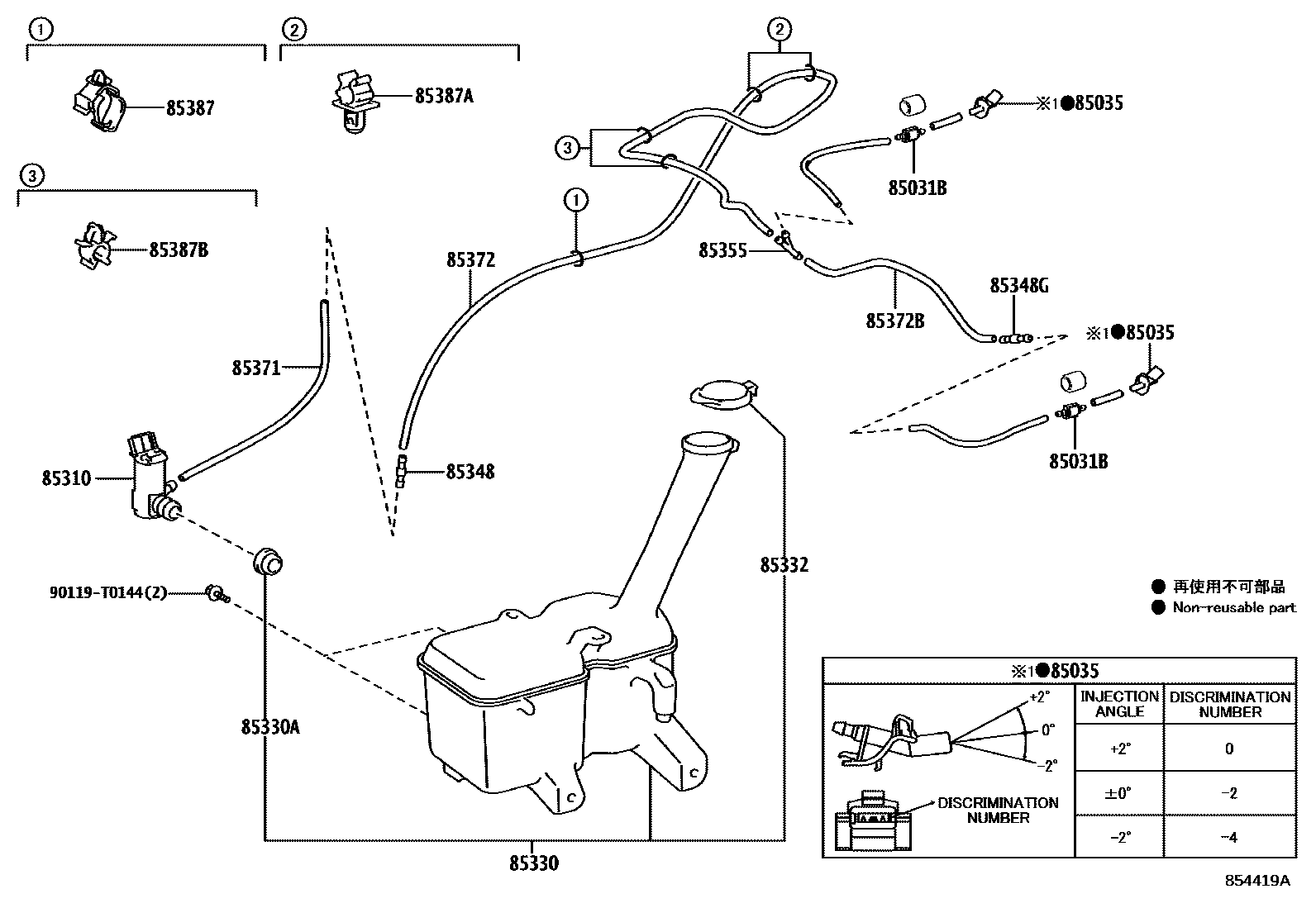

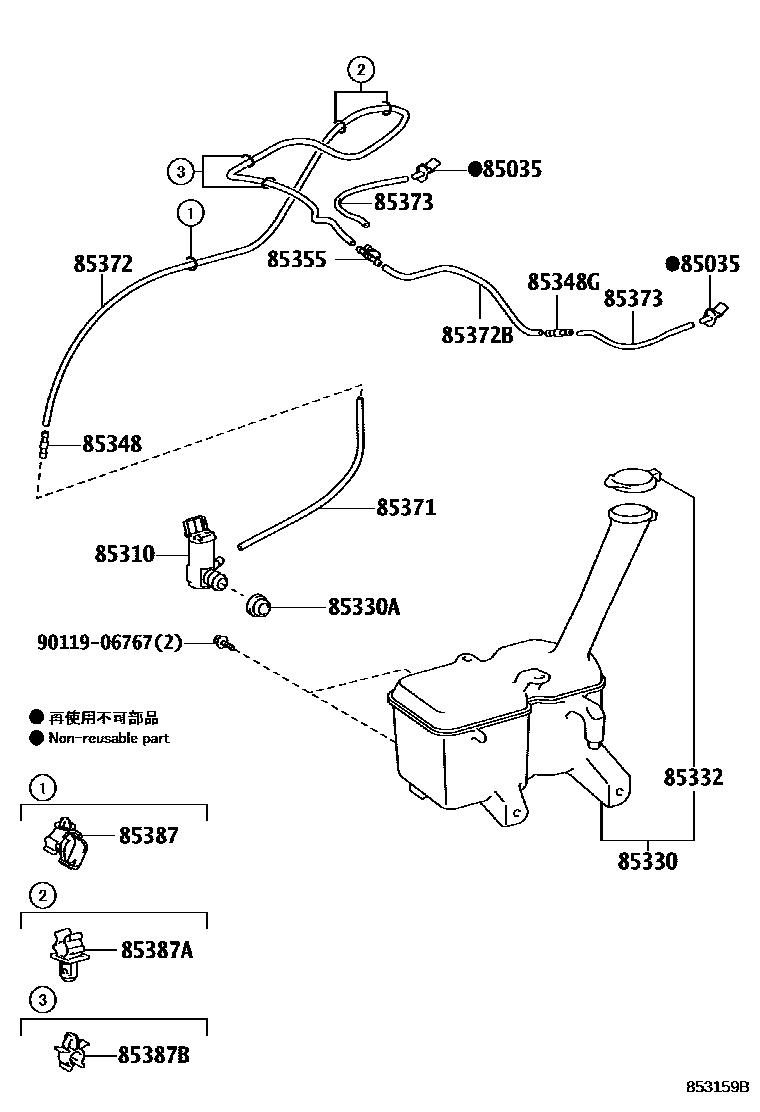

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 10 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-26020 |
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-20230 · 85381-20300 · 85381-20310 · 85381-30220 · 85381-30230 · 85381-30240 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D130 · 85330-0D131 · 85330-0K011 · 85330-0K012 · 85330-47080 |
| 85330 | Windshield washer fluid tank assembly | 85310-0D430 · 85315-0D200 · 85315-0D220 · 85315-0D250 · 85315-0D280 · 85315-0D390 · 85315-0D410 · 85315-0D420 |
| 85330A | Windshield washer fluid tank bushing | 90068-32006 · 90069-50013 · 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-02630 · 85316-0D200 · 85316-0D300 · 85316-0D301 · 85316-0D390 · 85316-0D410 · 85316-16070 · 85316-YE011 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 · 85375-02330 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 · 85375-02330 |
| 85355 | Windshield washer hose valve | 85321-0A010 · 85321-28020 · 85348-14390 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33188 · 90068-33207 · 90068-33226 · 90068-33300 · 90069-46081 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-59128 · 90068-59134 · 90068-59167 · 90068-59169 · 90069-46086 · 90099-59371 · 90099-59372 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59111 · 90068-59122 · 90068-59148 · 90068-59176 · 90069-46086 · 90099-59370 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33401 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33153 · 90068-33160 · 90068-33207 · 90068-33226 · 90068-33330 · 90069-46089 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-0K100 · 82711-3F230 |
| 85387A | Cleaner clip No. 2 | 85371-0D050 · 85371-52110 |
| 85387B | No. 3 cleaner clip | 85371-12040 · 90469-07011 · 90469-T0005 |
| 85389B | Windshield washer protection device | 85389-26080 |
