Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.

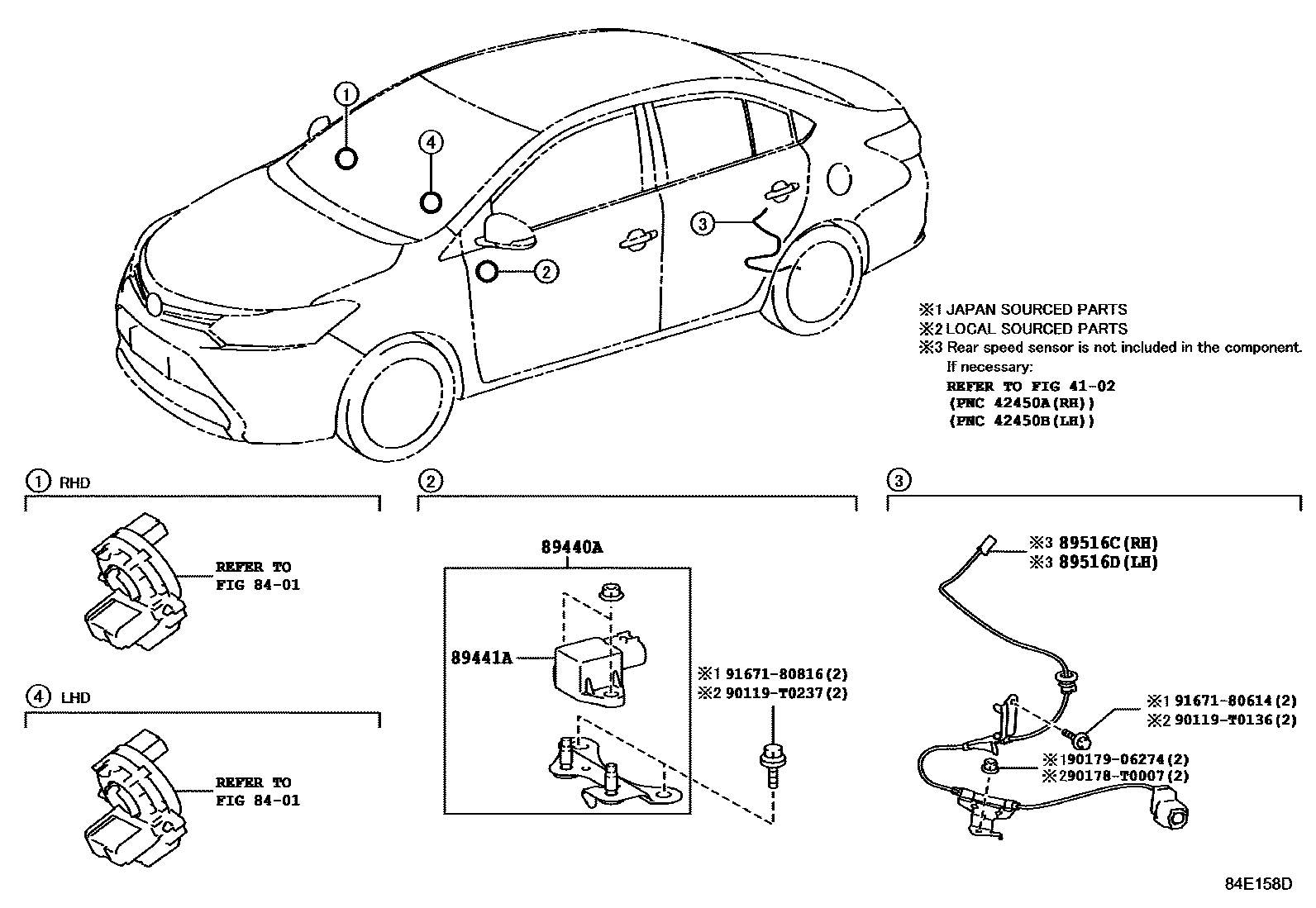

Toyota YARIS ABS 和 VSC EPC diagram — 84E158D
ABS 和 VSC — 84E158D (201304 – 999999)

PNC and OE references

PNCPart nameOE numbers
89440AENSEMBLE CAPTEUR, DECELERATION89440-52090
89441Adeceleration sensor89441-12060
89516CRight anti-skid control sensor harness89516-0D270 · 89516-0D290 · 89516-0D350 · 89516-0D370
89516DLeft anti-skid control sensor wiring harness89516-0D280 · 89516-0D300 · 89516-0D360 · 89516-0D380
