Toyota YARIS Fog Lamp — Figure 8102

Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 4 PNC and OE references.

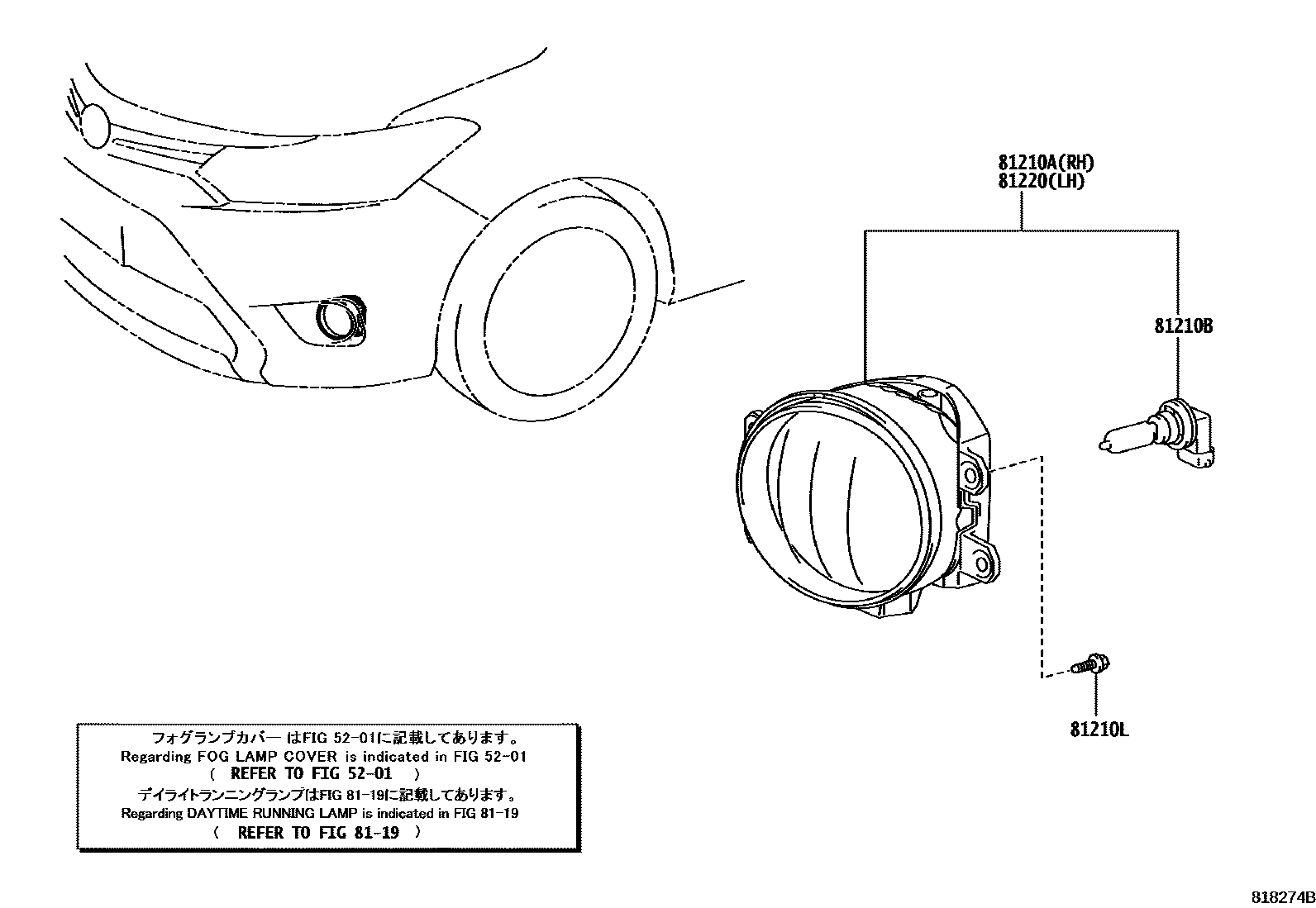

Toyota YARIS Fog Lamp EPC diagram — 818274B
Fog Lamp — 818274B (201304 – 999999)

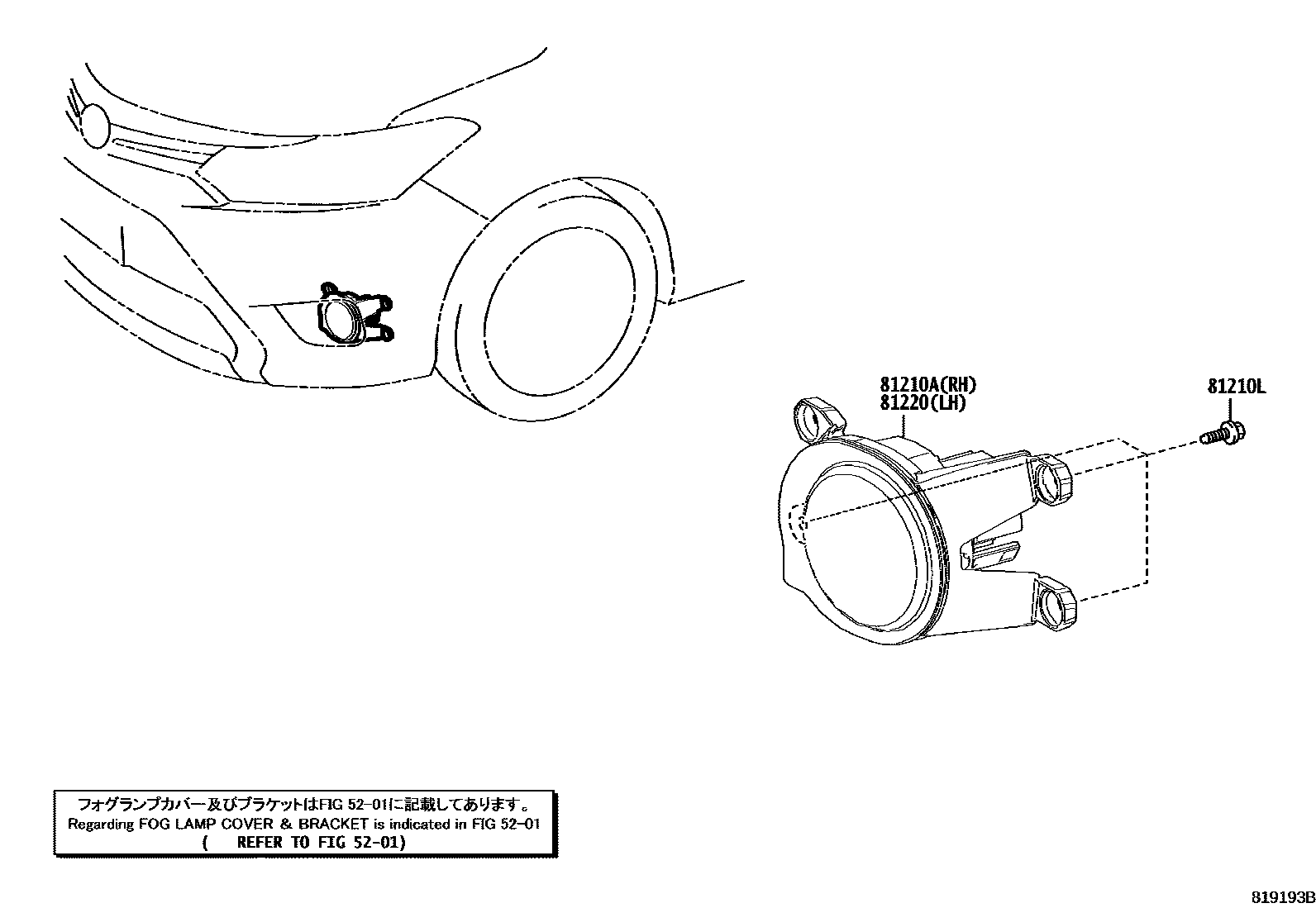

Toyota YARIS Fog Lamp EPC diagram — 819193B
Fog Lamp — 819193B (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-02220 · 81210-0D110 · 81210-0K130 · 81210-0K140
81210Bfog light bulb90981-13090
81210LVIS(POUR FEU ANTIBR AV)90167-50063 · 90167-T0018
81220Left fog light assembly81220-02150 · 81220-0D110 · 81220-0K130 · 81220-0K140
