Toyota YARIS accelerator pedal connecting rod — Figure 7801

Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 2 PNC and OE references.

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781414
accelerator pedal connecting rod — 781414 (201307 – 999999)

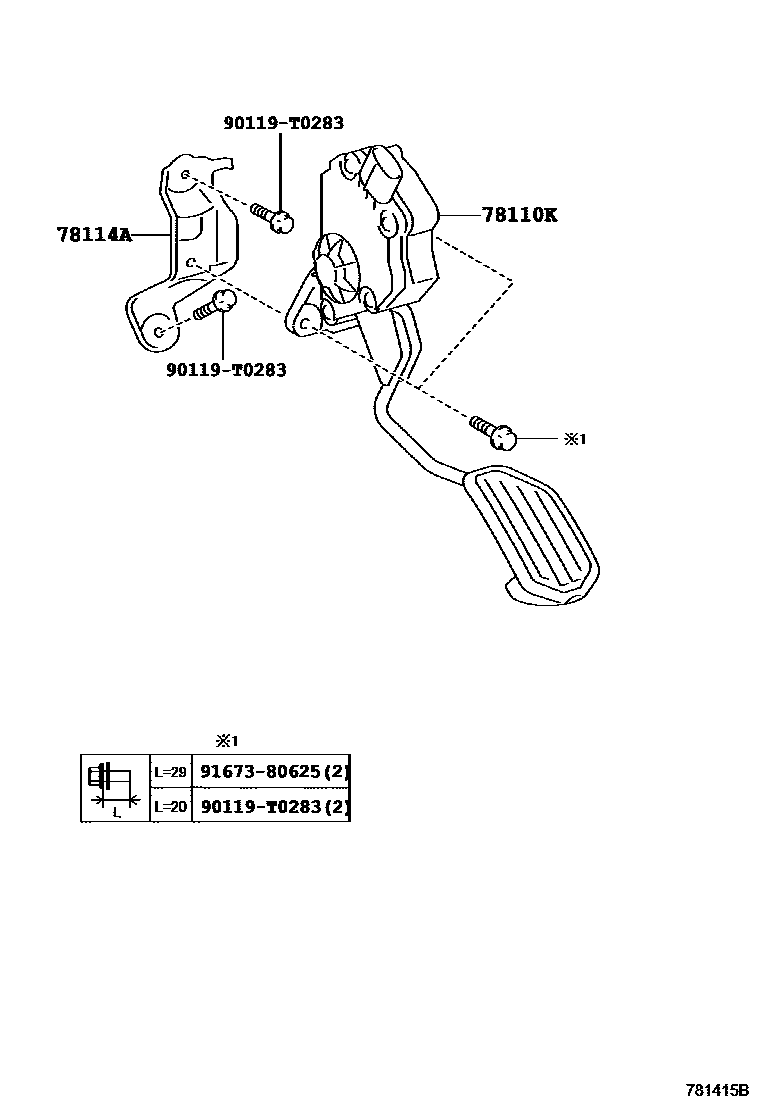

Toyota YARIS accelerator pedal connecting rod EPC diagram — 781415B
accelerator pedal connecting rod — 781415B (201304 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-0D130 · 78110-0D190 · 78110-0D200 · 78110-0D210 · 78110-0D260
78114Aaccelerator pedal bracket78114-0D040 · 78114-0D060 · 78114-0D080
