Toyota YARIS 挡泥板和扰流板 — Figure 7601

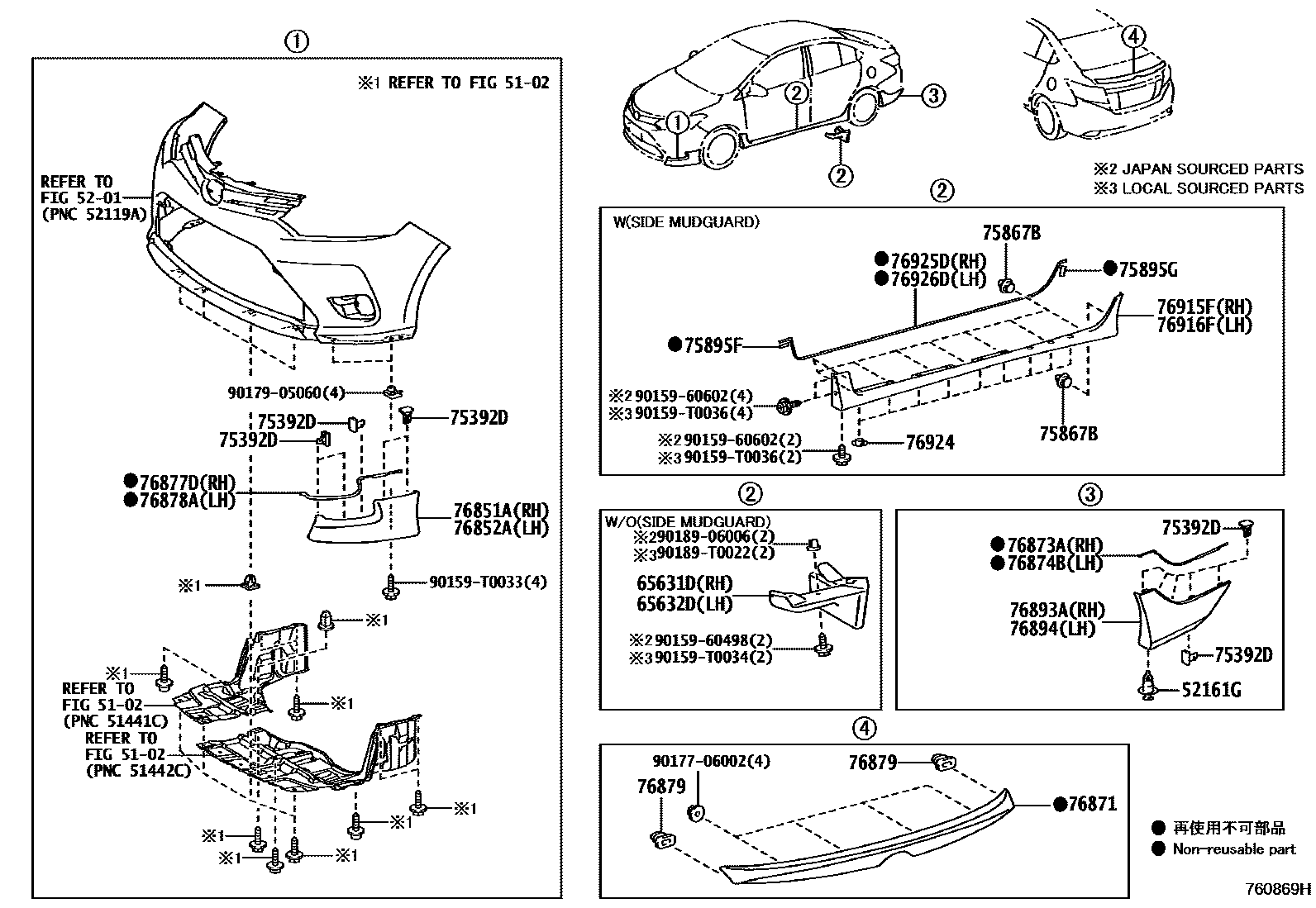

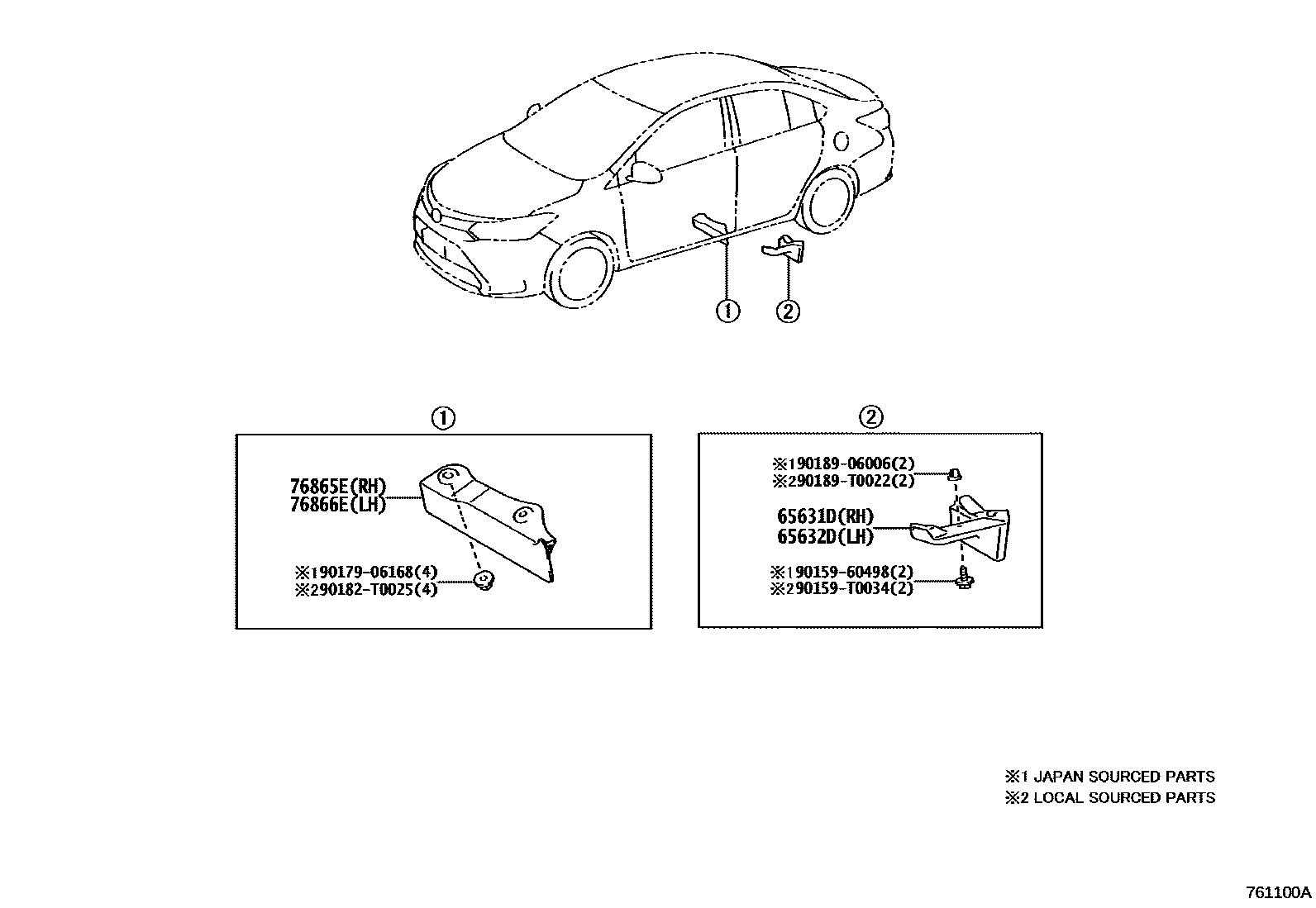

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-0K040 |
| 65631D | Right rear wheel house front panel | 65631-0D070 · 65631-0D090 · 65631-0D100 · 65631-0D110 · 65631-0D180 · 65631-0D190 · 65631-0D200 |
| 65632D | Left rear wheel house front panel | 65632-0D070 · 65632-0D090 · 65632-0D100 · 65632-0D110 · 65632-0D180 · 65632-0D190 · 65632-0D200 |
| 75392D | External protective strip fixings | 75392-0K010 · 75392-35200 |
| 75867B | Door sill panel protective strip clip | 75867-33030 |
| 75895F | No. 1 protective strip tape | 75895-0D050 · 75895-0D080 |
| 75895G | No. 1 protective strip tape | 75895-0D070 · 75895-0D090 |
| 76851A | Right front spoiler cover | 76851-0D909 · 76851-0D910 |
| 76852A | Left front spoiler cover | 76852-0D905 · 76852-0D906 |
| 76865E | No. 5 door sill panel protective strip protective cover | 75865-0D090 |
| 76866E | No. 6 rocker panel protective strip protective cover | 75866-0D090 |
| 76871 | rear spoiler | 76085-0D905 · 76085-0D906 · 76871-0D911 |
| 76877D | Right front spoiler protection strip | 76877-0D040 |
| 76878A | Left front spoiler protection strip | 76878-0D020 |
| 76879 | No. 1 rear spoiler clip | 76879-24020 |
| 76893A | Right rear spoiler cover | 76893-0D907 |
| 76894 | Left rear spoiler cover | 76894-0D907 |
| 76915F | Right front fender | 76915-0D909 · 76915-0D910 |
| 76916F | Left front fender | 76916-0D909 · 76916-0D910 |
| 76924 | No. 2 side fender fixings | 76924-12040 |
| 76925D | Right fender protection strip | 76925-0D070 |
| 76926D | Left fender protection strip | 76925-0D070 |
