Toyota YARIS 安全带和儿童保护座椅 — Figure 7104

Toyota YARIS EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 9 PNC and OE references.

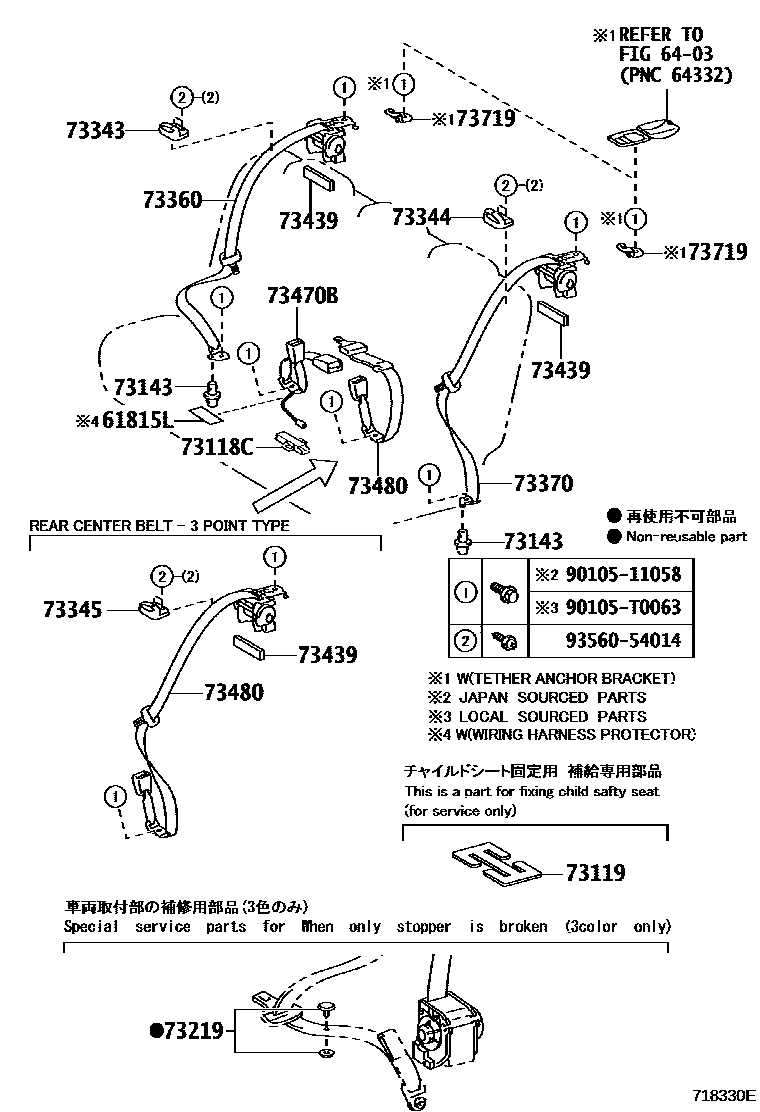

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 718330E
安全带和儿童保护座椅 — 718330E (201304 – 999999)

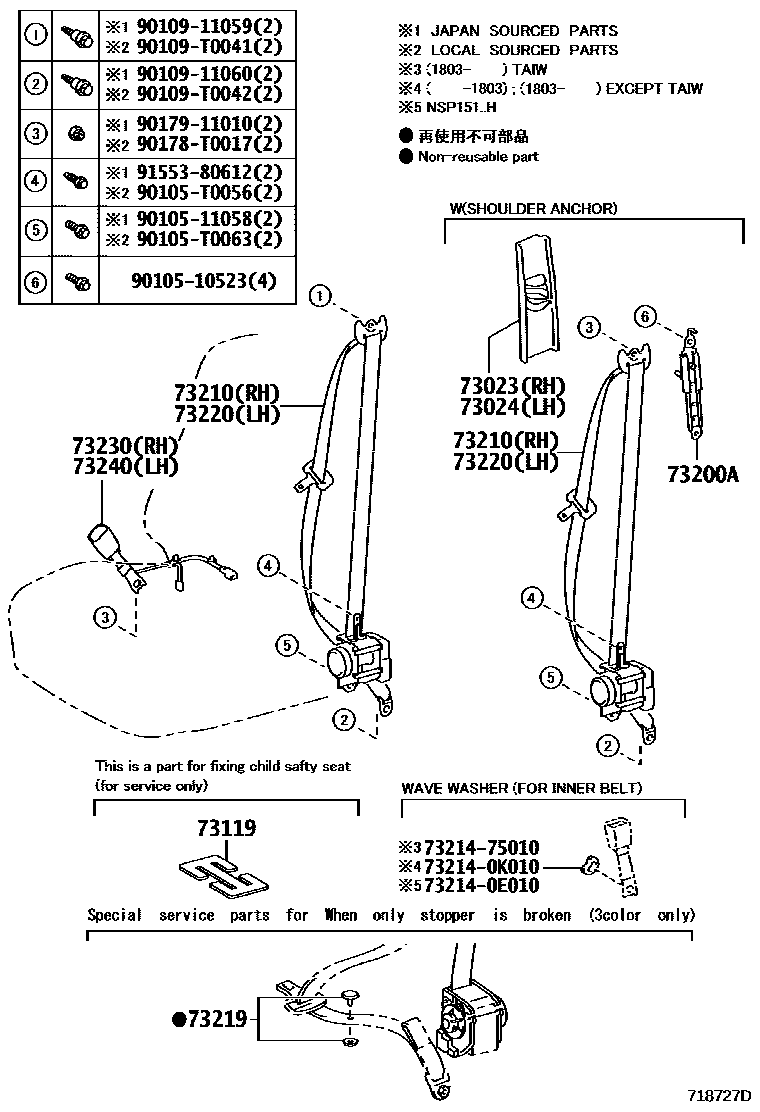

Toyota YARIS 安全带和儿童保护座椅 EPC diagram — 718727D
安全带和儿童保护座椅 — 718727D (201304 – 999999)

PNC and OE references

PNCPart nameOE numbers
61815LPROTECTEUR, FAISCEAU DE FILS, NO.161815-64010
73118CPLAQUE, SUPPORT CEINTURE73118-0D050
73119seat belt clip73119-22010
73143seat belt hole seal73143-0D010 · 73143-0D020 · 73143-52012
73200AFront shoulder seat belt anchor adjuster assembly73200-02130 · 73200-02140 · 73200-12070
73219Tongue plate stop73219-33010 · 73219-33020 · 73219-33030
73345Rear center seat shoulder belt guide73344-0D010
73439Rear seat belt retractor cushion73439-0D020 · 73439-0D030 · 73439-0D050 · 73439-0D070 · 73439-0D080
73719Child restraint seat tether anchor bracket73719-0D010 · 73719-0D060 · 73719-0D080
