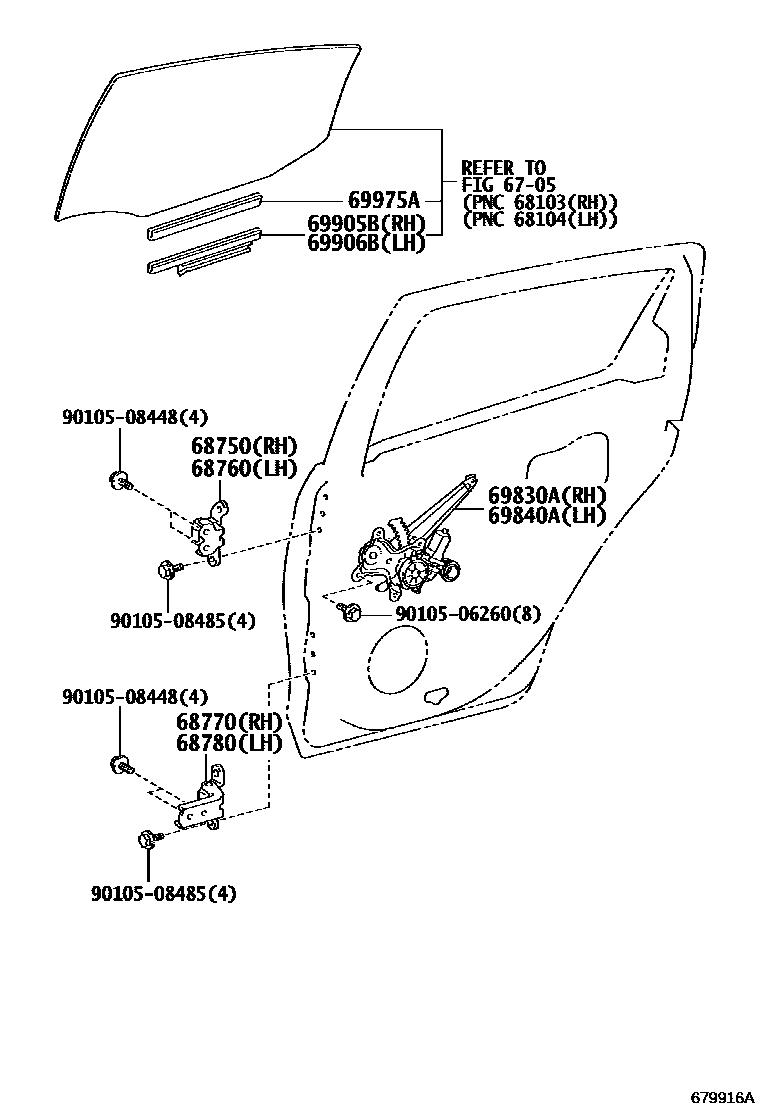

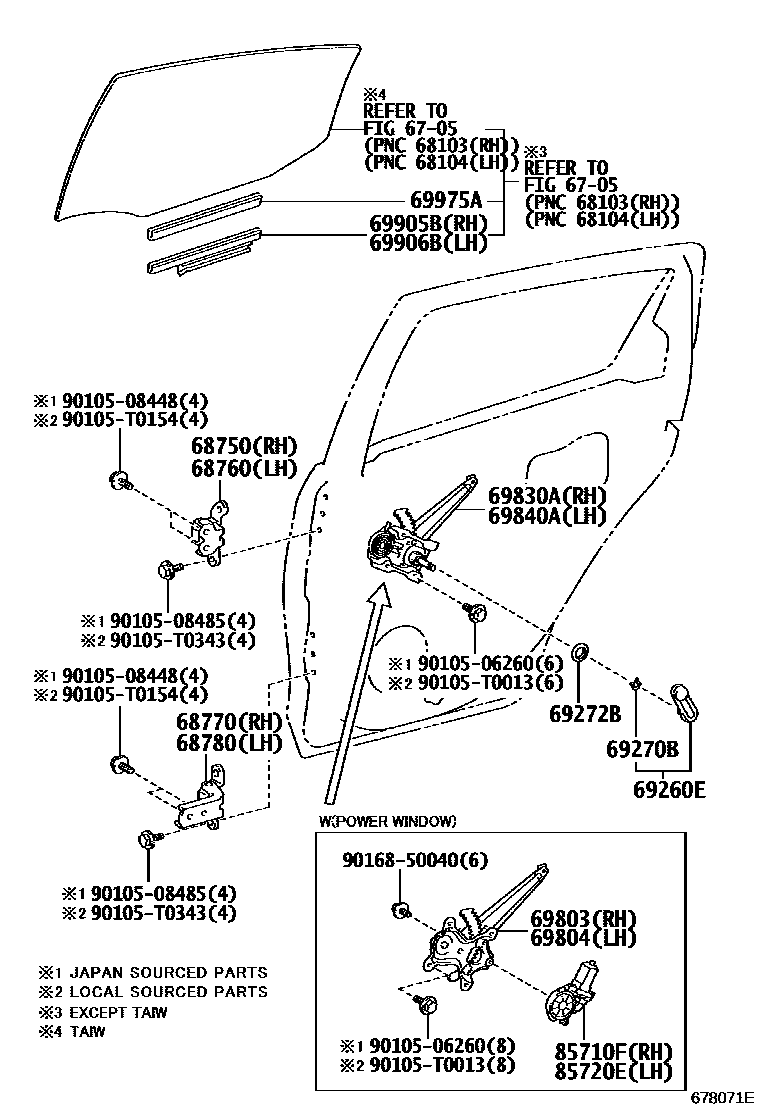

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02070 · 68750-02080 · 68750-0D030 · 68750-20121 |
| 68760 | Left rear door upper hinge assembly | 68760-02070 · 68760-02080 · 68760-0D030 · 68760-20121 |
| 68770 | Right rear door lower hinge assembly | 68770-02070 · 68770-0D030 · 68770-0K040 · 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-02070 · 68780-0D030 · 68780-0K040 · 68780-52031 |
| 69260E | Rear door window lift handle assembly | 69260-0D060 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-0D050 · 69268-0D060 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0D160 · 69803-0D180 · 69803-0D200 · 69803-0D230 · 69803-0D240 · 69803-0D250 · 69803-0D260 · 69803-0D280 · 69803-0D310 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0D160 · 69804-0D180 · 69804-0D200 · 69804-0D230 · 69804-0D240 · 69804-0D250 · 69804-0D260 · 69804-0D280 · 69804-0D310 |
| 69830A | Right rear door window lift assembly | 69830-0D280 · 69830-0D310 · 69830-0D350 · 69830-0D380 · 69830-0D410 · 69830-0D420 |
| 69840A | Left rear door window lift assembly | 69840-0D280 · 69840-0D310 · 69840-0D350 · 69840-0D380 · 69840-0D410 · 69840-0D420 |
| 69905B | Right rear door glass groove sub-assembly | 69905-0D050 · 69905-0D060 · 69905-0D130 |
| 69906B | Left rear door glass groove sub-assembly | 69906-0D050 · 69906-0D100 · 69906-0D130 |
| 69975A | Rear door glass channel filler | 69975-0D040 · 69975-0D100 · 69975-0D130 |
| 85710F | Right power window lift motor assembly | 85720-0D260 · 85720-0D300 · 85720-0D460 · 85720-0D520 · 85720-0D531 · 85720-0D580 · 85720-52290 |
| 85720E | Left electric window lift motor assembly | 85710-0D220 · 85710-0D300 · 85710-0D450 · 85710-0D520 · 85710-0D530 · 85710-0D580 · 85710-52320 |
