Toyota YARIS 车顶内衬和消声垫 — Figure 6402

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 6 images and 13 PNC and OE references.

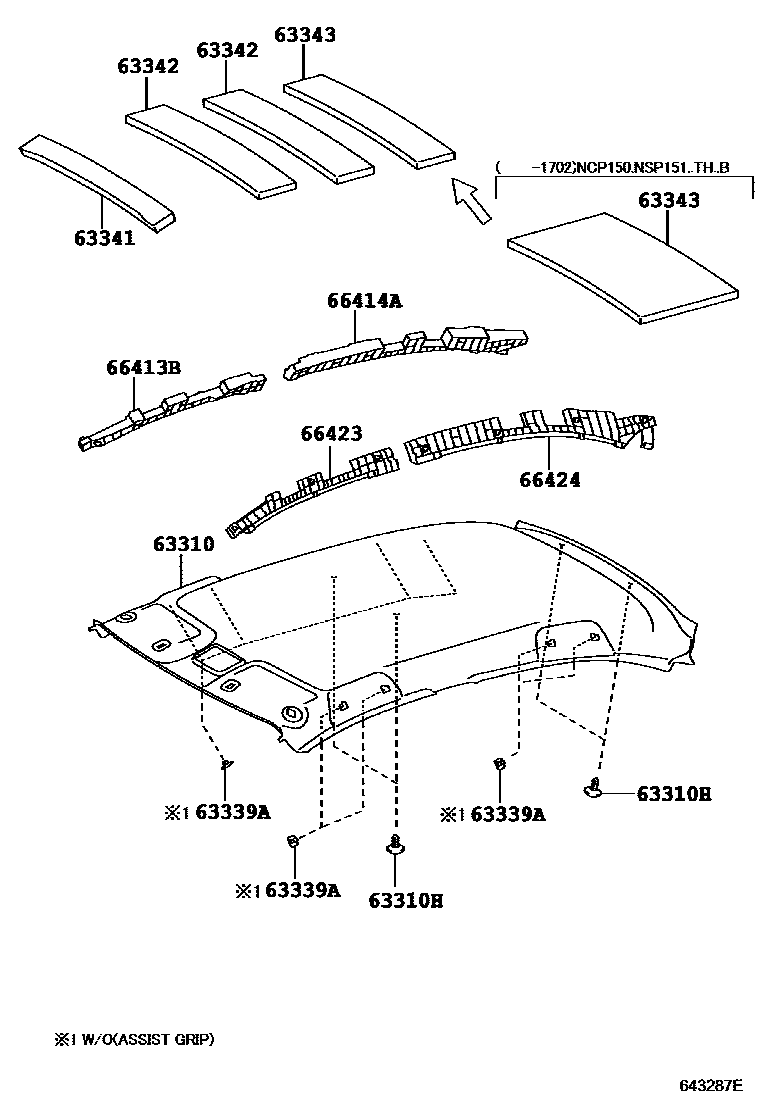

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 643287E
车顶内衬和消声垫 — 643287E (201304 – 999999)

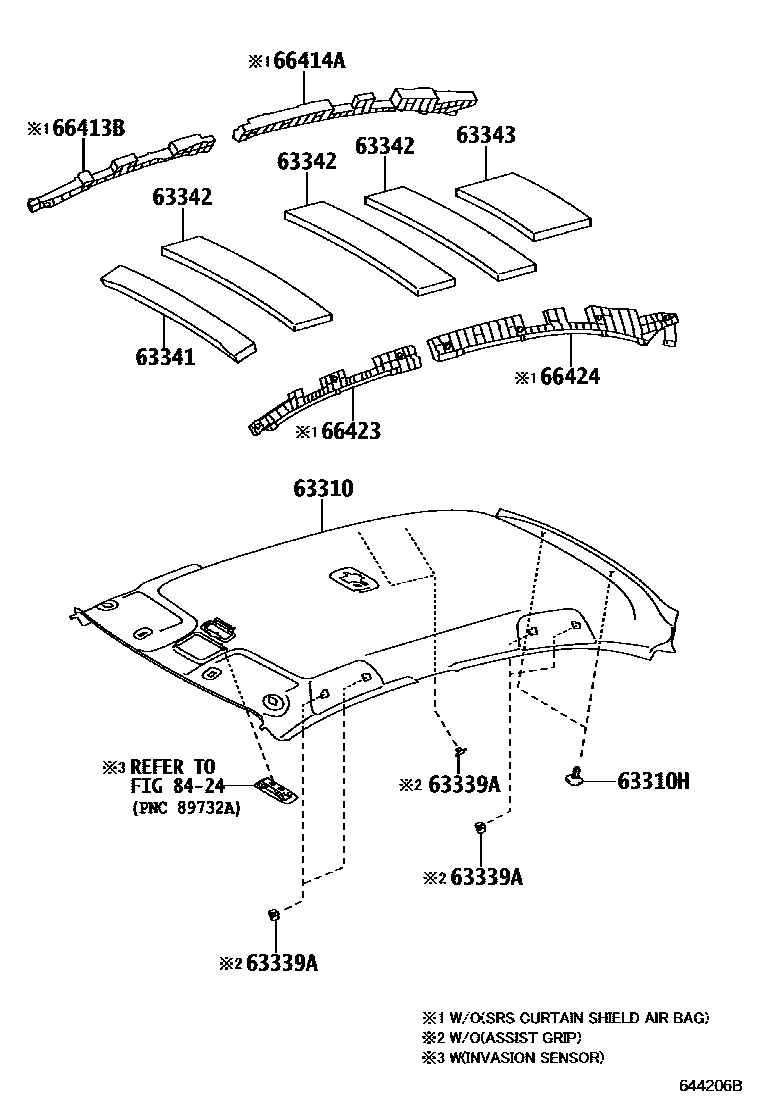

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 644206B
车顶内衬和消声垫 — 644206B (201708 – 999999)

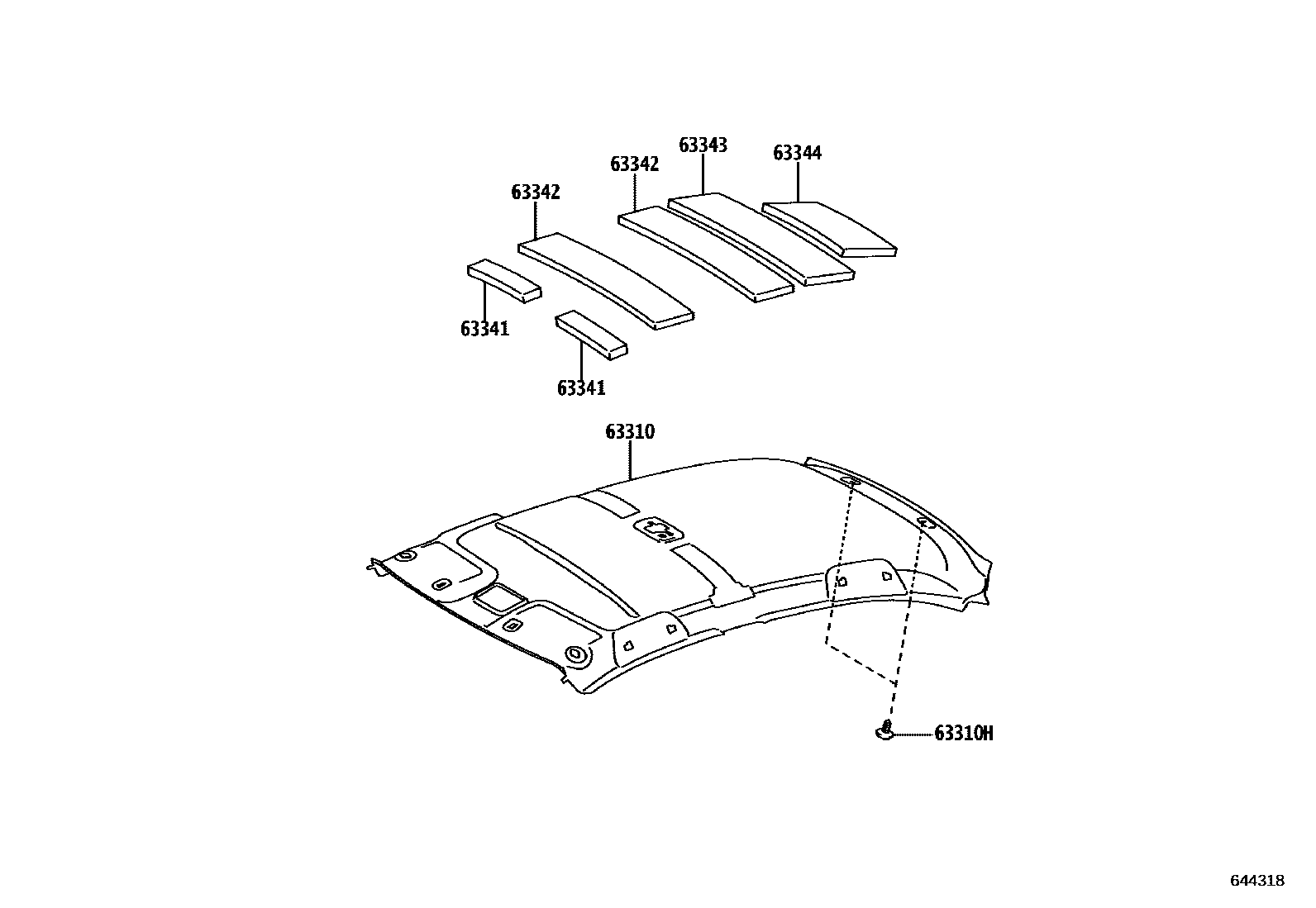

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 644318
车顶内衬和消声垫 — 644318 (201804 – 999999)

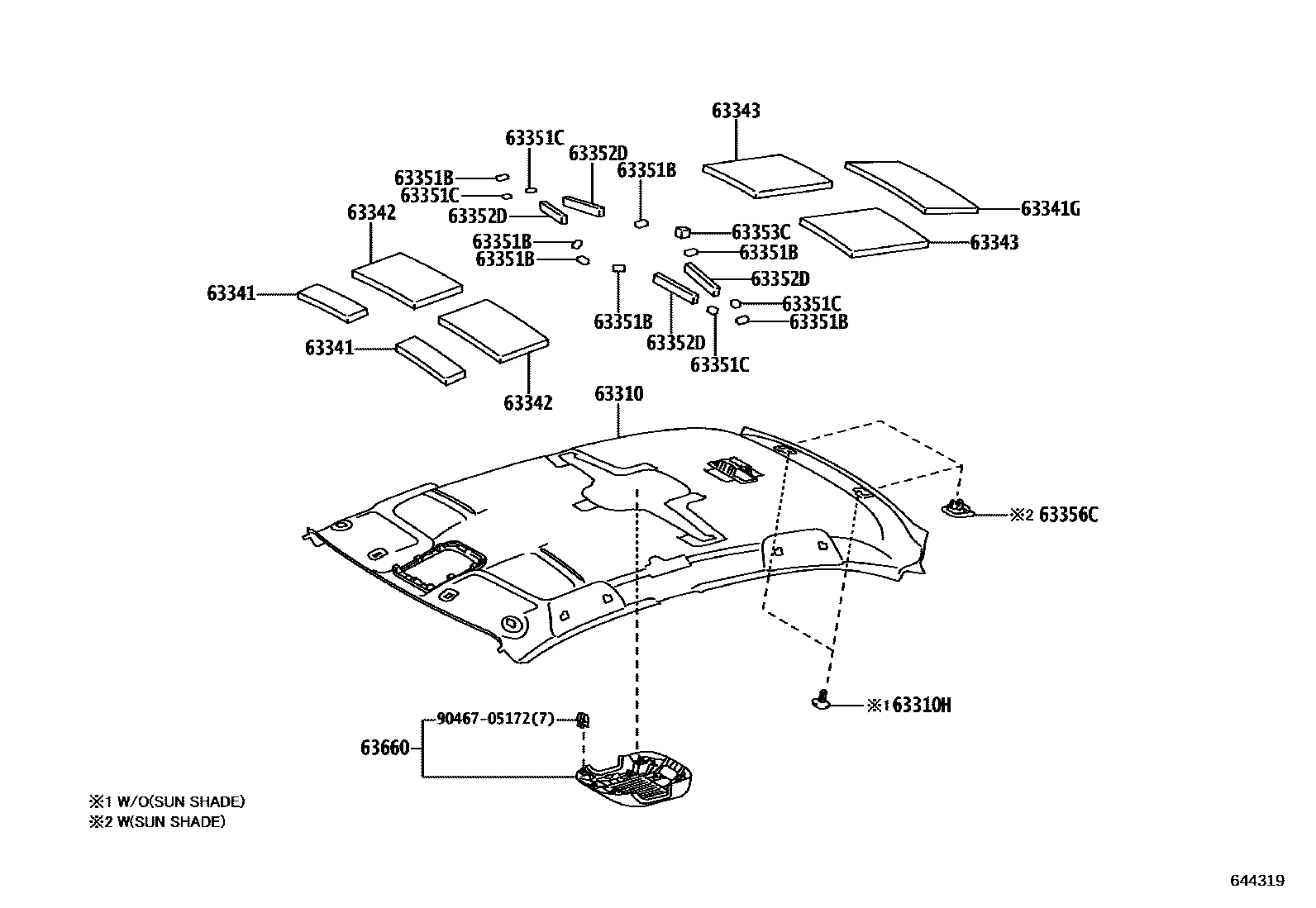

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 644319
车顶内衬和消声垫 — 644319 (201804 – 999999)

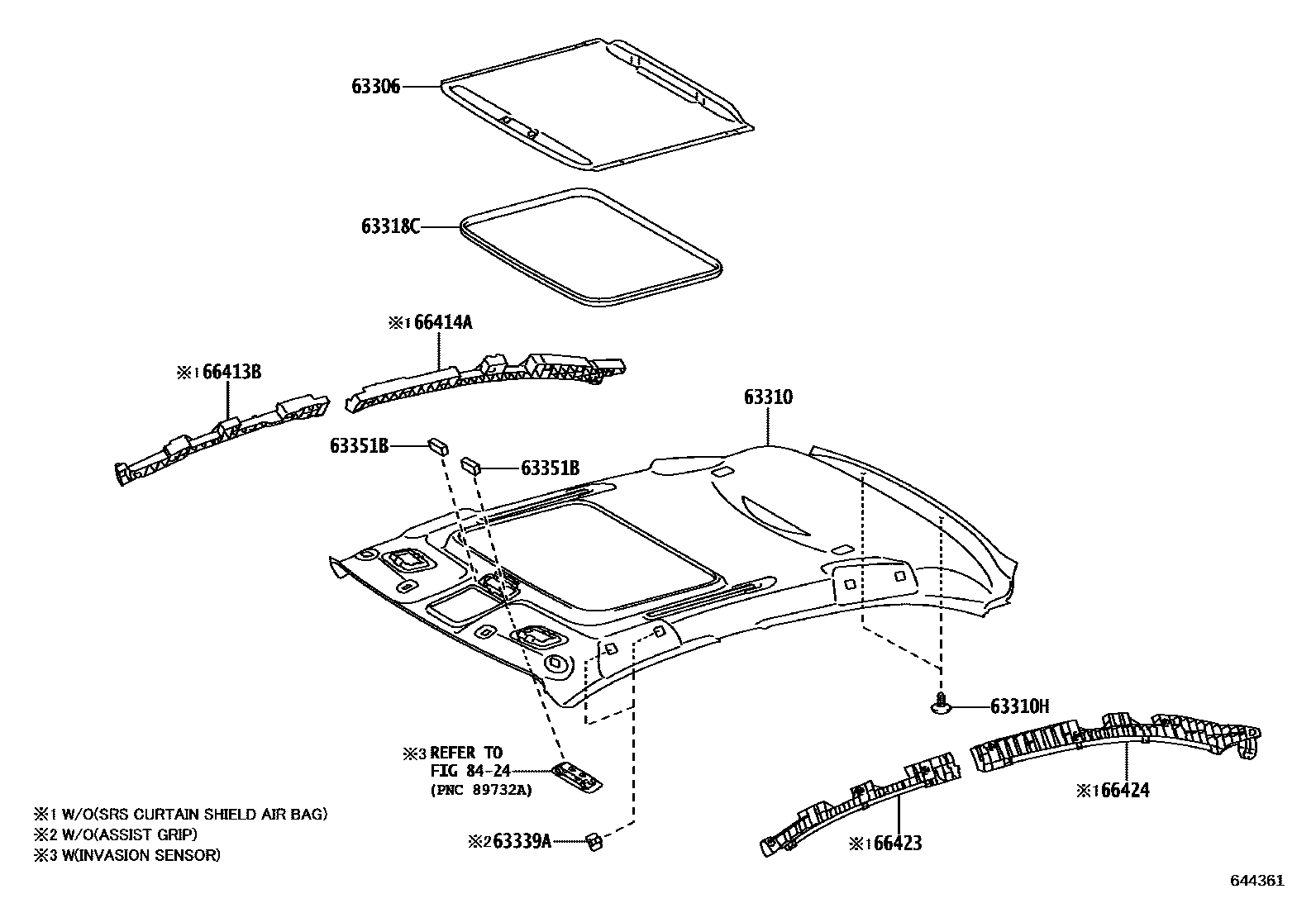

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 644361
车顶内衬和消声垫 — 644361 (201807 – 999999)

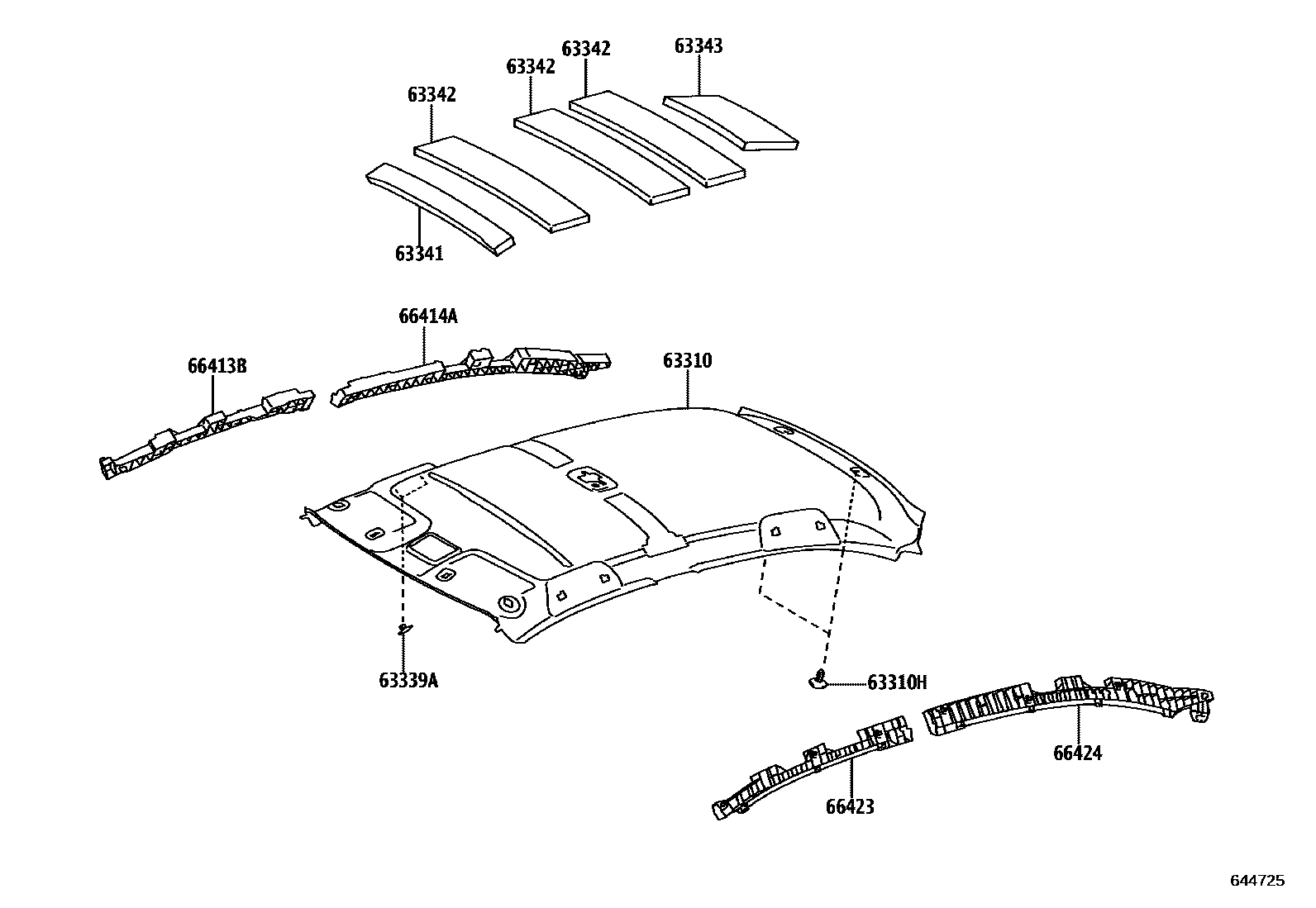

Toyota YARIS 车顶内衬和消声垫 EPC diagram — 644725
车顶内衬和消声垫 — 644725 (202003 – 999999)

PNC and OE references

PNCPart nameOE numbers
63341No. 1 roof silencer mat63341-0D130 · 63341-0D200 · 63341-0D240 · 63341-0D370 · 63341-0D620 · 63341-0D660 · 63341-0D750
63341Groof muffler mat63341-0D560
63342No. 2 roof muffler pad63341-0D420 · 63341-0D430 · 63341-0D720 · 63341-0D770 · 63341-0D790 · 63343-0D190 · 63343-0D210 · 63343-0D230 · 63343-0D440 · 63343-0D470 · 63343-0D480 · 63343-0D490
63343No. 3 roof muffler pad63341-0D420 · 63341-0D430 · 63341-0D760 · 63341-0D780 · 63341-0D790 · 63343-0D240 · 63343-0D300 · 63343-0D510 · 63343-0D520 · 63343-0D530 · 63343-0D540 · 63343-0D550
63344No. 4 roof silencer mat63341-0D560
63351Broof lining pads63351-0D050 · 63351-0D070
63351Croof lining pads63351-0D080
63352DNo. 2 roof lining lining block63351-0D090
63353CCenter roof lining lining63351-0D100
66413BRight front longitudinal member spacer66413-0D230 · 66413-0D240 · 66413-0D270 · 66413-0D300 · 66413-0D360 · 66413-0D390 · 66413-0D400 · 66413-0D410
66414ARight rear longitudinal member spacer66414-0D240 · 66414-0D250 · 66414-0D280 · 66414-0D330 · 66414-0D390 · 66414-0D400 · 66414-0D410 · 66414-0D450
66423Left front longitudinal member spacer66423-0D220 · 66423-0D230 · 66423-0D260 · 66423-0D290 · 66423-0D330 · 66423-0D350 · 66423-0D370 · 66423-0D380
66424Left rear longitudinal member spacer66424-0D240 · 66424-0D250 · 66424-0D280 · 66424-0D330 · 66424-0D390 · 66424-0D400 · 66424-0D410 · 66424-0D450
