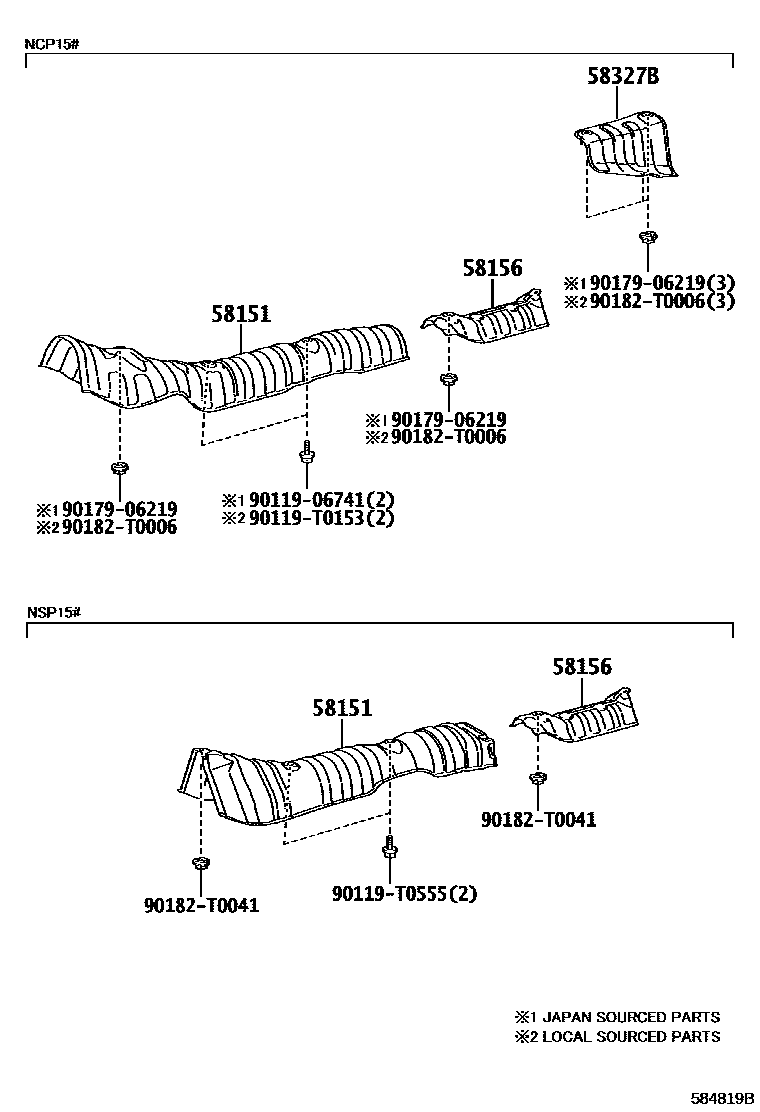

Toyota YARIS 地板隔热垫 — Figure 5802
Toyota YARIS EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0D120 · 58151-0D130 · 58151-0D150 · 58151-0D160 · 58151-0D180 · 58151-0D190 · 58151-0D220 · 58151-0D240 |
| 58156 | Front floor insulation mat No. 4 | 58156-0D120 · 58156-0D140 · 58156-0D150 · 58156-0D190 · 58156-0D200 |
| 58327B | Main muffler heat insulation pad | 58327-0D110 · 58327-0D130 · 58327-0D150 |
