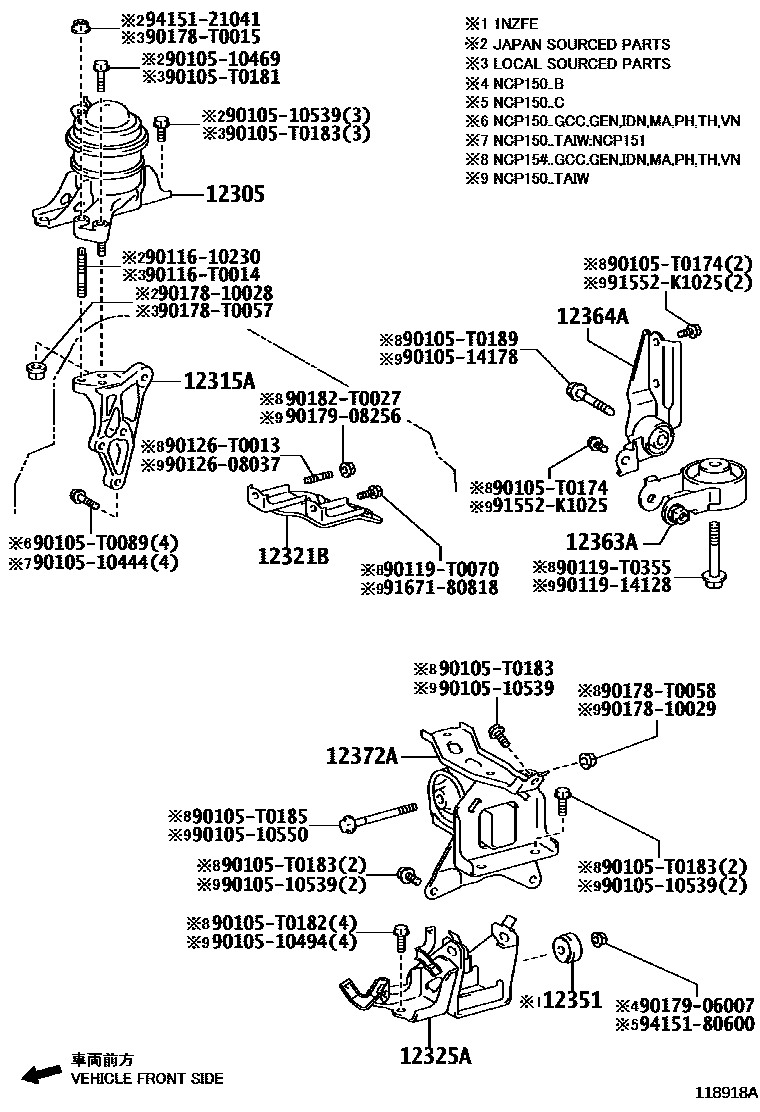

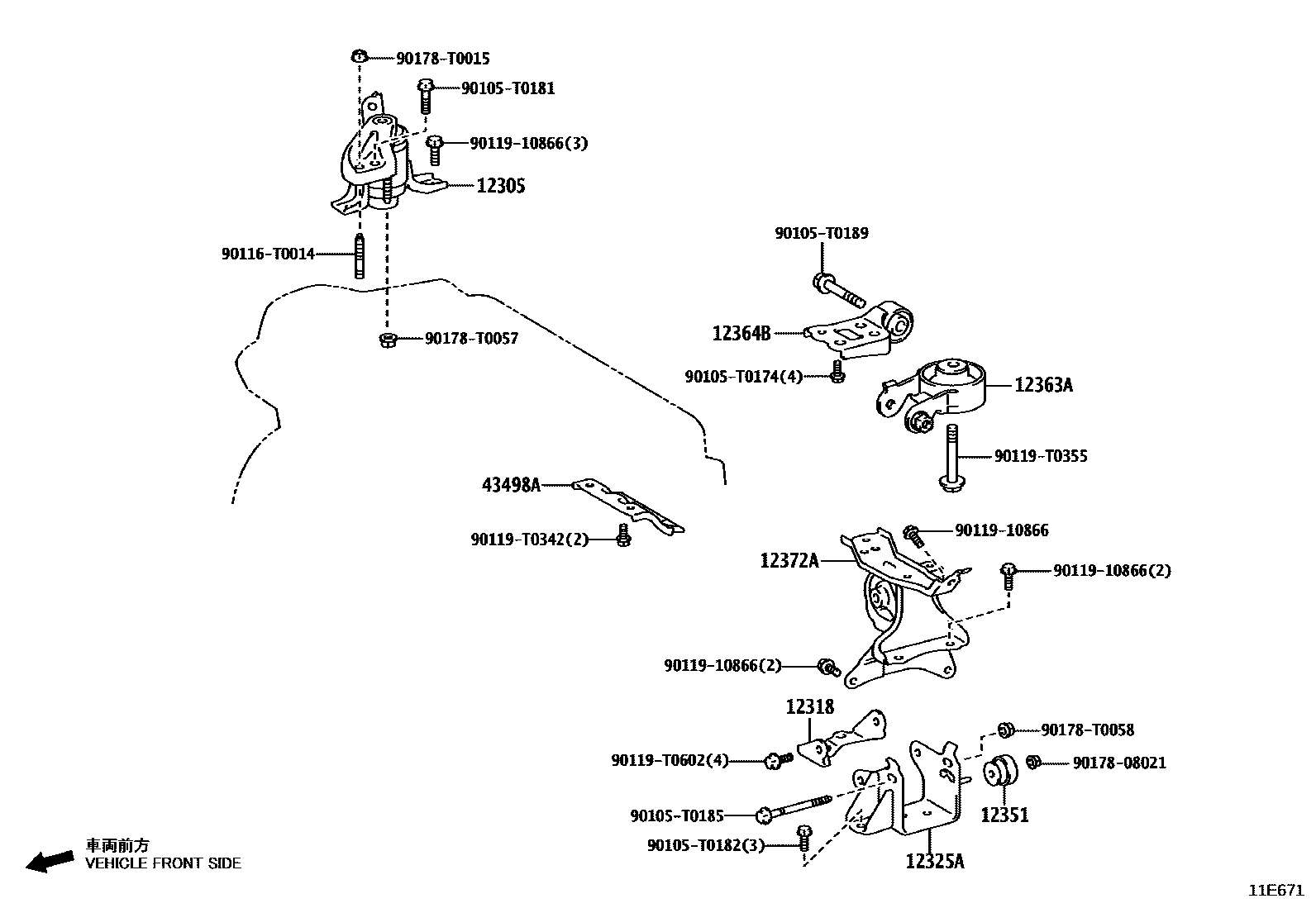

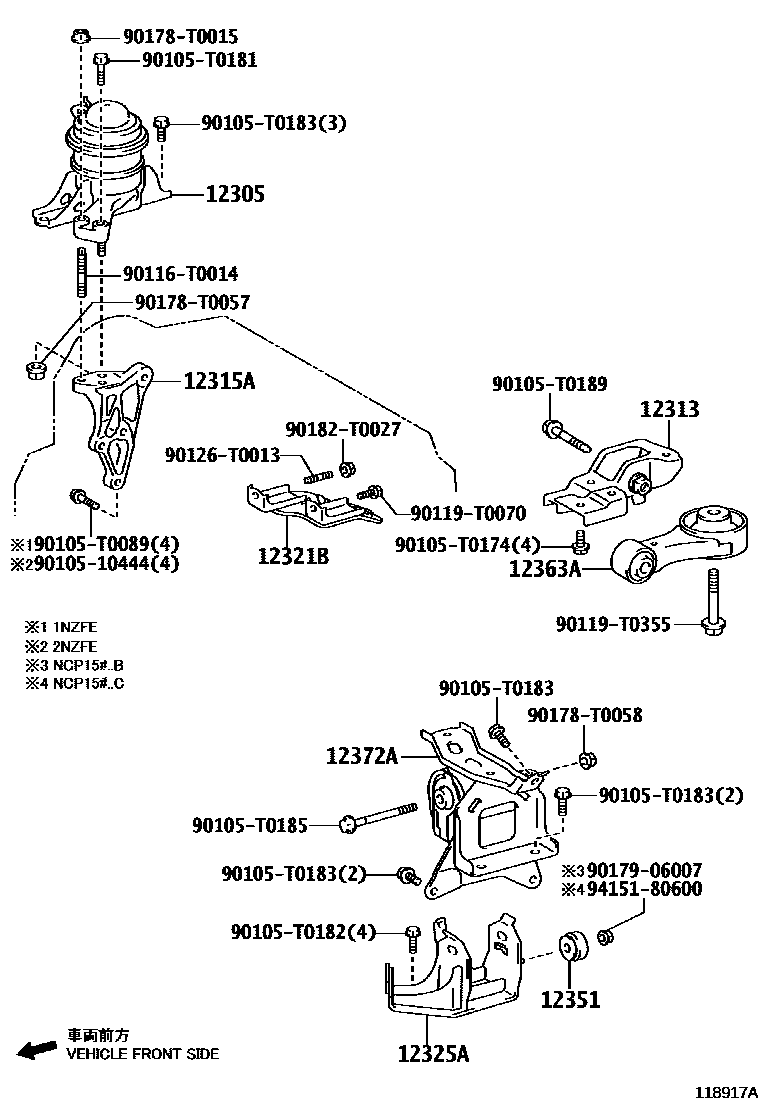

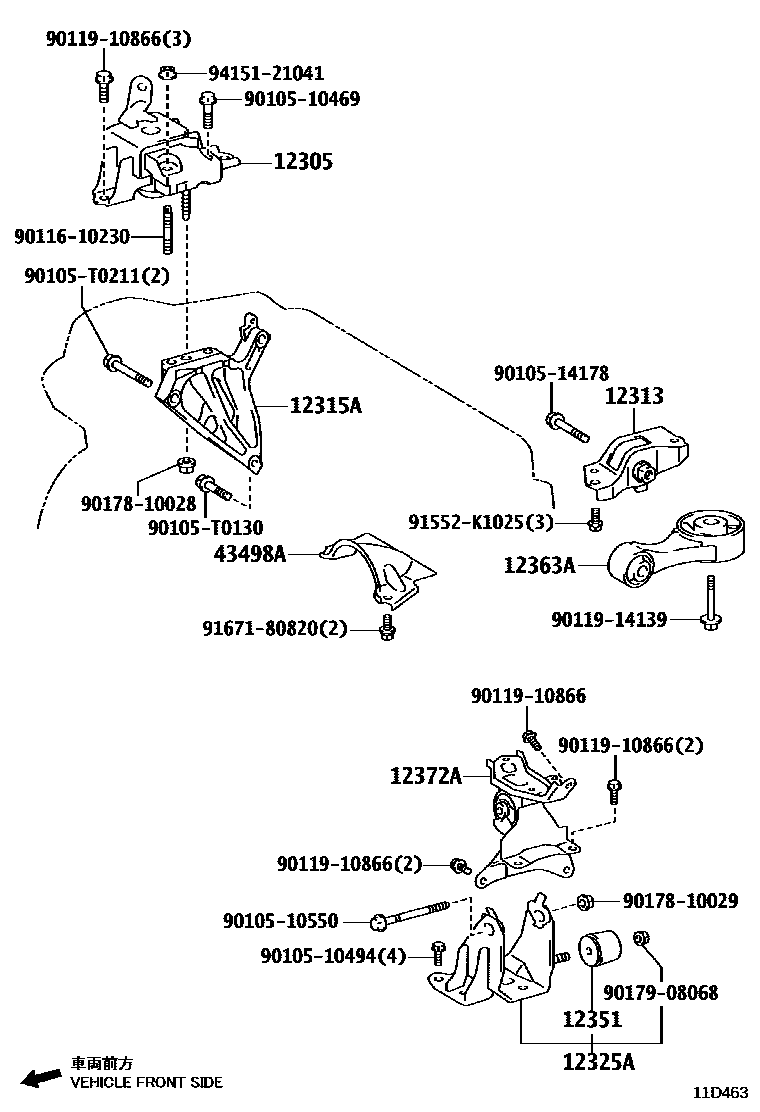

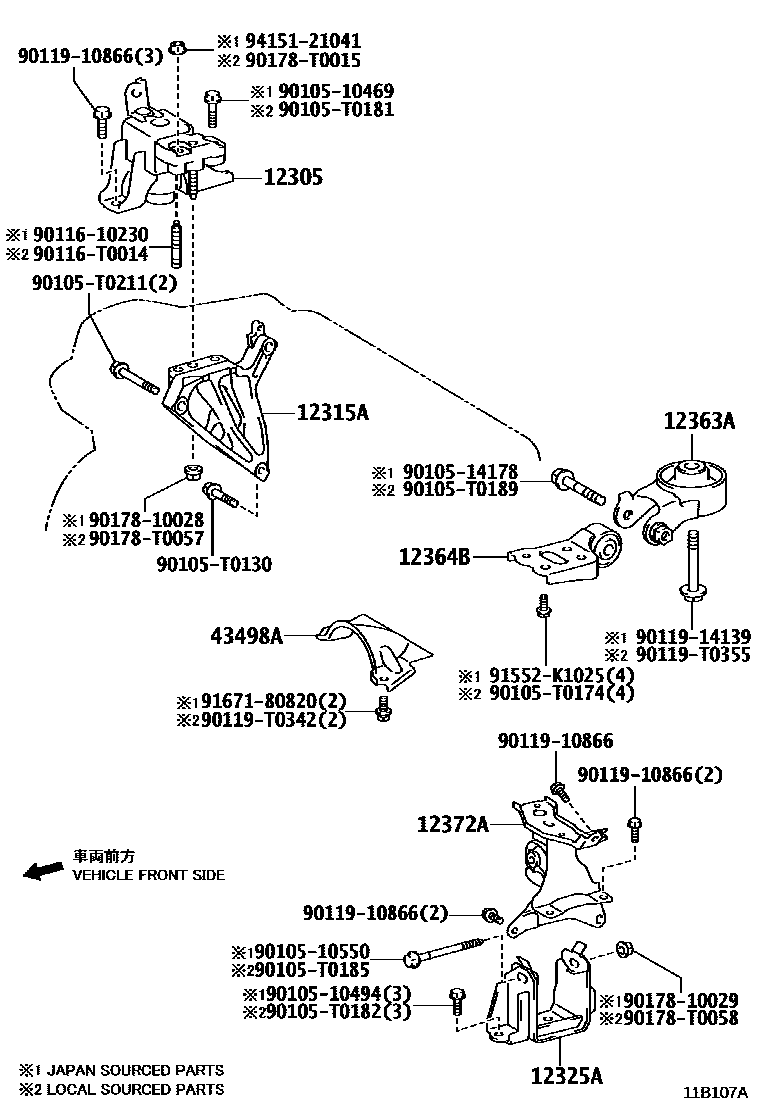

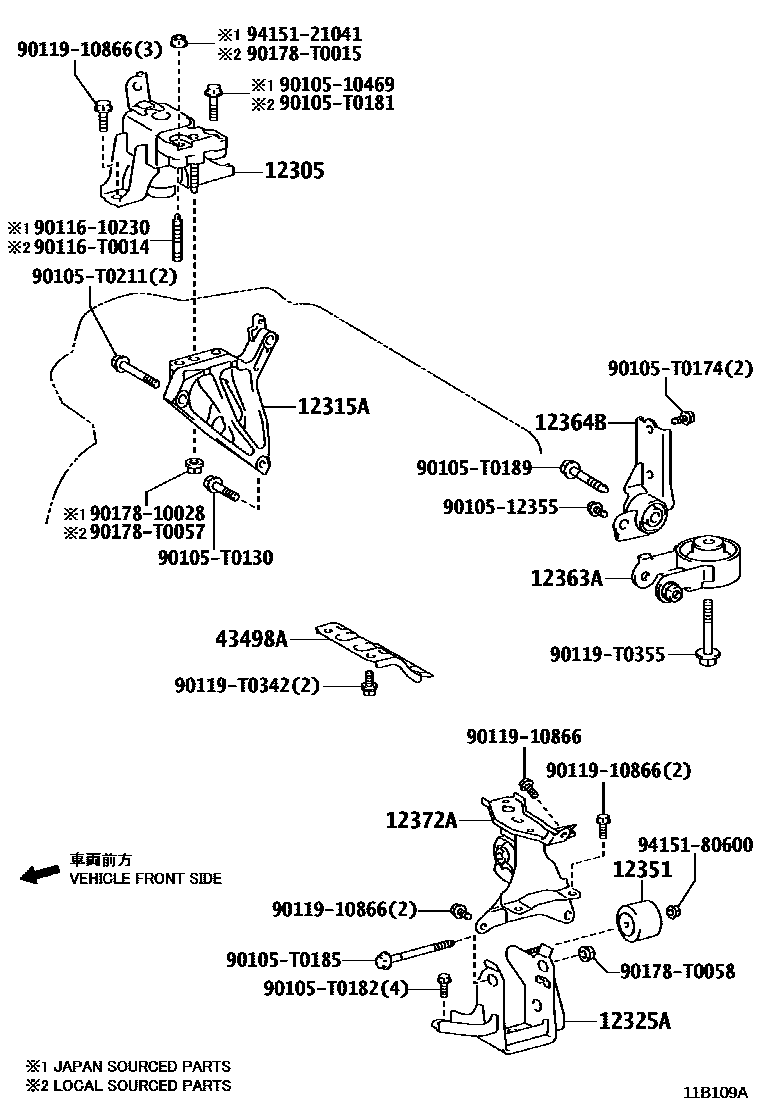

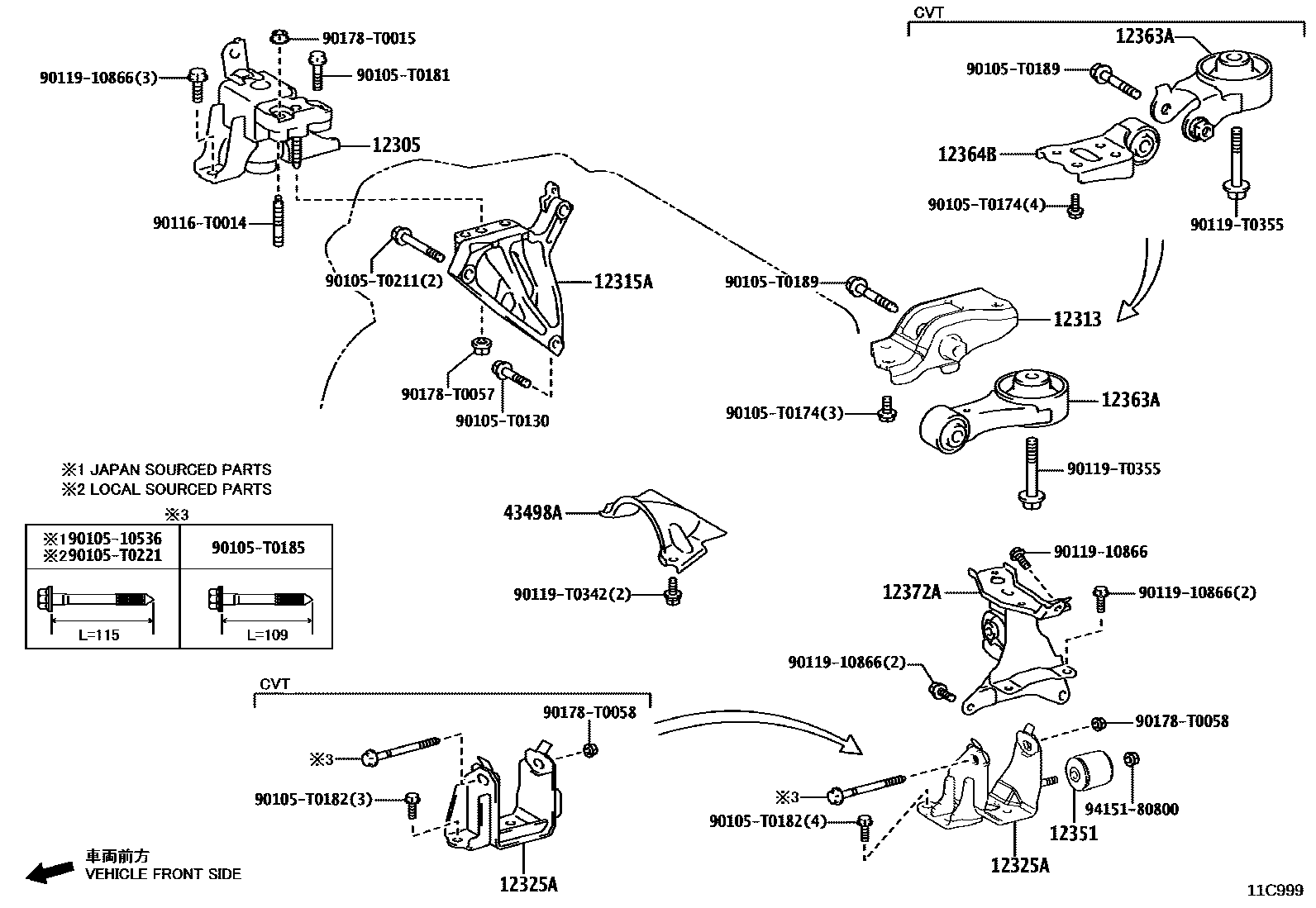

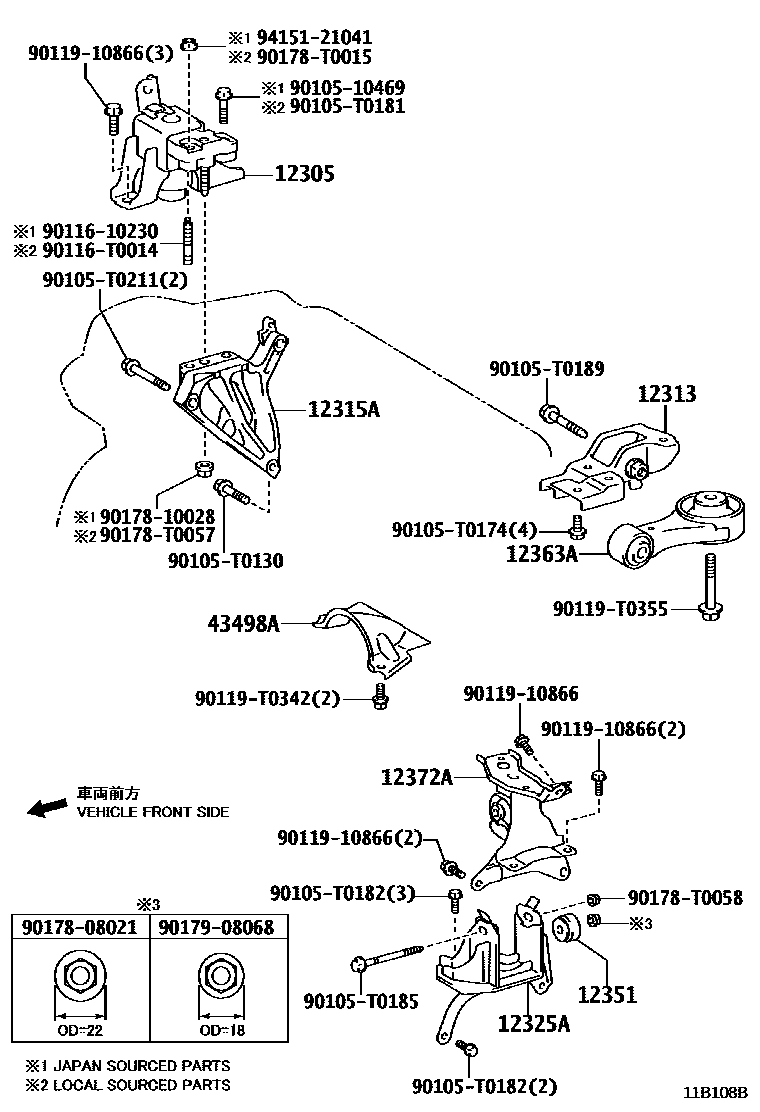

Toyota YARIS Engine Mounting — Figure 1107
Toyota YARIS EPC diagram 1107, Engine Mounting, with 8 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0M120 · 12305-0M121 · 12305-0M130 · 12305-0M131 · 12305-0Y060 · 12305-0Y110 · 12305-0Y180 · 12305-0Y190 · 12305-0Y270 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0M010 · 12313-0M030 · 12313-0Y090 · 12313-0Y100 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0M013 · 12315-0M032 · 12315-0Y010 · 12315-0Y060 · 12315-0Y070 · 12315-0Y100 · 12315-21033 · 12315-21044 |
| 12318 | Engine left mounting bracket | 12318-0Y040 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-0D010 · 43409-0D020 · 43409-0D070 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-0Y150 · 12325-0M060 · 12325-0M070 · 12325-0M080 · 12325-0M140 · 12325-0M150 · 12325-0M160 · 12325-0M170 · 12325-0Y140 · 12325-0Y180 · 12325-0Y260 · 12325-0Y290 · 12325-0Y300 · 12325-0Y310 · 12325-0Y311 · 12325-0Y320 · 12325-0Y321 · 12325-0Y330 · 12325-0Y340 · 12325-0Y350 · 12325-0Y360 · 12325-0Y410 · 12325-0Y430 |
| 12351 | engine mount shock absorber | 12351-0M050 · 12351-0T260 · 12351-0Y080 · 12351-0Y090 · 12351-0Y100 · 12351-0Y110 · 12351-0Y120 · 12351-0Y130 · 12351-21090 · 12351-37100 · 12351-47020 |
| 12363A | Engine movement control lever | 12363-0M030 · 12363-0M080 · 12363-0M090 · 12363-0M100 · 12363-0M110 · 12363-0Y100 · 12363-0Y110 · 12363-0Y120 · 12363-0Y200 · 12363-0Y210 · 12363-0Y230 · 12363-0Y260 |
| 12364A | Engine lateral control lever | 12364-0M020 · 12364-0M060 · 12364-0M080 |
| 12364B | Engine No. 2 motion control lever | 12364-0Y010 · 12364-0Y040 · 12364-0Y110 · 12364-0Y120 · 12364-0Y130 · 12364-0Y140 · 12364-0Y210 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0M130 · 12372-0M140 · 12372-0M150 · 12372-0M160 · 12372-0Y050 · 12372-0Y060 · 12372-0Y140 · 12372-0Y141 · 12372-0Y230 · 12372-0Y250 · 12372-0Y251 · 12372-0Y260 · 12372-0Y270 · 12372-0Y271 · 12372-0Y280 · 12372-0Y281 · 12372-0Y290 · 12372-0Y300 · 12372-0Y350 · 12372-0Y360 |
| 43498A | ISOLANT, CHALEUR D'ARBRE D'ENTRAINEMENT, NO.1 | 43498-0D110 · 43498-0D150 · 43498-0D200 · 43498-52070 · 43498-52130 |
