Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

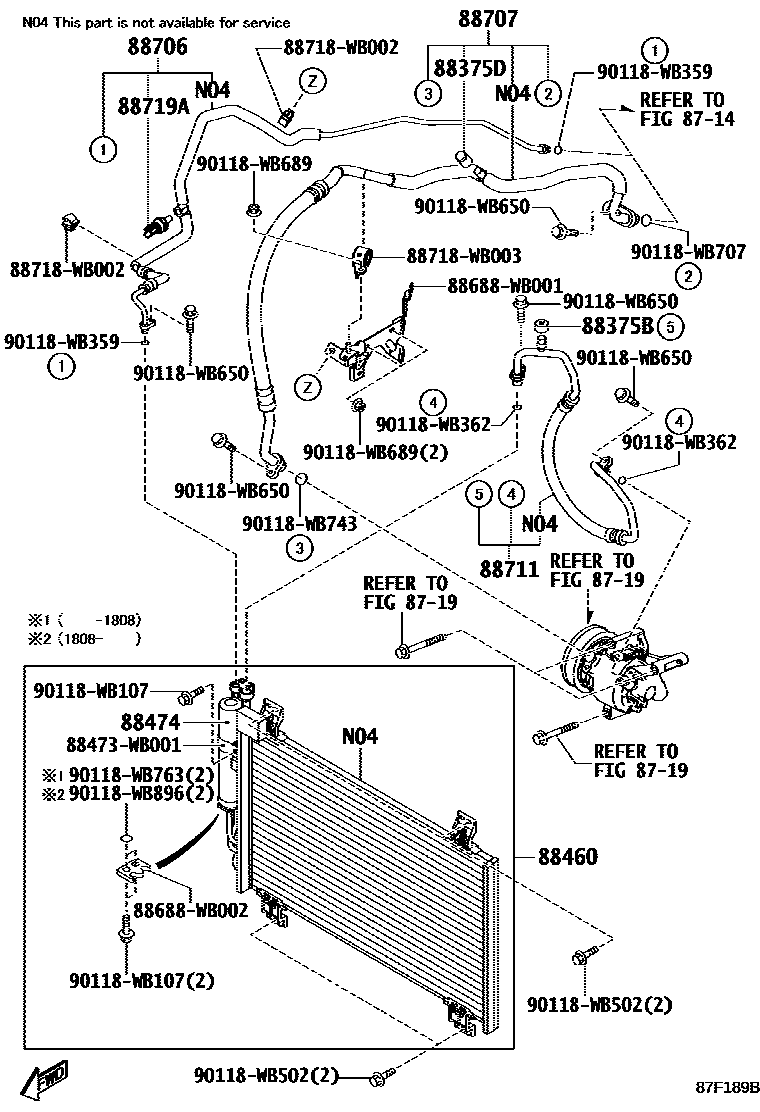

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375B | No. 1 maintenance valve cover | 88375-WB002 |
| 88375D | No. 2 maintenance valve cover | 88375-WB001 |
| 88460 | Air conditioning condenser assembly | 88460-WB001 |
| 88474 | cooler dryer | 88474-WB001 |
| 88706 | Liquid pipe sub-assembly | 88706-WB001 · 88706-WB002 |
| 88707 | Suction pipe sub-assembly | 88707-WB001 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-WB001 |
| 88719A | Air conditioning pressure sensor | 88719-WB001 |
