Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

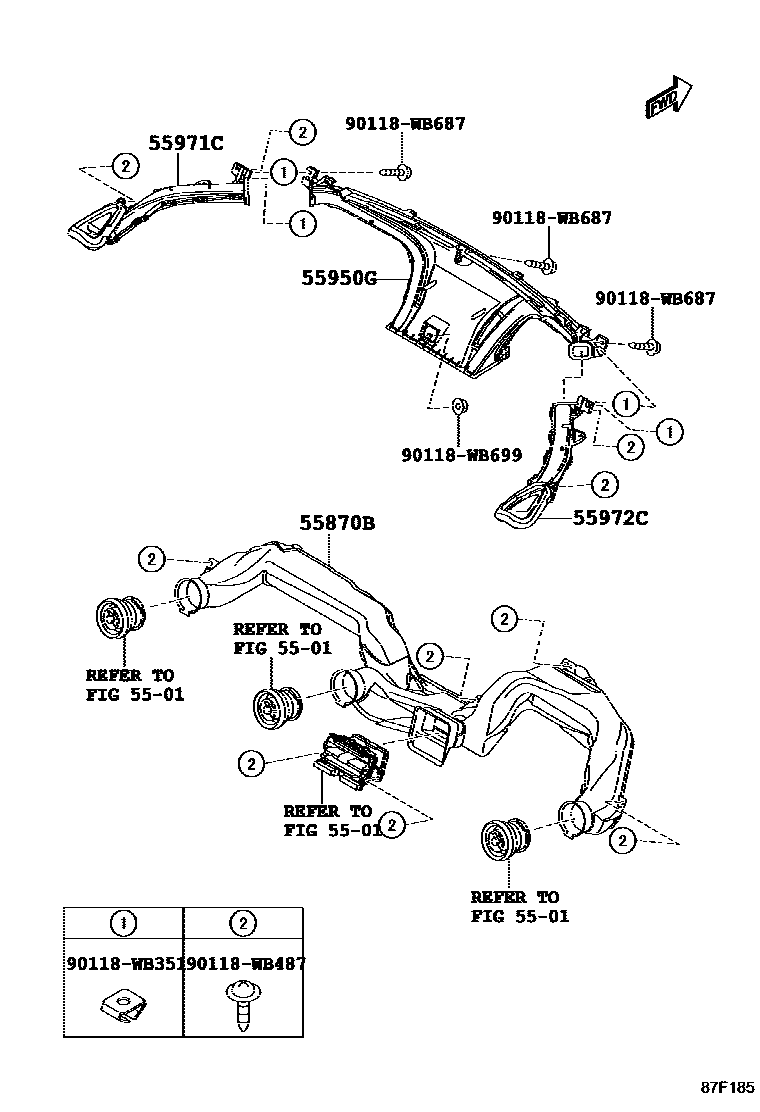

| 55870B | Heater to air regulator air duct assembly | 55840-WB001 |

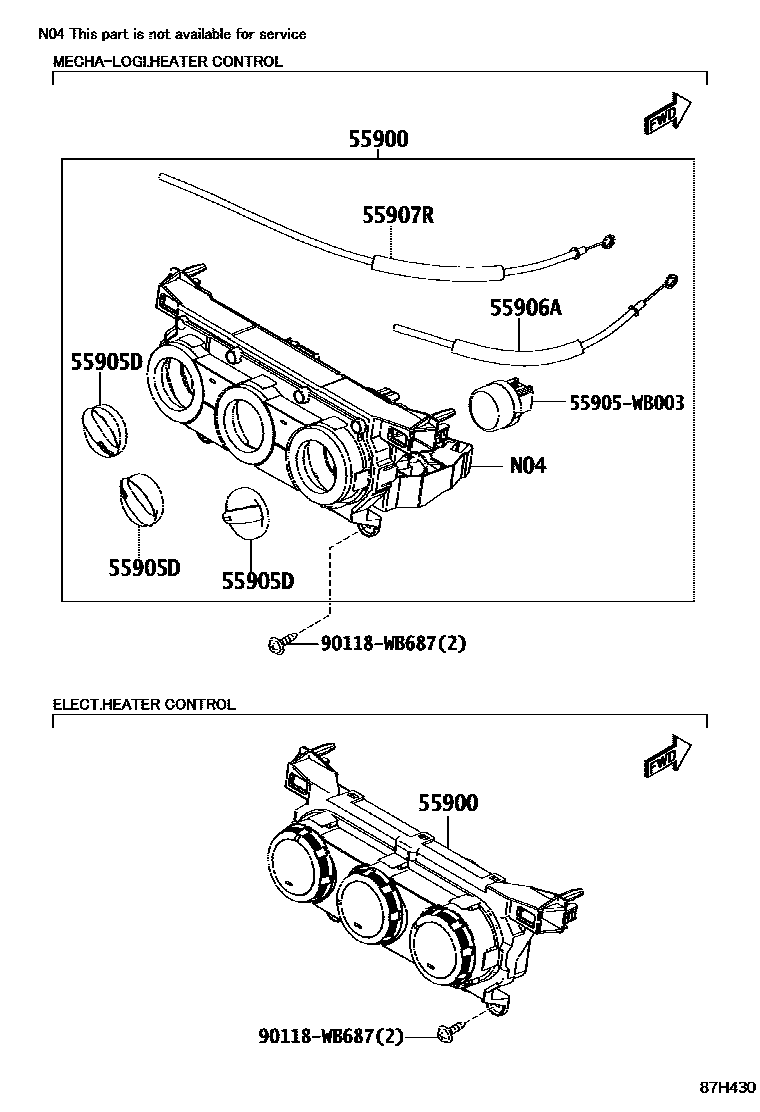

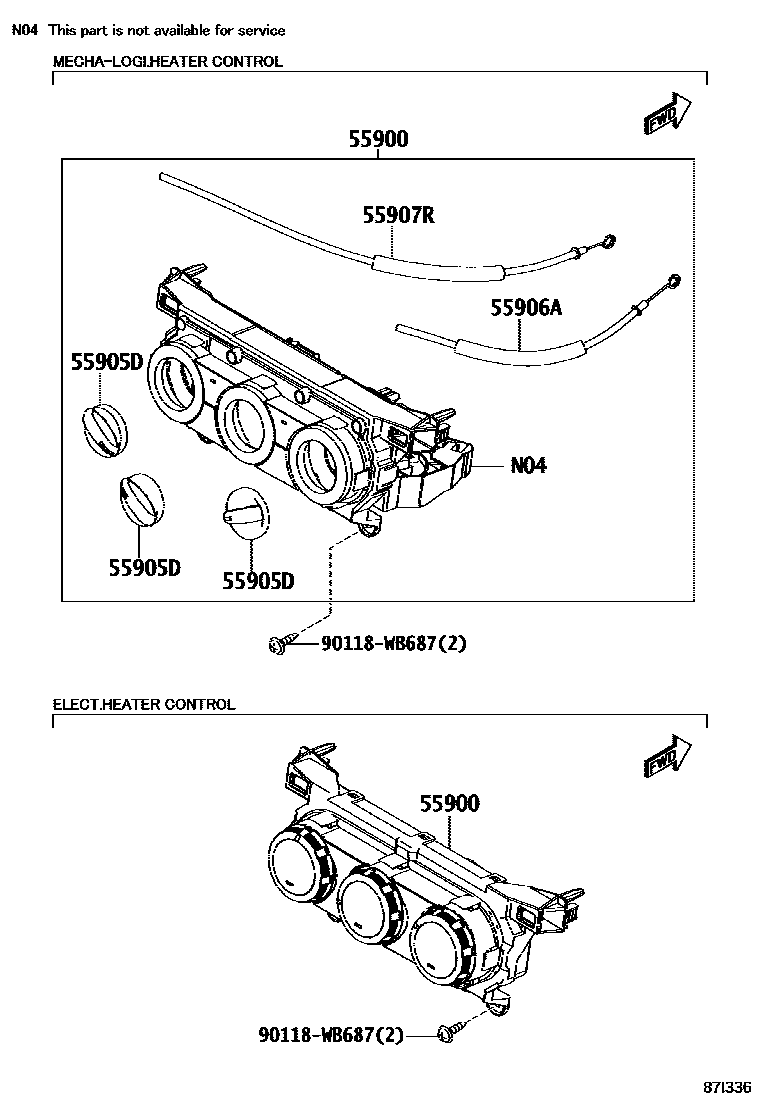

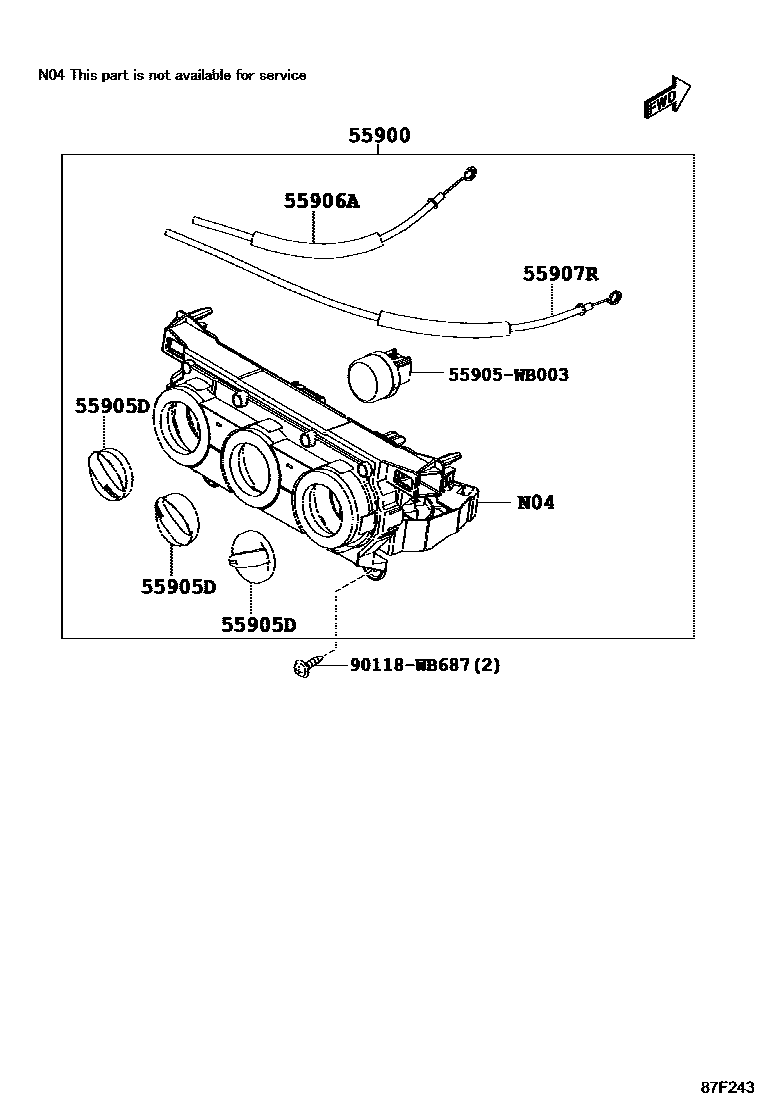

| 55900 | Air conditioning control assembly | 55936-WB001 · 55936-WB002 · 55936-WB006 · 55936-WB007 · 55936-WB012 · 55936-WB013 · 55936-WB015 · 55936-WB019 · 55936-WB020 · 55936-WB021 · 55936-WB022 |
| 55905D | Control button sub-assembly | 55905-WB001 · 55905-WB002 |
| 55906A | Defroster damper control cable sub-assembly | 55906-WB001 |
| 55907R | Temperature control cable sub-assembly | 55907-WB001 |
| 55950G | Defroster nozzle assembly | 55950-WB001 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-WB001 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-WB001 |

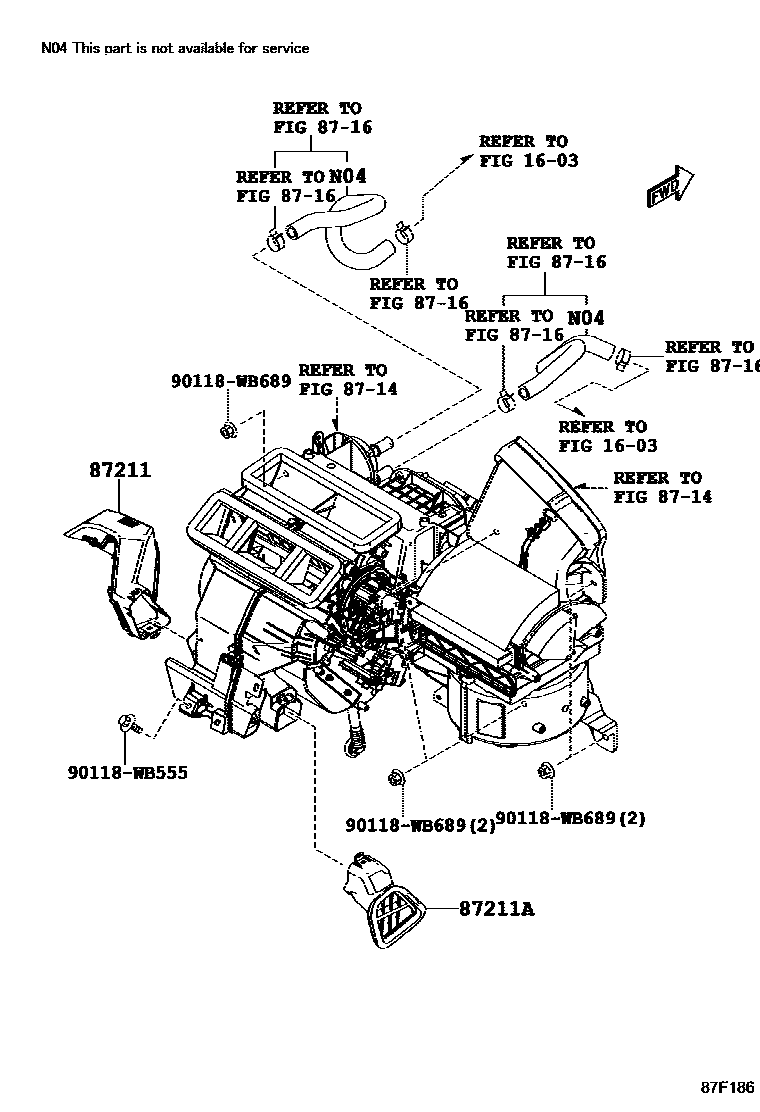

| 87211 | No. 1 air duct | 87414-WB001 |
| 87211A | Duct No. 2 | 87413-WB001 |

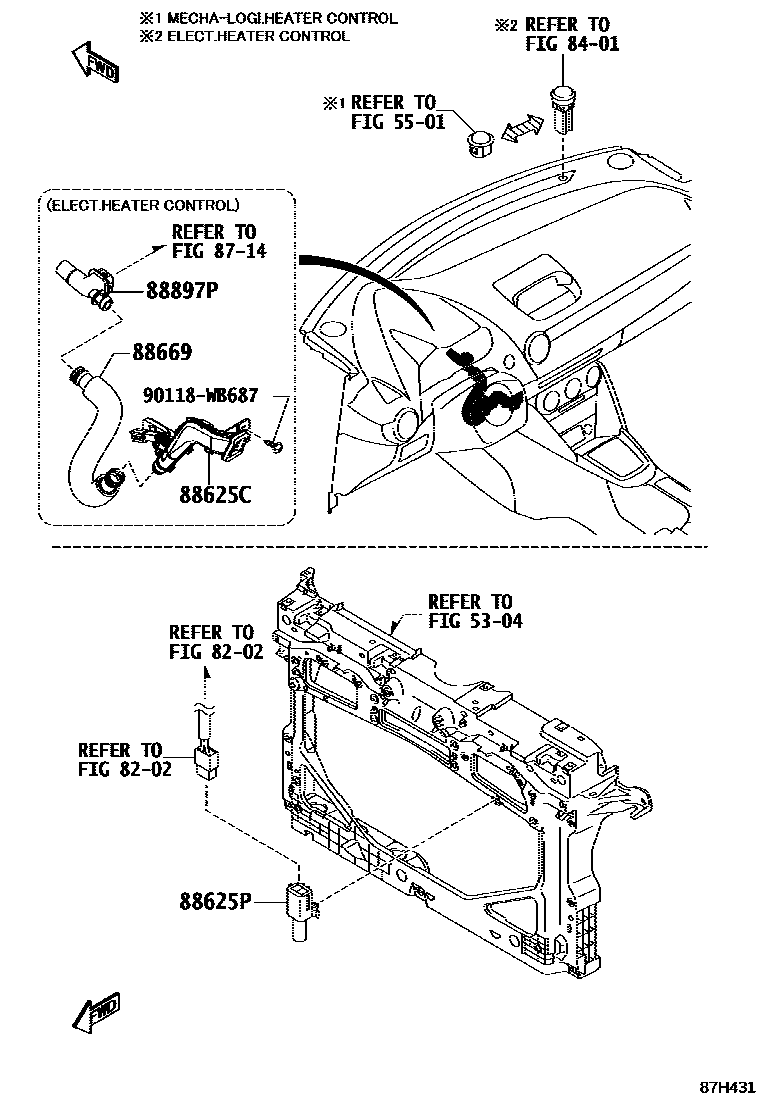

| 88625C | Cooler thermistor | 88625-WB002 |

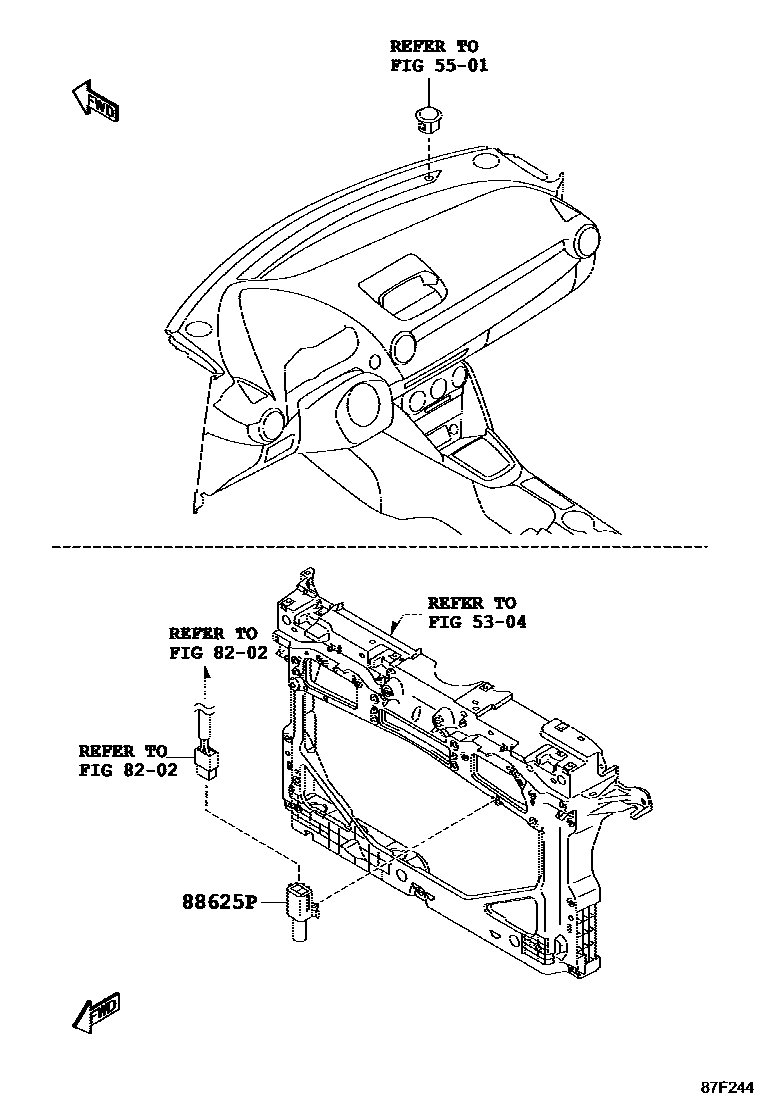

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-WB001 |
| 88669 | Cooler air hose | 88669-WB001 |
| 88897P | aspirator | 88897-WB001 |
