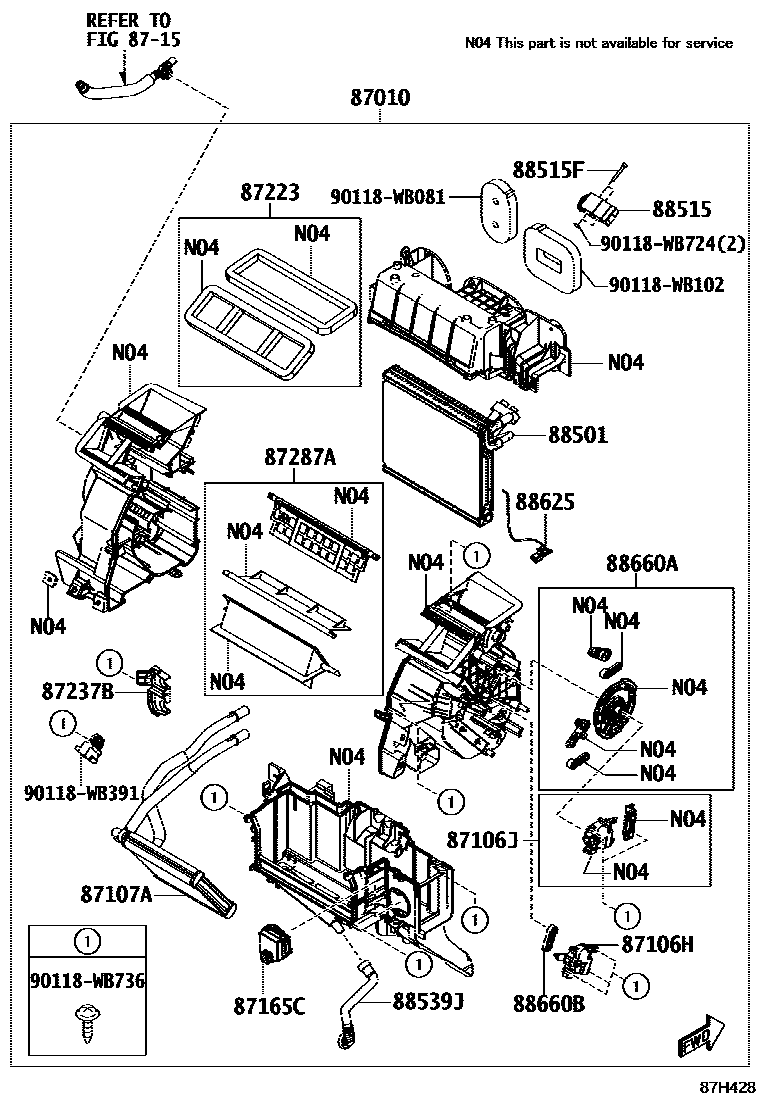

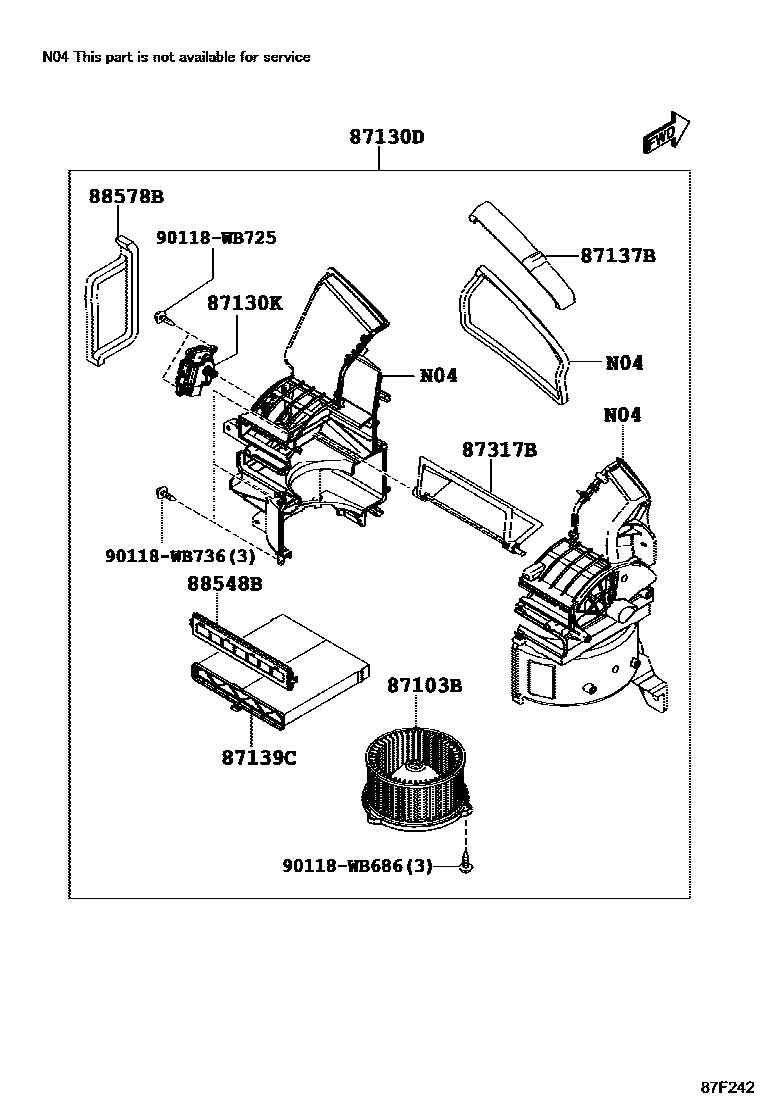

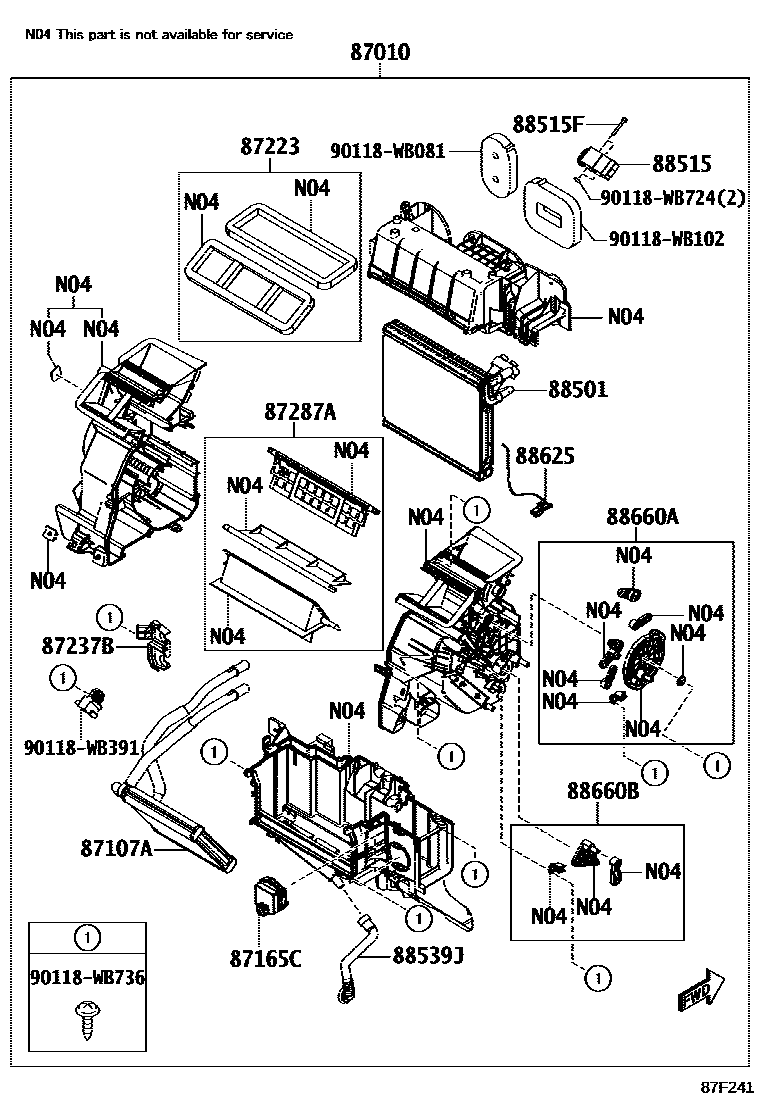

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-WB003 · 87010-WB004 · 87010-WB005 · 87010-WB006 |
| 87103B | Blower motor sub-assembly with fan | 87103-WB001 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-WB001 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-WB002 |
| 87107A | Heater radiator device sub-assembly | 87107-WB002 |
| 87130D | Blower assembly | 87130-WB001 · 87130-WB003 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-WB003 |
| 87137B | heater blower cover | 87137-WB001 |
| 87138C | Blower resistor | 87138-WB001 |
| 87139C | air purification filter | 87139-WB001 |
| 87165C | Blower motor control device | 87165-WB001 |
| 87223 | Duct gasket | 87429-WB001 |
| 87237B | Heater connection cover | 87237-WB001 |
| 87287A | heater choke | 87287-WB001 |
| 87317B | heater duct damper | 87317-WB001 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-WB001 · 88501-WB002 |
| 88515 | Cooler expansion valve | 88515-WB001 |
| 88515F | BOULON(POUR DETENDEUR DU REFROIDISSEUR) | 90118-WB365 |
| 88539J | Cooler drain hose | 88539-WB001 |
| 88548B | air filter housing | 88548-WB001 |
| 88578B | Cooling unit seal No. 1 | 88578-WB001 |
| 88625 | Cooler No. 1 Thermistor | 88625-WB001 |
| 88660A | No. 1 air conditioning servo mechanism assembly | 88660-WB001 · 88660-WB003 |
| 88660B | No. 2 air conditioning servo mechanism assembly | 88660-WB002 · 88660-WB004 |
