Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 3 images and 7 PNC and OE references.

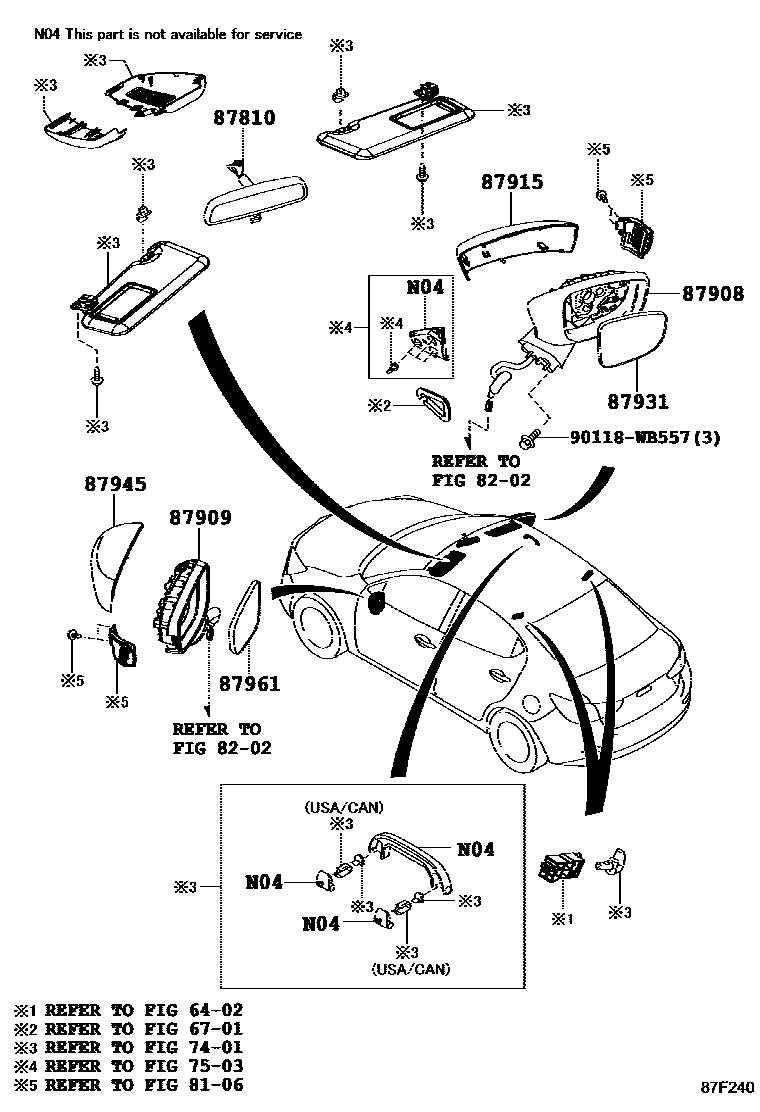

Toyota YARIS 后视镜 EPC diagram — 87F240
后视镜 — 87F240 (201506 – 201808)

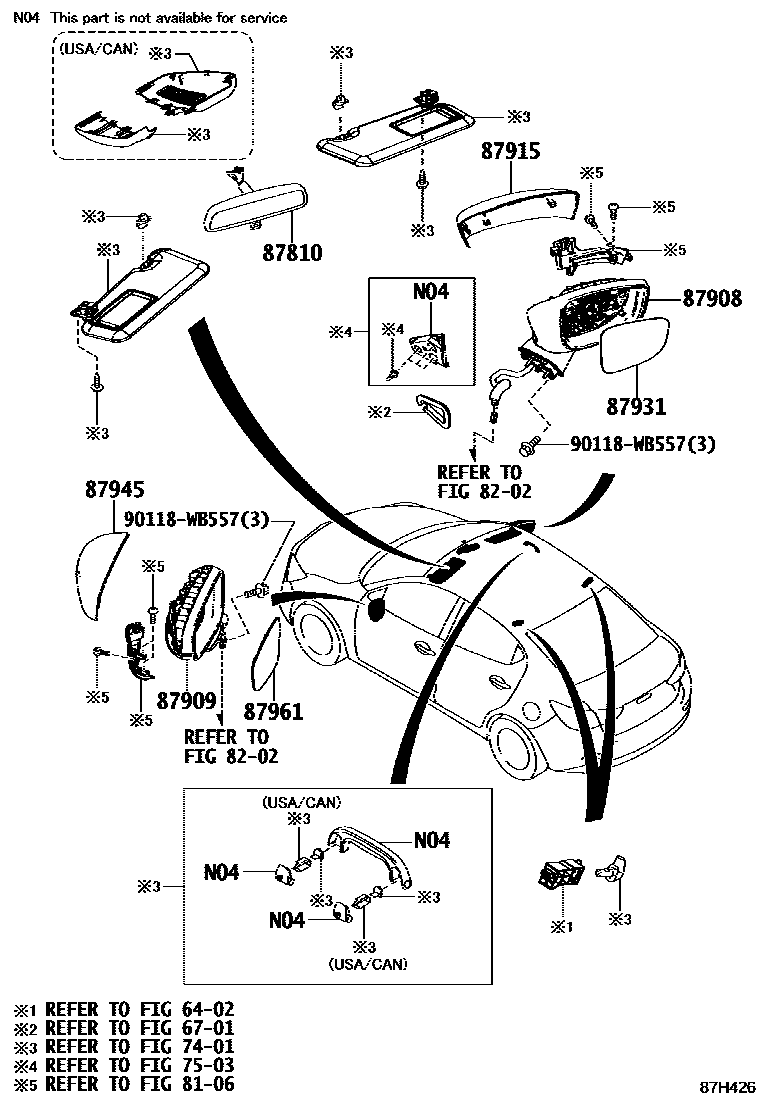

Toyota YARIS 后视镜 EPC diagram — 87H426
后视镜 — 87H426 (201808 – 201908)

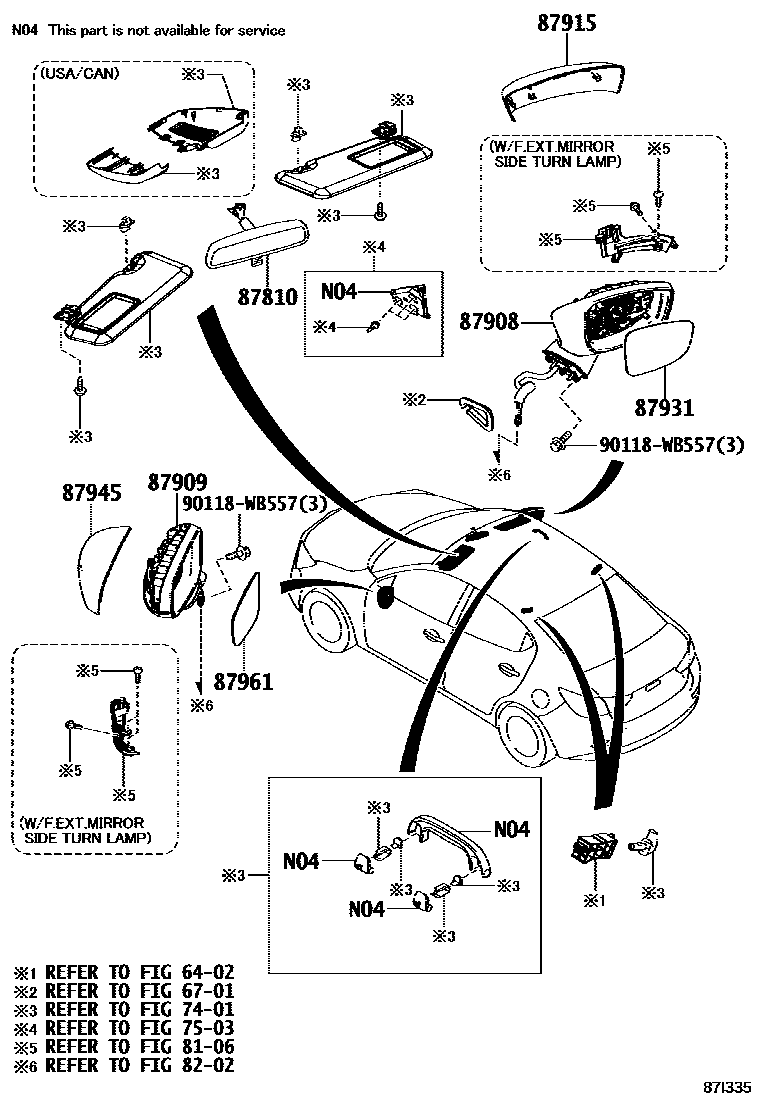

Toyota YARIS 后视镜 EPC diagram — 87I335
后视镜 — 87I335 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-WB001 · 87810-WB002
87908Right exterior rearview mirror actuator assembly87908-WB001 · 87908-WB002 · 87908-WB003 · 87908-WB006 · 87908-WB008 · 87908-WB009 · 87908-WB010 · 87908-WB011 · 87908-WB012 · 87908-WB013
87909Left exterior rearview mirror actuator assembly87909-WB001 · 87909-WB002 · 87909-WB003 · 87909-WB006 · 87909-WB008 · 87909-WB009 · 87909-WB010 · 87909-WB011 · 87909-WB012 · 87909-WB013
87915Right exterior rearview mirror cover87915-WB001 · 87915-WB002 · 87915-WB003 · 87915-WB004 · 87915-WB005 · 87915-WB006 · 87915-WB007 · 87915-WB008 · 87915-WB009 · 87915-WB010 · 87915-WB011 · 87915-WB012 · 87915-WB013 · 87915-WB014 · 87915-WB015
87931Right exterior rearview mirror87931-WB001 · 87931-WB002 · 87931-WB004
87945Left exterior rearview mirror cap87945-WB001 · 87945-WB002 · 87945-WB003 · 87945-WB004 · 87945-WB005 · 87945-WB006 · 87945-WB007 · 87945-WB008 · 87945-WB009 · 87945-WB010 · 87945-WB011 · 87945-WB012 · 87945-WB013 · 87945-WB014 · 87945-WB015
87961Left exterior rearview mirror87961-WB001 · 87961-WB002 · 87961-WB004
