Toyota YARIS 倒车影像和摄像头 — Figure 8606

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 4 images and 1 PNC and OE references.

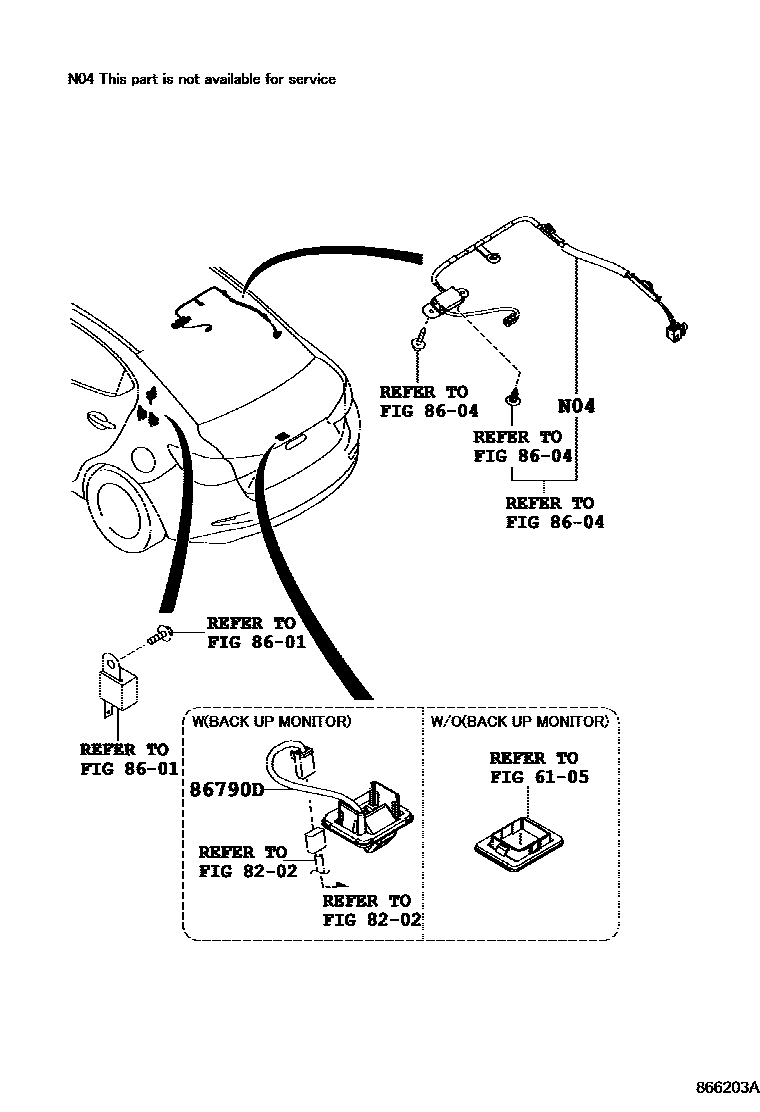

Toyota YARIS 倒车影像和摄像头 EPC diagram — 866203A
倒车影像和摄像头 — 866203A (201506 – 201808)
Toyota YARIS 倒车影像和摄像头 EPC diagram — 867358
倒车影像和摄像头 — 867358 (201808 – 201908)

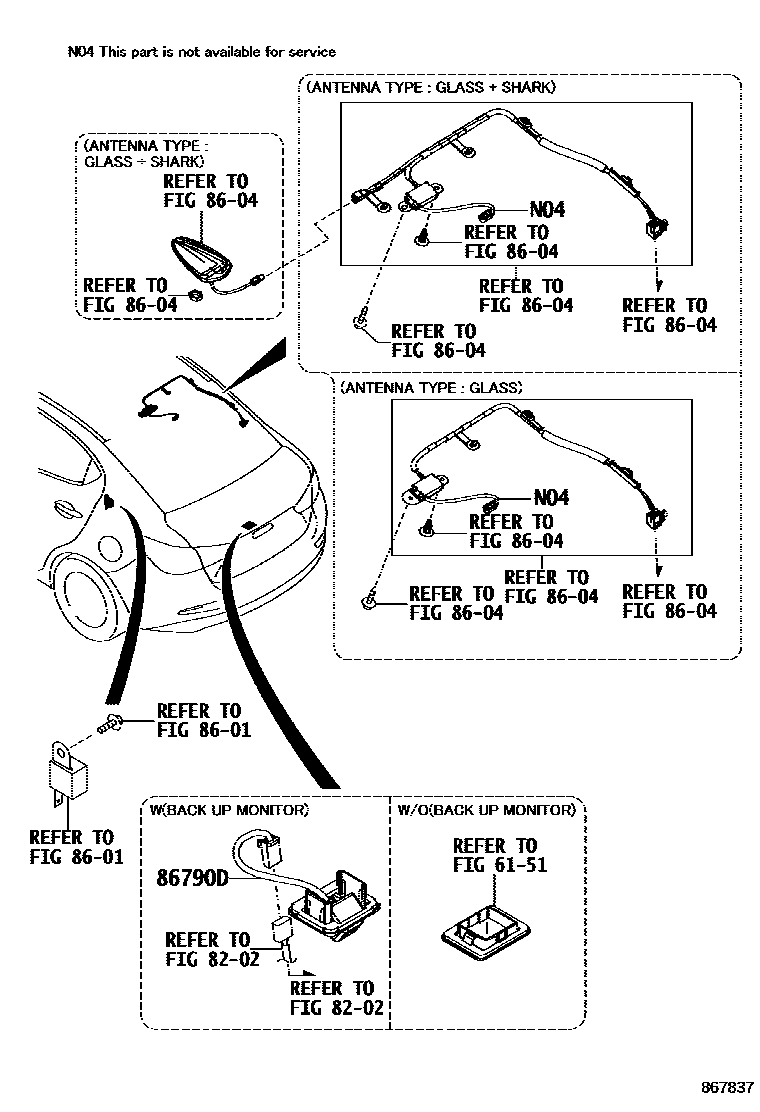

Toyota YARIS 倒车影像和摄像头 EPC diagram — 867837
倒车影像和摄像头 — 867837 (201908 – 999999)

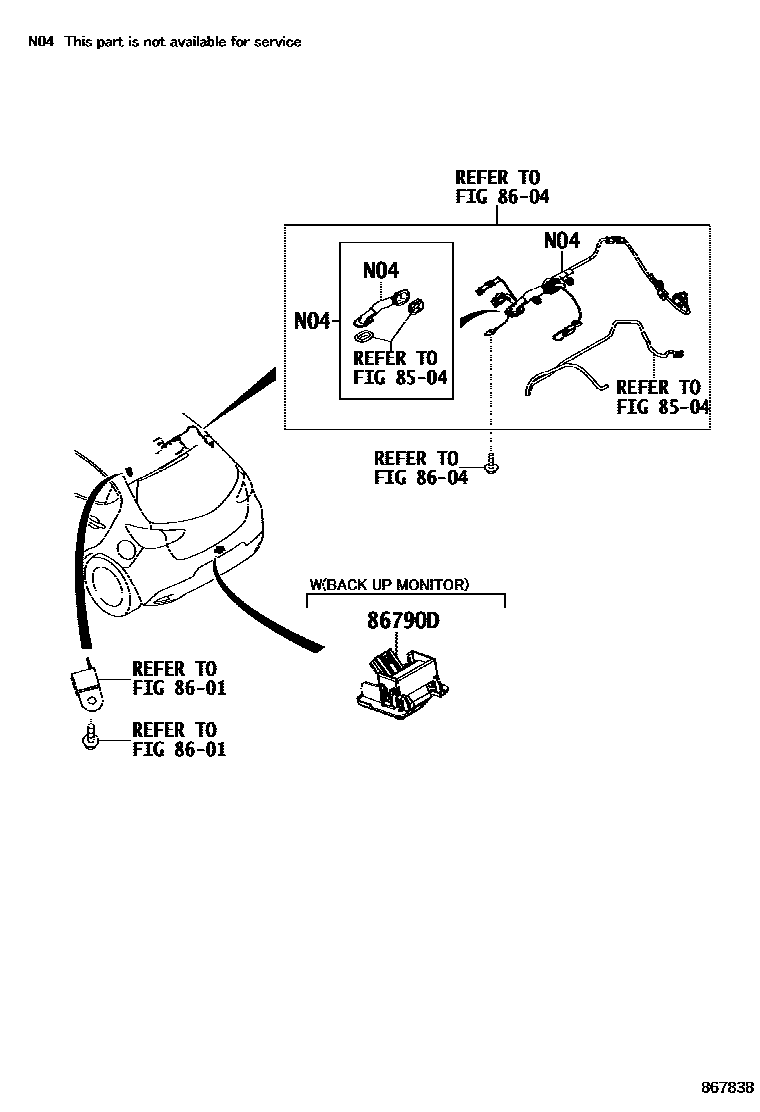

Toyota YARIS 倒车影像和摄像头 EPC diagram — 867838
倒车影像和摄像头 — 867838 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
86790DRear reversing image camera assembly86790-WB002 · 86790-WB003
