Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 12 images and 6 PNC and OE references.

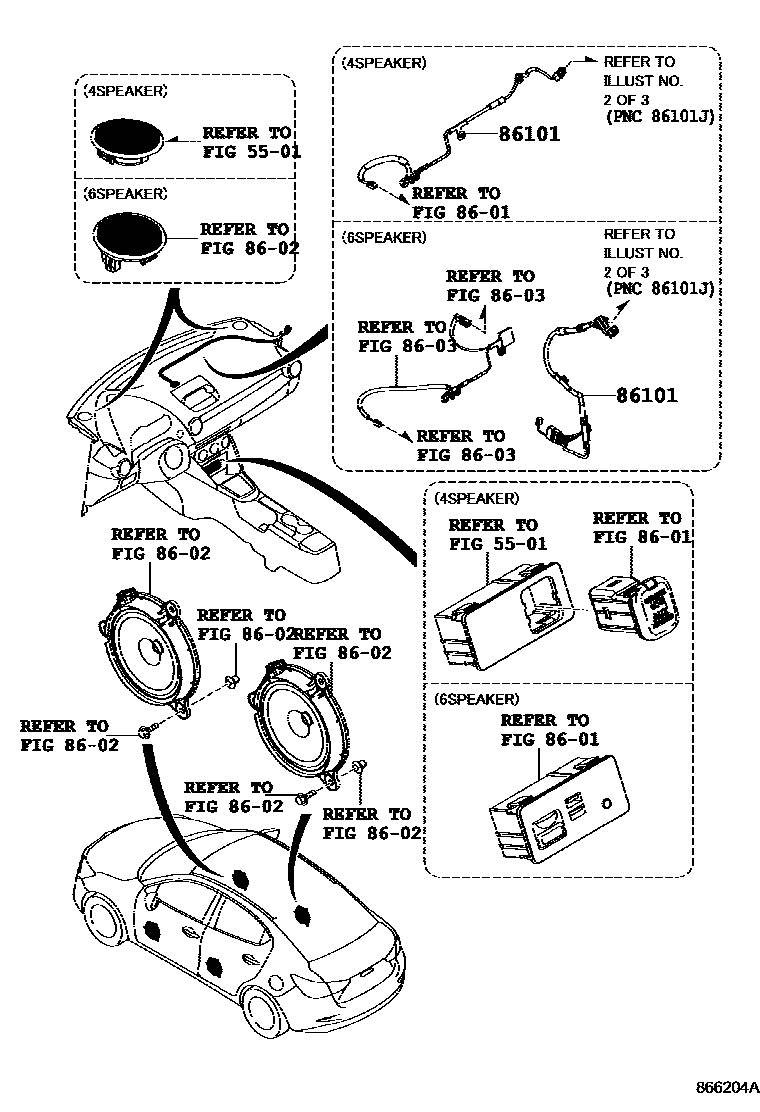

Toyota YARIS antenna EPC diagram — 866204A
antenna — 866204A (201506 – 201908)

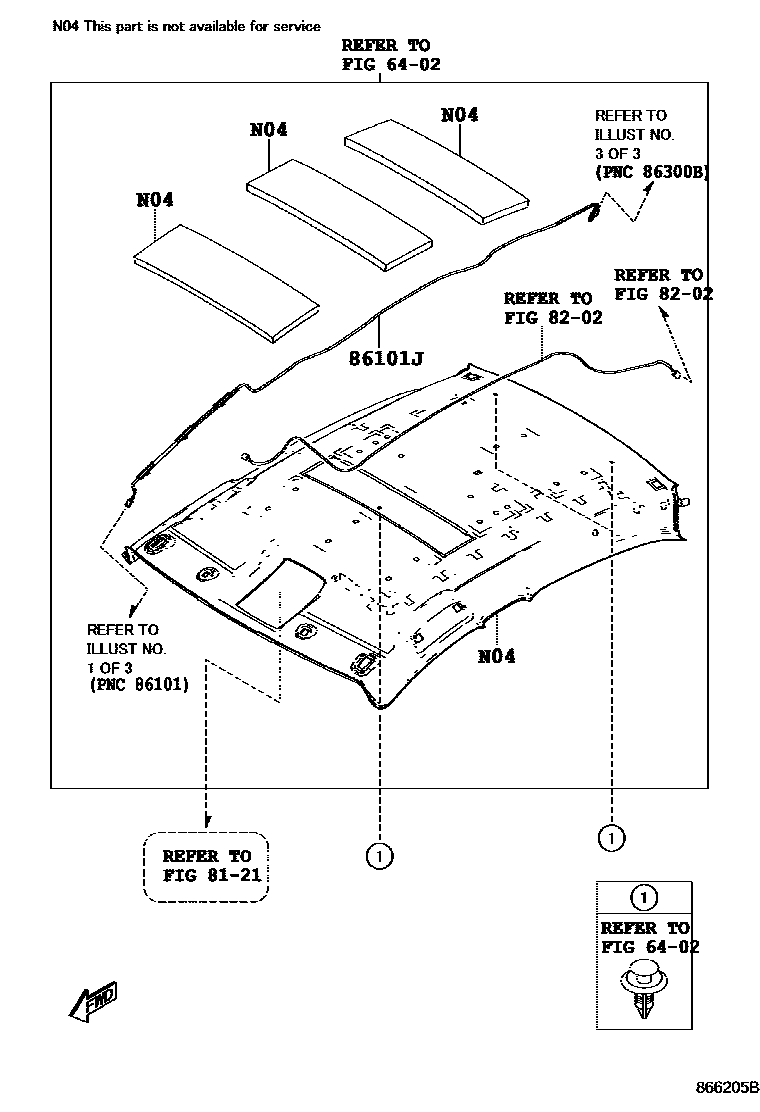

Toyota YARIS antenna EPC diagram — 866205B
antenna — 866205B (201506 – 201808)

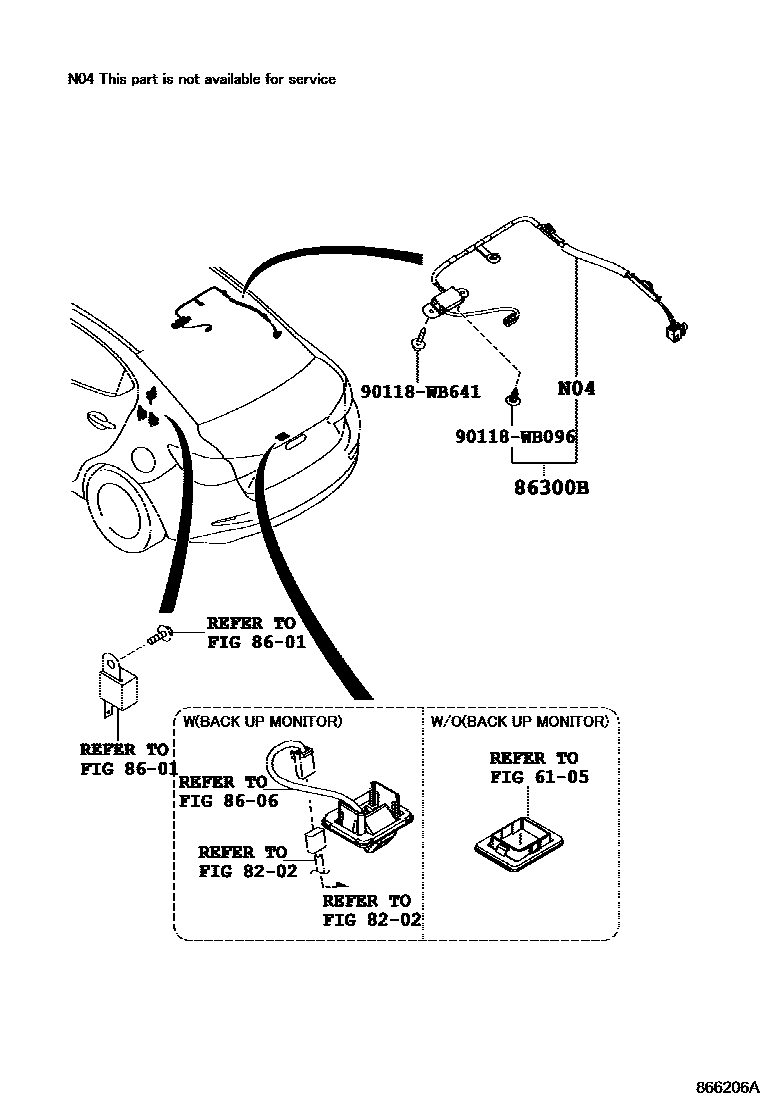

Toyota YARIS antenna EPC diagram — 866206A
antenna — 866206A (201506 – 201808)

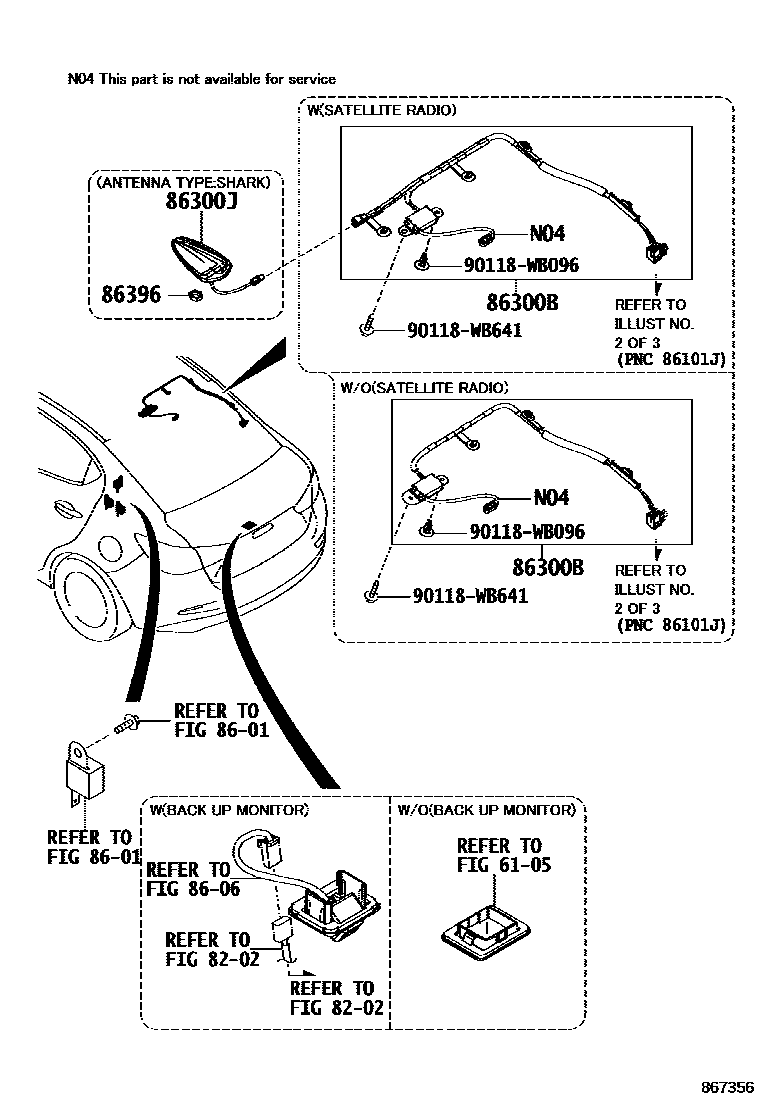

Toyota YARIS antenna EPC diagram — 867356
antenna — 867356 (201808 – 201908)

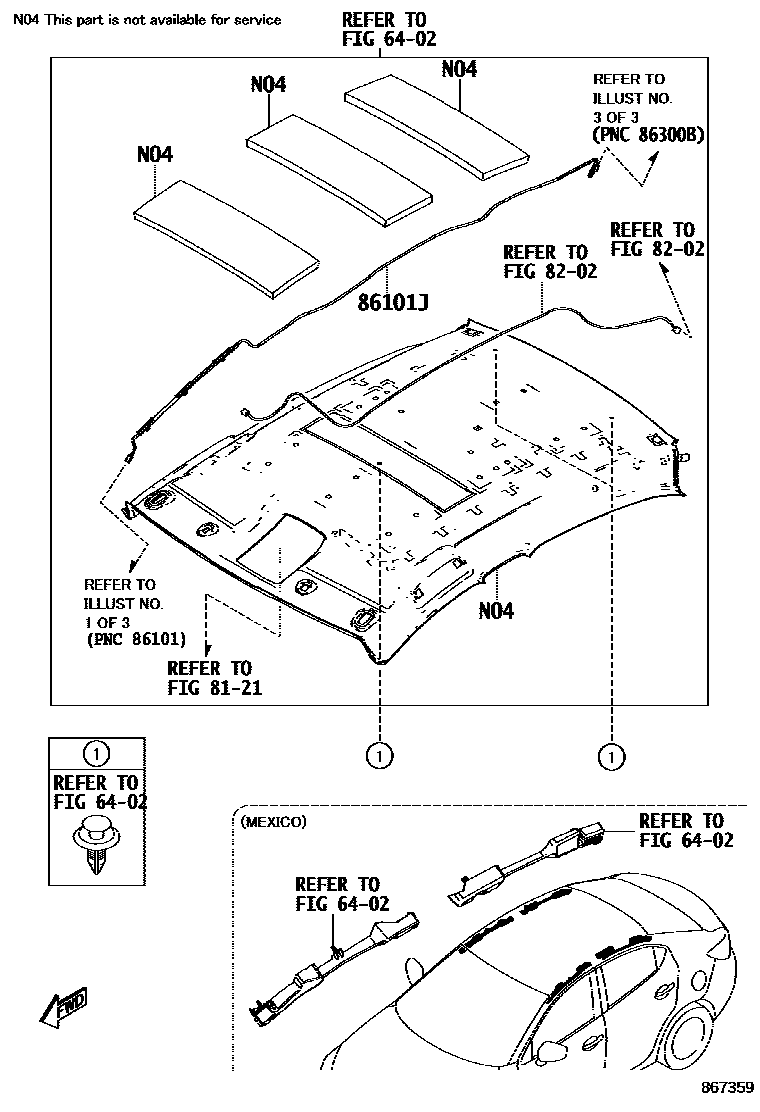

Toyota YARIS antenna EPC diagram — 867359
antenna — 867359 (201808 – 201908)

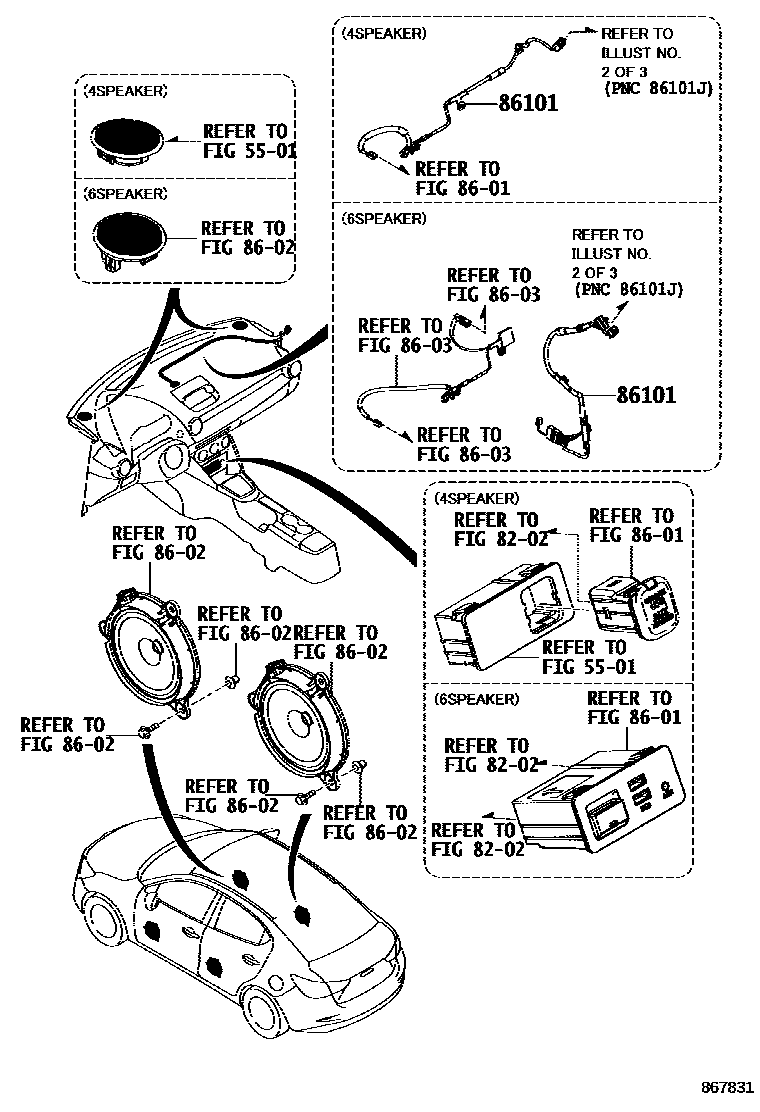

Toyota YARIS antenna EPC diagram — 867831
antenna — 867831 (201908 – 999999)

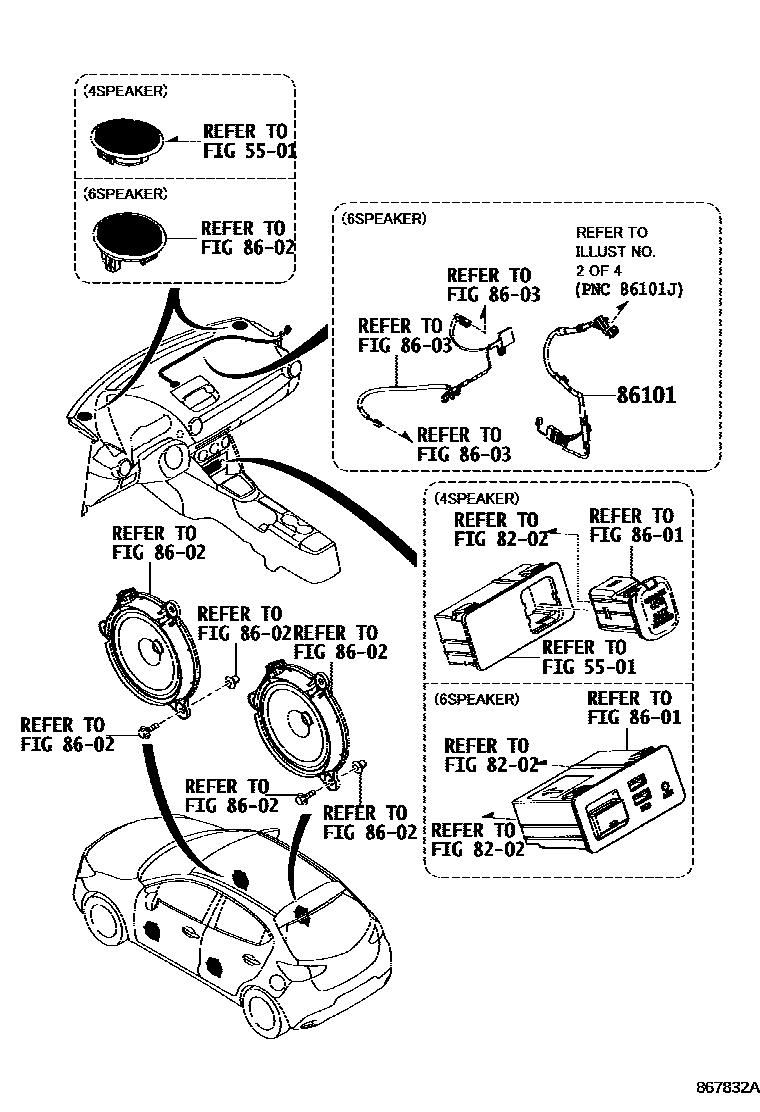

Toyota YARIS antenna EPC diagram — 867832A
antenna — 867832A (201908 – 999999)

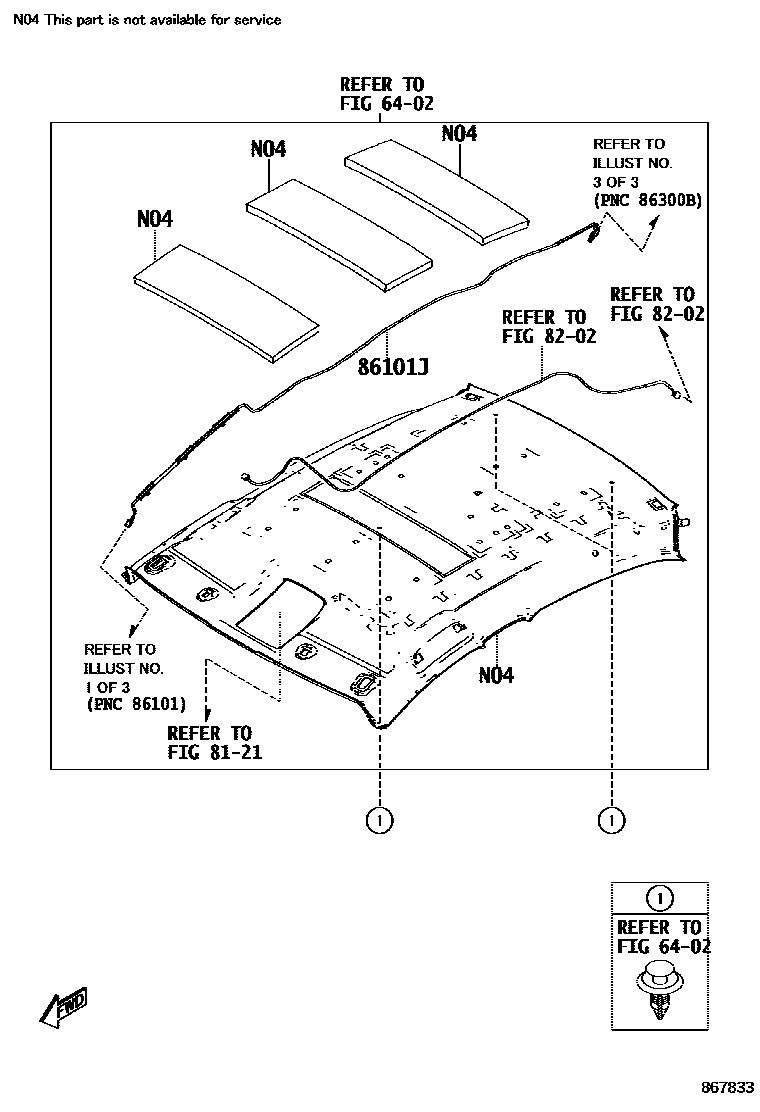

Toyota YARIS antenna EPC diagram — 867833
antenna — 867833 (201908 – 999999)

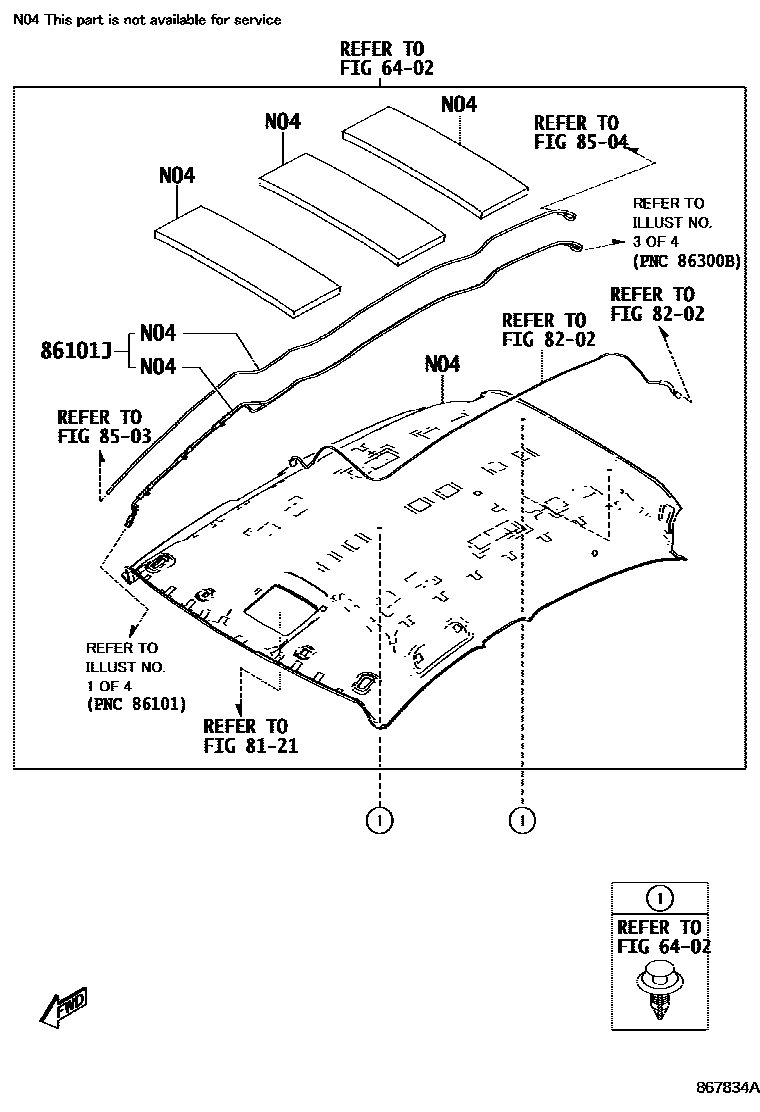

Toyota YARIS antenna EPC diagram — 867834A
antenna — 867834A (201908 – 999999)

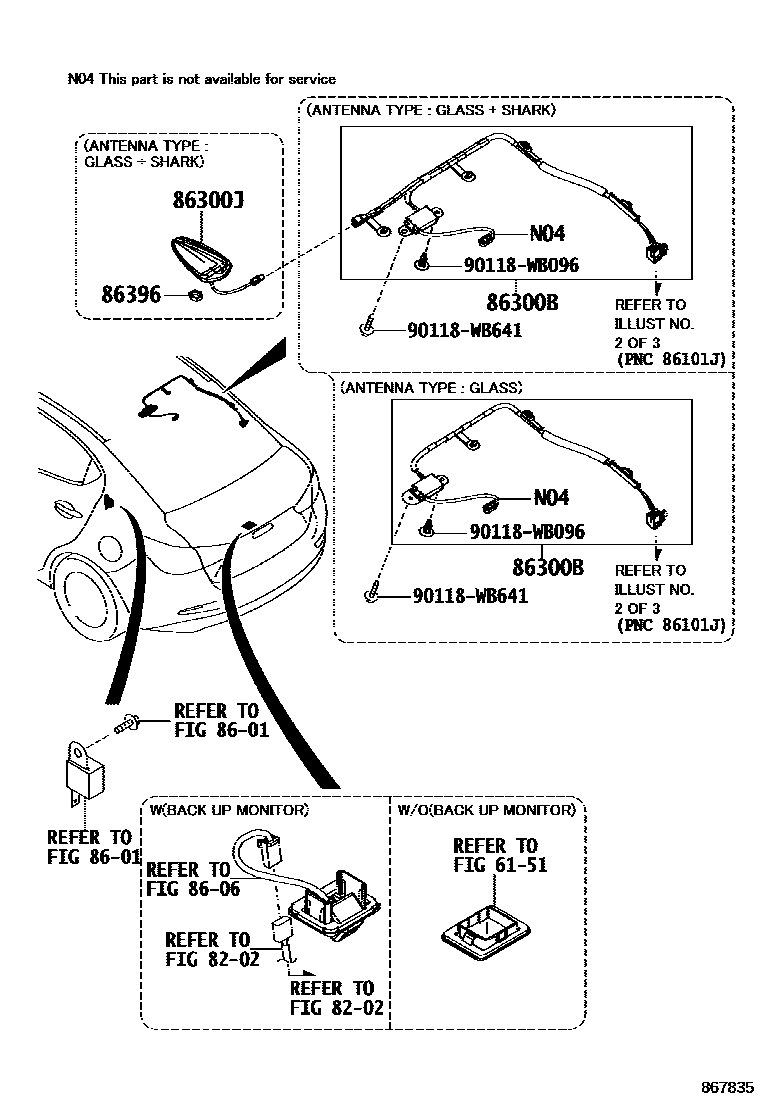

Toyota YARIS antenna EPC diagram — 867835
antenna — 867835 (201908 – 999999)

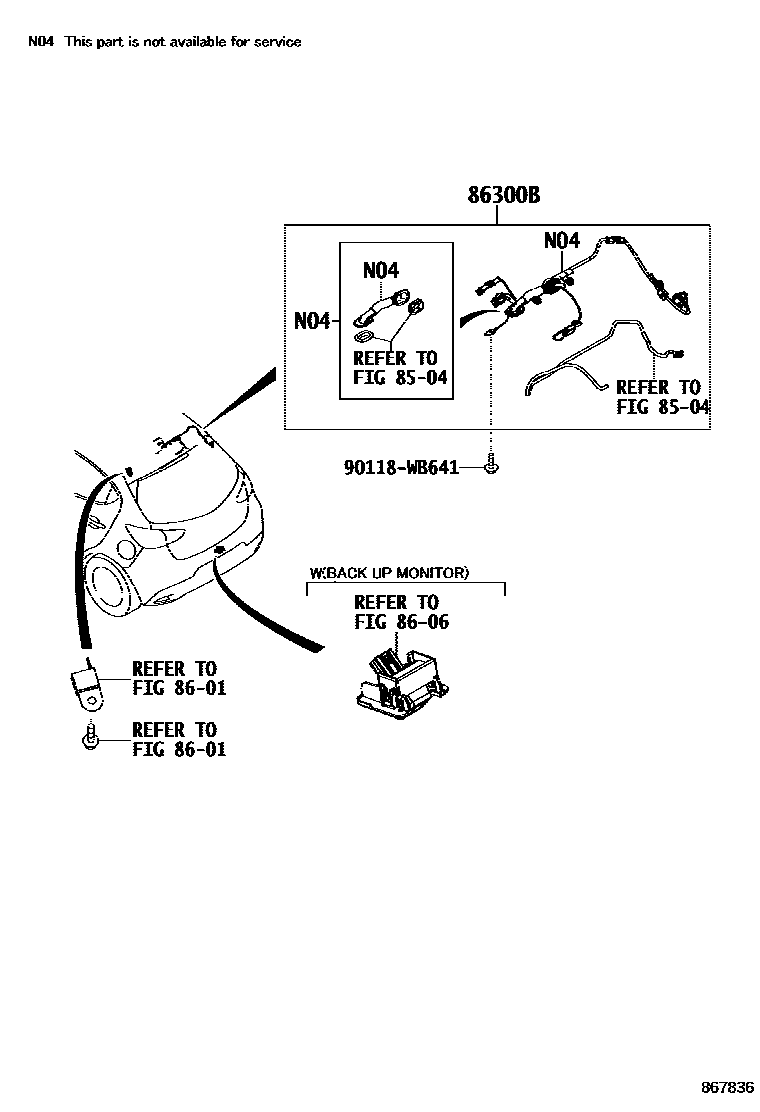

Toyota YARIS antenna EPC diagram — 867836
antenna — 867836 (201908 – 999999)

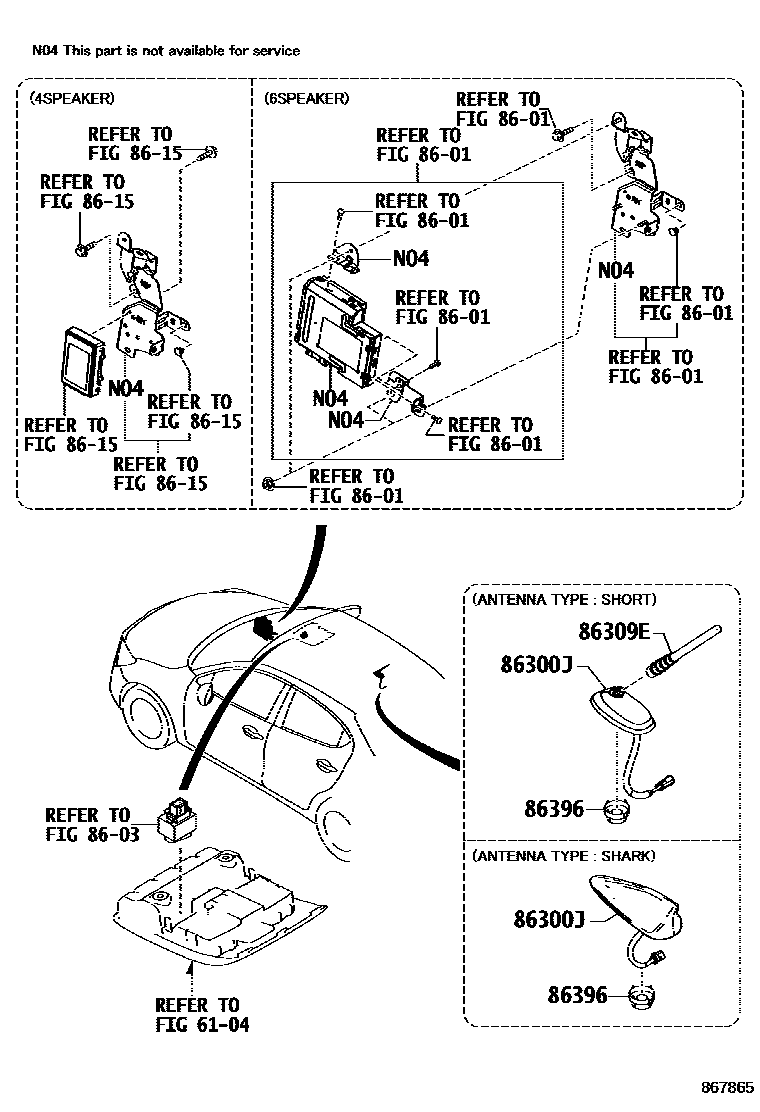

Toyota YARIS antenna EPC diagram — 867865
antenna — 867865 (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly82143-WB001 · 82143-WB002 · 86101-WB001
86101JNo. 2 antenna wire sub-assembly86101-WB003 · 86101-WB004 · 86101-WB005 · 86101-WB008 · 86101-WB009
86300BAmplifier antenna assembly86101-WB006 · 86101-WB007 · 86300-WB001 · 86300-WB009
86300JRoof antenna assembly86300-WB002 · 86300-WB003 · 86300-WB004 · 86300-WB005 · 86300-WB006 · 86300-WB007 · 86300-WB008 · 86300-WB010 · 86300-WB011 · 86300-WB012 · 86300-WB013 · 86300-WB014 · 86300-WB015 · 86300-WB016 · 86300-WB024
86309ERoof antenna sub-assembly86309-WB001
86396Antenna nut86396-WB001 · 86396-WB002
