Toyota YARIS 导航和前监视器显示屏 — Figure 8603

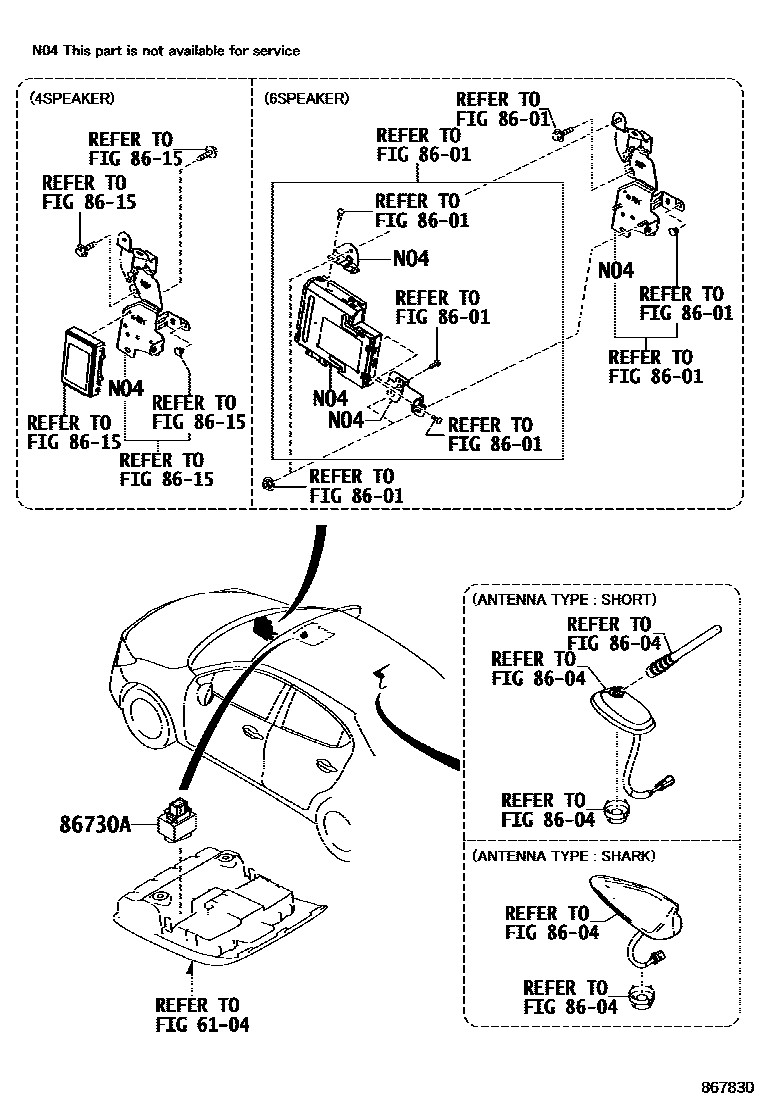

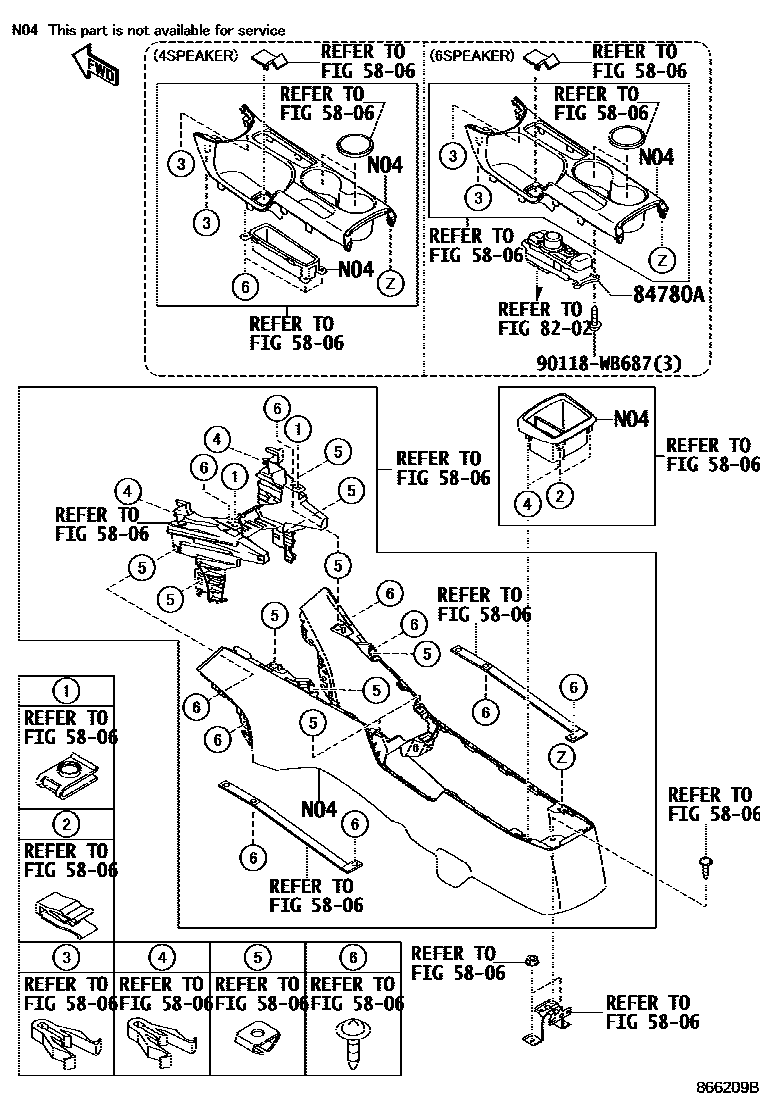

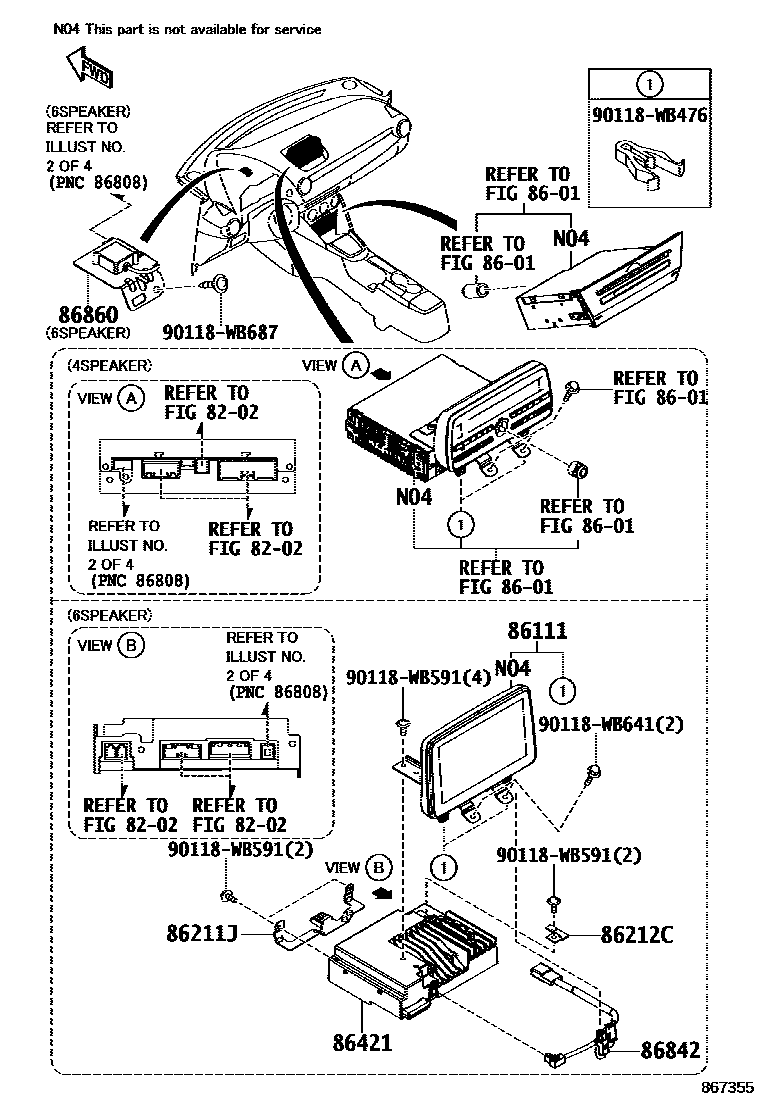

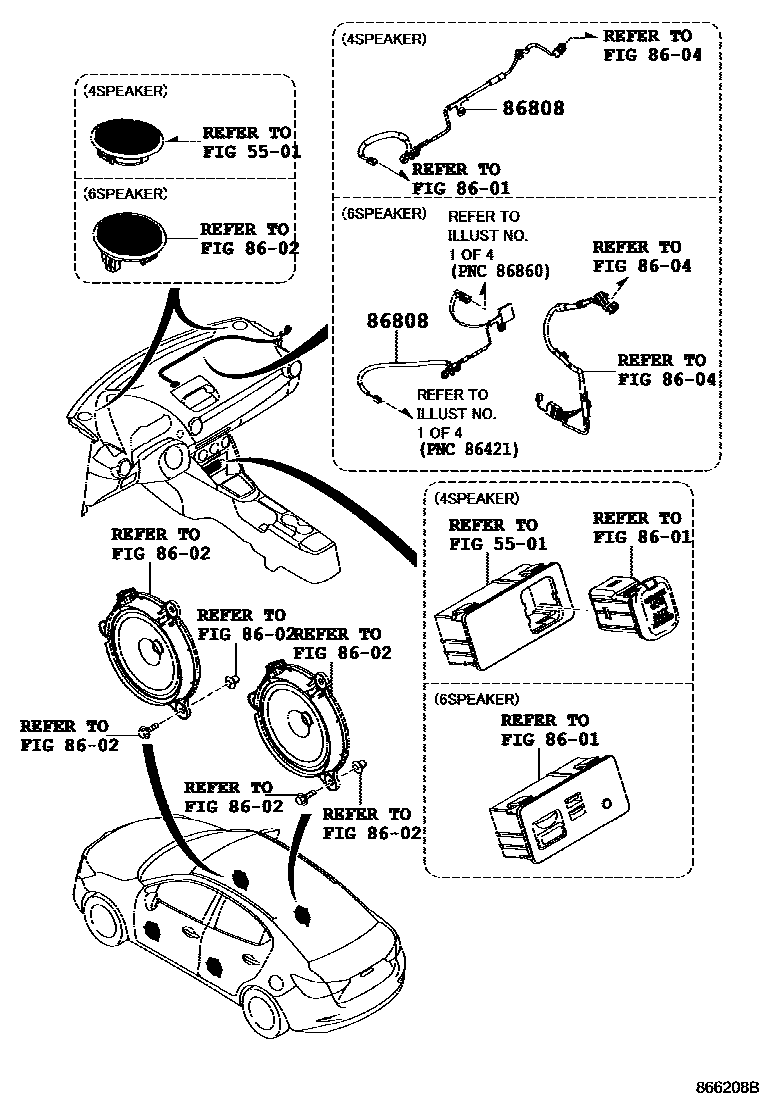

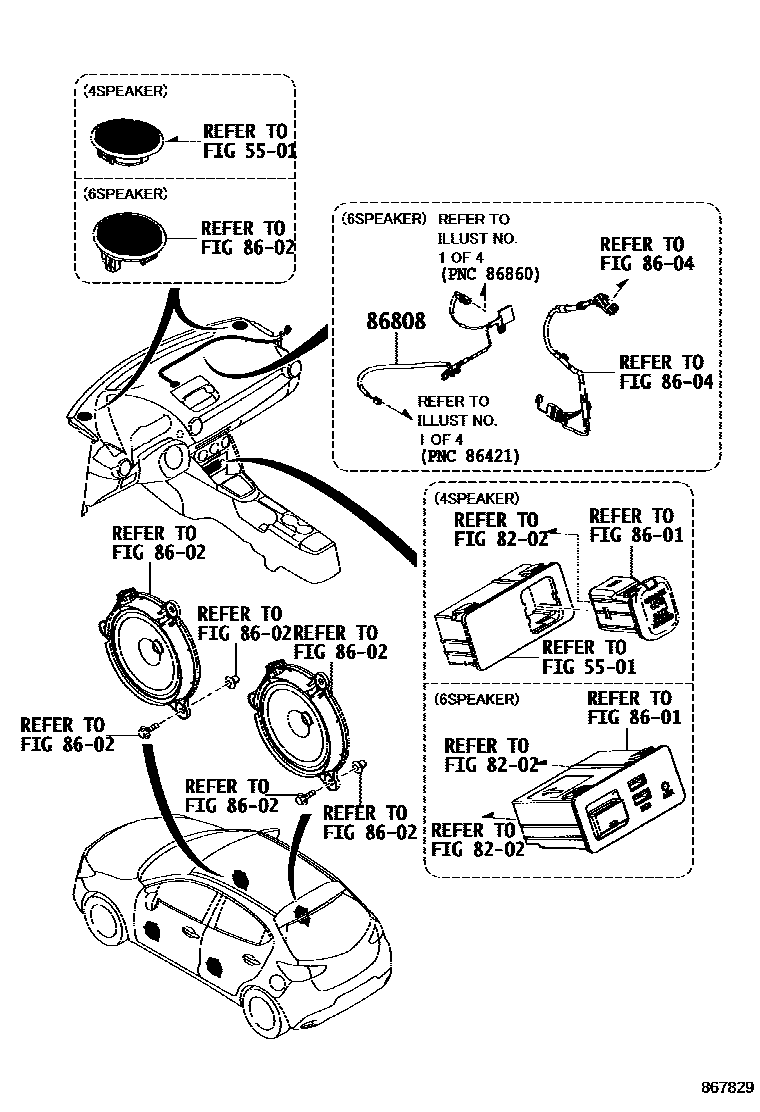

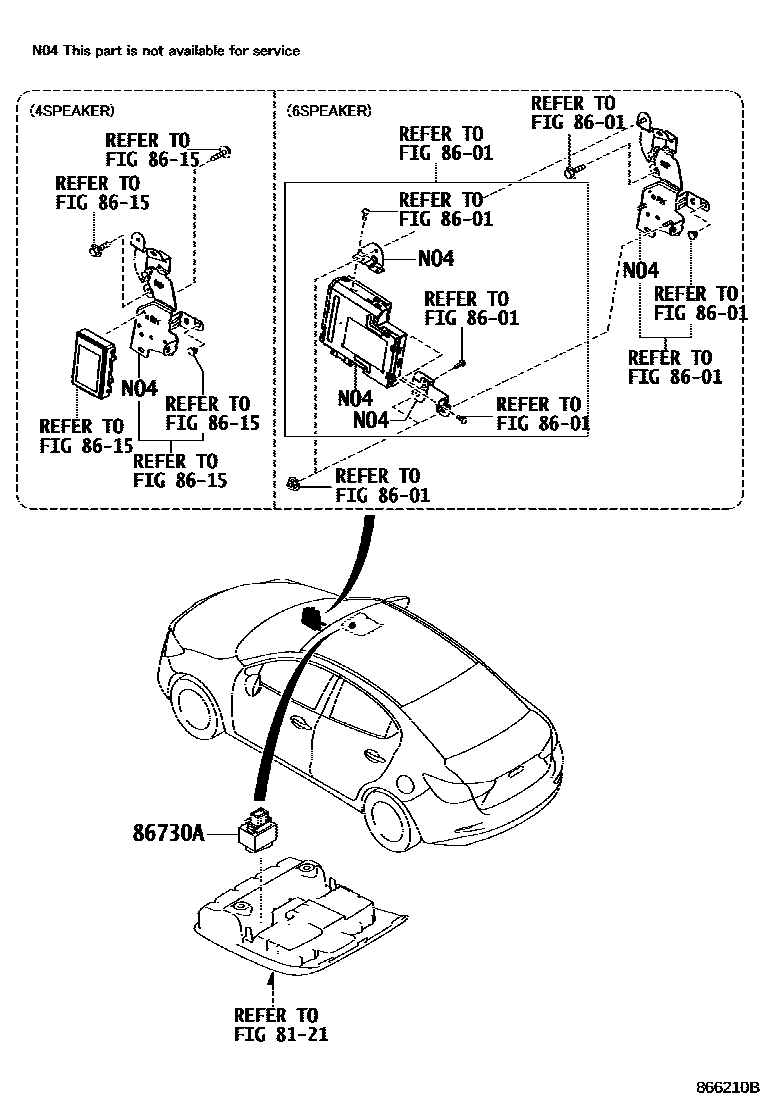

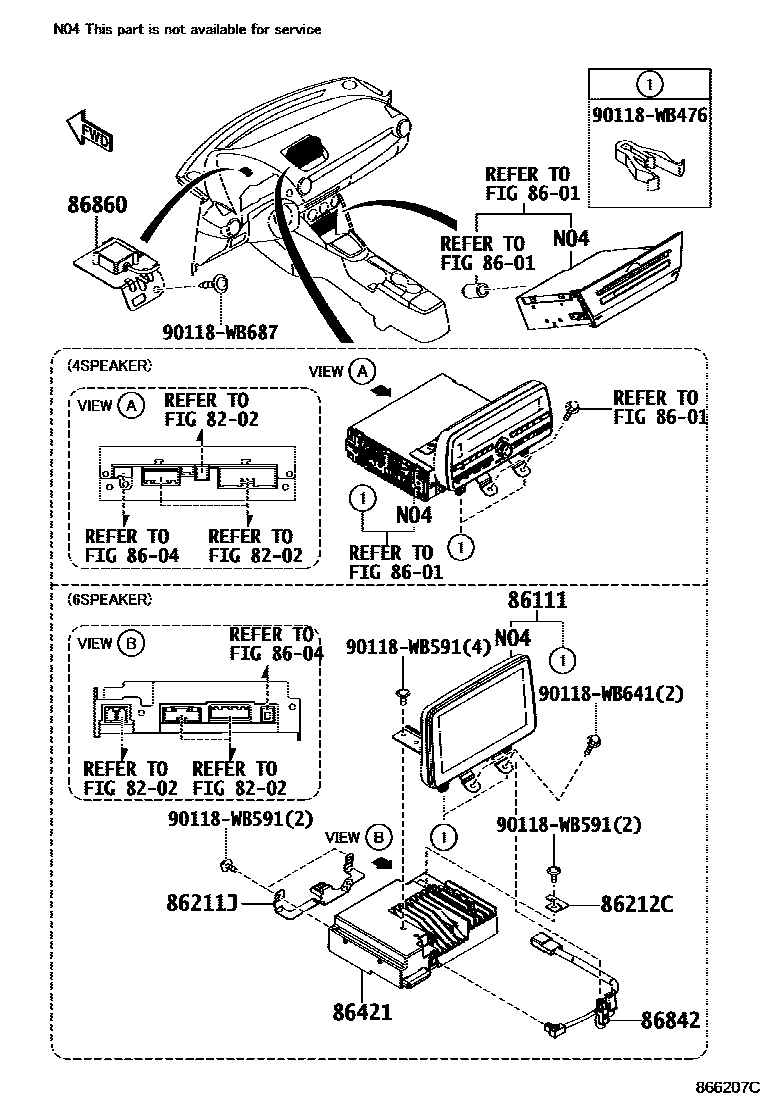

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 8 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84780A | Remote operation controller assembly | 84780-WB001 · 84780-WB002 |
| 86111 | Multi-function display (CRT display) | 86111-WB001 · 86111-WB003 · 86111-WB004 |
| 86211J | No. 1 radio bracket | 86285-WB003 · 86285-WB005 |
| 86212C | No. 2 radio bracket | 86212-WB001 |
| 86421 | Navigation module board | 86421-WB002 · 86421-WB004 · 86421-WB005 · 86421-WB006 · 86421-WB007 · 86421-WB009 · 86421-WB010 · 86421-WB012 |
| 86730A | Telephone amplifier assembly | 86730-WB001 · 86730-WB002 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86101-WB002 |
| 86842 | Navigation harness No. 1 | 86842-WB001 |
| 86860 | Navigation antenna assembly | 86860-WB001 · 86860-WB002 |
